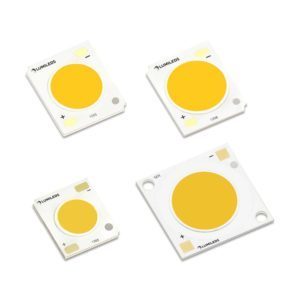

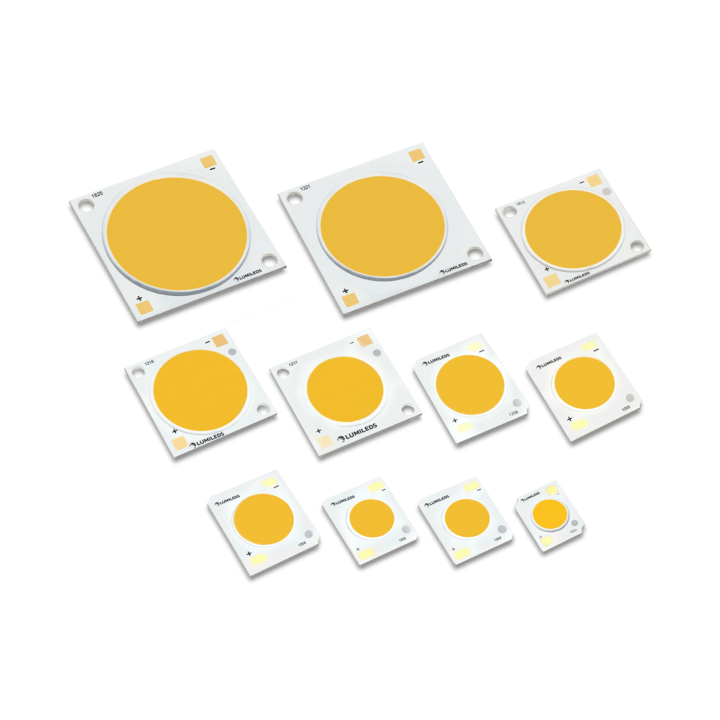

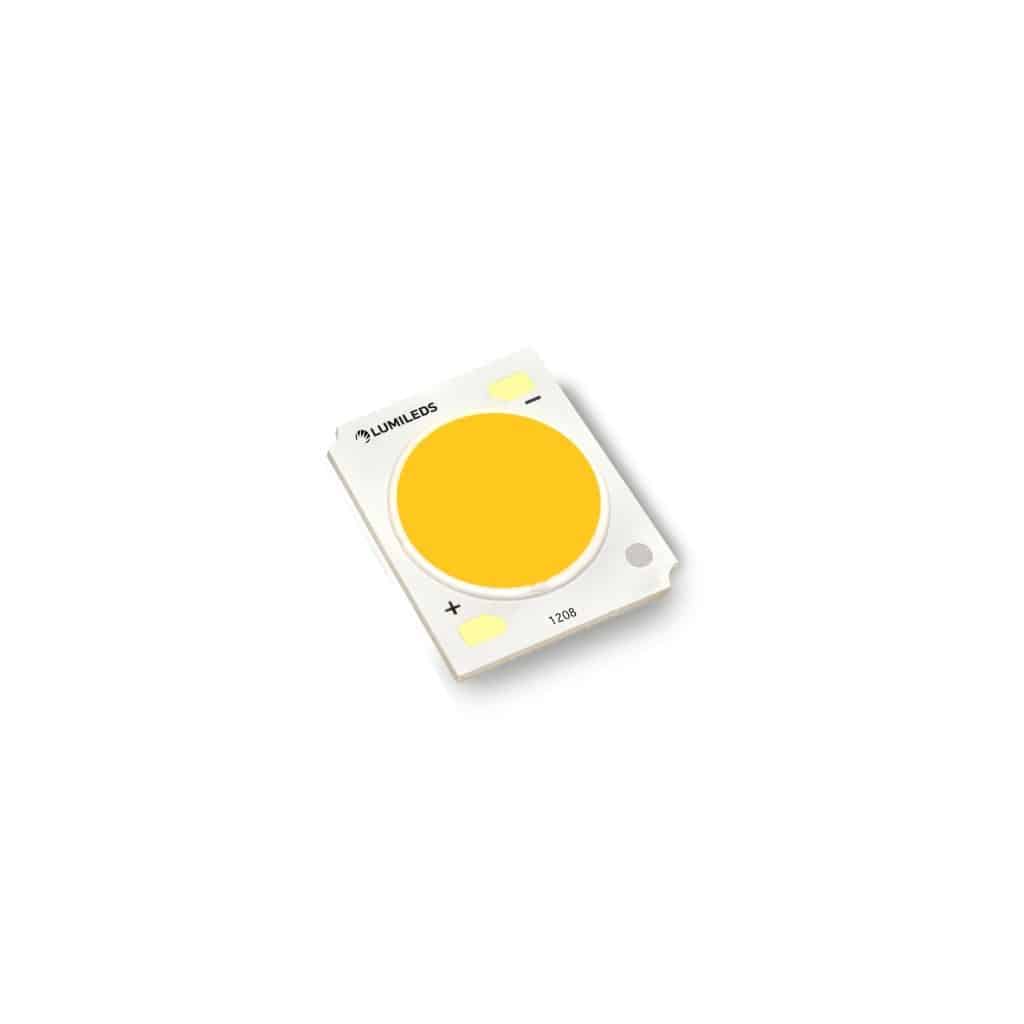

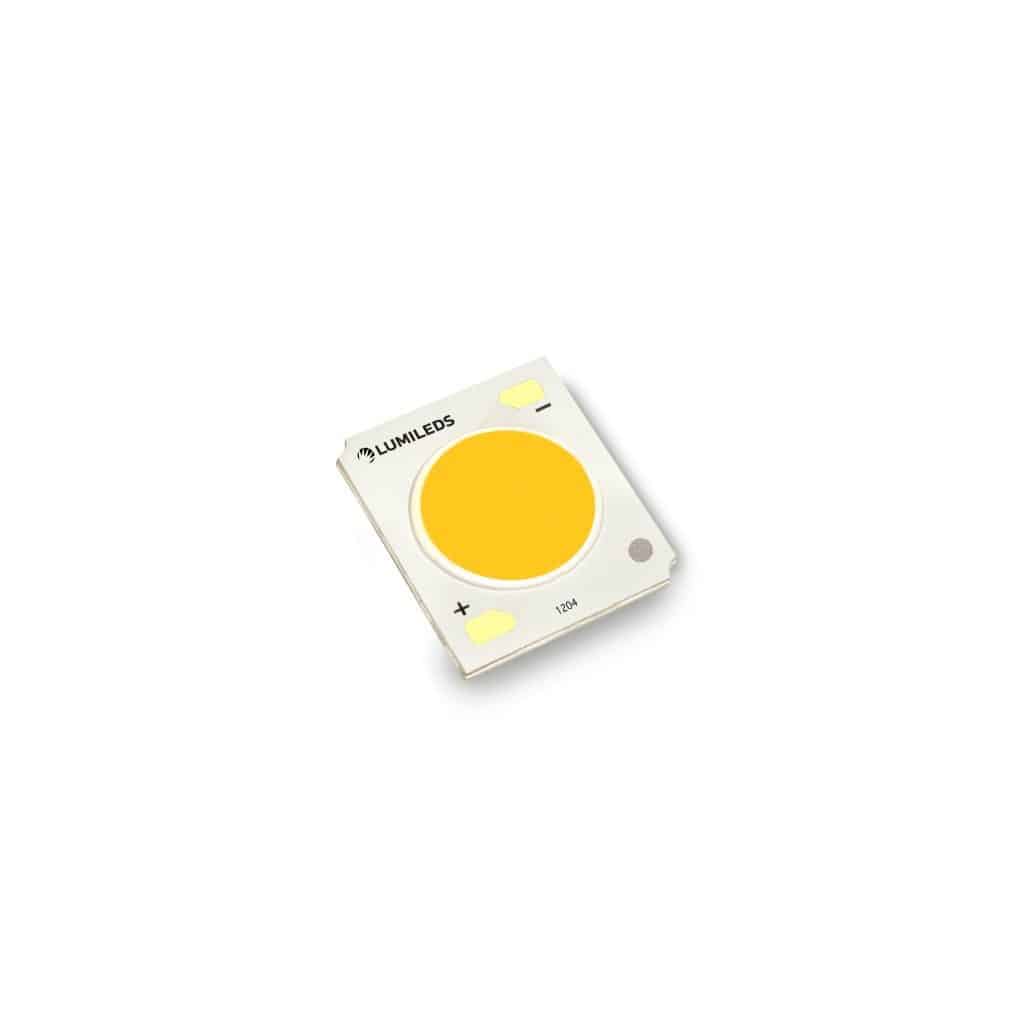

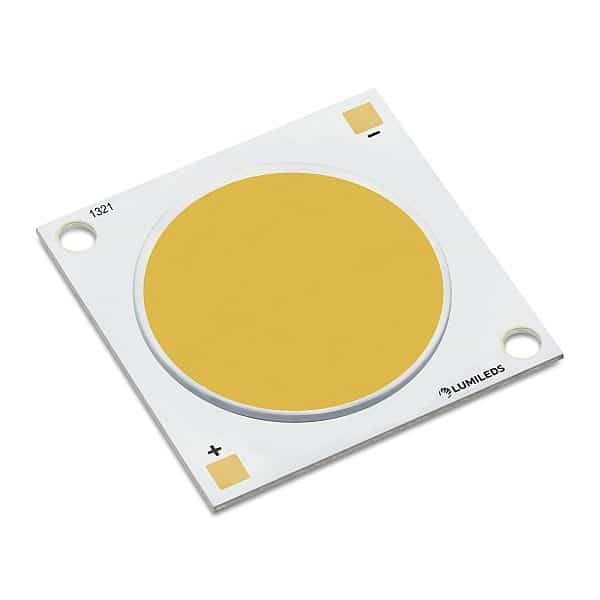

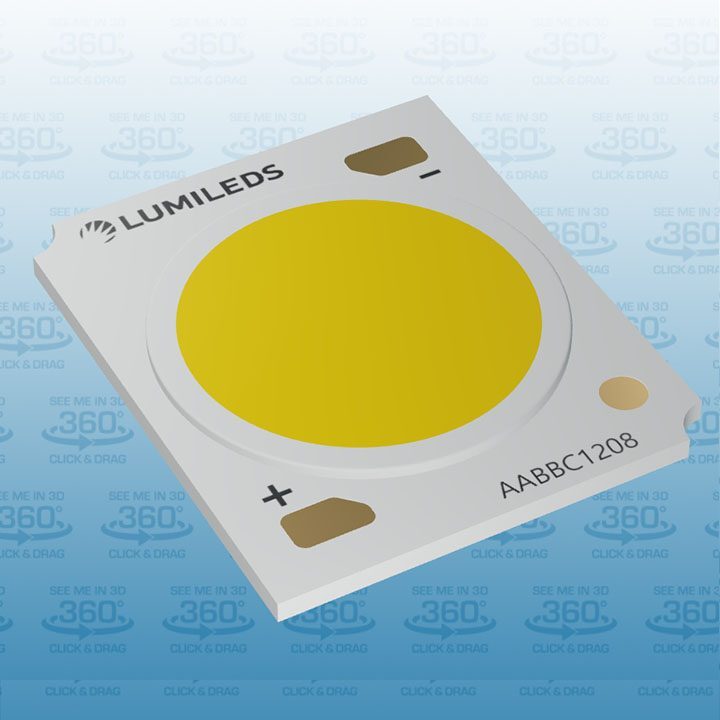

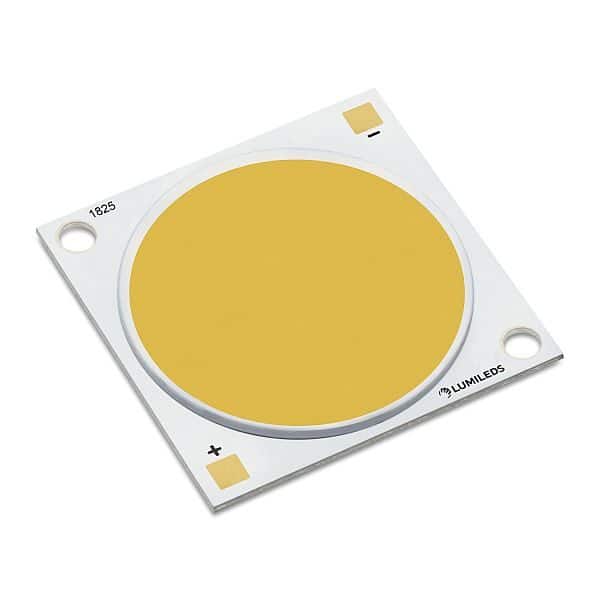

LUXEON CoB Core Range LED Emitter

Lumileds Increases Light Output for High Power LEDs with a Focus on Usable Light and Application Efficiency

LES (mm)	Nominal CCT	Minimum CRI	Luminous Flux (lm)	Typical Luminous Efficacy (lm/W)	Test Current (mA)	Part Number	Generation	Datasheet

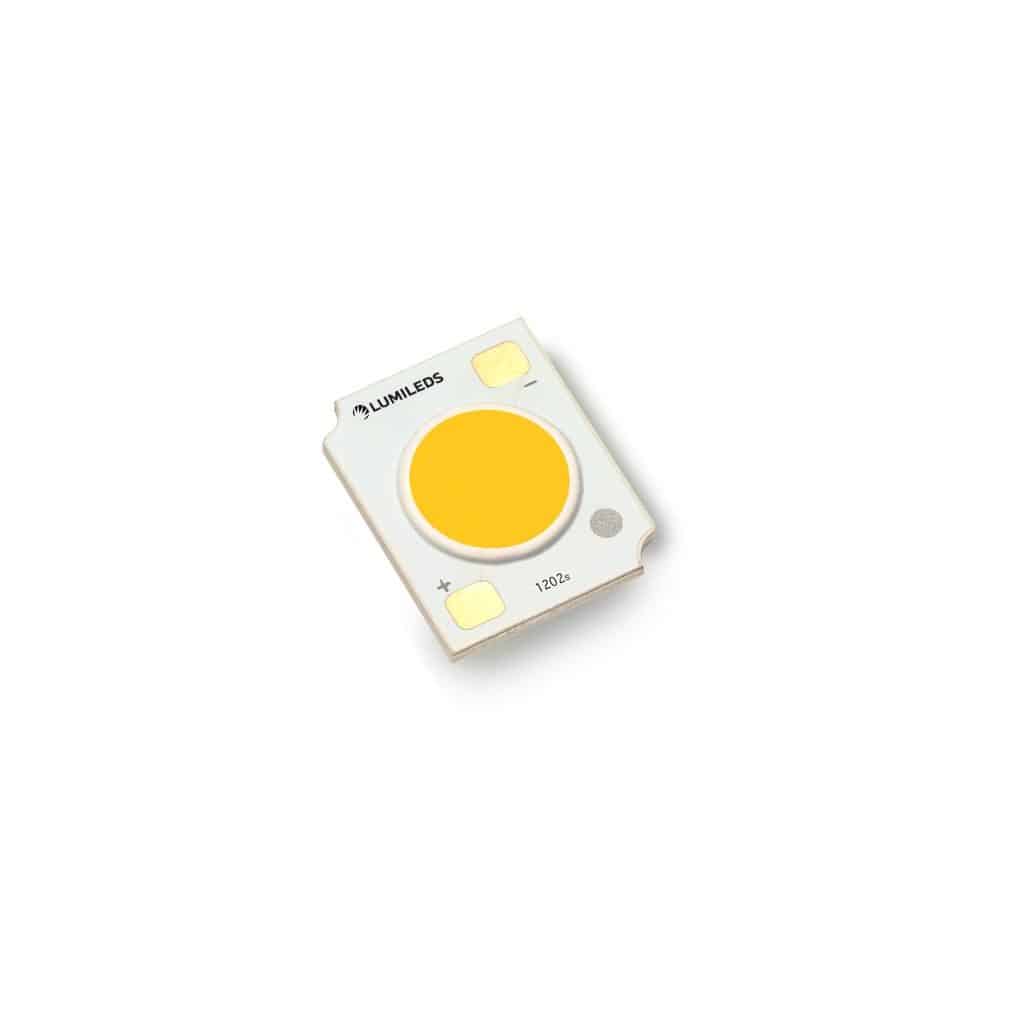

6	2200K	80	675	750	109	200	L2C5-22801202E0600	Gen 3
6	2200K	90	589	654	95	200	L2C5-22901202E0600	Gen 3
6	2700K	80	924	1027	151	200	L2C5-27801202H060x	Gen 5
6	2700K	80	797	886	128	200	L2C5-27801202E0600	Gen 3
6	2700K	90	984	1093	161	200	L2C5-27901202I060x	Gen 6
6	2700K	90	902	1003	148	200	L2C5-27901202H060x	Gen 5
6	2700K	90	662	736	107	200	L2C5-27901202E0600	Gen 3
6	3000K	80	958	1064	157	200	L2C5-30801202H060x	Gen 5
6	3000K	80	837	930	135	200	L2C5-30801202E0600	Gen 3
6	3000K	90	978	1087	160	200	L2C5-30901202I060x	Gen 6
6	3000K	90	914	1016	150	200	L2C5-30901202H060x	Gen 5
6	3000K	90	689	766	111	200	L2C5-30901202E0600	Gen 3
6	3500K	80	991	1101	162	200	L2C5-35801202H060x	Gen 5
6	3500K	80	854	949	138	200	L2C5-35801202E0600	Gen 3
6	3500K	90	994	1105	163	200	L2C5-35901202I060x	Gen 6
6	3500K	90	938	1042	154	200	L2C5-35901202H060x	Gen 5
6	3500K	90	725	805	117	200	L2C5-35901202E0600	Gen 3
6	4000K	80	1014	1127	166	200	L2C5-40801202H060x	Gen 5
6	4000K	80	863	959	139	200	L2C5-40801202E0600	Gen 3
6	4000K	90	1007	1119	165	200	L2C5-40901202I060x	Gen 6
6	4000K	90	959	1065	157	200	L2C5-40901202H060x	Gen 5
6	4000K	90	742	824	119	200	L2C5-40901202E0600	Gen 3
6	5000K	80	1019	1132	167	200	L2C5-50801202H060x	Gen 5
6	5000K	80	863	959	139	200	L2C5-50801202E0600	Gen 3
6	5000K	90	1012	1124	166	200	L2C5-50901202I060x	Gen 6
6	5000K	90	983	1092	161	200	L2C5-50901202H060x	Gen 5
6	5700K	80	869	966	140	200	L2C5-57801202E0600	Gen 3
9	2200K	80	703	781	113	200	L2C5-22801202E0900	Gen 3

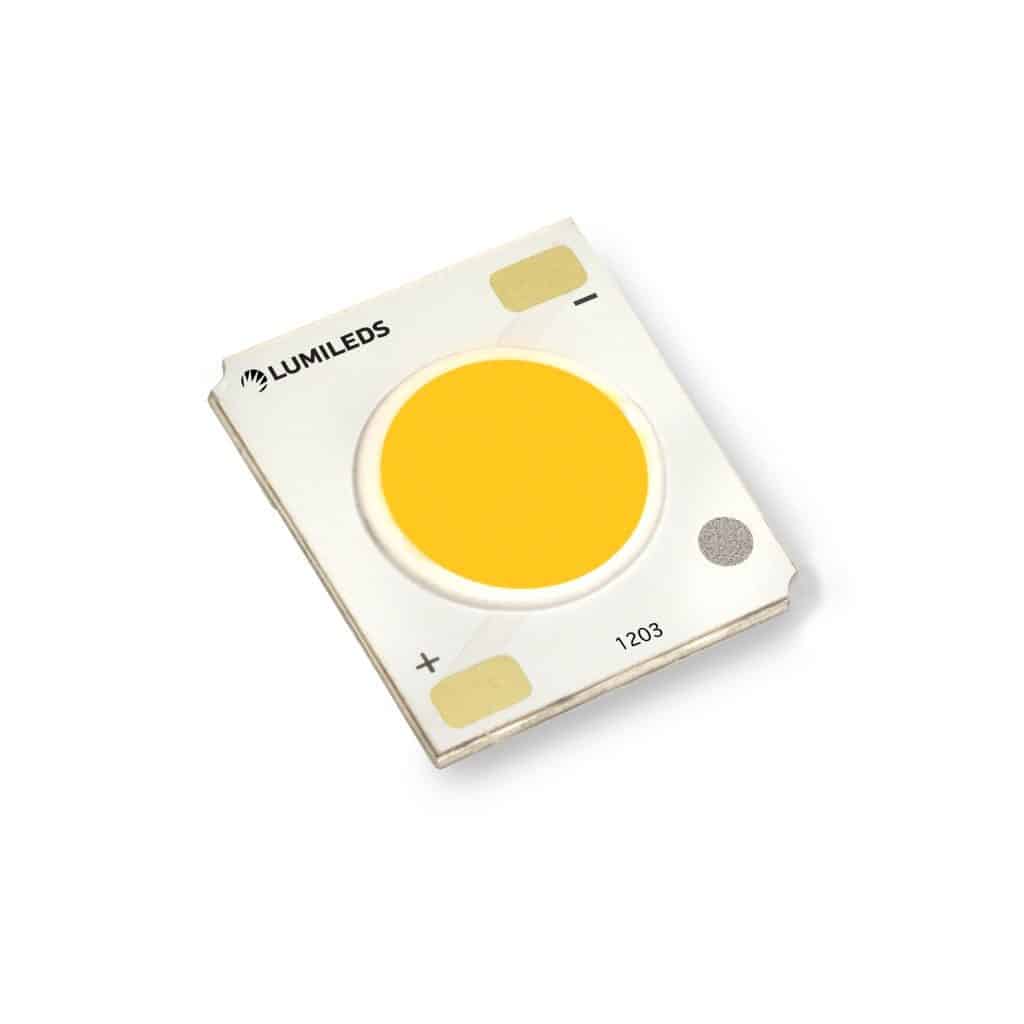

9	2200K	80	1066	1184	114	300	L2C5-22801203E0900	Gen 3
9	2200K	90	625	694	101	200	L2C5-22901202E0900	Gen 3
9	2200K	90	929	1032	100	300	L2C5-22901203E0900	Gen 3
9	2700K	80	952	1058	156	200	L2C5-27801202H090x	Gen 5
9	2700K	80	830	922	134	200	L2C5-27801202E0900	Gen 3
9	2700K	80	1391	1546	152	300	L2C5-27801203H090x	Gen 5
9	2700K	80	1359	1510	147	300	L2C5-27801203F0900	Gen 4
9	2700K	80	1258	1398	135	300	L2C5-27801203E0900	Gen 3
9	2700K	80	1858	2064	152	400	L2C5-27801204H090x	Gen 5
9	2700K	90	1013	1126	166	200	L2C5-27901202I090x	Gen 6
9	2700K	90	929	1033	152	200	L2C5-27901202H090x	Gen 5
9	2700K	90	689	766	111	200	L2C5-27901202E0900	Gen 3
9	2700K	90	1466	1628	160	300	L2C5-27901203I090x	Gen 6
9	2700K	90	1345	1494	147	300	L2C5-27901203H090x	Gen 5
9	2700K	90	1170	1300	127	300	L2C5-27901203F0900	Gen 4
9	2700K	90	1045	1161	112	300	L2C5-27901203E0900	Gen 3
9	2700K	90	1948	2164	160	400	L2C5-27901204I090x	Gen 6
9	2700K	90	1787	1985	146	400	L2C5-27901204H090x	Gen 5
9	2700K	95	999	1110	108	300	L2C5-27951203F0900	Gen 4
9	3000K	70	923	1026	149	200	L2C5-30701202E0900	Gen 3
9	3000K	70	1475	1639	160	300	L2C5-30701203F0900	Gen 4
9	3000K	70	1379	1532	148	300	L2C5-30701203E0900	Gen 3
9	3000K	80	983	1092	161	200	L2C5-30801202H090x	Gen 5
9	3000K	80	876	973	141	200	L2C5-30801202E0900	Gen 3
9	3000K	80	1446	1607	158	300	L2C5-30801203H090x	Gen 5
9	3000K	80	1392	1547	151	300	L2C5-30801203F0900	Gen 4
9	3000K	80	1289	1432	138	300	L2C5-30801203E0900	Gen 3
9	3000K	80	1936	2151	159	400	L2C5-30801204H090x	Gen 5
9	3000K	90	1008	1120	165	200	L2C5-30901202I090x	Gen 6
9	3000K	90	942	1046	154	200	L2C5-30901202H090x	Gen 5
9	3000K	90	729	810	117	200	L2C5-30901202E0900	Gen 3
9	3000K	90	1458	1620	159	300	L2C5-30901203I090x	Gen 6
9	3000K	90	1362	1514	149	300	L2C5-30901203H090x	Gen 5
9	3000K	90	1210	1344	131	300	L2C5-30901203F0900	Gen 4
9	3000K	90	1080	1200	116	300	L2C5-30901203E0900	Gen 3
9	3000K	90	1937	2152	159	400	L2C5-30901204I090x	Gen 6
9	3000K	90	1811	2012	148	400	L2C5-30901204H090x	Gen 5
9	3000K	95	1053	1170	114	300	L2C5-30951203F0900	Gen 4
9	3500K	70	923	1026	149	200	L2C5-35701202E0900	Gen 3
9	3500K	70	1379	1532	148	300	L2C5-35701203E0900	Gen 3
9	3500K	80	1022	1135	167	200	L2C5-35801202H090x	Gen 5
9	3500K	80	893	992	144	200	L2C5-35801202E0900	Gen 3
9	3500K	80	1505	1672	164	300	L2C5-35801203H090x	Gen 5
9	3500K	80	1420	1578	154	300	L2C5-35801203F0900	Gen 4
9	3500K	80	1315	1461	141	300	L2C5-35801203E0900	Gen 3
9	3500K	80	2004	2227	164	400	L2C5-35801204H090x	Gen 5
9	3500K	90	1024	1138	168	200	L2C5-35901202I090x	Gen 6
9	3500K	90	966	1073	158	200	L2C5-35901202H090x	Gen 5
9	3500K	90	752	836	121	200	L2C5-35901202E0900	Gen 3
9	3500K	90	1481	1646	162	300	L2C5-35901203I090x	Gen 6
9	3500K	90	1397	1553	153	300	L2C5-35901203H090x	Gen 5
9	3500K	90	1258	1398	136	300	L2C5-35901203F0900	Gen 4
9	3500K	90	1140	1267	122	300	L2C5-35901203E0900	Gen 3
9	3500K	90	1968	2187	161	400	L2C5-35901204I090x	Gen 6
9	3500K	90	1857	2063	152	400	L2C5-35901204H090x	Gen 5
9	4000K	70	968	1075	156	200	L2C5-40701202E0900	Gen 3
9	4000K	70	1569	1743	170	300	L2C5-40701203F0900	Gen 4
9	4000K	70	1466	1629	157	300	L2C5-40701203E0900	Gen 3
9	4000K	80	1049	1166	172	200	L2C5-40801202H090x	Gen 5
9	4000K	80	899	999	145	200	L2C5-40801202E0900	Gen 3
9	4000K	80	1533	1703	167	300	L2C5-40801203H090x	Gen 5
9	4000K	80	1472	1635	159	300	L2C5-40801203F0900	Gen 4
9	4000K	80	1363	1514	146	300	L2C5-40801203E0900	Gen 3
9	4000K	80	2049	2277	168	400	L2C5-40801204H090x	Gen 5
9	4000K	90	1037	1152	170	200	L2C5-40901202I090x	Gen 6
9	4000K	90	988	1097	162	200	L2C5-40901202H090x	Gen 5
9	4000K	90	772	858	124	200	L2C5-40901202E0900	Gen 3
9	4000K	90	1500	1667	164	300	L2C5-40901203I090x	Gen 6
9	4000K	90	1429	1587	156	300	L2C5-40901203H090x	Gen 5
9	4000K	90	1251	1390	135	300	L2C5-40901203F0900	Gen 4
9	4000K	90	1171	1301	126	300	L2C5-40901203E0900	Gen 3
9	4000K	90	1993	2215	163	400	L2C5-40901204I090x	Gen 6
9	4000K	90	1899	2109	156	400	L2C5-40901204H090x	Gen 5
9	4000K	95	1194	1327	129	300	L2C5-40951203F0900	Gen 4
9	5000K	70	968	1075	156	200	L2C5-50701202E0900	Gen 3
9	5000K	70	1466	1629	157	300	L2C5-50701203E0900	Gen 3
9	5000K	80	1050	1167	172	200	L2C5-50801202H090x	Gen 5
9	5000K	80	899	999	145	200	L2C5-50801202E0900	Gen 3
9	5000K	80	1538	1709	168	300	L2C5-50801203H090x	Gen 5
9	5000K	80	1472	1635	159	300	L2C5-50801203F0900	Gen 4
9	5000K	80	1363	1514	146	300	L2C5-50801203E0900	Gen 3
9	5000K	80	2058	2287	169	400	L2C5-50801204H090x	Gen 5
9	5000K	90	1042	1158	171	200	L2C5-50901202I090x	Gen 6
9	5000K	90	1012	1124	166	200	L2C5-50901202H090x	Gen 5
9	5000K	90	1508	1675	165	300	L2C5-50901203I090x	Gen 6
9	5000K	90	1464	1627	160	300	L2C5-50901203H090x	Gen 5
9	5000K	90	2004	2226	164	400	L2C5-50901204I090x	Gen 6
9	5000K	90	1945	2162	159	400	L2C5-50901204H090x	Gen 5
9	5700K	70	942	1047	152	200	L2C5-57701202E0900	Gen 3
9	5700K	70	1428	1587	153	300	L2C5-57701203E0900	Gen 3
9	5700K	80	1359	1510	146	300	L2C5-57801203E0900	Gen 3
9	6500K	70	1391	1546	149	300	L2C5-65701203E0900	Gen 3
13	2200K	80	1641	1823	117	450	L2C5-22801204E1300	Gen 3

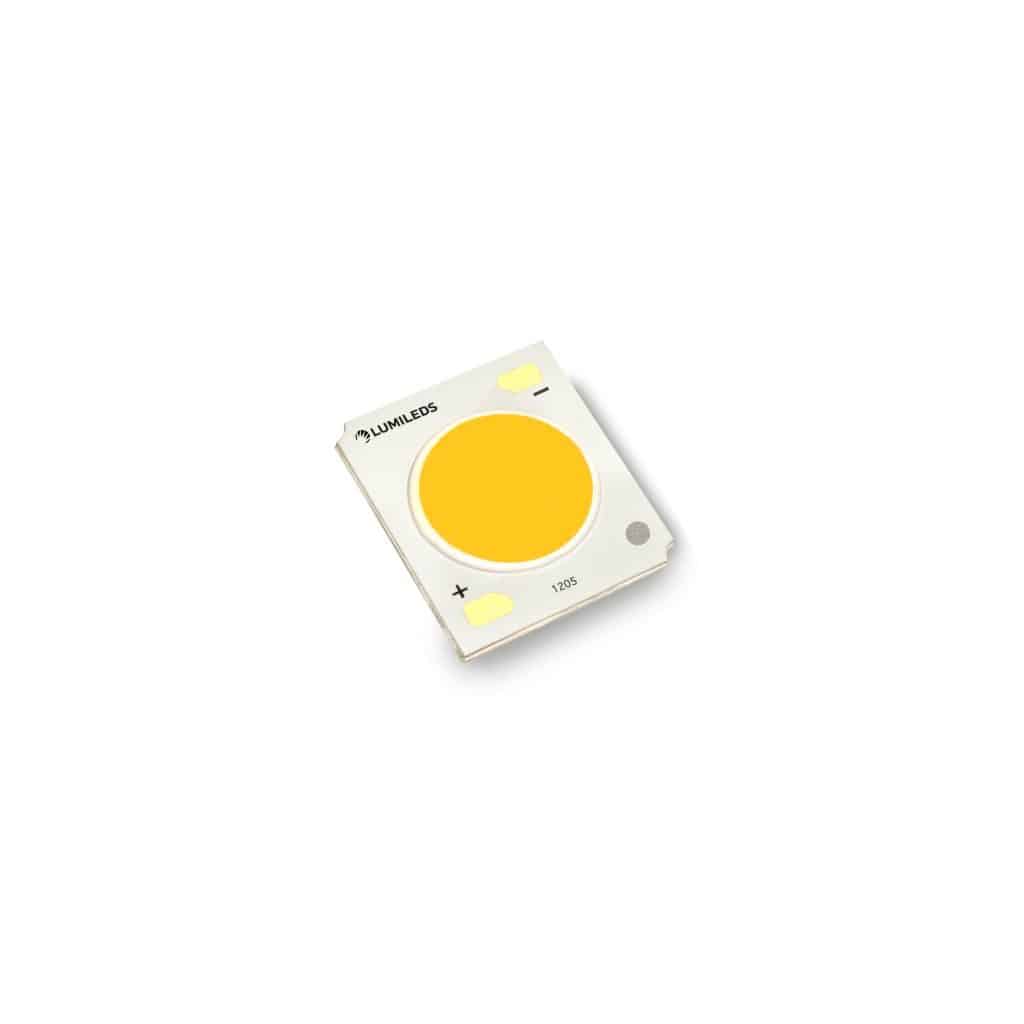

13	2200K	80	2131	2368	113	600	L2C5-22801205E1300	Gen 3
13	2200K	90	1430	1589	102	450	L2C5-22901204E1300	Gen 3
13	2200K	90	1857	2063	98	600	L2C5-22901205E1300	Gen 3
13	2700K	80	2092	2324	149	450	L2C5-27801204F1300	Gen 4
13	2700K	80	1937	2152	138	450	L2C5-27801204E1300	Gen 3
13	2700K	80	2758	3065	148	600	L2C5-27801205H130x	Gen 5
13	2700K	80	2717	3019	145	600	L2C5-27801205F1300	Gen 4
13	2700K	80	2516	2795	133	600	L2C5-27801205E1300	Gen 3
13	2700K	90	1803	2003	128	450	L2C5-27901204F1300	Gen 4
13	2700K	90	1609	1788	115	450	L2C5-27901204E1300	Gen 3
13	2700K	90	2857	3174	153	600	L2C5-27901205I130x	Gen 6
13	2700K	90	2621	2912	141	600	L2C5-27901205H130x	Gen 5
13	2700K	90	2340	2600	125	600	L2C5-27901205F1300	Gen 4
13	2700K	90	2090	2322	111	600	L2C5-27901205E1300	Gen 3
13	2700K	95	2007	2230	107	600	L2C5-27951205F1300	Gen 4
13	3000K	70	2124	2360	151	450	L2C5-30701204E1300	Gen 3
13	3000K	70	2958	3287	158	600	L2C5-30701205F1300	Gen 4
13	3000K	70	2765	3072	146	600	L2C5-30701205E1300	Gen 3
13	3000K	80	2138	2376	152	450	L2C5-30801204F1300	Gen 4
13	3000K	80	1980	2200	141	450	L2C5-30801204E1300	Gen 3
13	3000K	80	2866	3185	154	600	L2C5-30801205H130x	Gen 5
13	3000K	80	2823	3137	151	600	L2C5-30801205F1300	Gen 4
13	3000K	80	2615	2905	138	600	L2C5-30801205E1300	Gen 3
13	3000K	90	1855	2061	132	450	L2C5-30901204F1300	Gen 4
13	3000K	90	1656	1840	118	450	L2C5-30901204E1300	Gen 3
13	3000K	90	2921	3245	157	600	L2C5-30901205I130x	Gen 6
13	3000K	90	2730	3033	147	600	L2C5-30901205H130x	Gen 5
13	3000K	90	2437	2708	130	600	L2C5-30901205F1300	Gen 4
13	3000K	90	2176	2418	115	600	L2C5-30901205E1300	Gen 3
13	3000K	95	2160	2400	115	600	L2C5-30951205F1300	Gen 4
13	3500K	70	2124	2360	151	450	L2C5-35701204E1300	Gen 3
13	3500K	70	2765	3072	146	600	L2C5-35701205E1300	Gen 3
13	3500K	80	2020	2244	144	450	L2C5-35801204E1300	Gen 3
13	3500K	80	2924	3249	157	600	L2C5-35801205H130x	Gen 5
13	3500K	80	2880	3200	154	600	L2C5-35801205F1300	Gen 4
13	3500K	80	2667	2963	141	600	L2C5-35801205E1300	Gen 3
13	3500K	90	1929	2143	137	450	L2C5-35901204F1300	Gen 4
13	3500K	90	1755	1950	125	450	L2C5-35901204E1300	Gen 3
13	3500K	90	3009	3343	162	600	L2C5-35901205I130x	Gen 6
13	3500K	90	2839	3154	152	600	L2C5-35901205H130x	Gen 5
13	3500K	90	2534	2816	135	600	L2C5-35901205F1300	Gen 4
13	3500K	90	2280	2533	121	600	L2C5-35901205E1300	Gen 3
13	4000K	70	2258	2509	161	450	L2C5-40701204E1300	Gen 3
13	4000K	70	3137	3486	167	600	L2C5-40701205F1300	Gen 4
13	4000K	70	2932	3258	155	600	L2C5-40701205E1300	Gen 3
13	4000K	80	2260	2511	161	450	L2C5-40801204F1300	Gen 4
13	4000K	80	2099	2332	149	450	L2C5-40801204E1300	Gen 3
13	4000K	80	3060	3400	164	600	L2C5-40801205H130x	Gen 5
13	4000K	80	2943	3270	157	600	L2C5-40801205F1300	Gen 4
13	4000K	80	2725	3028	144	600	L2C5-40801205E1300	Gen 3
13	4000K	90	1803	2003	128	450	L2C5-40901204E1300	Gen 3
13	4000K	90	3083	3426	165	600	L2C5-40901205I130x	Gen 6
13	4000K	90	2936	3263	158	600	L2C5-40901205H130x	Gen 5
13	4000K	90	2622	2913	140	600	L2C5-40901205F1300	Gen 4
13	4000K	90	2341	2601	124	600	L2C5-40901205E1300	Gen 3
13	4000K	95	2434	2704	130	600	L2C5-40951205F1300	Gen 4
13	5000K	70	2258	2509	161	450	L2C5-50701204E1300	Gen 3
13	5000K	70	2932	3258	155	600	L2C5-50701205E1300	Gen 3
13	5000K	80	2099	2332	149	450	L2C5-50801204E1300	Gen 3
13	5000K	80	3017	3352	162	600	L2C5-50801205H130x	Gen 5
13	5000K	80	2943	3270	157	600	L2C5-50801205F1300	Gen 4
13	5000K	80	2725	3028	144	600	L2C5-50801205E1300	Gen 3
13	5000K	90	3025	3362	162	600	L2C5-50901205I130x	Gen 6
13	5000K	90	2937	3264	158	600	L2C5-50901205H130x	Gen 5
13	5000K	90	2623	2914	140	600	L2C5-50901205F1300	Gen 4
13	5700K	70	2199	2443	156	450	L2C5-57701204E1300	Gen 3
13	5700K	70	2856	3173	151	600	L2C5-57701205E1300	Gen 3
13	5700K	80	2093	2325	149	450	L2C5-57801204E1300	Gen 3
13	5700K	80	2935	3261	157	600	L2C5-57801205F1300	Gen 4
13	5700K	80	2717	3019	144	600	L2C5-57801205E1300	Gen 3
13	6500K	70	2142	2380	152	450	L2C5-65701204E1300	Gen 3
13	6500K	70	2782	3091	147	600	L2C5-65701205E1300	Gen 3
13	6500K	80	2861	3179	153	600	L2C5-65801205F1300	Gen 4
15	2200K	80	3197	3552	113	900	L2C5-22801208E1500	Gen 3
15	2200K	90	2786	3095	99	900	L2C5-22901208E1500	Gen 3
15	2700K	80	4199	4665	152	900	L2C5-27801208H150x	Gen 5
15	2700K	80	4118	4575	151	900	L2C5-27801210H150x	Gen 5
15	2700K	80	4116	4573	149	900	L2C5-27801210F1500	Gen 4
15	2700K	80	4075	4528	145	900	L2C5-27801208F1500	Gen 4
15	2700K	80	3774	4193	134	900	L2C5-27801208E1500	Gen 3
15	2700K	90	4395	4883	161	900	L2C5-27901210I150x	Gen 6
15	2700K	90	4289	4766	155	900	L2C5-27901208I150x	Gen 6
15	2700K	90	4032	4480	148	900	L2C5-27901210H150x	Gen 5
15	2700K	90	3935	4372	142	900	L2C5-27901208H150x	Gen 5
15	2700K	90	3514	3904	125	900	L2C5-27901208F1500	Gen 4
15	2700K	90	3137	3486	111	900	L2C5-27901208E1500	Gen 3
15	2700K	95	3045	3384	111	900	L2C5-27951210F1500	Gen 4
15	2700K	95	3015	3350	107	900	L2C5-27951208F1500	Gen 4
15	3000K	70	4440	4933	158	900	L2C5-30701208F1500	Gen 4
15	3000K	70	4149	4610	147	900	L2C5-30701208E1500	Gen 3
15	3000K	80	4374	4860	158	900	L2C5-30801208H150x	Gen 5
15	3000K	80	4289	4765	158	900	L2C5-30801210H150x	Gen 5
15	3000K	80	4288	4764	156	900	L2C5-30801210F1500	Gen 4
15	3000K	80	4245	4717	151	900	L2C5-30801208F1500	Gen 4
15	3000K	80	3931	4368	139	900	L2C5-30801208E1500	Gen 3
15	3000K	90	4485	4983	162	900	L2C5-30901208I150x	Gen 6
15	3000K	90	4459	4954	164	900	L2C5-30901210I150x	Gen 6
15	3000K	90	4191	4657	151	900	L2C5-30901208H150x	Gen 5
15	3000K	90	4167	4630	153	900	L2C5-30901210H150x	Gen 5
15	3000K	90	3721	4134	135	900	L2C5-30901210F1500	Gen 4
15	3000K	90	3639	4043	129	900	L2C5-30901208F1500	Gen 4
15	3000K	90	3249	3610	115	900	L2C5-30901208E1500	Gen 3
15	3000K	95	3240	3600	115	900	L2C5-30951208F1500	Gen 4
15	3500K	70	4149	4610	147	900	L2C5-35701208E1500	Gen 3
15	3500K	80	4505	5005	163	900	L2C5-35801208H150x	Gen 5
15	3500K	80	4437	4930	163	900	L2C5-35801210H150x	Gen 5
15	3500K	80	4373	4859	159	900	L2C5-35801210F1500	Gen 4
15	3500K	80	4330	4811	154	900	L2C5-35801208F1500	Gen 4
15	3500K	80	4010	4455	142	900	L2C5-35801208E1500	Gen 3
15	3500K	90	4538	5042	167	900	L2C5-35901210I150x	Gen 6
15	3500K	90	4526	5029	163	900	L2C5-35901208I150x	Gen 6
15	3500K	90	4281	4757	157	900	L2C5-35901210H150x	Gen 5
15	3500K	90	4270	4744	154	900	L2C5-35901208H150x	Gen 5
15	3500K	90	3822	4247	139	900	L2C5-35901210F1500	Gen 4
15	3500K	90	3785	4205	135	900	L2C5-35901208F1500	Gen 4
15	3500K	90	3420	3800	121	900	L2C5-35901208E1500	Gen 3
15	4000K	70	4719	5243	168	900	L2C5-40701208F1500	Gen 4
15	4000K	70	4410	4900	156	900	L2C5-40701208E1500	Gen 3
15	4000K	80	4590	5100	166	900	L2C5-40801208H150x	Gen 5
15	4000K	80	4536	5040	167	900	L2C5-40801210H150x	Gen 5
15	4000K	80	4533	5037	165	900	L2C5-40801210F1500	Gen 4
15	4000K	80	4415	4905	157	900	L2C5-40801208F1500	Gen 4
15	4000K	80	4088	4542	145	900	L2C5-40801208E1500	Gen 3
15	4000K	90	4672	5191	172	900	L2C5-40901210I150x	Gen 6
15	4000K	90	4625	5139	167	900	L2C5-40901208I150x	Gen 6
15	4000K	90	4449	4944	163	900	L2C5-40901210H150x	Gen 5
15	4000K	90	4405	4894	159	900	L2C5-40901208H150x	Gen 5
15	4000K	90	3972	4414	144	900	L2C5-40901210F1500	Gen 4
15	4000K	90	3933	4370	140	900	L2C5-40901208F1500	Gen 4
15	4000K	90	3512	3902	125	900	L2C5-40901208E1500	Gen 3
15	4000K	95	3572	3969	127	900	L2C5-40951208F1500	Gen 4
15	5000K	70	4719	5243	168	900	L2C5-50701208F1500	Gen 4
15	5000K	70	4410	4900	156	900	L2C5-50701208E1500	Gen 3
15	5000K	80	4568	5075	165	900	L2C5-50801208H150x	Gen 5
15	5000K	80	4487	4985	165	900	L2C5-50801210H150x	Gen 5
15	5000K	80	4415	4905	157	900	L2C5-50801208F1500	Gen 4
15	5000K	80	4088	4542	145	900	L2C5-50801208E1500	Gen 3
15	5000K	90	4650	5167	171	900	L2C5-50901210I150x	Gen 6
15	5000K	90	4552	5057	164	900	L2C5-50901208I150x	Gen 6
15	5000K	90	4515	5016	166	900	L2C5-50901210H150x	Gen 5
15	5000K	90	4419	4910	160	900	L2C5-50901208H150x	Gen 5
15	5700K	70	4584	5093	163	900	L2C5-57701208F1500	Gen 4
15	5700K	70	4284	4760	152	900	L2C5-57701208E1500	Gen 3
15	5700K	80	4402	4891	157	900	L2C5-57801208F1500	Gen 4
15	5700K	80	4076	4529	145	900	L2C5-57801208E1500	Gen 3
15	6500K	70	4466	4962	159	900	L2C5-65701208F1500	Gen 4
15	6500K	70	4173	4637	148	900	L2C5-65701208E1500	Gen 3
15	6500K	80	4292	4769	153	900	L2C5-65801208F1500	Gen 4

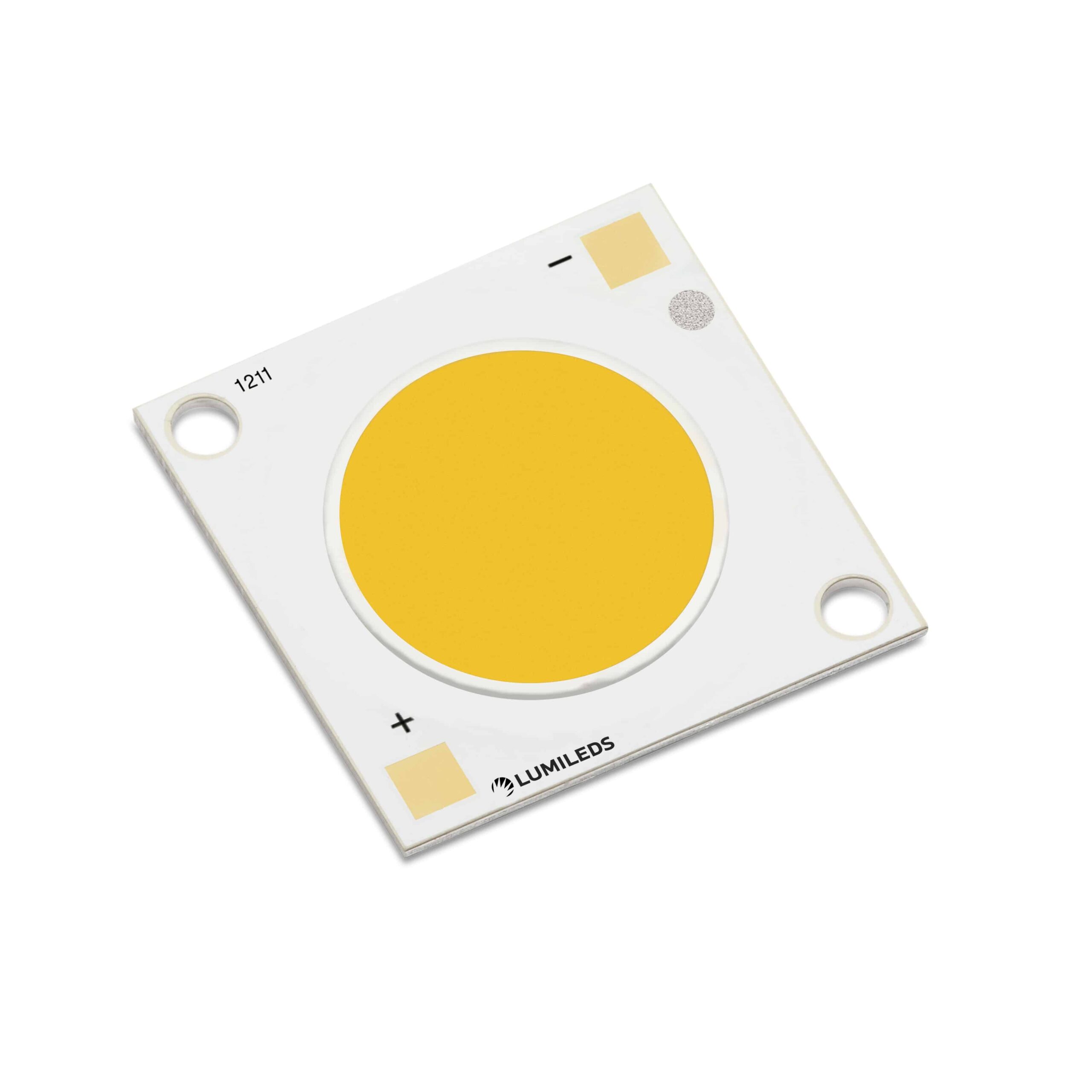

19	2200K	80	4390	4878	117	1200	L2C5-22801211E1900	Gen 3
19	2200K	90	3749	4165	100	1200	L2C5-22901211E1900	Gen 3
19	2700K	80	5648	6275	153	1200	L2C5-27801211H190x	Gen 5
19	2700K	80	5519	6132	149	1200	L2C5-27801211F1900	Gen 4
19	2700K	80	5182	5758	138	1200	L2C5-27801211E1900	Gen 3
19	2700K	90	5255	5839	142	1200	L2C5-27901211H190x	Gen 5
19	2700K	90	4692	5213	127	1200	L2C5-27901211F1900	Gen 4
19	2700K	90	4305	4783	115	1200	L2C5-27901211E1900	Gen 3
19	2700K	95	4032	4480	109	1200	L2C5-27951211F1910	Gen 4
19	3000K	70	6065	6739	164	1200	L2C5-30701211F1900	Gen 4
19	3000K	70	5695	6328	152	1200	L2C5-30701211E1900	Gen 3
19	3000K	80	5807	6452	157	1200	L2C5-30801211H190x	Gen 5
19	3000K	80	5675	6305	153	1200	L2C5-30801211F1900	Gen 4
19	3000K	80	5328	5920	142	1200	L2C5-30801211E1900	Gen 3
19	3000K	90	5601	6224	152	1200	L2C5-30901211H190x	Gen 5
19	3000K	90	4910	5455	133	1200	L2C5-30901211F1900	Gen 4
19	3000K	90	4505	5005	120	1200	L2C5-30901211E1900	Gen 3
19	3000K	95	4221	4690	114	1200	L2C5-30951211F1910	Gen 4
19	3500K	70	5695	6328	152	1200	L2C5-35701211E1900	Gen 3
19	3500K	80	5922	6580	160	1200	L2C5-35801211H190x	Gen 5
19	3500K	80	5787	6430	156	1200	L2C5-35801211F1900	Gen 4
19	3500K	80	5434	6038	145	1200	L2C5-35801211E1900	Gen 3
19	3500K	90	5734	6371	155	1200	L2C5-35901211H190x	Gen 5
19	3500K	90	5119	5688	138	1200	L2C5-35901211F1900	Gen 4
19	3500K	90	4696	5218	125	1200	L2C5-35901211E1900	Gen 3
19	4000K	70	6447	7163	174	1200	L2C5-40701211F1900	Gen 4
19	4000K	70	6053	6726	161	1200	L2C5-40701211E1900	Gen 3
19	4000K	80	6257	6953	169	1200	L2C5-40801211H190x	Gen 5
19	4000K	80	5979	6643	161	1200	L2C5-40801211F1900	Gen 4
19	4000K	80	5614	6238	149	1200	L2C5-40801211E1900	Gen 3
19	4000K	90	5865	6517	159	1200	L2C5-40901211H190x	Gen 5
19	4000K	90	5256	5840	142	1200	L2C5-40901211F1900	Gen 4
19	4000K	90	4822	5358	128	1200	L2C5-40901211E1900	Gen 3
19	5000K	70	6447	7163	174	1200	L2C5-50701211F1900	Gen 4
19	5000K	70	6053	6726	161	1200	L2C5-50701211E1900	Gen 3
19	5000K	80	6185	6872	167	1200	L2C5-50801211H190x	Gen 5
19	5000K	80	5979	6643	161	1200	L2C5-50801211F1900	Gen 4
19	5000K	80	5614	6238	149	1200	L2C5-50801211E1900	Gen 3
19	5000K	90	5887	6541	159	1200	L2C5-50901211H190x	Gen 5
19	5000K	90	5256	5840	142	1200	L2C5-50901211F1900	Gen 4
19	5700K	70	6265	6961	169	1200	L2C5-57701211F1900	Gen 4
19	5700K	70	5882	6536	157	1200	L2C5-57701211E1900	Gen 3
19	5700K	80	5962	6624	161	1200	L2C5-57801211F1900	Gen 4
19	5700K	80	5598	6220	149	1200	L2C5-57801211E1900	Gen 3
19	6500K	70	6104	6782	165	1200	L2C5-65701211F1900	Gen 4
19	6500K	70	5731	6368	152	1200	L2C5-65701211E1900	Gen 3
19	6500K	80	5661	6290	153	1200	L2C5-65801211F1900	Gen 4

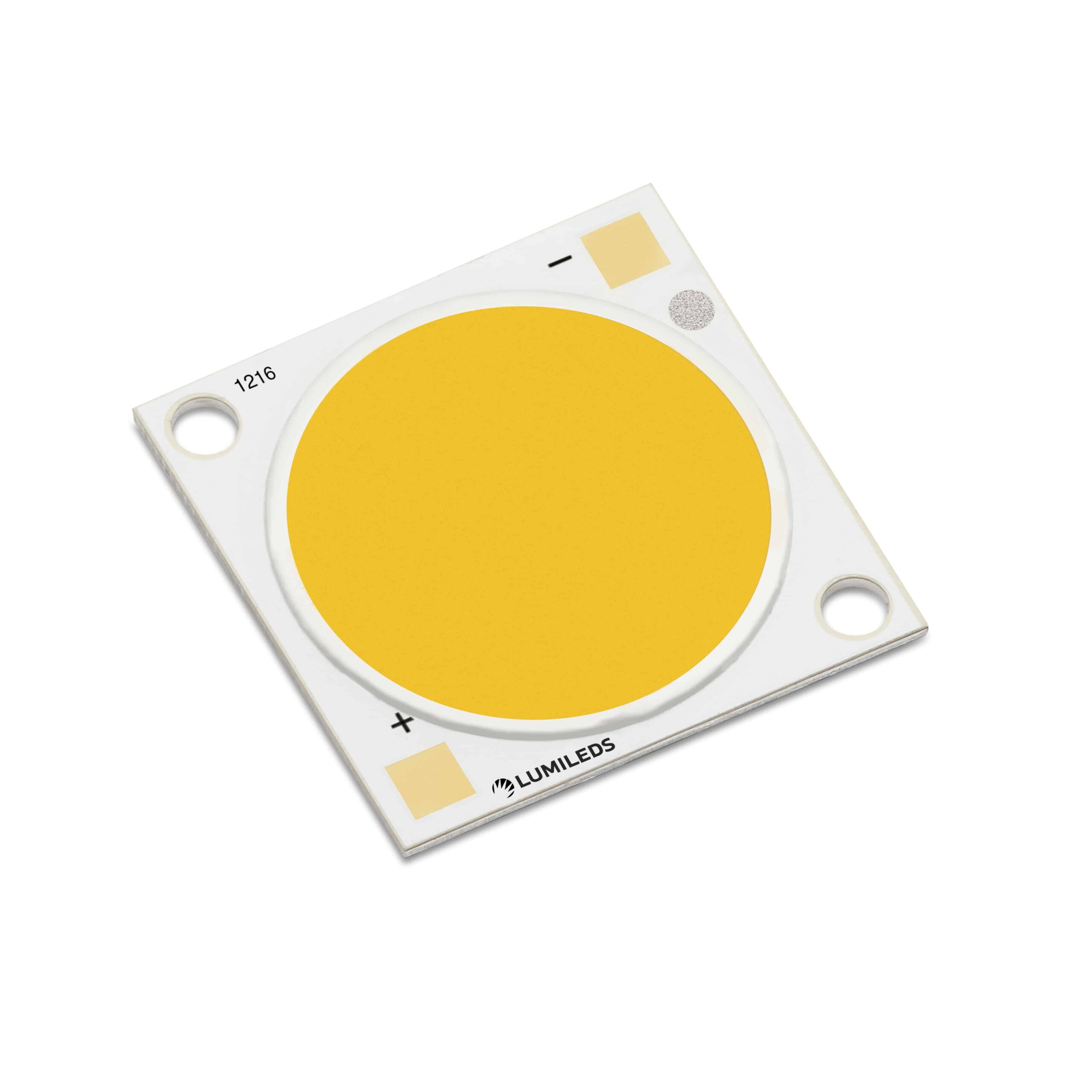

23	2200K	80	5755	6394	116	1600	L2C5-22801216E2300	Gen 3
23	2200K	90	5013	5570	101	1600	L2C5-22901216E2300	Gen 3

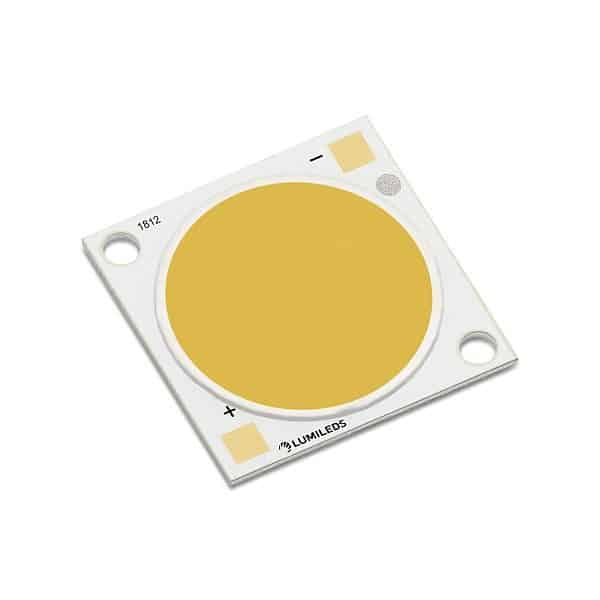

23	2700K	80	8640	9600	157	1200	L2C5-27801812H2300	Gen 5
23	2700K	80	10080	11200	155	1440	L2C5-27801816H2300	Gen 5
23	2700K	80	7664	8515	157	1600	L2C5-27801216H230x	Gen 5
23	2700K	80	7335	8150	150	1600	L2C5-27801216F2300	Gen 4
23	2700K	80	6791	7546	137	1600	L2C5-27801216E2300	Gen 3
23	2700K	90	7077	7864	145	1600	L2C5-27901216H230x	Gen 5
23	2700K	90	6319	7021	129	1600	L2C5-27901216F2300	Gen 4
23	2700K	90	5642	6269	114	1600	L2C5-27901216E2300	Gen 3
23	3000K	70	9720	10800	177	1200	L2C5-30701812H2300	Gen 5
23	3000K	70	10800	12000	166	1440	L2C5-30701816H2300	Gen 5
23	3000K	70	7988	8875	163	1600	L2C5-30701216F2300	Gen 4
23	3000K	70	7465	8294	150	1600	L2C5-30701216E2300	Gen 3
23	3000K	80	9180	10200	167	1200	L2C5-30801812H2300	Gen 5
23	3000K	80	8221	9134	149	1200	L2C5-30801812F2300	Gen 4
23	3000K	80	7682	8536	138	1200	L2C5-30801812G2300	Gen 4
23	3000K	80	6188	6875	155	1300	L2C5-30801213F2300	Gen 4
23	3000K	80	10544	11715	162	1440	L2C5-30801816H2300	Gen 5
23	3000K	80	7844	8715	161	1600	L2C5-30801216H230x	Gen 5
23	3000K	80	7508	8342	153	1600	L2C5-30801216F2300	Gen 4
23	3000K	80	6952	7724	140	1600	L2C5-30801216E2300	Gen 3
23	3000K	90	7358	8176	151	1600	L2C5-30901216H230x	Gen 5
23	3000K	90	6570	7300	134	1600	L2C5-30901216F2300	Gen 4
23	3000K	90	5866	6518	118	1600	L2C5-30901216E2300	Gen 3
23	3500K	70	7465	8294	150	1600	L2C5-35701216E2300	Gen 3
23	3500K	80	9360	10400	170	1200	L2C5-35801812H2300	Gen 5
23	3500K	80	10800	12000	166	1440	L2C5-35801816H2300	Gen 5
23	3500K	80	8001	8890	164	1600	L2C5-35801216H230x	Gen 5
23	3500K	80	7657	8508	156	1600	L2C5-35801216F2300	Gen 4
23	3500K	80	7090	7878	143	1600	L2C5-35801216E2300	Gen 3
23	3500K	90	7612	8458	156	1600	L2C5-35901216H230x	Gen 5
23	3500K	90	6893	7659	141	1600	L2C5-35901216F2300	Gen 4
23	3500K	90	6155	6839	124	1600	L2C5-35901216E2300	Gen 3
23	4000K	70	10080	11200	183	1200	L2C5-40701812H2300	Gen 5
23	4000K	70	9356	10395	170	1200	L2C5-40701812F2300	Gen 4
23	4000K	70	9000	10000	161	1200	L2C5-40701812G2300	Gen 4
23	4000K	70	11790	13100	181	1440	L2C5-40701816H2300	Gen 5
23	4000K	70	8428	9364	172	1600	L2C5-40701216F2300	Gen 4
23	4000K	70	7876	8751	159	1600	L2C5-40701216E2300	Gen 3
23	4000K	80	9540	10600	174	1200	L2C5-40801812H2300	Gen 5
23	4000K	80	8691	9657	157	1200	L2C5-40801812F2300	Gen 4
23	4000K	80	8123	9025	145	1200	L2C5-40801812G2300	Gen 4
23	4000K	80	6623	7359	166	1300	L2C5-40801213F2300	Gen 4
23	4000K	80	11124	12360	171	1440	L2C5-40801816H2300	Gen 5
23	4000K	80	8384	9315	172	1600	L2C5-40801216H230x	Gen 5
23	4000K	80	7947	8830	162	1600	L2C5-40801216F2300	Gen 4
23	4000K	80	7358	8176	148	1600	L2C5-40801216E2300	Gen 3
23	4000K	90	7720	8578	158	1600	L2C5-40901216H230x	Gen 5
23	4000K	90	6893	7659	141	1600	L2C5-40901216F2300	Gen 4
23	4000K	90	6321	7023	127	1600	L2C5-40901216E2300	Gen 3
23	5000K	70	9990	11100	182	1200	L2C5-50701812H2300	Gen 5
23	5000K	70	9450	10500	171	1200	L2C5-50701812F2300	Gen 4
23	5000K	70	9000	10000	161	1200	L2C5-50701812G2300	Gen 4
23	5000K	70	7072	7858	177	1300	L2C5-50701213F2300	Gen 4
23	5000K	70	11700	13000	179	1440	L2C5-50701816H2300	Gen 5
23	5000K	70	8428	9364	172	1600	L2C5-50701216F2300	Gen 4
23	5000K	70	7876	8751	159	1600	L2C5-50701216E2300	Gen 3
23	5000K	80	9630	10700	175	1200	L2C5-50801812H2300	Gen 5
23	5000K	80	8814	9793	160	1200	L2C5-50801812F2300	Gen 4
23	5000K	80	8123	9025	145	1200	L2C5-50801812G2300	Gen 4
23	5000K	80	11070	12300	170	1440	L2C5-50801816H2300	Gen 5
23	5000K	80	8303	9225	170	1600	L2C5-50801216H230x	Gen 5
23	5000K	80	7947	8830	162	1600	L2C5-50801216F2300	Gen 4
23	5000K	80	7358	8176	148	1600	L2C5-50801216E2300	Gen 3
23	5000K	90	7789	8654	160	1600	L2C5-50901216H230x	Gen 5
23	5000K	90	6954	7727	142	1600	L2C5-50901216F2300	Gen 4
23	5700K	70	8250	9167	169	1600	L2C5-57701216F2300	Gen 4
23	5700K	70	7710	8567	155	1600	L2C5-57701216E2300	Gen 3
23	5700K	80	9360	10400	170	1200	L2C5-57801812H2300	Gen 5
23	5700K	80	11070	12300	170	1440	L2C5-57801816H2300	Gen 5
23	5700K	80	7923	8803	162	1600	L2C5-57801216F2300	Gen 4
23	5700K	80	7336	8151	148	1600	L2C5-57801216E2300	Gen 3
23	6500K	70	8038	8931	164	1600	L2C5-65701216F2300	Gen 4
23	6500K	70	7512	8347	151	1600	L2C5-65701216E2300	Gen 3
23	6500K	80	9270	10300	169	1200	L2C5-65801812H2300	Gen 5
23	6500K	80	10980	12200	168	1440	L2C5-65801816H2300	Gen 5
29	2200K	60	10961	12179	155	2100	L2C5-22601321F2900	Gen 4
29	2700K	80	10286	11429	145	2100	L2C5-27801321F2900	Gen 4
29	2700K	80	9797	10885	138	2100	L2C5-27801321E2900	Gen 3
29	2700K	90	8136	9040	115	2100	L2C5-27901321E2900	Gen 3
29	3000K	70	10736	11929	151	2100	L2C5-30701321E2900	Gen 3
29	3000K	80	10737	11930	151	2100	L2C5-30801321F2900	Gen 4
29	3000K	80	10035	11150	142	2100	L2C5-30801321E2900	Gen 3
29	3000K	90	8410	9344	119	2100	L2C5-30901321E2900	Gen 3
29	3500K	80	10238	11376	144	2100	L2C5-35801321E2900	Gen 3
29	4000K	70	11867	13185	167	2100	L2C5-40701321F2900	Gen 4
29	4000K	70	11416	12684	161	2100	L2C5-40701321E2900	Gen 3
29	4000K	80	11352	12613	160	2100	L2C5-40801321F2900	Gen 4
29	4000K	80	10609	11788	150	2100	L2C5-40801321E2900	Gen 3
29	5000K	70	11986	13318	169	2100	L2C5-50701321F2900	Gen 4
29	5000K	70	11416	12684	161	2100	L2C5-50701321E2900	Gen 3
29	5000K	80	10609	11788	150	2100	L2C5-50801321E2900	Gen 3
29	5600K	90	9117	10130	129	2100	L2C5-56901321E2900	Gen 3
29	5700K	70	11121	12357	157	2100	L2C5-57701321E2900	Gen 3
29	6500K	70	10834	12038	153	2100	L2C5-65701321E2900	Gen 3
32	2200K	60	15876	17640	156	2250	L2C5-22601825F3200	Gen 4
32	2200K	60	15120	16800	144	2250	L2C5-22601825G3200	Gen 4
32	2700K	80	14190	15767	136	2250	L2C5-27801825G3200	Gen 4
32	2700K	90	11785	13094	113	2250	L2C5-27901825G3200	Gen 4
32	3000K	70	15550	17278	149	2250	L2C5-30701825G3200	Gen 4
32	3000K	80	15553	17281	152	2250	L2C5-30801825F3200	Gen 4
32	3000K	80	14535	16150	139	2250	L2C5-30801825G3200	Gen 4
32	3000K	90	13725	15250	134	2250	L2C5-30901825F3200	Gen 4
32	3000K	90	12181	13534	116	2250	L2C5-30901825G3200	Gen 4
32	3500K	80	15930	17700	156	2250	L2C5-35801825F3200	Gen 4
32	3500K	80	14829	16477	142	2250	L2C5-35801825G3200	Gen 4
32	3500K	90	14598	16220	143	2250	L2C5-35901825F3200	Gen 4
32	4000K	70	17362	19291	170	2250	L2C5-40701825F3200	Gen 4
32	4000K	70	16535	18372	158	2250	L2C5-40701825G3200	Gen 4
32	4000K	80	16443	18270	161	2250	L2C5-40801825F3200	Gen 4
32	4000K	80	15368	17075	147	2250	L2C5-40801825G3200	Gen 4
32	4000K	90	14841	16490	145	2250	L2C5-40901825F3200	Gen 4
32	5000K	70	18315	20350	179	2250	L2C5-50701825F3200	Gen 4
32	5000K	70	16535	18372	158	2250	L2C5-50701825G3200	Gen 4
32	5000K	80	16799	18666	165	2250	L2C5-50801825F3200	Gen 4
32	5000K	80	15368	17075	147	2250	L2C5-50801825G3200	Gen 4
32	5600K	80	16556	18395	162	2250	L2C5-56801825F3200	Gen 4
32	5600K	90	13770	15300	135	2250	L2C5-56901825F3200	Gen 4
32	5600K	90	13206	14673	126	2250	L2C5-56901825G3200	Gen 4
32	5700K	70	16108	17898	154	2250	L2C5-57701825G3200	Gen 4
32	6500K	70	15692	17436	150	2250	L2C5-65701825G3200	Gen 4

LES
(mm)

Nominal
CCT

Minimum
CRI

Luminous Flux
(lm)

Typical
Luminous
Efficacy (lm/W)

Test Current
(mA)

Part Number

Generation

Datasheet

Minimum

Typical

2200K

675

750

109

200

L2C5-22801202E0600

Gen 3

2200K

589

654

200

L2C5-22901202E0600

Gen 3

2700K

924

1027

151

200

L2C5-27801202H060x

Gen 5

2700K

797

886

128

200

L2C5-27801202E0600

Gen 3

2700K

984

1093

161

200

L2C5-27901202I060x

Gen 6

2700K

902

1003

148

200

L2C5-27901202H060x

Gen 5

2700K

662

736

107

200

L2C5-27901202E0600

Gen 3

3000K

958

1064

157

200

L2C5-30801202H060x

Gen 5

3000K

837

930

135

200

L2C5-30801202E0600

Gen 3

3000K

978

1087

160

200

L2C5-30901202I060x

Gen 6

3000K

914

1016

150

200

L2C5-30901202H060x

Gen 5

3000K

689

766

111

200

L2C5-30901202E0600

Gen 3

3500K

991

1101

162

200

L2C5-35801202H060x

Gen 5

3500K

854

949

138

200

L2C5-35801202E0600

Gen 3

3500K

994

1105

163

200

L2C5-35901202I060x

Gen 6

3500K

938

1042

154

200

L2C5-35901202H060x

Gen 5

3500K

725

805

117

200

L2C5-35901202E0600

Gen 3

4000K

1014

1127

166

200

L2C5-40801202H060x

Gen 5

4000K

863

959

139

200

L2C5-40801202E0600

Gen 3

4000K

1007

1119

165

200

L2C5-40901202I060x

Gen 6

4000K

959

1065

157

200

L2C5-40901202H060x

Gen 5

4000K

742

824

119

200

L2C5-40901202E0600

Gen 3

5000K

1019

1132

167

200

L2C5-50801202H060x

Gen 5

5000K

863

959

139

200

L2C5-50801202E0600

Gen 3

5000K

1012

1124

166

200

L2C5-50901202I060x

Gen 6

5000K

983

1092

161

200

L2C5-50901202H060x

Gen 5

5700K

869

966

140

200

L2C5-57801202E0600

Gen 3

2200K

703

781

113

200

L2C5-22801202E0900

Gen 3

2200K

1066

1184

114

300

L2C5-22801203E0900

Gen 3

2200K

625

694

101

200

L2C5-22901202E0900

Gen 3

2200K

929

1032

100

300

L2C5-22901203E0900

Gen 3

2700K

952

1058

156

200

L2C5-27801202H090x

Gen 5

2700K

830

922

134

200

L2C5-27801202E0900

Gen 3

2700K

1391

1546

152

300

L2C5-27801203H090x

Gen 5

2700K

1359

1510

147

300

L2C5-27801203F0900

Gen 4

2700K

1258

1398

135

300

L2C5-27801203E0900

Gen 3

2700K

1858

2064

152

400

L2C5-27801204H090x

Gen 5

2700K

1013

1126

166

200

L2C5-27901202I090x

Gen 6

2700K

929

1033

152

200

L2C5-27901202H090x

Gen 5

2700K

689

766

111

200

L2C5-27901202E0900

Gen 3

2700K

1466

1628

160

300

L2C5-27901203I090x

Gen 6

2700K

1345

1494

147

300

L2C5-27901203H090x

Gen 5

2700K

1170

1300

127

300

L2C5-27901203F0900

Gen 4

2700K

1045

1161

112

300

L2C5-27901203E0900

Gen 3

2700K

1948

2164

160

400

L2C5-27901204I090x

Gen 6

2700K

1787

1985

146

400

L2C5-27901204H090x

Gen 5

2700K

999

1110

108

300

L2C5-27951203F0900

Gen 4

3000K

923

1026

149

200

L2C5-30701202E0900

Gen 3

3000K

1475

1639

160

300

L2C5-30701203F0900

Gen 4

3000K

1379

1532

148

300

L2C5-30701203E0900

Gen 3

3000K

983

1092

161

200

L2C5-30801202H090x

Gen 5

3000K

876

973

141

200

L2C5-30801202E0900

Gen 3

3000K

1446

1607

158

300

L2C5-30801203H090x

Gen 5

3000K

1392

1547

151

300

L2C5-30801203F0900

Gen 4

3000K

1289

1432

138

300

L2C5-30801203E0900

Gen 3

3000K

1936

2151

159

400

L2C5-30801204H090x

Gen 5

3000K

1008

1120

165

200

L2C5-30901202I090x

Gen 6

3000K

942

1046

154

200

L2C5-30901202H090x

Gen 5

3000K

729

810

117

200

L2C5-30901202E0900

Gen 3

3000K

1458

1620

159

300

L2C5-30901203I090x

Gen 6

3000K

1362

1514

149

300

L2C5-30901203H090x

Gen 5

3000K

1210

1344

131

300

L2C5-30901203F0900

Gen 4

3000K

1080

1200

116

300

L2C5-30901203E0900

Gen 3

3000K

1937

2152

159

400

L2C5-30901204I090x

Gen 6

3000K

1811

2012

148

400

L2C5-30901204H090x

Gen 5

3000K

1053

1170

114

300

L2C5-30951203F0900

Gen 4

3500K

923

1026

149

200

L2C5-35701202E0900

Gen 3

3500K

1379

1532

148

300

L2C5-35701203E0900

Gen 3

3500K

1022

1135

167

200

L2C5-35801202H090x

Gen 5

3500K

893

992

144

200

L2C5-35801202E0900

Gen 3

3500K

1505

1672

164

300

L2C5-35801203H090x

Gen 5

3500K

1420

1578

154

300

L2C5-35801203F0900

Gen 4

3500K

1315

1461

141

300

L2C5-35801203E0900

Gen 3

3500K

2004

2227

164

400

L2C5-35801204H090x

Gen 5

3500K

1024

1138

168

200

L2C5-35901202I090x

Gen 6

3500K

966

1073

158

200

L2C5-35901202H090x

Gen 5

3500K

752

836

121

200

L2C5-35901202E0900

Gen 3

3500K

1481

1646

162

300

L2C5-35901203I090x

Gen 6

3500K

1397

1553

153

300

L2C5-35901203H090x

Gen 5

3500K

1258

1398

136

300

L2C5-35901203F0900

Gen 4

3500K

1140

1267

122

300

L2C5-35901203E0900

Gen 3

3500K

1968

2187

161

400

L2C5-35901204I090x

Gen 6

3500K

1857

2063

152

400

L2C5-35901204H090x

Gen 5

4000K

968

1075

156

200

L2C5-40701202E0900

Gen 3

4000K

1569

1743

170

300

L2C5-40701203F0900

Gen 4

4000K

1466

1629

157

300

L2C5-40701203E0900

Gen 3

4000K

1049

1166

172

200

L2C5-40801202H090x

Gen 5

4000K

899

999

145

200

L2C5-40801202E0900

Gen 3

4000K

1533

1703

167

300

L2C5-40801203H090x

Gen 5

4000K

1472

1635

159

300

L2C5-40801203F0900

Gen 4

4000K

1363

1514

146

300

L2C5-40801203E0900

Gen 3

4000K

2049

2277

168

400

L2C5-40801204H090x

Gen 5

4000K

1037

1152

170

200

L2C5-40901202I090x

Gen 6

4000K

988

1097

162

200

L2C5-40901202H090x

Gen 5

4000K

772

858

124

200

L2C5-40901202E0900

Gen 3

4000K

1500

1667

164

300

L2C5-40901203I090x

Gen 6

4000K

1429

1587

156

300

L2C5-40901203H090x

Gen 5

4000K

1251

1390

135

300

L2C5-40901203F0900

Gen 4

4000K

1171

1301

126

300

L2C5-40901203E0900

Gen 3

4000K

1993

2215

163

400

L2C5-40901204I090x

Gen 6

4000K

1899

2109

156

400

L2C5-40901204H090x

Gen 5

4000K

1194

1327

129

300

L2C5-40951203F0900

Gen 4

5000K

968

1075

156

200

L2C5-50701202E0900

Gen 3

5000K

1466

1629

157

300

L2C5-50701203E0900

Gen 3

5000K

1050

1167

172

200

L2C5-50801202H090x

Gen 5

5000K

899

999

145

200

L2C5-50801202E0900

Gen 3

5000K

1538

1709

168

300

L2C5-50801203H090x

Gen 5

5000K

1472

1635

159

300

L2C5-50801203F0900

Gen 4

5000K

1363

1514

146

300

L2C5-50801203E0900

Gen 3

5000K

2058

2287

169

400

L2C5-50801204H090x

Gen 5

5000K

1042

1158

171

200

L2C5-50901202I090x

Gen 6

5000K

1012

1124

166

200

L2C5-50901202H090x

Gen 5

5000K

1508

1675

165

300

L2C5-50901203I090x

Gen 6

5000K

1464

1627

160

300

L2C5-50901203H090x

Gen 5

5000K

2004

2226

164

400

L2C5-50901204I090x

Gen 6

5000K

1945

2162

159

400

L2C5-50901204H090x

Gen 5

5700K

942

1047

152

200

L2C5-57701202E0900

Gen 3

5700K

1428

1587

153

300

L2C5-57701203E0900

Gen 3

5700K

1359

1510

146

300

L2C5-57801203E0900

Gen 3

6500K

1391

1546

149

300

L2C5-65701203E0900

Gen 3

2200K

1641

1823

117

450

L2C5-22801204E1300

Gen 3

2200K

2131

2368

113

600

L2C5-22801205E1300

Gen 3

2200K

1430

1589

102

450

L2C5-22901204E1300

Gen 3

2200K

1857

2063

600

L2C5-22901205E1300

Gen 3

2700K

2092

2324

149

450

L2C5-27801204F1300

Gen 4

2700K

1937

2152

138

450

L2C5-27801204E1300

Gen 3

2700K

2758

3065

148

600

L2C5-27801205H130x

Gen 5

2700K

2717

3019

145

600

L2C5-27801205F1300

Gen 4

2700K

2516

2795

133

600

L2C5-27801205E1300

Gen 3

2700K

1803

2003

128

450

L2C5-27901204F1300

Gen 4

2700K

1609

1788

115

450

L2C5-27901204E1300

Gen 3

2700K

2857

3174

153

600

L2C5-27901205I130x

Gen 6

2700K

2621

2912

141

600

L2C5-27901205H130x

Gen 5

2700K

2340

2600

125

600

L2C5-27901205F1300

Gen 4

2700K

2090

2322

111

600

L2C5-27901205E1300

Gen 3

2700K

2007

2230

107

600

L2C5-27951205F1300

Gen 4

3000K

2124

2360

151

450

L2C5-30701204E1300

Gen 3

3000K

2958

3287

158

600

L2C5-30701205F1300

Gen 4

3000K

2765

3072

146

600

L2C5-30701205E1300

Gen 3

3000K

2138

2376

152

450

L2C5-30801204F1300

Gen 4

3000K

1980

2200

141

450

L2C5-30801204E1300

Gen 3

3000K

2866

3185

154

600

L2C5-30801205H130x

Gen 5

3000K

2823

3137

151

600

L2C5-30801205F1300

Gen 4

3000K

2615

2905

138

600

L2C5-30801205E1300

Gen 3

3000K

1855

2061

132

450

L2C5-30901204F1300

Gen 4

3000K

1656

1840

118

450

L2C5-30901204E1300

Gen 3

3000K

2921

3245

157

600

L2C5-30901205I130x

Gen 6

3000K

2730

3033

147

600

L2C5-30901205H130x

Gen 5

3000K

2437

2708

130

600

L2C5-30901205F1300

Gen 4

3000K

2176

2418

115

600

L2C5-30901205E1300

Gen 3

3000K

2160

2400

115

600

L2C5-30951205F1300

Gen 4

3500K

2124

2360

151

450

L2C5-35701204E1300

Gen 3

3500K

2765

3072

146

600

L2C5-35701205E1300

Gen 3

3500K

2020

2244

144

450

L2C5-35801204E1300

Gen 3

3500K

2924

3249

157

600

L2C5-35801205H130x

Gen 5

3500K

2880

3200

154

600

L2C5-35801205F1300

Gen 4

3500K

2667

2963

141

600

L2C5-35801205E1300

Gen 3

3500K

1929

2143

137

450

L2C5-35901204F1300

Gen 4

3500K

1755

1950

125

450

L2C5-35901204E1300

Gen 3

3500K

3009

3343

162

600

L2C5-35901205I130x

Gen 6

3500K

2839

3154

152

600

L2C5-35901205H130x

Gen 5

3500K

2534

2816

135

600

L2C5-35901205F1300

Gen 4

3500K

2280

2533

121

600

L2C5-35901205E1300

Gen 3

4000K

2258

2509

161

450

L2C5-40701204E1300

Gen 3

4000K

3137

3486

167

600

L2C5-40701205F1300

Gen 4

4000K

2932

3258

155

600

L2C5-40701205E1300

Gen 3

4000K

2260

2511

161

450

L2C5-40801204F1300

Gen 4

4000K

2099

2332

149

450

L2C5-40801204E1300

Gen 3

4000K

3060

3400

164

600

L2C5-40801205H130x

Gen 5

4000K

2943

3270

157

600

L2C5-40801205F1300

Gen 4

4000K

2725

3028

144

600

L2C5-40801205E1300

Gen 3

4000K

1803

2003

128

450

L2C5-40901204E1300

Gen 3

4000K

3083

3426

165

600

L2C5-40901205I130x

Gen 6

4000K

2936

3263

158

600

L2C5-40901205H130x

Gen 5

4000K

2622

2913

140

600

L2C5-40901205F1300

Gen 4

4000K

2341

2601

124

600

L2C5-40901205E1300

Gen 3

4000K

2434

2704

130

600

L2C5-40951205F1300

Gen 4

5000K

2258

2509

161

450

L2C5-50701204E1300

Gen 3

5000K

2932

3258

155

600

L2C5-50701205E1300

Gen 3

5000K

2099

2332

149

450

L2C5-50801204E1300

Gen 3

5000K

3017

3352

162

600

L2C5-50801205H130x

Gen 5

5000K

2943

3270

157

600

L2C5-50801205F1300

Gen 4

5000K

2725

3028

144

600

L2C5-50801205E1300

Gen 3

5000K

3025

3362

162

600

L2C5-50901205I130x

Gen 6

5000K

2937

3264

158

600

L2C5-50901205H130x

Gen 5

5000K

2623

2914

140

600

L2C5-50901205F1300

Gen 4

5700K

2199

2443

156

450

L2C5-57701204E1300

Gen 3

5700K

2856

3173

151

600

L2C5-57701205E1300

Gen 3

5700K

2093

2325

149

450

L2C5-57801204E1300

Gen 3

5700K

2935

3261

157

600

L2C5-57801205F1300

Gen 4

5700K

2717

3019

144

600

L2C5-57801205E1300

Gen 3

6500K

2142

2380

152

450

L2C5-65701204E1300

Gen 3

6500K

2782

3091

147

600

L2C5-65701205E1300

Gen 3

6500K

2861

3179

153

600

L2C5-65801205F1300

Gen 4

2200K

3197

3552

113

900

L2C5-22801208E1500

Gen 3

2200K

2786

3095

900

L2C5-22901208E1500

Gen 3

2700K

4199

4665

152

900

L2C5-27801208H150x

Gen 5

2700K

4118

4575

151

900

L2C5-27801210H150x

Gen 5

2700K

4116

4573

149

900

L2C5-27801210F1500

Gen 4

2700K

4075

4528

145

900

L2C5-27801208F1500

Gen 4

2700K

3774

4193

134

900

L2C5-27801208E1500

Gen 3

2700K

4395

4883

161

900

L2C5-27901210I150x

Gen 6

2700K

4289

4766

155

900

L2C5-27901208I150x

Gen 6

2700K

4032

4480

148

900

L2C5-27901210H150x

Gen 5

2700K

3935

4372

142

900

L2C5-27901208H150x

Gen 5

2700K

3514

3904

125

900

L2C5-27901208F1500

Gen 4

2700K

3137

3486

111

900

L2C5-27901208E1500

Gen 3

2700K

3045

3384

111

900

L2C5-27951210F1500

Gen 4

2700K

3015

3350

107

900

L2C5-27951208F1500

Gen 4

3000K

4440

4933

158

900

L2C5-30701208F1500

Gen 4

3000K

4149

4610

147

900

L2C5-30701208E1500

Gen 3

3000K

4374

4860

158

900

L2C5-30801208H150x

Gen 5

3000K

4289

4765

158

900

L2C5-30801210H150x

Gen 5

3000K

4288

4764

156

900

L2C5-30801210F1500

Gen 4

3000K

4245

4717

151

900

L2C5-30801208F1500

Gen 4

3000K

3931

4368

139

900

L2C5-30801208E1500

Gen 3

3000K

4485

4983

162

900

L2C5-30901208I150x

Gen 6

3000K

4459

4954

164

900

L2C5-30901210I150x

Gen 6

3000K

4191

4657

151

900

L2C5-30901208H150x

Gen 5

3000K

4167

4630

153

900

L2C5-30901210H150x

Gen 5

3000K

3721

4134

135

900

L2C5-30901210F1500

Gen 4

3000K

3639

4043

129

900

L2C5-30901208F1500

Gen 4

3000K

3249

3610

115

900

L2C5-30901208E1500

Gen 3

3000K

3240

3600

115

900

L2C5-30951208F1500

Gen 4

3500K

4149

4610

147

900

L2C5-35701208E1500

Gen 3

3500K

4505

5005

163

900

L2C5-35801208H150x

Gen 5

3500K

4437

4930

163

900

L2C5-35801210H150x

Gen 5

3500K

4373

4859

159

900

L2C5-35801210F1500

Gen 4

3500K

4330

4811

154

900

L2C5-35801208F1500

Gen 4

3500K

4010

4455

142

900

L2C5-35801208E1500

Gen 3

3500K

4538

5042

167

900

L2C5-35901210I150x

Gen 6

3500K

4526

5029

163

900

L2C5-35901208I150x

Gen 6

3500K

4281

4757

157

900

L2C5-35901210H150x

Gen 5

3500K

4270

4744

154

900

L2C5-35901208H150x

Gen 5

3500K

3822

4247

139

900

L2C5-35901210F1500

Gen 4

3500K

3785

4205

135

900

L2C5-35901208F1500

Gen 4

3500K

3420

3800

121

900

L2C5-35901208E1500

Gen 3

4000K

4719

5243

168

900

L2C5-40701208F1500

Gen 4

4000K

4410

4900

156

900

L2C5-40701208E1500

Gen 3

4000K

4590

5100

166

900

L2C5-40801208H150x

Gen 5

4000K

4536

5040

167

900

L2C5-40801210H150x

Gen 5

4000K

4533

5037

165

900

L2C5-40801210F1500

Gen 4

4000K

4415

4905

157

900

L2C5-40801208F1500

Gen 4

4000K

4088

4542

145

900

L2C5-40801208E1500

Gen 3

4000K

4672

5191

172

900

L2C5-40901210I150x

Gen 6

4000K

4625

5139

167

900

L2C5-40901208I150x

Gen 6

4000K

4449

4944

163

900

L2C5-40901210H150x

Gen 5

4000K

4405

4894

159

900

L2C5-40901208H150x

Gen 5

4000K

3972

4414

144

900

L2C5-40901210F1500

Gen 4

4000K

3933

4370

140

900

L2C5-40901208F1500

Gen 4

4000K

3512

3902

125

900

L2C5-40901208E1500

Gen 3

4000K

3572

3969

127

900

L2C5-40951208F1500

Gen 4

5000K

4719

5243

168

900

L2C5-50701208F1500

Gen 4

5000K

4410

4900

156

900

L2C5-50701208E1500

Gen 3

5000K

4568

5075

165

900

L2C5-50801208H150x

Gen 5

5000K

4487

4985

165

900

L2C5-50801210H150x

Gen 5

5000K

4415

4905

157

900

L2C5-50801208F1500

Gen 4

5000K

4088

4542

145

900

L2C5-50801208E1500

Gen 3

5000K

4650

5167

171

900

L2C5-50901210I150x

Gen 6

5000K

4552

5057

164

900

L2C5-50901208I150x

Gen 6

5000K

4515

5016

166

900

L2C5-50901210H150x

Gen 5

5000K

4419

4910

160

900

L2C5-50901208H150x

Gen 5

5700K

4584

5093

163

900

L2C5-57701208F1500

Gen 4

5700K

4284

4760

152

900

L2C5-57701208E1500

Gen 3

5700K

4402

4891

157

900

L2C5-57801208F1500

Gen 4

5700K

4076

4529

145

900

L2C5-57801208E1500

Gen 3

6500K

4466

4962

159

900

L2C5-65701208F1500

Gen 4

6500K

4173

4637

148

900

L2C5-65701208E1500

Gen 3

6500K

4292

4769

153

900

L2C5-65801208F1500

Gen 4

2200K

4390

4878

117

1200

L2C5-22801211E1900

Gen 3

2200K

3749

4165

100

1200

L2C5-22901211E1900

Gen 3

2700K

5648

6275

153

1200

L2C5-27801211H190x

Gen 5

2700K

5519

6132

149

1200

L2C5-27801211F1900

Gen 4

2700K

5182

5758

138

1200

L2C5-27801211E1900

Gen 3

2700K

5255

5839

142

1200

L2C5-27901211H190x

Gen 5

2700K

4692

5213

127

1200

L2C5-27901211F1900

Gen 4

2700K

4305

4783

115

1200

L2C5-27901211E1900

Gen 3

2700K

4032

4480

109

1200

L2C5-27951211F1910

Gen 4

3000K

6065

6739

164

1200

L2C5-30701211F1900

Gen 4

3000K

5695

6328

152

1200

L2C5-30701211E1900

Gen 3

3000K

5807

6452

157

1200

L2C5-30801211H190x

Gen 5

3000K

5675

6305

153

1200

L2C5-30801211F1900

Gen 4

3000K

5328

5920

142

1200

L2C5-30801211E1900

Gen 3

3000K

5601

6224

152

1200

L2C5-30901211H190x

Gen 5

3000K

4910

5455

133

1200

L2C5-30901211F1900

Gen 4

3000K

4505

5005

120

1200

L2C5-30901211E1900

Gen 3

3000K

4221

4690

114

1200

L2C5-30951211F1910

Gen 4

3500K

5695

6328

152

1200

L2C5-35701211E1900

Gen 3

3500K

5922

6580

160

1200

L2C5-35801211H190x

Gen 5

3500K

5787

6430

156

1200

L2C5-35801211F1900

Gen 4

3500K

5434

6038

145

1200

L2C5-35801211E1900

Gen 3

3500K

5734

6371

155

1200

L2C5-35901211H190x

Gen 5

3500K

5119

5688

138

1200

L2C5-35901211F1900

Gen 4

3500K

4696

5218

125

1200

L2C5-35901211E1900

Gen 3

4000K

6447

7163

174

1200

L2C5-40701211F1900

Gen 4

4000K

6053

6726

161

1200

L2C5-40701211E1900

Gen 3

4000K

6257

6953

169

1200

L2C5-40801211H190x

Gen 5

4000K

5979

6643

161

1200

L2C5-40801211F1900

Gen 4

4000K

5614

6238

149

1200

L2C5-40801211E1900

Gen 3

4000K

5865

6517

159

1200

L2C5-40901211H190x

Gen 5

4000K

5256

5840

142

1200

L2C5-40901211F1900

Gen 4

4000K

4822

5358

128

1200

L2C5-40901211E1900

Gen 3

5000K

6447

7163

174

1200

L2C5-50701211F1900

Gen 4

5000K

6053

6726

161

1200

L2C5-50701211E1900

Gen 3

5000K

6185

6872

167

1200

L2C5-50801211H190x

Gen 5

5000K

5979

6643

161

1200

L2C5-50801211F1900

Gen 4

5000K

5614

6238

149

1200

L2C5-50801211E1900

Gen 3

5000K

5887

6541

159

1200

L2C5-50901211H190x

Gen 5

5000K

5256

5840

142

1200

L2C5-50901211F1900

Gen 4

5700K

6265

6961

169

1200

L2C5-57701211F1900

Gen 4

5700K

5882

6536

157

1200

L2C5-57701211E1900

Gen 3

5700K

5962

6624

161

1200

L2C5-57801211F1900

Gen 4

5700K

5598

6220

149

1200

L2C5-57801211E1900

Gen 3

6500K

6104

6782

165

1200

L2C5-65701211F1900

Gen 4

6500K

5731

6368

152

1200

L2C5-65701211E1900

Gen 3

6500K

5661

6290

153

1200

L2C5-65801211F1900

Gen 4

2200K

5755

6394

116

1600

L2C5-22801216E2300

Gen 3

2200K

5013

5570

101

1600

L2C5-22901216E2300

Gen 3

2700K

8640

9600

157

1200

L2C5-27801812H2300

Gen 5

2700K

10080

11200

155

1440

L2C5-27801816H2300

Gen 5

2700K

7664

8515

157

1600

L2C5-27801216H230x

Gen 5

2700K

7335

8150

150

1600

L2C5-27801216F2300

Gen 4

2700K

6791

7546

137

1600

L2C5-27801216E2300

Gen 3

2700K

7077

7864

145

1600

L2C5-27901216H230x

Gen 5

2700K

6319

7021

129

1600

L2C5-27901216F2300

Gen 4

2700K

5642

6269

114

1600

L2C5-27901216E2300

Gen 3

3000K

9720

10800

177

1200

L2C5-30701812H2300

Gen 5

3000K

10800

12000

166

1440

L2C5-30701816H2300

Gen 5

3000K

7988

8875

163

1600

L2C5-30701216F2300

Gen 4

3000K

7465

8294

150

1600

L2C5-30701216E2300

Gen 3

3000K

9180

10200

167

1200

L2C5-30801812H2300

Gen 5

3000K

8221

9134

149

1200

L2C5-30801812F2300

Gen 4

3000K

7682

8536

138

1200

L2C5-30801812G2300

Gen 4

3000K

6188

6875

155

1300

L2C5-30801213F2300

Gen 4

3000K

10544

11715

162

1440

L2C5-30801816H2300

Gen 5

3000K

7844

8715

161

1600

L2C5-30801216H230x

Gen 5

3000K

7508

8342

153

1600

L2C5-30801216F2300

Gen 4

3000K

6952

7724

140

1600

L2C5-30801216E2300

Gen 3

3000K

7358

8176

151

1600

L2C5-30901216H230x

Gen 5

3000K

6570

7300

134

1600

L2C5-30901216F2300

Gen 4

3000K

5866

6518

118

1600

L2C5-30901216E2300

Gen 3

3500K

7465

8294

150

1600

L2C5-35701216E2300

Gen 3

3500K

9360

10400

170

1200

L2C5-35801812H2300

Gen 5

3500K

10800

12000

166

1440

L2C5-35801816H2300

Gen 5

3500K

8001

8890

164

1600

L2C5-35801216H230x

Gen 5

3500K

7657

8508

156

1600

L2C5-35801216F2300

Gen 4

3500K

7090

7878

143

1600

L2C5-35801216E2300

Gen 3

3500K

7612

8458

156

1600

L2C5-35901216H230x

Gen 5

3500K

6893

7659

141

1600

L2C5-35901216F2300

Gen 4

3500K

6155

6839

124

1600

L2C5-35901216E2300

Gen 3

4000K

10080

11200

183

1200

L2C5-40701812H2300

Gen 5

4000K

9356

10395

170

1200

L2C5-40701812F2300

Gen 4

4000K

9000

10000

161

1200

L2C5-40701812G2300

Gen 4

4000K

11790

13100

181

1440

L2C5-40701816H2300

Gen 5

4000K

8428

9364

172

1600

L2C5-40701216F2300

Gen 4

4000K

7876

8751

159

1600

L2C5-40701216E2300

Gen 3

4000K

9540

10600

174

1200

L2C5-40801812H2300

Gen 5

4000K

8691

9657

157

1200

L2C5-40801812F2300

Gen 4

4000K

8123

9025

145

1200

L2C5-40801812G2300

Gen 4

4000K

6623

7359

166

1300

L2C5-40801213F2300

Gen 4

4000K

11124

12360

171

1440

L2C5-40801816H2300

Gen 5

4000K

8384

9315

172

1600

L2C5-40801216H230x

Gen 5

4000K

7947

8830

162

1600

L2C5-40801216F2300

Gen 4

4000K

7358

8176

148

1600

L2C5-40801216E2300

Gen 3

4000K

7720

8578

158

1600

L2C5-40901216H230x

Gen 5

4000K

6893

7659

141

1600

L2C5-40901216F2300

Gen 4

4000K

6321

7023

127

1600

L2C5-40901216E2300

Gen 3

5000K

9990

11100

182

1200

L2C5-50701812H2300

Gen 5

5000K

9450

10500

171

1200

L2C5-50701812F2300

Gen 4

5000K

9000

10000

161

1200

L2C5-50701812G2300

Gen 4

5000K

7072

7858

177

1300

L2C5-50701213F2300

Gen 4

5000K

11700

13000

179

1440

L2C5-50701816H2300

Gen 5

5000K

8428

9364

172

1600

L2C5-50701216F2300

Gen 4

5000K

7876

8751

159

1600

L2C5-50701216E2300

Gen 3

5000K

9630

10700

175

1200

L2C5-50801812H2300

Gen 5

5000K

8814

9793

160

1200

L2C5-50801812F2300

Gen 4

5000K

8123

9025

145

1200

L2C5-50801812G2300

Gen 4

5000K

11070

12300

170

1440

L2C5-50801816H2300

Gen 5

5000K

8303

9225

170

1600

L2C5-50801216H230x

Gen 5

5000K

7947

8830

162

1600

L2C5-50801216F2300

Gen 4

5000K

7358

8176

148

1600

L2C5-50801216E2300

Gen 3

5000K

7789

8654

160

1600

L2C5-50901216H230x

Gen 5

5000K

6954

7727

142

1600

L2C5-50901216F2300

Gen 4

5700K

8250

9167

169

1600

L2C5-57701216F2300

Gen 4

5700K

7710

8567

155

1600

L2C5-57701216E2300

Gen 3

5700K

9360

10400

170

1200

L2C5-57801812H2300

Gen 5

5700K

11070

12300

170

1440

L2C5-57801816H2300

Gen 5

5700K

7923

8803

162

1600

L2C5-57801216F2300

Gen 4

5700K

7336

8151

148

1600

L2C5-57801216E2300

Gen 3

6500K

8038

8931

164

1600

L2C5-65701216F2300

Gen 4

6500K

7512

8347

151

1600

L2C5-65701216E2300

Gen 3

6500K

9270

10300

169

1200

L2C5-65801812H2300

Gen 5

6500K

10980

12200

168

1440

L2C5-65801816H2300

Gen 5

2200K

10961

12179

155

2100

L2C5-22601321F2900

Gen 4

2700K

10286

11429

145

2100

L2C5-27801321F2900

Gen 4

2700K

9797

10885

138

2100

L2C5-27801321E2900

Gen 3

2700K

8136

9040

115

2100

L2C5-27901321E2900

Gen 3

3000K

10736

11929

151

2100

L2C5-30701321E2900

Gen 3

3000K

10737

11930

151

2100

L2C5-30801321F2900

Gen 4

3000K

10035

11150

142

2100

L2C5-30801321E2900

Gen 3

3000K

8410

9344

119

2100

L2C5-30901321E2900

Gen 3

3500K

10238

11376

144

2100

L2C5-35801321E2900

Gen 3

4000K

11867

13185

167

2100

L2C5-40701321F2900

Gen 4

4000K

11416

12684

161

2100

L2C5-40701321E2900

Gen 3

4000K

11352

12613

160

2100

L2C5-40801321F2900

Gen 4

4000K

10609

11788

150

2100

L2C5-40801321E2900

Gen 3

5000K

11986

13318

169

2100

L2C5-50701321F2900

Gen 4

5000K

11416

12684

161

2100

L2C5-50701321E2900

Gen 3

5000K

10609

11788

150

2100

L2C5-50801321E2900

Gen 3

5600K

9117

10130

129

2100

L2C5-56901321E2900

Gen 3

5700K

11121

12357

157

2100

L2C5-57701321E2900

Gen 3

6500K

10834

12038

153

2100

L2C5-65701321E2900

Gen 3

2200K

15876

17640

156

2250

L2C5-22601825F3200

Gen 4

2200K

15120

16800

144

2250

L2C5-22601825G3200

Gen 4

2700K

14190

15767

136

2250

L2C5-27801825G3200

Gen 4

2700K

11785

13094

113

2250

L2C5-27901825G3200

Gen 4

3000K

15550

17278

149

2250

L2C5-30701825G3200

Gen 4

3000K

15553

17281

152

2250

L2C5-30801825F3200

Gen 4

3000K

14535

16150

139

2250

L2C5-30801825G3200

Gen 4

3000K

13725

15250

134

2250

L2C5-30901825F3200

Gen 4

3000K

12181

13534

116

2250

L2C5-30901825G3200

Gen 4

3500K

15930

17700

156

2250

L2C5-35801825F3200

Gen 4

3500K

14829

16477

142

2250

L2C5-35801825G3200

Gen 4

3500K

14598

16220

143

2250

L2C5-35901825F3200

Gen 4

4000K

17362

19291

170

2250

L2C5-40701825F3200

Gen 4

4000K

16535

18372

158

2250

L2C5-40701825G3200

Gen 4

4000K

16443

18270

161

2250

L2C5-40801825F3200

Gen 4

4000K

15368

17075

147

2250

L2C5-40801825G3200

Gen 4

4000K

14841

16490

145

2250

L2C5-40901825F3200

Gen 4

5000K

18315

20350

179

2250

L2C5-50701825F3200

Gen 4

5000K

16535

18372

158

2250

L2C5-50701825G3200

Gen 4

5000K

16799

18666

165

2250

L2C5-50801825F3200

Gen 4

5000K

15368

17075

147

2250

L2C5-50801825G3200

Gen 4

5600K

16556

18395

162

2250

L2C5-56801825F3200

Gen 4

5600K

13770

15300

135

2250

L2C5-56901825F3200

Gen 4

5600K

13206

14673

126

2250

L2C5-56901825G3200

Gen 4

5700K

16108

17898

154

2250

L2C5-57701825G3200

Gen 4

6500K

15692

17436

150

2250

L2C5-65701825G3200

Gen 4

Doc Number	Title	Last Modified
AB115	LUXEON Core Range CoBs Application Brief	Aug 13, 2024
AB06	LUXEON Illumination LEDs Circuit Design and Layout Practices to Minimize Electrical Stress	Jun 5, 2017

Doc Number

Title

Last Modified

AB115

LUXEON Core Range CoBs Application Brief

Aug 13, 2024

AB06

LUXEON Illumination LEDs Circuit Design and Layout Practices to Minimize Electrical Stress

Jun 5, 2017

Doc Number	Title	Last Modified
ED81	Certification-ENEC-149541	Nov 26, 2024

Doc Number

Title

Last Modified

ED81

Certification-ENEC-149541

Nov 26, 2024

Doc Number	Title	Last Modified
DS562	LUXEON CoB Core Range Gen 5 Product Datasheet	Feb 21, 2024
DS567	LUXEON CoB Core Range Gen 6 Product Datasheet	Mar 18, 2024
DS162	LUXEON CoB Core Range Product Datasheet	May 24, 2022

Doc Number

Title

Last Modified

DS562

LUXEON CoB Core Range Gen 5 Product Datasheet

Feb 21, 2024

DS567

LUXEON CoB Core Range Gen 6 Product Datasheet

Mar 18, 2024

DS162

LUXEON CoB Core Range Product Datasheet

May 24, 2022

Doc Number	Title	Last Modified
BR26	LUXEON Stylist Series Restaurants Brochure	Jul 22, 2016

Doc Number

Title

Last Modified

BR26

LUXEON Stylist Series Restaurants Brochure

Jul 22, 2016

Doc Number	Title	Last Modified
PB562	LUXEON CoB Core Range Gen 5 Product Brief	Feb 21, 2024
PB567	LUXEON CoB Core Range Gen 6 Product Brief	Mar 18, 2024
PB162	LUXEON CoB Core Range Product Brief	May 9, 2022
PB173	LUXEON Stylist Series: AtmoSphere Technology Product Brief	Oct 10, 2016

Doc Number

Title

Last Modified

PB562

LUXEON CoB Core Range Gen 5 Product Brief

Feb 21, 2024

PB567

LUXEON CoB Core Range Gen 6 Product Brief

Mar 18, 2024

PB162

LUXEON CoB Core Range Product Brief

May 9, 2022

PB173

LUXEON Stylist Series: AtmoSphere Technology Product Brief

Oct 10, 2016

LL ID	File format	Title	Products	Modified	Size (MB)
DRM1520	STEP	LUXEON CoB 1208 STEP	L2C5-xxxx1210x15xx L2C5-xxxx1208X15xx	03/18/2022	0.25
DRM3808	STEP	LUXEON CoB 1213, LUXEON CoB 1216 and LUXEON CoB 1812 STEP	L2C5-xxxx1213x23xx L2C5-xxxx1216x23xx L2C5-xxxx1812x23xx L2C5xxxx1816x23xx	01/27/2022	0.11
DRM2947	STEP	LUXEON CoB 1321 STEP	L2C5-xxxx1321x29xx	01/27/2022	0.23
DRM2948	STEP	LUXEON CoB 1825 STEP	L2C5-xxxx1825G32xx	01/27/2022	0.26
DRM3902	STEP	LUXEON COB Gen 5 Gen 6 LES 13 (1205) 90CRI STEP	L2C5-xx901205H13xx L2C5-xx901205I13xx	05/12/2023	0.17
DRM3903	STEP	LUXEON COB Gen 5 Gen 6 LES 15 (1208/1210) 90CRI STEP	L2C5-xx901208H15xx L2C5-xx901210H15xx L2C5-xx901208I15xx L2C5-xx901210I15xx	05/12/2023	0.17
DRM3900	STEP	LUXEON COB Gen 5 Gen 6 LES 6 (1202) 90CRI STEP		03/19/2024	0.21
DRM3901	STEP	LUXEON COB Gen 5 Gen 6 LES 9 (1202/1203/1204) 90CRI STEP	L2C5-xx901205H09xx L2C5-xx901202I09xx L2C5-xx901203I09xx L2C5-xx901204I09xx	03/19/2024	0.21
DRM3904	STEP	LUXEON COB Gen 5 LES 19 (1211) 90CRI STEP	L2C5-xx901211H19xx	05/12/2023	0.16
DRM3905	STEP	LUXEON COB Gen 5 LES 23 (1216/1812/1816) 90CRI STEP	L2C5-xx901216H23xx L2C5-xx901812H23xx L2C5-xx901816H23xx	05/12/2023	0.17

LL ID

File format

Title

Products

Modified

Size (MB)

DRM1520

STEP

L2C5-xxxx1210x15xx
L2C5-xxxx1208X15xx

03/18/2022

0.25

DRM3808

STEP

L2C5-xxxx1213x23xx
L2C5-xxxx1216x23xx
L2C5-xxxx1812x23xx
L2C5xxxx1816x23xx

01/27/2022

0.11

DRM2947

STEP

L2C5-xxxx1321x29xx

01/27/2022

0.23

DRM2948

STEP

L2C5-xxxx1825G32xx

01/27/2022

0.26

DRM3902

STEP

L2C5-xx901205H13xx
L2C5-xx901205I13xx

05/12/2023

0.17

DRM3903

STEP

L2C5-xx901208H15xx
L2C5-xx901210H15xx
L2C5-xx901208I15xx
L2C5-xx901210I15xx

05/12/2023

0.17

DRM3900

STEP

03/19/2024

0.21

DRM3901

STEP

L2C5-xx901205H09xx
L2C5-xx901202I09xx
L2C5-xx901203I09xx
L2C5-xx901204I09xx

03/19/2024

0.21

DRM3904

STEP

L2C5-xx901211H19xx

05/12/2023

0.16

DRM3905

STEP

L2C5-xx901216H23xx
L2C5-xx901812H23xx
L2C5-xx901816H23xx

05/12/2023

0.17

LL ID	File format	Title	Products	Modified	Size (MB)
DRO-RM-CoB-Core-Range-and-CoB-with-CrispColor-Technology	All Available Types	LUXEON CoB Core Range and LUXEON CoB with CrispColor Technology Optical Rayset Readme	L2C5-xx801202H06xx L2C5-xx801202H09xx L2C5-xx801203H09xx L2C5-xx801204H09xx More Products L2C5-xx801205H13xx L2C5-xx801208H15xx L2C5-xx801211H19xx L2C5-xx801216H23xx L2C5-xx701812H23xx L2C5-xx801812H23xx L2C5-xx701816H23xx L2C5-xx801816H23xx L2C5-xx901202H06xx L2C5-xx901202I06xx L2C5-xx901202H09xx L2C5-xx901202I09xx L2C5-xx901203H09xx L2C5-xx901203I09xx L2C5-xx901204H09xx L2C5-xx901204I09xx L2C5-xx901205H13xx L2C5-xx901205I13xx L2C5-xx901208H15xx L2C5-xx901208I15xx L2C5-xx901210H15xx L2C5-xx901210I15xx L2C5-xx901211H19xx L2C5-xx901216H23xx L2C5-xxxx1202E06xx L2C5-xxxx1202E09xx L2C5-xxxx01203E09xx L2C5-xxxx01203F09xx L2C5-xxxx1204E09xx L2C5-xxxx1204F09xx L2C5-xxxx1205E13xx L2C5-xxxx1205F13xx L2C5-xxxx1208E15xx L2C5-xxxx1208F15xx L2C5-xxxx1210F23xx L2C5-xxxx1211E19xx L2C5-xxxx1211F19xx L2C5-xxxx1213F19xx L2C5-xxxx1216E23xx L2C5-xxxx1216F23xx L2C5-xxxx1812F23xx L2C5-xxxx1812G23xx L2C5-xxxx1321E29xx L2C5-xxxx1321F29xx L2C5-xxxx1825F32xx L2C5-xxxx1825G32xx L2C5-xxHG1202E06xx L2C5-xxHG1202E09xx L2C5-xxHG1203E09xx L2C5-xxHG1204E09xx L2C5-xxHG1205E13xx L2C5-xxHG1208E15xx L2C5-xxHG1211E19xx L2C5-xxHG1216E23xx L2C6-xxHGxL02E06xx L2C6-xxHGxL03E09xx L2C6-xxHGxL04E09xx L2C6-xxHGxL05E13xx L2C6-xxHGxL08E15xx L2C6-xxHGxL11E15xx	08/20/2024	0.57

LL ID

File format

Title

Products

Modified

Size (MB)

DRO-RM-CoB-Core-Range-and-CoB-with-CrispColor-Technology

All Available Types

L2C5-xx801202H06xx
L2C5-xx801202H09xx
L2C5-xx801203H09xx
L2C5-xx801204H09xx
More Products

L2C5-xx801205H13xx
L2C5-xx801208H15xx
L2C5-xx801211H19xx
L2C5-xx801216H23xx
L2C5-xx701812H23xx
L2C5-xx801812H23xx
L2C5-xx701816H23xx
L2C5-xx801816H23xx
L2C5-xx901202H06xx
L2C5-xx901202I06xx
L2C5-xx901202H09xx
L2C5-xx901202I09xx
L2C5-xx901203H09xx
L2C5-xx901203I09xx
L2C5-xx901204H09xx
L2C5-xx901204I09xx
L2C5-xx901205H13xx
L2C5-xx901205I13xx
L2C5-xx901208H15xx
L2C5-xx901208I15xx
L2C5-xx901210H15xx
L2C5-xx901210I15xx
L2C5-xx901211H19xx
L2C5-xx901216H23xx
L2C5-xxxx1202E06xx
L2C5-xxxx1202E09xx
L2C5-xxxx01203E09xx
L2C5-xxxx01203F09xx
L2C5-xxxx1204E09xx
L2C5-xxxx1204F09xx
L2C5-xxxx1205E13xx
L2C5-xxxx1205F13xx
L2C5-xxxx1208E15xx
L2C5-xxxx1208F15xx
L2C5-xxxx1210F23xx
L2C5-xxxx1211E19xx
L2C5-xxxx1211F19xx
L2C5-xxxx1213F19xx
L2C5-xxxx1216E23xx
L2C5-xxxx1216F23xx
L2C5-xxxx1812F23xx
L2C5-xxxx1812G23xx
L2C5-xxxx1321E29xx
L2C5-xxxx1321F29xx
L2C5-xxxx1825F32xx
L2C5-xxxx1825G32xx
L2C5-xxHG1202E06xx
L2C5-xxHG1202E09xx
L2C5-xxHG1203E09xx
L2C5-xxHG1204E09xx
L2C5-xxHG1205E13xx
L2C5-xxHG1208E15xx
L2C5-xxHG1211E19xx
L2C5-xxHG1216E23xx
L2C6-xxHGxL02E06xx
L2C6-xxHGxL03E09xx
L2C6-xxHGxL04E09xx
L2C6-xxHGxL05E13xx
L2C6-xxHGxL08E15xx
L2C6-xxHGxL11E15xx

08/20/2024

0.57

LL ID	Title	Part Numbers	Size (KB)	Report Date
PTR-48	LUXEON CoB Core Range Gen4 Gen5 Gen6, LUXEON CoB Core Pro, LUXEON CoB Core Range PW	L2C5-xxxxxxxxFxx00 L2C5-xxxxxxxxGxxxx L2C5-xxxxxxxxHxx00 L2C5-xxxxxxxIxx00 L2C5-xxxxxxxxXxxxx L2C5-xxxxxxxxFxxPx L2C5-xxxxxxxxHxxPx L2C5-xxxxxxxxIxxPx	2,040	Oct 8, 2024
PTR-49	LUXEON CoB Core Range Gen 2 Gen3，LUXEON CoB with CrispColor Technology, LUXEON CoB with FreshFocus Technology and LUXEON SunPlus CoB Line	L2C5 -xxxxxxxxDxxxx L2C5-xxxxxxxxExxxx L2C5-xxxxxxxxGxxxx	877	Sep 1, 2024

LL ID

Title

Part Numbers

Size (KB)

Report Date

PTR-48

LUXEON CoB Core Range Gen4 Gen5 Gen6, LUXEON CoB Core Pro, LUXEON CoB Core Range PW

L2C5-xxxxxxxxFxx00
L2C5-xxxxxxxxGxxxx
L2C5-xxxxxxxxHxx00
L2C5-xxxxxxxIxx00
L2C5-xxxxxxxxXxxxx
L2C5-xxxxxxxxFxxPx
L2C5-xxxxxxxxHxxPx
L2C5-xxxxxxxxIxxPx

2,040

Oct 8, 2024

PTR-49

LUXEON CoB Core Range Gen 2 Gen3，LUXEON CoB with CrispColor Technology, LUXEON CoB with FreshFocus Technology and LUXEON SunPlus CoB Line

L2C5 -xxxxxxxxDxxxx
L2C5-xxxxxxxxExxxx
L2C5-xxxxxxxxGxxxx

877

Sep 1, 2024

Automotive

Specialty

Illumination

Explore Our Lighting Solutions

By Application

High Power Color LEDs

Mid Power Color LEDs

Multi-Color Packages

LUXEON Core Range CoBsHigh performance and reliability in standard footprint CoBs for new and existing designs.

LUXEON CS Range CoBsHigh performance and reliability in an industry-compatible, square footprint.

LUXEON CX Plus CoBsHigh performance and reliability in a CX-compatible footprint.

CoBs for Impactful Retail Lighting

Human Centric Lighting

Single Die

Multi Die

LED Solutions & Modules

Single Die

LED Solutions & Modules

LED Solutions

Infrared

Lamps

LED Technology

Spotlight

CoB Technology

Video Library

Document Library

Design files

Design Tools

Document library

Design resources

Design files

About us

Press Room

Latest news

Upcoming Events

Automotive

Specialty

Illumination

Explore Our Lighting Solutions

By Application

High Power Color LEDs

Mid Power Color LEDs

Multi-Color Packages

LUXEON Core Range CoBsHigh performance and reliability in standard footprint CoBs for new and existing designs.

LUXEON CS Range CoBsHigh performance and reliability in an industry-compatible, square footprint.

LUXEON CX Plus CoBsHigh performance and reliability in a CX-compatible footprint.

CoBs for Impactful Retail Lighting

Human Centric Lighting

Single Die

Multi Die

LED Solutions & Modules

Single Die

LED Solutions & Modules

LED Solutions

Infrared

Lamps

LED Technology

Spotlight

CoB Technology

Video Library

Challenges and Solutions when Designing Large Cluster Multi-color LED Sources

Document Library

Design resources

Design files

Design Tools

Document library

Design resources

Design files

About us

Press Room

Latest news

Upcoming Events

LUXEON CoB Core Range

Features & Benefits

Related Products

Applications

Documentation

Design Resources

LUXEON CoB Core Range

LUXEON CoB Core Range
