High Power LEDs

Used primarily for outdoor and industrial lighting, high power LEDs are all about efficiency and lowering forward voltage (Vf)  to achieve a higher lumen/watt. LUXEON high power LEDs are the flagship of the industry and lead the pack in efficiency, helping customers keep their material costs in check and giving manufacturers a broad selection of high-performance LEDs.

LUXEON 5050

LUXEON 5050 is a high power LED package that provides high luminance from a single package to enable cost effective, single optic and directional fixture designs. LUXEON 5050 uses an industry standard 5050 surface mount package with the smallest round Light Emitting Surface (LES). LUXEON 5050 comes in 70CRI, 80CRI and 90CRI with a wide range of CCTs, and offers hot-color targeting to ensure that the LEDs are within color target at application conditions of 85°C.

  • Superior lm/W enables outstanding efficacy in end application
  • Extremely reliable package design affirms long lifetime in hash environments.
  • Robust coating design for enhanced sulfur protection capability (LUXEON 5050 Square LES)
  • Three voltage configurations (6V, 24V, and 30V) are compatible with low-cost high efficacy drivers
  • Low Rth enables effective thermal dissipation design for higher efficiency
  • Hot-color targeting ensures color is within ANSI bin at 85°C
  • 3-step and 5-step MacAdam ellipse binning structure ensures excellent color uniformity

LUXEON 7070

LUXEON 7070 is a multi-die, high power package that provides high luminance from a super robust package to enable cost effective, single optic and directional fixture designs. LUXEON 7070 uses an industry standard 7070 surface mount package with a small Light Emitting Surface (LES). LUXEON 7070 is offered in 70, 80, 90 CRI with a wide range of CCTs, and offers hot-color targeting to ensure that the LEDs are within color target at application conditions of 85°C.

  • Superior lm/W enables outstanding efficacy in end application
  • Extremely reliable package design affirms long lifetime in harsh environments
  • Low Rth enables effective thermal dissipation design for higher efficiency
  • Hot-color targeting ensures color is within ANSI bin at 85°C
  • 3-step and 5-step MacAdam ellipse binning structure ensures excellent color uniformity
  • Offered in different voltage options for customer design flexibility

LUXEON HL1Z

LUXEON HL1Z LEDs offer high flux density performance in a compact footprint, enabling elegant and superior luminaire designs. A wide range of CCTs in 80 and 90CRI options make them ideal for high-performance indoor lighting applications, designed into tunable and white color mixing solutions. Best-in-class Color over Angle, and top emission only light output, provides designers with leading Quality of Light performance for dramatic lighting designs and small fixtures. The compact package size and high punch allows design flexibility, beam steering, and white tuning versus traditional LED light sources.

  • Small package size (1.4 x 1.4 x 0.36 mm) allows closely packed arrays for narrow beam spots
  • Enables color mixing in CCT tunable applications
  • High current densities for high lumen output and lm/$ at high lm/W
  • CSP 1mm2 with 2 pads for direct attach enables ease of assembly
  • Surface emission only for directional lighting without side light leakage
  • High package densities



LUXEON HL2X

LUXEON HL2X is a domed high-power LED emitter designed specifically for outdoor and industrial applications like streetlights and high bay luminaires. The package is designed to deliver superior output, efficacy, color stability, and longevity regardless of application or environment.

LUXEON HL2X utilizes an industry-standard 3535 package with 3-stripe footprint. This compatibility allows for efficient and simpler conversion to the better performing LUXEON HL2X from any other similar platform.

  • Most usable light in application with a design emphasis on Beam Angle, Field Angle, Color Over Angle, and Optical Efficiency performance
  • CSP die technology enables high efficacy and high driving current capability in unique applications
  • Industry-standard 3535 package with 3-stripe footprint and radiation pattern matched to LUXEON TX for ease of design
  • DLC R9 enabled to offer best-in-class color quality for luminaires
  • Offered in two different Luminous Flux Performance categories for customer flexibility in design and application

LUXEON HL2Z

LUXEON HL2Z is a 2mm square CSP-based, high power, un-domed emitter designed to provide leading flux density, superior color consistency, high luminance, and extreme flexibility in lighting solutions. LUXEON HL2Z emitters are an ideal choice for fast time-to-market due to their ease of design-in, and their ability to lower system costs through improved performance while delivering the quality of light that is desired by lighting system designers and users.

  • Undomed source makes it easier to increase optical efficiency and to realize narrow beam angles
  • CSP die technology enables high efficacy and high driving current capability in unique applications
  • Reliable and proven package with color consistency enabling close packaging, with superior beam Performance
  • DLC R9 enabled to offer best-in-class color quality for luminaires

LUXEON HL4X

LUXEON HL4X is a specially designed high-power domed emitter suitable for outdoor and industrial applications like stadium lights, streetlights, and high bay luminaires.

LUXEON HL4X provides maximum lumen outputs and overall system efficacy in an industry-standard 3535 package with a 3-stripe footprint. With plenty of light coming from a small LES device and an ability to sustain high drive currents, it is perfect for cost-efficient single optic, directional fixture designs.

  • Industry standard 3535 package with a 3-stripe footprint, offers the flexibility of design and ease of use and enables faster design-in/time to market
  • Meets or exceeds requirements for applications that require maximum light output, excellent efficacy, superior color consistency, and reliability you can count on, such as stadium lighting, floodlighting, etc…
  • Package design enables solutions to minimize energy use and generated heat
  • Unique dome design is optimized to maximize light output within ±130° angle
  • High drive current enables output to be maximized and LED count minimized
  • Large thermal pad allows high drive currents and makes it possible to create close-packed LED clusters
  • Full range of reliability testing, with LM-80 in progress. Peace of mind with a proven, robust package designed for outdoor and indoor/industrial use
  • Multiple CCT-CRI offerings (CCT:2200k-6500k / 70,80,90CRI). Offers a wide range of applications and design usage capabilities for system designers with multiple selections of CCT/CRI

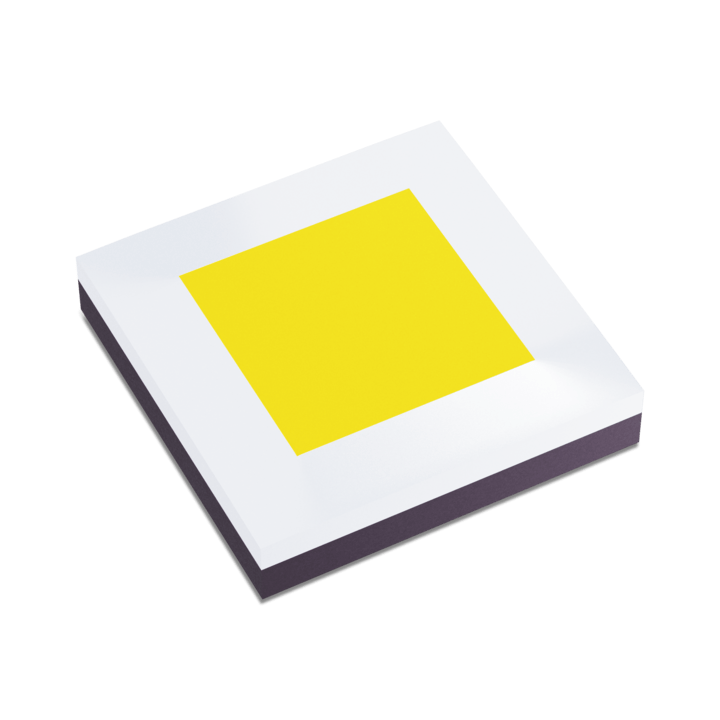

LUXEON HL4Z

LUXEON HL4Z is a specially designed high-power undomed emitter suitable for outdoor and industrial applications like stadium lights, streetlights, and high bay luminaires.

LUXEON HL4Z provides maximum lumen outputs and overall system efficacy in an industry-standard 3535 package with a 3-stripe footprint.  With plenty of light coming from a small LES device and flexibility of optical control, it is perfect for fixture designs need high flux density and precision light controls.

  • Industry standard 3535 package with a 3-stripe footprint, offers the flexibility of design and ease of use and enables faster design-in/time to market
  • Meets or exceeds requirements for applications that require maximum light output, excellent efficacy, superior color consistency, and reliability you can count on, such as stadium lighting, floodlighting, etc…
  • Highest lumens per emitter on smallest LES , enable the system design with the highest lumen density
  • Package design enables solutions to minimize energy use and generated heat
  • High drive current enables output to be maximized and LED count minimized.
  • Large thermal pad allows high drive currents and makes it possible to create close-packed LED clusters
  • Full range of reliability testing, with LM-80 in progress. Peace of mind with a proven, robust package designed for outdoor and indoor/industrial use
  • Multiple CCT-CRI offerings (CCT:2200K-6500K / 70,80,90CRI)

LUXEON M

LUXEON M is an illumination grade multi-die LED designed to enable outdoor and industrial applications targeting either high efficiency or low cost. With Freedom from Binning and leading performance, LUXEON M falls within a single 3- or 5-step MacAdam ellipse centered in ANSI to ensure color consistency from LED to LED, delivering high efficacy and high flux density from a uniform source with tight correlated color temperature control. The superior quality of light, volume of lumens, and real world efficacy enable leading performance and efficient solution development in a wide variety of lighting segments.

  • Uniform image enables tight beam control in MR16 and spotlight applications
  • High flux density from a 3mm2 area enables reduced emitter count and compact fixture designs
  • 11.2V and 5.6V package options puts high performance within reach with high efficiency and low cost drivers
  • Leading thermal resistance allows flexible system design to optimize for lm/$ and lm/W
  • Exceeds ENERGY STAR® lumen maintenance requirements

LUXEON MX

LUXEON MX is a high power emitter enabling cost effective, high reliability fixtures for High Bay and Outdoor applications requiring system efficiency of up to 140 lm/W. This breakthrough LED provides double the flu x compared to previous generations with an even more robust high power design. Designed to be optically compatible with LUXEON M, LUXE ON MX enables luminaire manufacturers to instantly upgrade their syst ems to market leading efficiency without investing design resources.

  • 2000 lumens at 130 lm/W enables cost effective 100 lm/W fixtures
  • 1200 lumens at 150 lm/W enables high performance 120 lm/W fixtures
  • Double the flux vs. comparable emitters in 120 lm/W systems
  • More robust package for improved reliability at higher drive currents
  • Same footprint and optically compatible with LUXEON M for an instant upgrade

LUXEON MZ

LUXEON MZ is an illumination grade multi-die LED designed to enable outdoor and industrial applications with all of the features of LUXEON M including the identical solder footprint, but allowing for tighter beam control and higher punch due to a smaller apparent source size. With Freedom from Binning and leading performance, LUXEON MZ falls within a single 3- or 5-step MacAdam ellipse centered in ANSI to ensure color consistency from LED to LED, delivering high efficacy and high flux density from a uniform source with tight correlated color temperature control. The superior quality of light, volume of lumens, and real world efficacy enable leading performance and efficient solution development in a wide variety of lighting segments.

  • Undomed package for improved punch and exceptional luminance
  • Common footprint as LUXEON M for compatibility with existing designs
  • Industry leading 11.2V package delivers exceptional efficacy
  • Leading thermal resistance enables flexible system design to optimize for lm/$ and lm/W
  • Exceeds ENERGY STAR® lumen maintenance requirements

LUXEON Rebel

LUXEON Rebel LEDs deliver optimized combinations of light quality and light output needed for a variety of lighting applications. In addition to delivering specified correlated color temperature and color rendering combinations, these emitters deliver the efficacy, lifetime and reliability that all LUXEON LEDs are renowned for.

  • Specified CCT & CRI combinations
  • ANSI-compliant Quarter binning
  • Exceeds ENERGY STAR® lumen maintenance requirements
  • High efficacy for sustainable design
  • More light delivered at operating temperature
  • Recognized under the Component Recognition Program of Underwriters Laboratories Inc. UL listing E327436

LUXEON Rebel ES

LUXEON Rebel ES is a high flux, high gives you the flexibility you need to design luminaires and lamps for outdoor and industrial lighting applications and bring them to market. Tested and binned at 700 mA, confidently design LUXEON Rebel ES into high lumen applications or create more energy efficient devices using the same emitter. Luminaire manufacturers and designers count on LUXEON Rebel ES for quality, reliability and in-device performance.

  • High lm/$ for cost competitive applications
  • Broad portfolio of emitters for indoor and outdoor applications
  • CCT and CRI combinations to support a wide range of applications
  • Extensive applications ecosystem for easy design-in and quick ROI
  • LM-80 test report available

LUXEON Rebel PLUS

LUXEON Rebel PLUS is designed with the highest possible efficacy and light output from an industry standard 4530 package with a 2.5mm2 dome. With hot testing and color binning, every LUXEON Rebel PLUS is tested and specified at real world operating conditions — 85°C. Our exceptional color control enables design simplicity for luminaire manufacturers and ensures that they can be confident in color consistency from LED to LED. The superior quality of light, light output, and real world efficacy enable leading performance and efficient solution development in a wide variety of outdoor and industrial lighting segments.

  • 3 & 5-step MacAdam ellipse: Freedom from Binning for superior quality of light
  • Ability to deliver high lm/$ for indoor applications
  • Low typical Vf ~2.8V
  • Small optical source size
  • Full range of CCTS in 80CRI minimum
  • LM-80 test report available

LUXEON TX

LUXEON TX is designed to deliver high efficacy with high flux density to enable tight beam control in directional and high lumen applications. With Freedom from Binning and leading performance, LUXEON TX LEDs are specified, targeted and tested hot, at real world operating temperatures, 85°C, to ensure in-application performance. LUXEON TX LEDs allow system optimization by blending the perfect combination of high efficacy and low system cost, while tight correlated color temperature ensures consistency in system color point.

  • Maximum drive current of 1.5A
  • High lumen package and compact source size for design flexibility and reduced LED count
  • Freedom from Binning with 3- and 5-step MacAdam ellipse
  • Exceeds ENERGY STAR® lumen maintenance requirements
  • 70, 80 and 85CRI minimum and full CCT range available

LUXEON V

LUXEON V is a Chip Scale Package (CSP) based high power emitter designed to deliver maximum flux in a compact 4.0mm x 4.0mm foot print. LUXEON V offers a unique combination of high efficacy at high drive current with extremely low thermal resistance and optimized radiation pattern to support next generation fixture designs. Building on the strengths of Lumileds Patterned Sapphire Substrate (PSS) CSP technology, LUXEON V offers the highest drive current capability in its class.

  • Over 2000 lumens from a single, compact source
  • Low thermal resistance of 0.8 K/W enables more efficient thermal management—smaller heatsink, more compact fixtures
  • High efficacy at high drive current provides design flexibility and supports high flux density fixtures
  • Optimized radiation pattern delivers high intensity beams from smaller optics
  • Uniform optical source supports directional applications and imaging optics

LUXEON Z

LUXEON Z is a high power 1.3mm x 1.7mm LED that enables never before seen color consistency, luminance, flux density and design flexibility for lighting solutions. LUXEON Z is undomed, a feature that provides un-matched optical flexibility for precise beam angle control. Tested and binned at application conditions 85°C and available in 3- and 5-step MacAdam ellipse color bins. LUXEON Z emitters are an ideal choice for indoor and outdoor light sources requiring superior beam angles, higher efficacy and lower costs.

  • 1.3mm x 1.7mm micro footprint enables a high degree of design flexibility
  • Undomed design allows precise optical control
  • 1A max drive current allows for more flux per LED
  • 3- and 5-step MacAdam ellipse color binning for superior Quality of Light

LUXEON Z ES

LUXEON Z ES is a high power 1.6mm x 2.0mm LED that enables never before seen color consistency, luminance, flux density and design flexibility for lighting solutions. LUXEON Z ES is undomed, a feature that provides unmatched optical flexibility for precise beam angle control. Tested and binned at application conditions, 85°C, LUXEON Z ES emitters are an ideal choice for indoor and outdoor light sources requiring superior beam angles, higher efficacy and lower costs.

  • Micro footprint enables close packaging
  • Undomed design allows precise optical control
  • 3- and 5-step MacAdam ellipse: Freedom from Binning enabling color consistency
  • LM-80 test report available
