LUXEON Z

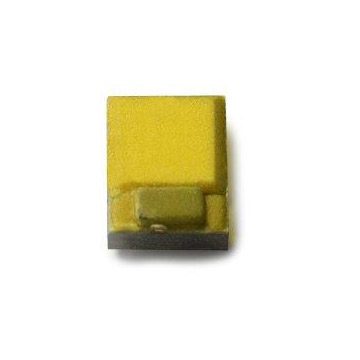

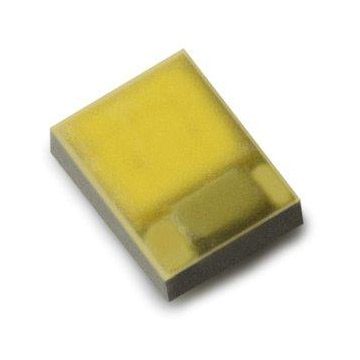

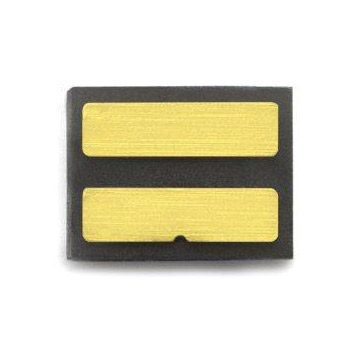

LUXEON Z is a high power 1.3mm x 1.7mm LED that enables never before seen color consistency, luminance, flux density and design flexibility for lighting solutions. LUXEON Z is undomed, a feature that provides un-matched optical flexibility for precise beam angle control. Tested and binned at application conditions 85°C and available in 3- and 5-step MacAdam ellipse color bins. LUXEON Z emitters are an ideal choice for indoor and outdoor light sources requiring superior beam angles, higher efficacy and lower costs.

Features & Benefits

  • 1.3mm x 1.7mm micro footprint enables a high degree of design flexibility
  • Undomed design allows precise optical control
  • 1A max drive current allows for more flux per LED
  • 3- and 5-step MacAdam ellipse color binning for superior Quality of Light
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance at 500mA, Tj=85°C.

Nominal
CCT
Minimum
CRI
Luminous Flux (lm) Typical Luminous
Efficacy (lm/W)
Part Number
Minimum Typical
6500K 65 140 154 110 LXZ1-6565
4000K 70 120 134 96 LXZ1-4070
5000K 70 130 148 106 LXZ1-5070
5700K 70 140 152 109 LXZ1-5770
2700K 80 100 115 82 LXZ1-2780-y
3000K 80 110 124 89 LXZ1-3080-y
3500K 80 110 124 89 LXZ1-3580-y
4000K 80 120 130 93 LXZ1-4080-y
