CoB LEDs

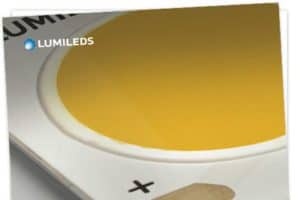

LUXEON CoB LEDs (chip on board) are a family of products that enables easy to design lighting applications. Due to their efficacy and thermal resistance, LUXEON CoB LEDs stand out in the market. In addition, their small Light-Emitting Surface (LES) makes them very easy to work with and will enable easier and less expensive designs. All LUXEON CoB LEDs are available in 3-step (80 and 90CRI) MacAdam ellipse, ensuring uniform optical performance in general LED lighting applications.

COB LEDs

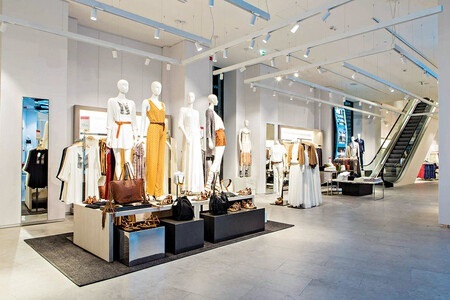

LUXEON CoB Core Pro

Retail and hospitality lighting needs are crystal clear:  very high efficacy and excellent quality of light that makes colors pop and encourages customers to engage with displays and products. LUXEON CoB Core Pro delivers the light and efficacy along with long-life and color stability for high value installations.

  • Best in class efficacy and superior color quality
  • Multiple LES sizes and flux output that fit different applications and requirements
  • Superior thermal resistance enables the use of smaller heatsinks and prolonged product life span
  • Supported by a comprehensive optical, mechanical, and electrical ecosystem

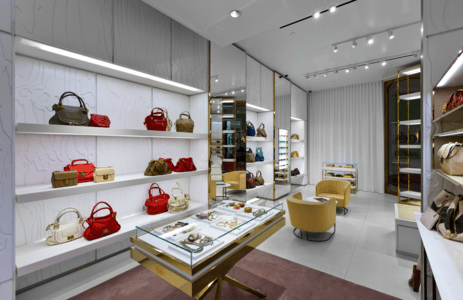

LUXEON CoB Core Range

LUXEON CoB Core Range LEDs are ideal for use in general lighting solutions including outdoor, industrial, retrofit lamps, spotlights and downlights. Recently introduced was the industry-leading Gen 2 of the LUXEON CoB Core Range, featuring 10% higher lumens and 10% higher efficacy.

  • Highest flux densities with industry’s smallest LES
  • 3-step MacAdam ellipse color definition: Freedom from Binning for color consistency from luminaire to luminaire
  • Up to 4x lower thermal resistance than competition, enabling smaller heat sinks and higher lumens
  • Supported by a comprehensive optical, mechanical and electrical ecosystem

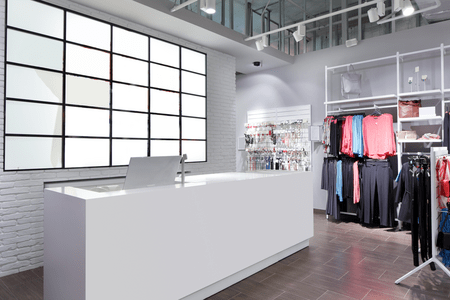

LUXEON CoB Core Range - High Density

LUXEON CoB Core Range – High Density focuses on achieving the highest Center Beam Candle Power (CBCP). With a focus on 6, 9 and 11mm Light Emitting Surfaces, we can cover a flux range as high as 8,000 lumens. Using the mechanical dimensions of our LUXEON CoB Core Range, the High Density range will also benefit from the ability to utilize existing an ecosystem of holders, optics and drivers.

  • Highest flux densities with industry’s smallest LES
  • 3-step MacAdam ellipse color definition: Freedom from Binning for color  consistency from luminaire to luminaire
  • Up to 4x lower thermal resistance than competition, enabling smaller  heatsinks and higher lumens
  • Supported by a comprehensive optical, mechanical and electrical ecosystem

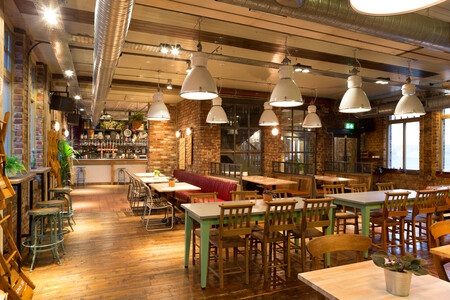

LUXEON CoB Core Range PW

LUXEON CoB Core Range PW was built for applications that need the highest quality of light combined with market leading performances. Its beautiful color transforms areas into vibrant spaces. Above all, LUXEON CoB Core Range PW has a robust, long life span and fits easily into luminaire designs.

  • High efficacy and superior color quality at lower energy consumption
  • Various LES sizes and flux output that fit different applications and requirements
  • Best in class thermal resistance enabling the use of smaller heatsinks and prolonged product life span
  • Supported by a comprehensive optical, mechanical, and electrical ecosystem

LUXEON CoB with CrispColor Technology

The LUXEON CoB with CrispColor Technology LED is the ultimate solution that makes colors pop and makes fabrics come to life. With efficient solid state lighting technology, the contrast of colors has never been so vivid. Our special phosphor technology has created a higher gamut color rendering than existing solutions with a specific color point be low the Black Body Line to allow for Class A products. Combined with industry leading performance, LUXEON CoB with CrispColor Technology creates a highly impactful retail experience with all of the advantages of our LUXEON CoB range, including lowest Rth, small Light Emitting Surface (LES) and 3-step MacAdam ellipse color definition, which is tested at 85°C.

  • Highest flux densities with industry’s smallest Light Emitting Surface (LES)
  • 3-step MacAdam ellipse color definition: Freedom from Binning for color consistency from luminaire to luminaire
  • Up to 4x lower thermal resistance than competition, enabling smaller heatsinks and higher lumens
  • Supported by a comprehensive optical, mechanical and electrical ecosystem

LUXEON CoB with CrispWhite Technology

The second generation of LUXEON CoB with CrispWhite Technology creates the most impactful retail lighting ever available, by revealing the whitest whites. LUXEON CoB with CrispWhite Technology delivers a natural crisp whiteness by activating Fluorescent Whitening Agents (FWAs) in paints and fabrics to attractively display merchandise in retail shops; ideal for CDM/CMH replacement.

  • Lumen packages from 500 to 5,000 lumens for a range of options
  • Industry’s smallest light emitting surface (LES) for highest flux densities
  • Up to 4x lower thermal resistance than competitors enabling smaller heatsinks and higher lumens
  • Contains violet LEDs and does NOT contain UV LEDs for minimal amount of damage, much lower than that from traditional CDM shop lighting
  • Mouse bites for M2 and M3 make it easy to work with

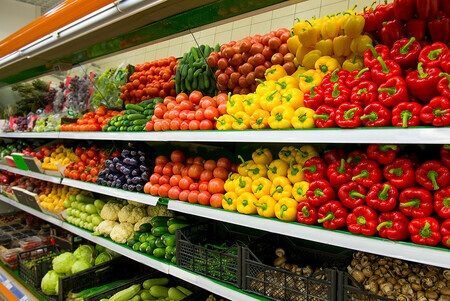

LUXEON CoB with FreshFocus Technology

The LUXEON CoB with FreshFocus Technology creates the most impactful lighting ever available by accentuating the freshness and overall visual appeal of a variety of fresh food areas such as supermarkets, delis, butcher shops and bakeries. It brings out reds for greater visual appeal to meat; increases the appetite appeal of bread and pastries; exhibits the most natural and attractive fish and emphasizes the “just picked” appearance for produce (fruits and vegetables).

  • Highest flux densities with industry’s smallest Light Emitting Surface (LES)
  • 3-step MacAdam ellipse color definition: Freedom from Binning for color consistency from luminaire to luminaire
  • Up to 4x lower thermal resistance than competition, enabling smaller heatsinks and higher lumens
  • Supported by a comprehensive optical, mechanical and electrical ecosystem

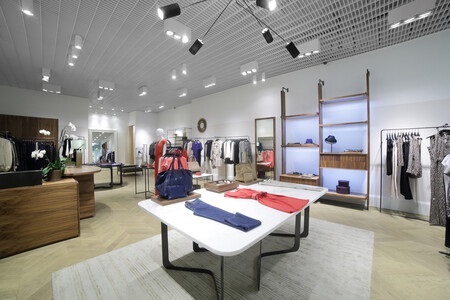

LUXEON CX Plus CoB – High Density

LUXEON CX Plus CoB – High Density LEDs focus on delivering the highest flux, up to 5600 lumens, with an industry standard footprint of 13.35mm x 13.35mm and Light Emitting Surfaces of 4.5mm, 6mm, and 9mm. The combination of superior performance and industry standard footprint allows for an immediate and effortless upgrade to higher flux luminaire designs within existing ecosystems. LUXEON CX Plus CoB – High Density is available in 2- and 3-step MacAdam ellipse color definition, enabling color consistency.

  • Industry’s smallest Light Emitting Surfaces (LES) for highest lumen densities
  • An immediate, effortless upgrade to existing designs using legacy CoBs with a square footprint
  • 2- and 3-step MacAdam ellipse ensuring color consistency from luminaire to luminaire

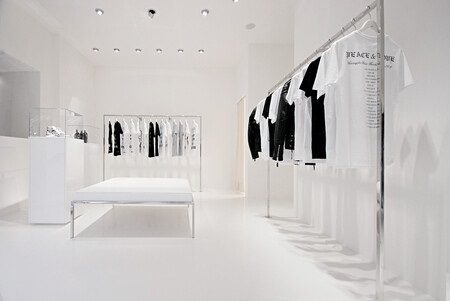

LUXEON CX Plus CoB – High Density (Below BBL)

LUXEON CX Plus CoB – High Density (Below BBL) creates remarkable and impressive white color at 95CRI, 2- and 3-step MacAdam ellipse Below Black Body Line. Using the same mechanical dimensions as LUXEON CX Plus CoB – High Density, Light Emitting Surfaces of 4.5mm, 6mm, and 9mm, and an industry standard footprint of 13.35mm x 13.35mm, LUXEON CX Plus CoB – High Density (Below BBL) benefits from an e xisting ecosystem allowing immediate and effortless upgrades to a premium luminaire design.

  • Industry’s smallest Light Emitting Surfaces (LES) for highest lumen densities at 95CRI
  • An immediate, effortless upgrade to existing designs using legacy CoBs with a square footprint
  • 2- and 3-step MacAdam ellipse ensuring color consistency from luminaire to luminaire

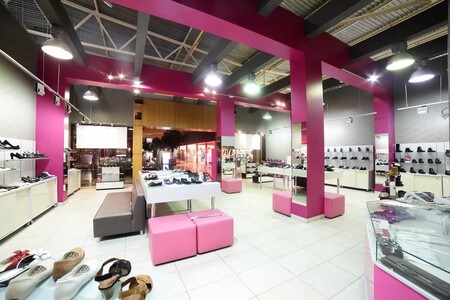

LUXEON CX Plus CoB (Gen 2)

LUXEON CX Plus CoB (Gen 2) family of products delivers a new breakthrough in efficacy for arrays. Available in 80 and 90 CRI across multiple electrical configurations, LUXEON CX Plus CoB (Gen 2) is packaged in industry standard footprints enabling it to benefit from an existing ecosystem for fast and immediate design-in while retaining existing optics, clamps, and documentation.

  • Higher efficacy to benefit luminaire design
  • An immediate, effortless upgrade to existing designs currently using legacy CoBs with a square footprint
  • MCPCB substrate that enables more robust systems than ceramic substrate
  • 2- and 3-step MacAdam ellipse ensuring color consistency from luminaire to luminaire

LUXEON XR-5050 HE

LUXEON XR-5050 HE products are standard integrated modules compatible with off-the-shelf drivers, optics and heat sinks. They are constructed with MCPCB substrates for thermal efficiency and mechanical robustness and eliminate engineering design costs, tooling costs, and material inventory costs. This versatile building-block approach simplifies system integration and accelerates time-to-market.

  • Efficacy and luminous flux of up to 184lm/W typical and 8600lm of output
  • Superior board level color control of ≤ 3SDCM
  • MCPCB for efficient heat dissipation and mechanical robustness
  • UL 8750, ENEC, CE, UKCA compliance
  • 5-year limited guarantee

LUXEON XR-7070

LUXEON XR-7070 product is a standard integrated module compatible with off-the-shelf drivers, optics, and heat sinks. Four LUXEON 7070 LEDs are built on a MCPCB substrate for thermal efficiency and mechanical robustness. Using this standard module eliminates LED-assembly engineering costs, tooling costs, and material inventory costs. With this versatile building-block approach, it simplifies system integration and accelerates time-to-market.

  • Efficacy and luminous flux of up to 170lm/W typical and 5400lm of output
  • Superior board-level color control of ≤ 3SDCM
  • MCPCB for efficient heat dissipation and mechanical robustness
  • UL 8750, ENEC, CE, UKCA compliance
  • 5-year limited guarantee

LUXEON XR-HL2X

LUXEON XR-HL2X is a standard integrated module compatible with off-the-shelf drivers, optics, and heat sinks. These versatile building blocks feature 8, 12, or 16 LUXEON HL2X LEDs on a MCPCB substrate for thermal efficiency and mechanical robustness. This approach simplifies system integration and accelerates time-to-market.

  • Efficacy and Luminous flux of up to 184lm/W typ and 2800lm available
  • CCT/CRI Options:3000K, 4000K (70 CRI)
  • Board level color control of ≤ 5SDCM
  • MCPCB for efficient heat dissipation and mechanical robustness
  • UL 8750, ENEC, CE, UKCA compliance
  • 5-year limited guarantee
