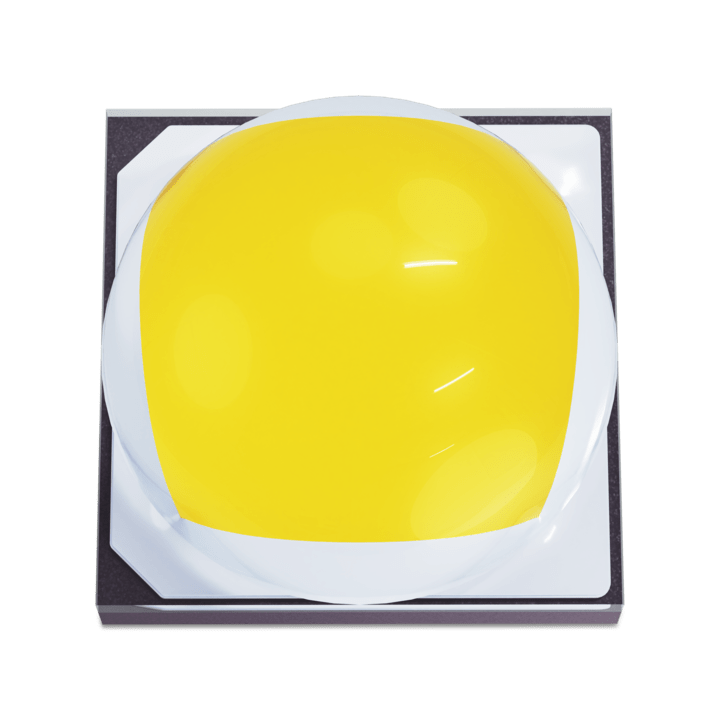

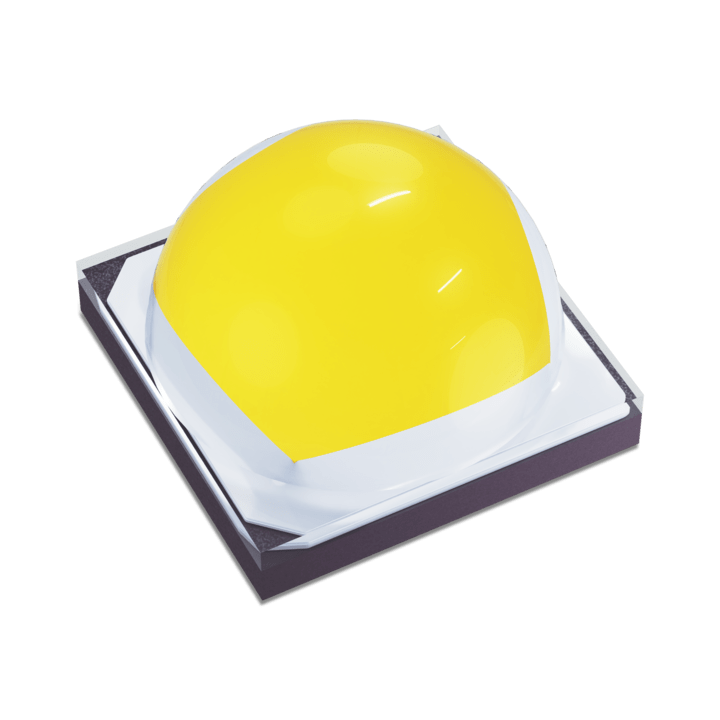

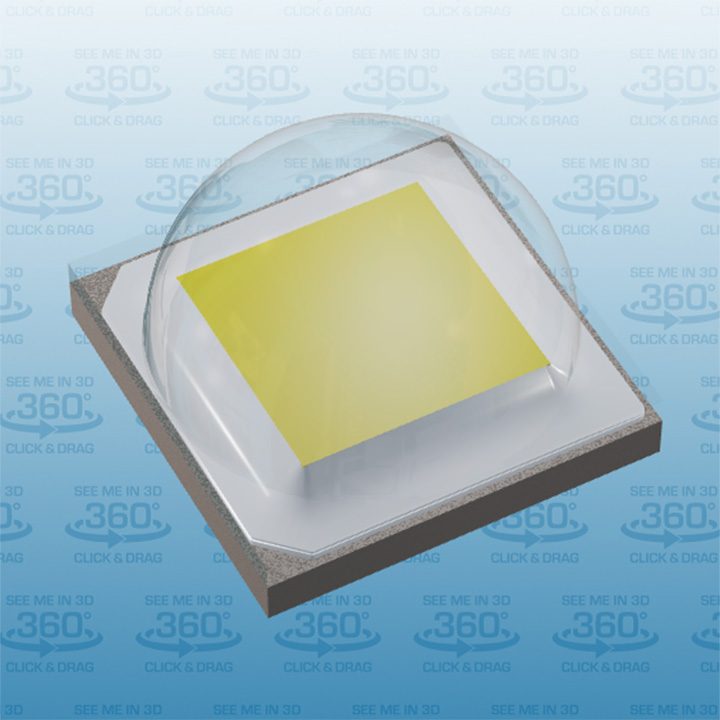

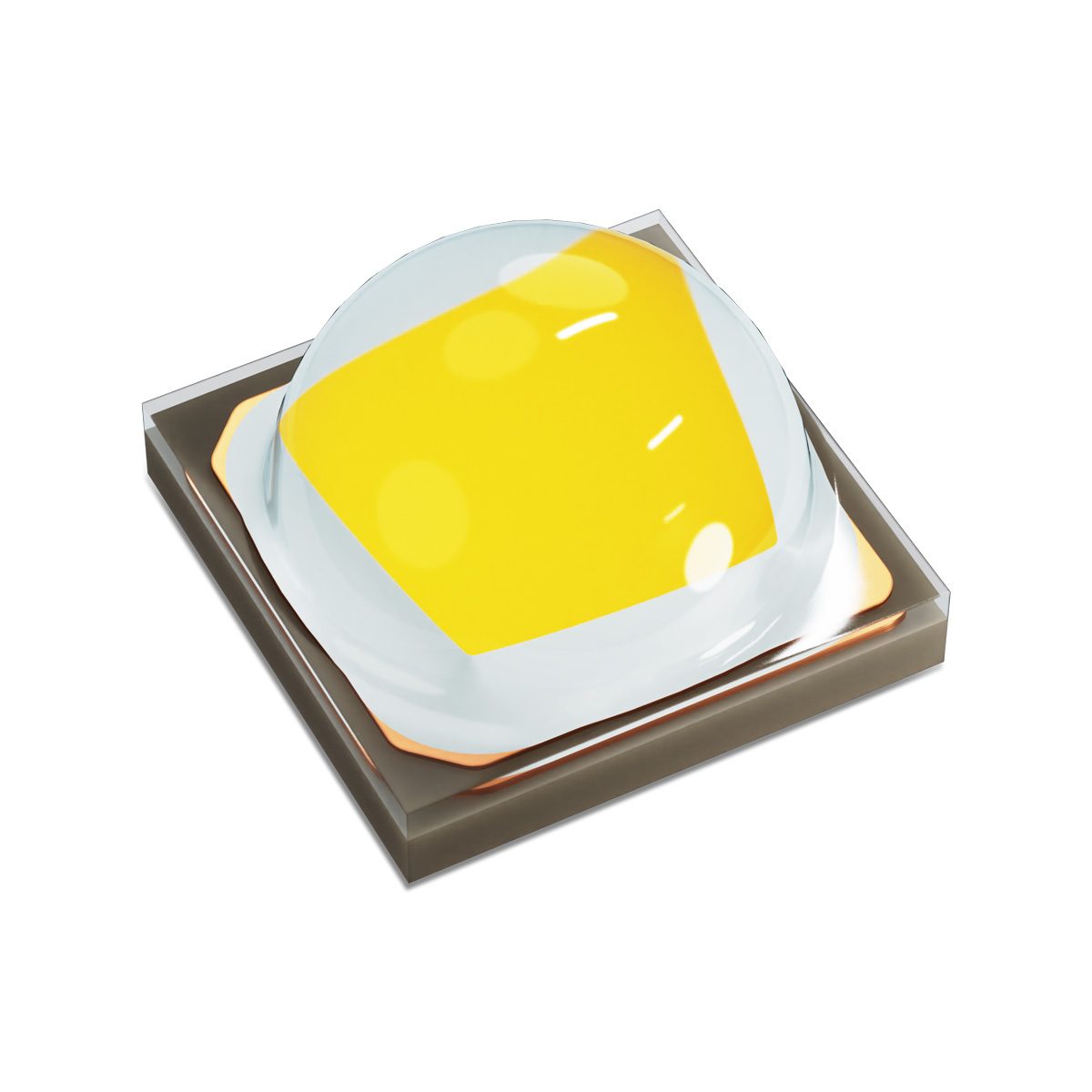

LUXEON HL4X is a specially designed high-power domed emitter suitable for outdoor and industrial applications like stadium lights, streetlights, and high bay luminaires.

LUXEON HL4X provides maximum lumen outputs and overall system efficacy in an industry-standard 3535 package with a 3-stripe footprint. With plenty of light coming from a small LES device and an ability to sustain high drive currents, it is perfect for cost-efficient single optic, directional fixture designs.

Features & Benefits

  • Industry standard 3535 package with a 3-stripe footprint, offers the flexibility of design and ease of use and enables faster design-in/time to market
  • Meets or exceeds requirements for applications that require maximum light output, excellent efficacy, superior color consistency, and reliability you can count on, such as stadium lighting, floodlighting, etc…
  • Package design enables solutions to minimize energy use and generated heat
  • Unique dome design is optimized to maximize light output within ±130° angle
  • High drive current enables output to be maximized and LED count minimized
  • Large thermal pad allows high drive currents and makes it possible to create close-packed LED clusters
  • Full range of reliability testing, with LM-80 in progress. Peace of mind with a proven, robust package designed for outdoor and indoor/industrial use
  • Multiple CCT-CRI offerings (CCT:2200k-6500k / 70,80,90CRI). Offers a wide range of applications and design usage capabilities for system designers with multiple selections of CCT/CRI
Expand Media


Expand Applications
