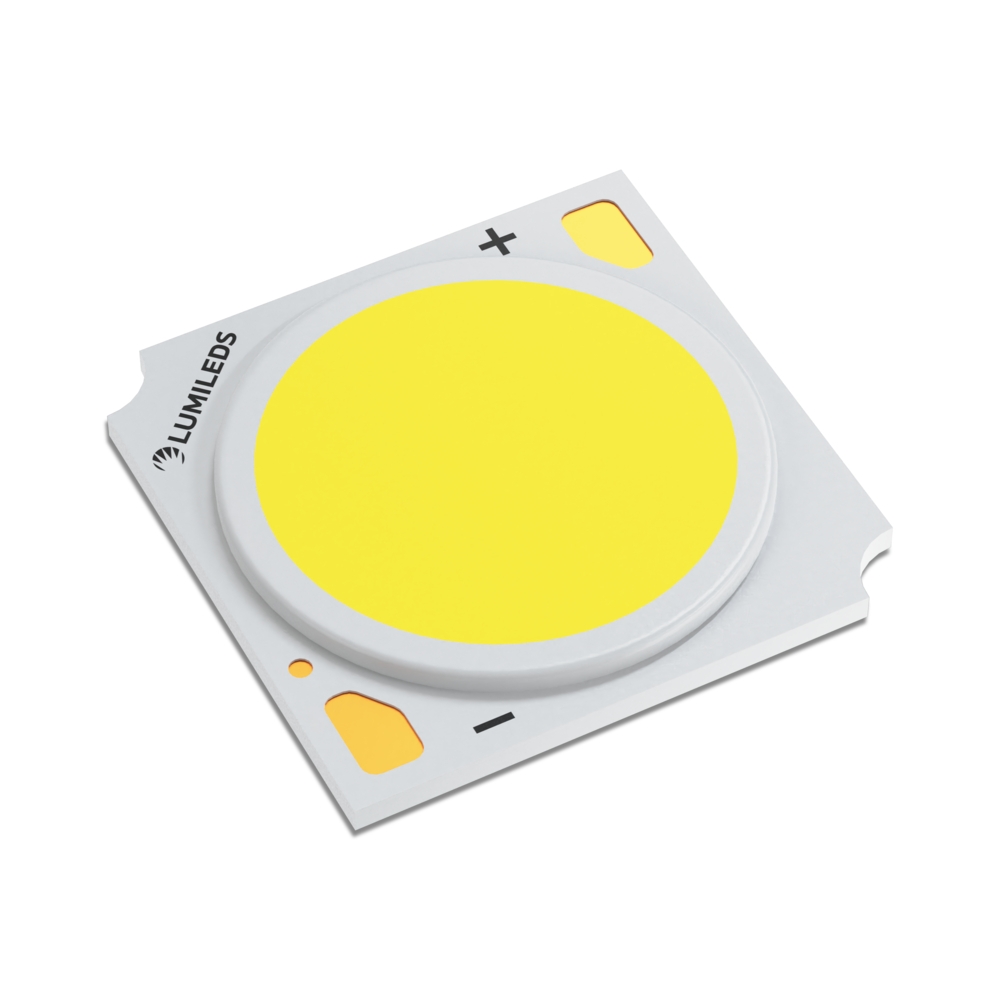

LUXEON CS extends Lumileds CoB leadership for performance and reliability to an entirely new board footprint that enables easy design-in for new luminaire programs and as a cost-effective replacement for existing solutions where an upgrade is desired. State-of-the-art LUXEON CoB technology delivers unmatched performance, quality of light, and uncompromising product quality.

LUXEON CS CoB and EU Ecodesign: Please consult the product datasheet for details, including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019/2015. LUXEON CS CoB part numbers are in energy efficiency classes C, D, and E.

Features & Benefits

  • Widely used square footprints for easy design-in
  • High performance with superior color stability
  • Low thermal resistance enables smaller heatsinks and extends the operating life span
  • Supported by a comprehensive optical, mechanical, and electrical ecosystem
  • CoB LED package
Expand Media

Applications

  • Track Lights
  • Downlights
  • Spotlights
  • High Bay
  • Low Bay
Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON CS CoB at specified test current, Tj = 85 °C.

LES
(mm)
Nominal
CCT
Minimum
CRI
Luminous Flux (lm) Typical
Luminous
Efficacy (lm/W)
Test Current
(mA)
Part Number Gen Datasheet
Minimum Typical
6 2700K 80 801 890 146 180 L2C6-2780xL02A0600 Gen 1
6 2700K 90 827 919 151 180 L2C6-27902L02C0600 Gen 2
6 2700K 90 759 843 138 180 L2C6-27902L02A0600 Gen 1
6 3000K 80 834 927 152 180 L2C6-3080xL02A0600 Gen 1
6 3000K 90 859 954 156 180 L2C6-30902L02C0600 Gen 2
6 3000K 90 803 892 146 180 L2C6-30902L02A0600 Gen 1
6 3500K 80 855 950 156 180 L2C6-3580xL02A0600 Gen 1
6 3500K 90 889 988 162 180 L2C6-35902L02C0600 Gen 2
6 3500K 90 839 932 153 180 L2C6-35902L02A0600 Gen 1
6 4000K 80 876 973 160 180 L2C6-4080xL02A0600 Gen 1
6 4000K 90 890 989 162 180 L2C6-40902L02C0600 Gen 2
6 4000K 90 864 960 157 180 L2C6-40902L02A0600 Gen 1
6 5000K 80 876 973 160 180 L2C6-5080xL02A0600 Gen 1
6 5000K 90 893 992 163 180 L2C6-50902L02C0600 Gen 2
6 5000K 90 867 963 158 180 L2C6-50902L02A0600 Gen 1
6 5700K 80 868 964 158 180 L2C6-57803L02A0600 Gen 1
6 6500K 80 859 955 156 180 L2C6-65803L02A0600 Gen 1
9 2700K 80 857 952 156 180 L2C6-2780xL02A0900 Gen 1
9 2700K 80 1279 1421 155 270 L2C6-2780xL03A0900 Gen 1
9 2700K 80 1693 1881 154 360 L2C6-2780xL04A0900 Gen 1
9 2700K 90 875 972 159 180 L2C6-27902L02C0900 Gen 2
9 2700K 90 804 893 146 180 L2C6-27902L02A0900 Gen 1
9 2700K 90 1332 1480 162 270 L2C6-27902L03C0900 Gen 2
9 2700K 90 1222 1358 148 270 L2C6-27902L03A0900 Gen 1
9 2700K 90 1801 2001 164 360 L2C6-27902L04C0900 Gen 2
9 2700K 90 1652 1836 150 360 L2C6-27902L04A0900 Gen 1
9 3000K 80 887 986 162 180 L2C6-3080xL02A0900 Gen 1
9 3000K 80 1333 1481 162 270 L2C6-3080xL03A0900 Gen 1
9 3000K 80 1767 1963 161 360 L2C6-3080xL04A0900 Gen 1
9 3000K 90 879 977 160 180 L2C6-30902L02C0900 Gen 2
9 3000K 90 823 914 150 180 L2C6-30902L02A0900 Gen 1
9 3000K 90 1350 1500 164 270 L2C6-30902L03C0900 Gen 2
9 3000K 90 1262 1402 153 270 L2C6-30902L03A0900 Gen 1
9 3000K 90 1782 1980 162 360 L2C6-30902L04C0900 Gen 2
9 3000K 90 1701 1890 155 360 L2C6-30902L04A0900 Gen 1
9 3500K 80 905 1006 165 180 L2C6-3580xL02A0900 Gen 1
9 3500K 80 1366 1518 166 270 L2C6-3580xL03A0900 Gen 1
9 3500K 80 1793 1992 163 360 L2C6-3580xL04A0900 Gen 1
9 3500K 90 907 1008 165 180 L2C6-35902L02C0900 Gen 2
9 3500K 90 856 951 156 180 L2C6-35902L02A0900 Gen 1
9 3500K 90 1400 1555 170 270 L2C6-35902L03C0900 Gen 2
9 3500K 90 1320 1467 160 270 L2C6-35902L03A0900 Gen 1
9 3500K 90 1877 2086 171 360 L2C6-35902L04C0900 Gen 2
9 3500K 90 1771 1968 161 360 L2C6-35902L04A0900 Gen 1
9 4000K 80 950 1055 173 180 L2C6-4080xL02A0900 Gen 1
9 4000K 80 1396 1551 169 270 L2C6-4080xL03A0900 Gen 1
9 4000K 80 1852 2058 169 360 L2C6-4080xL04A0900 Gen 1
9 4000K 90 908 1008 165 180 L2C6-40902L02C0900 Gen 2
9 4000K 90 881 979 160 180 L2C6-40902L02A0900 Gen 1
9 4000K 90 1393 1548 169 270 L2C6-40902L03C0900 Gen 2
9 4000K 90 1353 1503 164 270 L2C6-40902L03A0900 Gen 1
9 4000K 90 1865 2072 170 360 L2C6-40902L04C0900 Gen 2
9 4000K 90 1812 2013 165 360 L2C6-40902L04A0900 Gen 1
9 5000K 80 950 1055 173 180 L2C6-5080xL02A0900 Gen 1
9 5000K 80 1396 1551 169 270 L2C6-5080xL03A0900 Gen 1
9 5000K 80 1852 2058 169 360 L2C6-5080xL04A0900 Gen 1
9 5000K 90 910 1011 166 180 L2C6-50902L02C0900 Gen 2
9 5000K 90 884 982 161 180 L2C6-50902L02A0900 Gen 1
9 5000K 90 1398 1554 170 270 L2C6-50902L03C0900 Gen 2
9 5000K 90 1357 1508 165 270 L2C6-50902L03A0900 Gen 1
9 5000K 90 1871 2079 170 360 L2C6-50902L04C0900 Gen 2
9 5000K 90 1817 2019 165 360 L2C6-50902L04A0900 Gen 1
9 5700K 80 930 1033 169 180 L2C6-57803L02A0900 Gen 1
9 5700K 80 1390 1544 169 270 L2C6-57803L03A0900 Gen 1
9 5700K 80 1833 2037 167 360 L2C6-57803L04A0900 Gen 1
9 6500K 80 921 1023 168 180 L2C6-65803L02A0900 Gen 1
9 6500K 80 1380 1533 167 270 L2C6-65803L03A0900 Gen 1
9 6500K 80 1815 2017 165 360 L2C6-65803L04A0900 Gen 1
13 2700K 80 2145 2383 156 450 L2C6-2780xL05A1300 Gen 1
13 2700K 80 2590 2878 157 540 L2C6-2780xL06A1300 Gen 1
13 2700K 90 2209 2454 161 450 L2C6-27902L05C1300 Gen 2
13 2700K 90 2026 2252 148 450 L2C6-27902L05A1300 Gen 1
13 2700K 90 2646 2940 161 540 L2C6-27902L06C1300 Gen 2
13 2700K 90 2428 2698 147 540 L2C6-27902L06A1300 Gen 1
13 3000K 80 2243 2492 163 450 L2C6-3080xL05A1300 Gen 1
13 3000K 80 2692 2991 163 540 L2C6-3080xL06A1300 Gen 1
13 3000K 90 2263 2515 165 450 L2C6-30902L05C1300 Gen 2
13 3000K 90 2115 2350 154 450 L2C6-30902L05A1300 Gen 1
13 3000K 90 2705 3006 164 540 L2C6-30902L06C1300 Gen 2
13 3000K 90 2528 2809 153 540 L2C6-30902L06A1300 Gen 1
13 3500K 80 2314 2571 169 450 L2C6-3580xL05A1300 Gen 1
13 3500K 80 2754 3060 167 540 L2C6-3580xL06A1300 Gen 1
13 3500K 90 2306 2563 168 450 L2C6-35902L05C1300 Gen 2
13 3500K 90 2176 2418 158 450 L2C6-35902L05A1300 Gen 1
13 3500K 90 2792 3103 169 540 L2C6-35902L06C1300 Gen 2
13 3500K 90 2635 2928 160 540 L2C6-35902L06A1300 Gen 1
13 4000K 80 2366 2629 172 450 L2C6-4080xL05A1300 Gen 1
13 4000K 80 2814 3127 171 540 L2C6-4080xL06A1300 Gen 1
13 4000K 90 2313 2570 168 450 L2C6-40902L05C1300 Gen 2
13 4000K 90 2246 2495 164 450 L2C6-40902L05A1300 Gen 1
13 4000K 90 2799 3110 170 540 L2C6-40902L06C1300 Gen 2
13 4000K 90 2717 3019 165 540 L2C6-40902L06A1300 Gen 1
13 5000K 80 2366 2629 172 450 L2C6-5080xL05A1300 Gen 1
13 5000K 80 2815 3128 171 540 L2C6-5080xL06A1300 Gen 1
13 5000K 90 2321 2578 169 450 L2C6-50902L05C1300 Gen 2
13 5000K 90 2253 2503 164 450 L2C6-50902L05A1300 Gen 1
13 5000K 90 2810 3122 171 540 L2C6-50902L06C1300 Gen 2
13 5000K 90 2728 3031 166 540 L2C6-50902L06A1300 Gen 1
13 5700K 80 2320 2578 169 450 L2C6-57803L05A1300 Gen 1
13 5700K 80 2807 3119 170 540 L2C6-57803L06A1300 Gen 1
13 6500K 80 2300 2556 168 450 L2C6-65803L05A1300 Gen 1
13 6500K 80 2778 3087 169 540 L2C6-65803L06A1300 Gen 1
15 2700K 80 3416 3795 155 720 L2C6-2780xL08A1500 Gen 1
15 2700K 80 4198 4664 153 900 L2C6-2780xL10A1500 Gen 1
15 2700K 90 3510 3900 160 720 L2C6-27902L08C1500 Gen 2
15 2700K 90 3221 3579 147 720 L2C6-27902L08A1500 Gen 1
15 2700K 90 4404 4893 160 900 L2C6-27902L10C1500 Gen 2
15 2700K 90 4041 4490 147 900 L2C6-27902L10A1500 Gen 1
15 3000K 80 3595 3994 164 720 L2C6-3080xL08A1500 Gen 1
15 3000K 80 4417 4908 161 900 L2C6-3080xL10A1500 Gen 1
15 3000K 90 3569 3965 162 720 L2C6-30902L08C1500 Gen 2
15 3000K 90 3336 3707 152 720 L2C6-30902L08A1500 Gen 1
15 3000K 90 4459 4954 162 900 L2C6-30902L10C1500 Gen 2
15 3000K 90 4168 4631 152 900 L2C6-30902L10A1500 Gen 1
15 3500K 80 3675 4083 167 720 L2C6-3580xL08A1500 Gen 1
15 3500K 80 4505 5006 164 900 L2C6-3580xL10A1500 Gen 1
15 3500K 90 3683 4093 168 720 L2C6-35902L08C1500 Gen 2
15 3500K 90 3475 3861 158 720 L2C6-35902L08A1500 Gen 1
15 3500K 90 4538 5042 165 900 L2C6-35902L10C1500 Gen 2
15 3500K 90 4281 4757 156 900 L2C6-35902L10A1500 Gen 1
15 4000K 80 3747 4163 171 720 L2C6-4080xL08A1500 Gen 1
15 4000K 80 4671 5190 170 900 L2C6-4080xL10A1500 Gen 1
15 4000K 90 3710 4122 169 720 L2C6-40902L08C1500 Gen 2
15 4000K 90 3602 4002 164 720 L2C6-40902L08A1500 Gen 1
15 4000K 90 4583 5092 167 900 L2C6-40902L10C1500 Gen 2
15 4000K 90 4450 4944 162 900 L2C6-40902L10A1500 Gen 1
15 5000K 80 3747 4163 171 720 L2C6-5080xL08A1500 Gen 1
15 5000K 80 4671 5190 170 900 L2C6-5080xL10A1500 Gen 1
15 5000K 90 3721 4134 169 720 L2C6-50902L08C1500 Gen 2
15 5000K 90 3613 4014 164 720 L2C6-50902L08A1500 Gen 1
15 5000K 90 4597 5108 167 900 L2C6-50902L10C1500 Gen 2
15 5000K 90 4463 4959 163 900 L2C6-50902L10A1500 Gen 1
15 5700K 80 3737 4152 170 720 L2C6-57803L08A1500 Gen 1
15 5700K 80 4594 5104 167 900 L2C6-57803L10A1500 Gen 1
15 6500K 80 3645 4050 166 720 L2C6-65803L08A1500 Gen 1
15 6500K 80 4550 5055 166 900 L2C6-65803L10A1500 Gen 1
22 2700K 80 7538 8376 152 1080 L2C6-2780xR12A2200 Gen 1
22 2700K 80 5678 6309 159 1170 L2C6-2780xL13A2200 Gen 1
22 2700K 80 7010 7789 160 1440 L2C6-2780xL16A2200 Gen 1
22 2700K 80 11093 12325 149 1620 L2C6-2780xR18A2200 Gen 1
22 2700K 90 4511 5012 149 990 L2C6-27902L11A2200 Gen 1
22 2700K 90 5309 5899 149 1170 L2C6-27902L13A2200 Gen 1
22 2700K 90 6440 7156 147 1440 L2C6-27902L16A2200 Gen 1
22 3000K 80 7853 8725 158 1080 L2C6-3080xR12A2200 Gen 1
22 3000K 80 5914 6571 166 1170 L2C6-3080xL13A2200 Gen 1
22 3000K 80 7176 7973 163 1440 L2C6-3080xL16A2200 Gen 1
22 3000K 80 11554 12838 155 1620 L2C6-3080xR18A2200 Gen 1
22 3000K 90 4720 5244 156 990 L2C6-30902L11A2200 Gen 1
22 3000K 90 5578 6198 156 1170 L2C6-30902L13A2200 Gen 1
22 3000K 90 6697 7441 152 1440 L2C6-30902L16A2200 Gen 1
22 3500K 80 8050 8944 162 1080 L2C6-3580xR12A2200 Gen 1
22 3500K 80 5943 6603 166 1170 L2C6-3580xL13A2200 Gen 1
22 3500K 80 7183 7981 163 1440 L2C6-3580xL16A2200 Gen 1
22 3500K 80 11843 13159 159 1620 L2C6-3580xR18A2200 Gen 1
22 3500K 90 4928 5476 163 990 L2C6-35902L11A2200 Gen 1
22 3500K 90 5801 6446 163 1170 L2C6-35902L13A2200 Gen 1
22 3500K 90 7033 7814 160 1440 L2C6-35902L16A2200 Gen 1
22 4000K 80 8599 9554 173 1080 L2C6-4080xR12A2200 Gen 1
22 4000K 80 6214 6904 174 1170 L2C6-4080xL13A2200 Gen 1
22 4000K 80 7455 8283 170 1440 L2C6-4080xL16A2200 Gen 1
22 4000K 80 12132 13480 163 1620 L2C6-4080xR18A2200 Gen 1
22 4000K 90 5049 5610 167 990 L2C6-40902L11A2200 Gen 1
22 4000K 90 5940 6600 166 1170 L2C6-40902L13A2200 Gen 1
22 4000K 90 7132 7924 162 1440 L2C6-40902L16A2200 Gen 1
22 5000K 80 8599 9554 173 1080 L2C6-5080xR12A2200 Gen 1
22 5000K 80 6214 6904 174 1170 L2C6-5080xL13A2200 Gen 1
22 5000K 80 7455 8283 170 1440 L2C6-5080xL16A2200 Gen 1
22 5000K 80 12132 13480 163 1620 L2C6-5080xR18A2200 Gen 1
22 5000K 90 5061 5623 168 990 L2C6-50902L11A2200 Gen 1
22 5000K 90 5957 6619 167 1170 L2C6-50902L13A2200 Gen 1
22 5000K 90 7151 7946 163 1440 L2C6-50902L16A2200 Gen 1
22 5700K 80 8167 9074 165 1080 L2C6-57803R12A2200 Gen 1
22 5700K 80 6091 6768 171 1170 L2C6-57803L13A2200 Gen 1
22 5700K 80 7433 8259 169 1440 L2C6-57803L16A2200 Gen 1
22 5700K 80 12017 13352 162 1620 L2C6-57803R18A2200 Gen 1
22 6500K 80 8088 8987 163 1080 L2C6-65803R12A2200 Gen 1
22 6500K 80 6030 6700 169 1170 L2C6-65803L13A2200 Gen 1
22 6500K 80 7322 8135 167 1440 L2C6-65803L16A2200 Gen 1
22 6500K 80 11902 13224 160 1620 L2C6-65803R18A2200 Gen 1
