High drive, tiny LED, max performance.

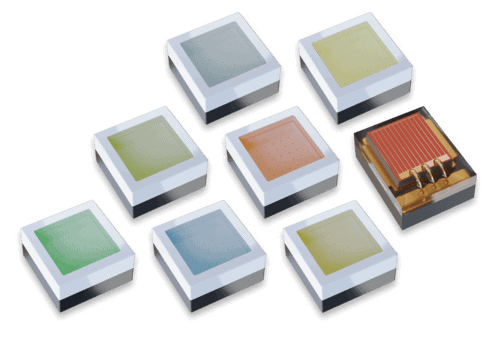

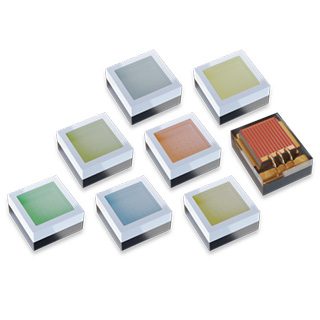

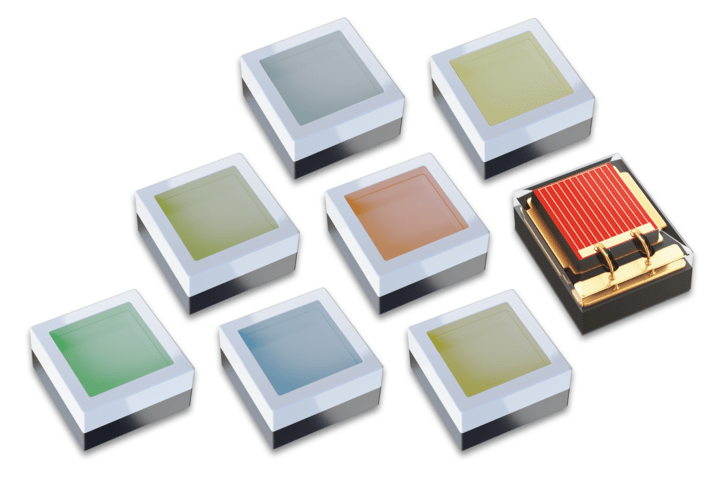

LUXEON Rubix is a breakthrough design for the LED industry. Designed with high drive current capability and small form factor, it provides maximum flux in a minimal amount of space making it ideal for entertainment, architectural and emergency vehicle lighting applications. This LED provides double the flux at a much higher drive current compared to previous generations. LUXEON Rubix LEDs are the smallest color emitters in the Lumileds portfolio enabling them to be packaged closer together to achieve high lumen output and high lumen density. The individual emitters and color gamut allow customers to have much better flexibility in their product design.

Product Performance of LUXEON Rubix at 1500mA, Tj=85ºC.

COLOR DOMINANT or
PEAK WAVELENGTH (nm)
LUMINOUS FLUX (lm) OR
RADIOMETRIC POWER (mW)
PART NUMBER
MINIMUM MAXIMUM MINIMUM TYPICAL

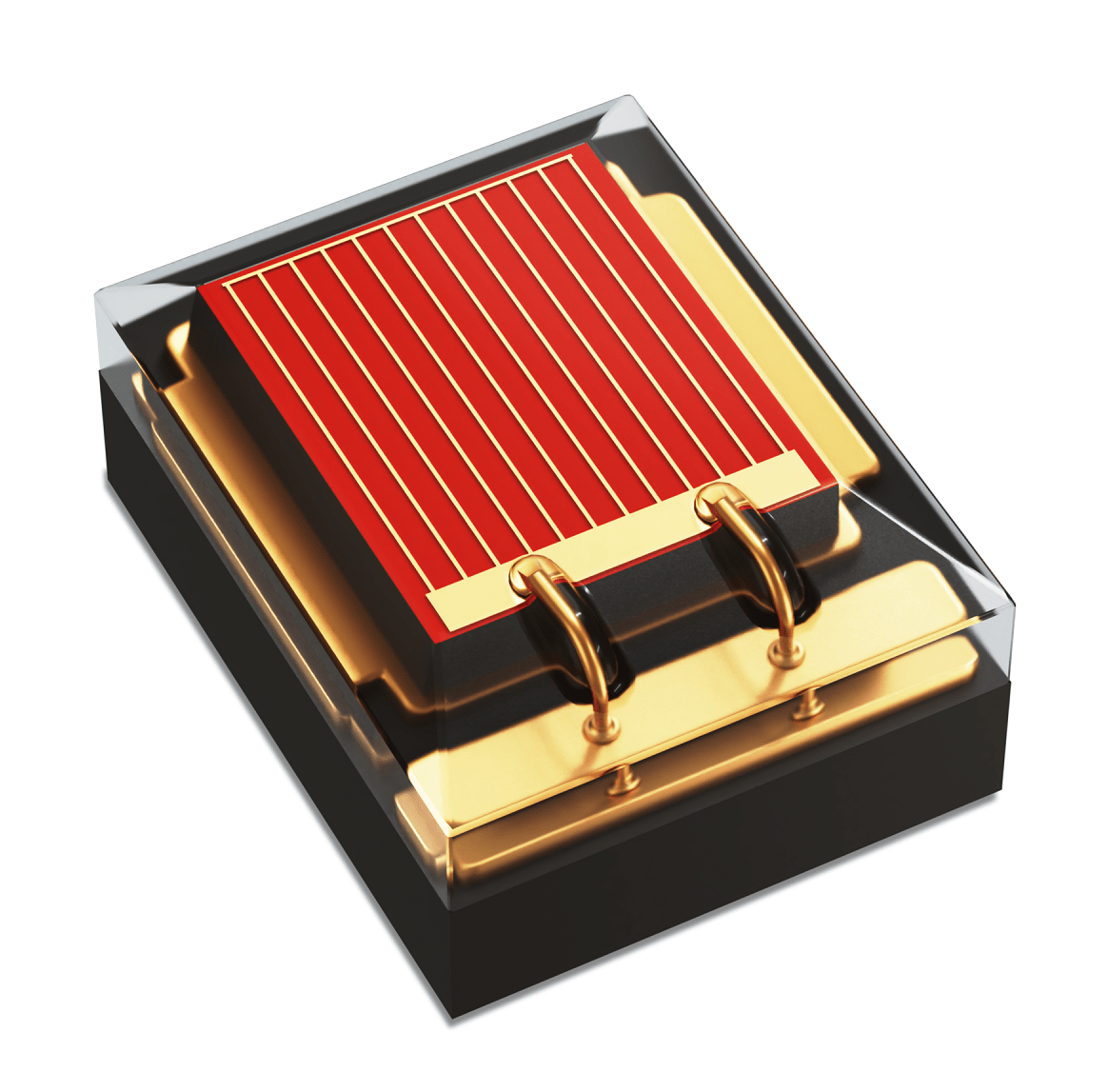

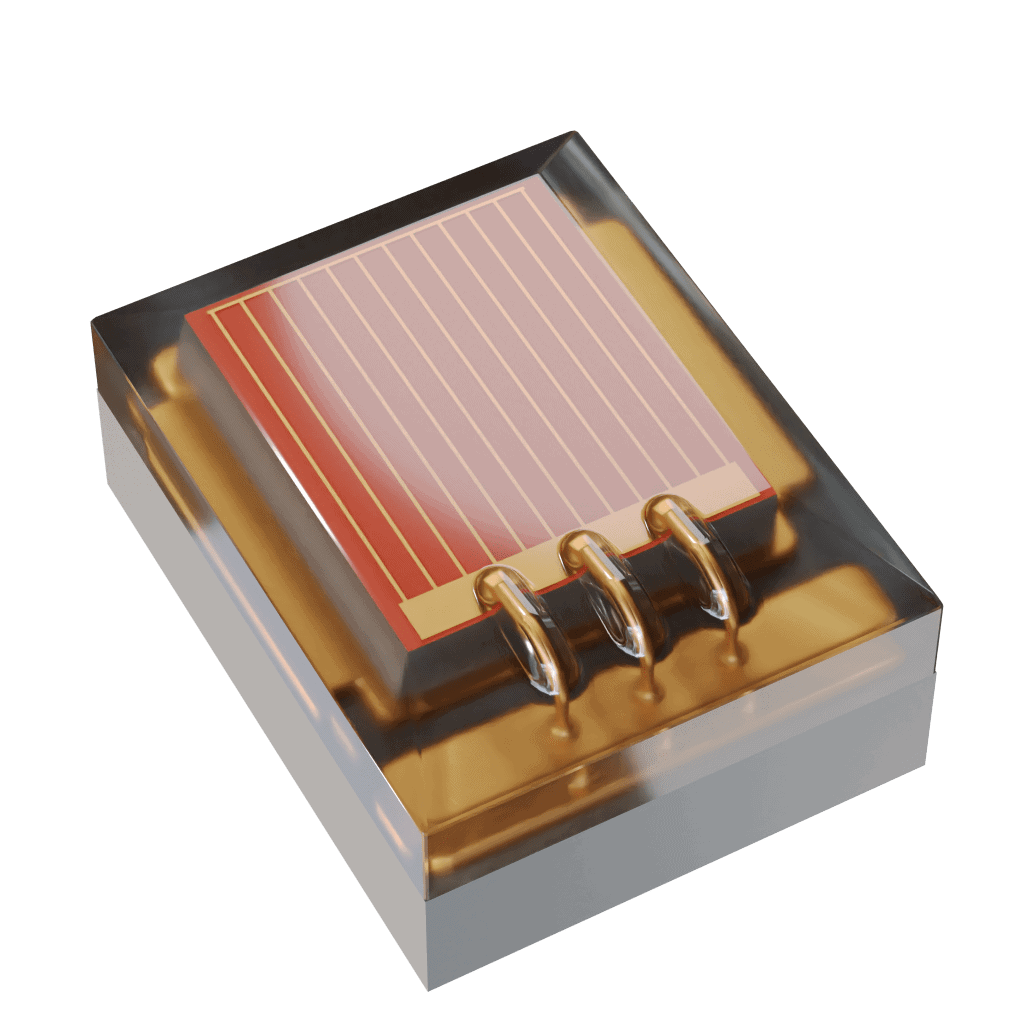

Red Red 620 630 75 85 L1RX-RED1000000000

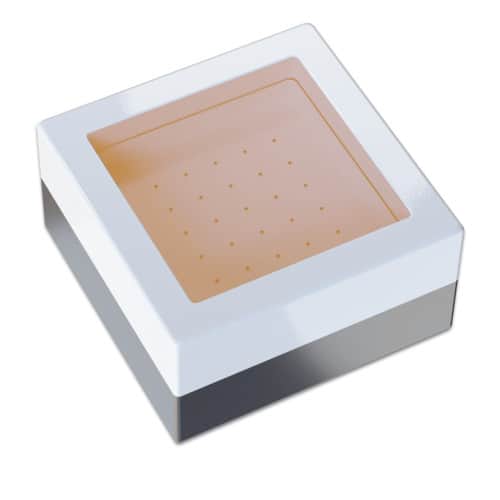

Amber PC Amber 220 250 L1RX-PCA1000000000

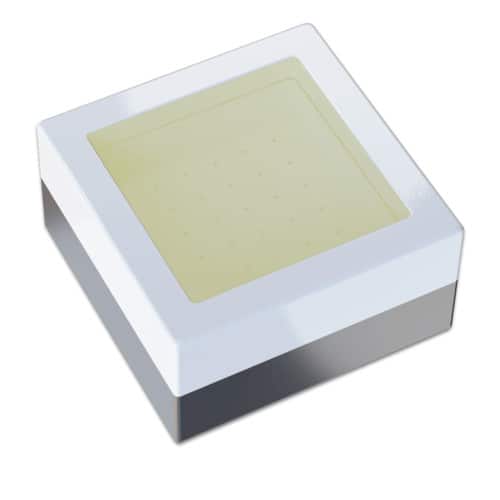

Green Lime 420 510 L1RX-LME1000000000

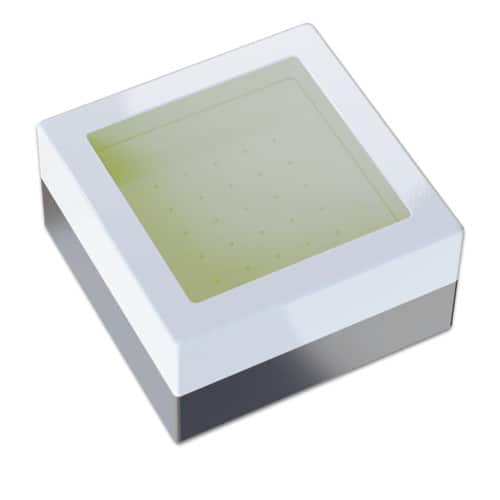

Green Green 520 535 260 310 L1RX-GRN1000000000

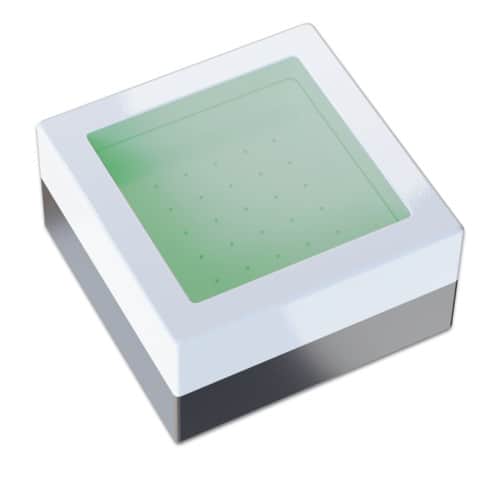

Cyann Cyan 490 510 180 230 L1RX-CYN1000000000

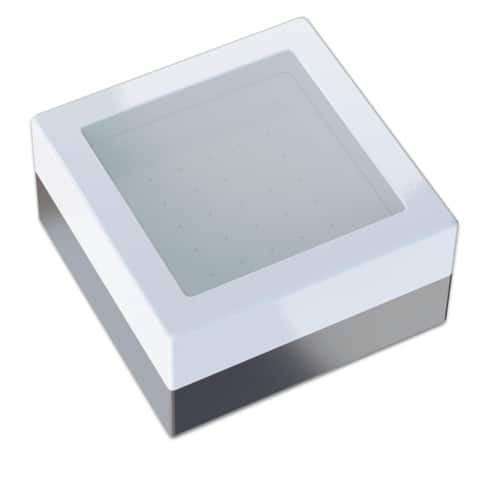

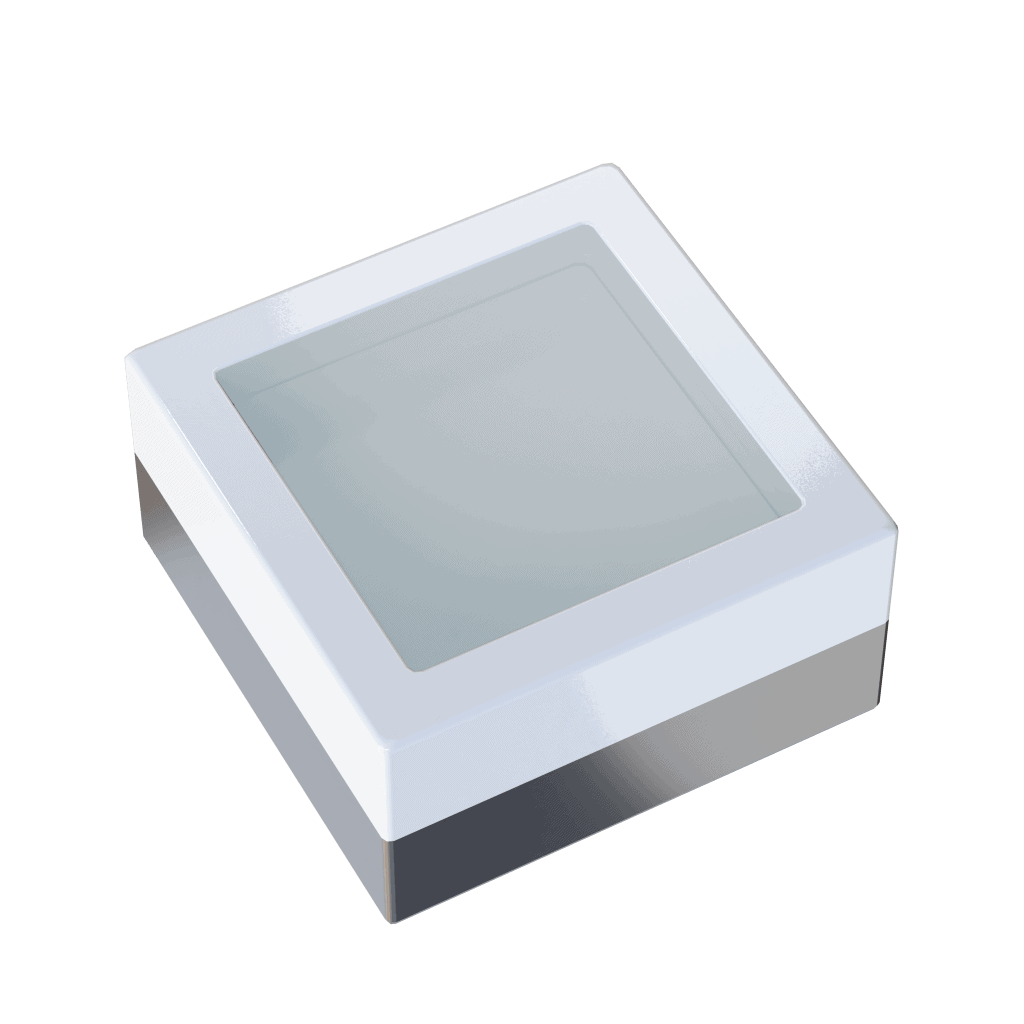

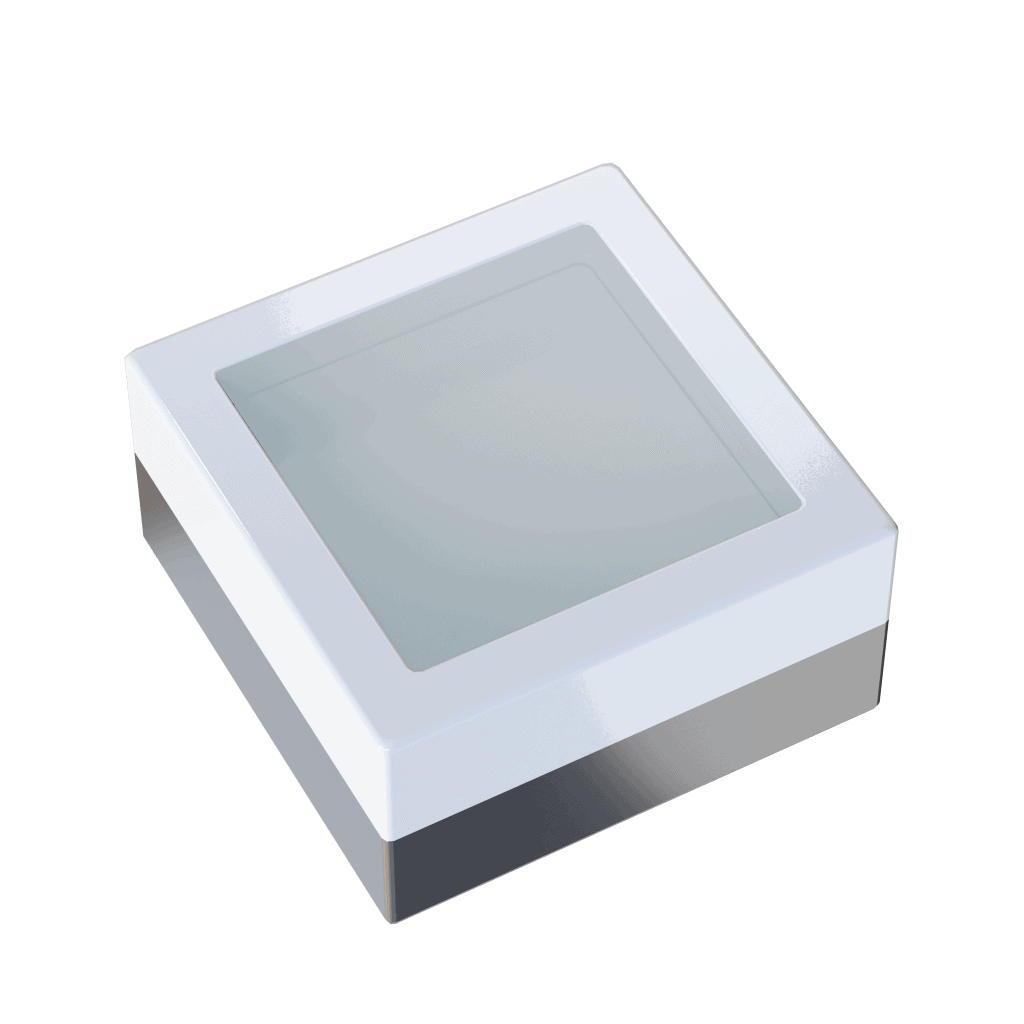

Blue Blue 465 485 80 112 L1RX-BLU1000000000
Royal Blue Royal Blue 440 455 1300 1635 L1RX-RYL1000000000



Product Performance of LUXEON Rubix white at 1500mA, Tj=85°C

COLOR NOMINAL
CCT
MINIMUM
CRI [1]
LUMINOUS FLUX[1] (lm) TYPICAL LUMINOUS EFFICACY (lm/W) PART NUMBER
MINIMUM TYPICAL
White 5700K 60 360 440 93 L1RX-5760000000000

Documentation

Design Resources

How to Buy

Features & Benefits

  • Tiny footprint 1414 package
  • High Drive current up to 3 Amps DC
  • Maximized punch (cd/lm)

Applications
