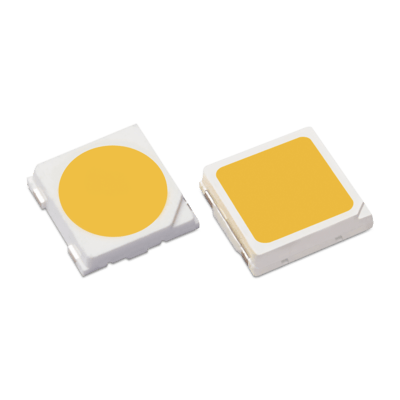

LUXEON 3535L Line

The LUXEON 3535L Line boasts the efficacy and reliability required by the indoor and outdoor illumination markets. It delivers optimized performance in combination with the Quality of Light needed for distributed light source applications in three performance levels.

In addition to offering specified correlated color temperature and color rendering combinations, LUXEON 3535L Line is available in three products:

LUXEON 3535L – Entry Flux and Efficacy
LUXEON 3535L HE – Median Flux and Efficacy

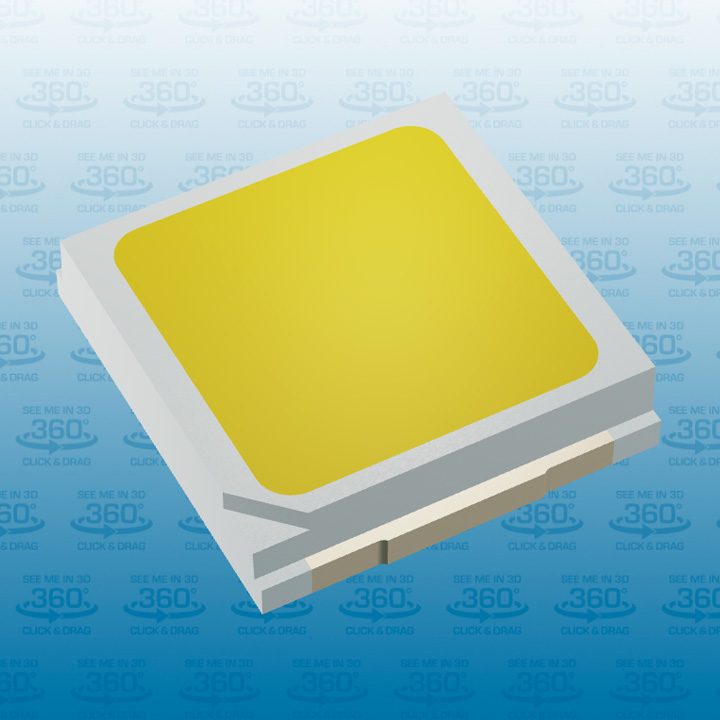

LUXEON 3535L HE Plus – High Flux and Highest Efficacy

For more information on LUXEON 3535LS and LUXEON 3535L legacy product 2.6mm LES, please refer to the product datasheet.

Product performance at 100mA, Tj=25°C.

PRODUCT NOMINAL
CCT
MINIMUM CRI LUMINOUS FLUX (lm) TYPICAL LUMINOUS
EFFICACY (lm/W)
PART NUMBER
MINIMUM TYPICAL
100mA
LUXEON
3535L
4000K 70 40.0 54.0 187 MXA7-PW40-0000
5000K 70 40.0 54.0 187 MXA7-PW50-0000
5700K 70 40.0 54.0 187 MXA7-PW57-0000
6500K 70 40.0 52.0 180 MXA7-PW65-0000
2200K 80 28.0 40.0 138 MXA8-PW22-0000
2500K 80 28.0 42.0 145 MXA8-PW25-0000
2700K 80 36.0 46.0 159 MXA8-PW27-0000
3000K 80 34.0 48.0 166 MXA8-PW30-0000
3500K 80 34.0 50.0 173 MXA8-PW35-0000
4000K 80 36.0 52.0 180 MXA8-PW40-0000
5000K 80 36.0 52.0 180 MXA8-PW50-0000
5700K 80 36.0 52.0 180 MXA8-PW57-0000
6500K 80 36.0 50.0 173 MXA8-PW65-0000
2700K 90 31.0 39.0 135 MXA9-PW27-9000
3000K 90 31.0 40.0 138 MXA9-PW30-0000
4000K 90 34.0 44.0 152 MXA9-PW40-0000
LUXEON
3535L HE
4000K 70 42.0 55.0 190 MXA7-PW40-H001
5000K 70 42.0 55.0 190 MXA7-PW50-H001
5700K 70 42.0 55.0 190 MXA7-PW57-H001
6500K 70 42.0 55.0 190 MXA7-PW65-H001
2200K 80 30.0 40.0 138 MXA8-PW22-H001
2500K 80 30.0 45.0 156 MXA8-PW25-H001
2700K 80 38.0 48.0 166 MXA8-PW27-H001
3000K 80 38.0 49.0 169 MXA8-PW30-H001
3500K 80 40.0 51.0 176 MXA8-PW35-H001
4000K 80 42.0 53.0 183 MXA8-PW40-H001
5000K 80 42.0 53.0 183 MXA8-PW50-H001
5700K 80 42.0 53.0 183 MXA8-PW57-H001
6500K 80 42.0 52.0 180 MXA8-PW65-H001
2700K 90 32.0 39.0 135 MXA9-PW27-H001
3000K 90 32.0 41.0 142 MXA9-PW30-H001
3500K 90 32.0 43.0 149 MXA9-PW35-H001
4000K 90 32.0 44.0 152 MXA9-PW40-H001
5000K 90 32.0 45.0 156 MXA9-PW50-H001
5700K 90 32.0 45.0 156 MXA9-PW57-H001
6500K 90 32.0 45.0 156 MXA9-PW65-H001

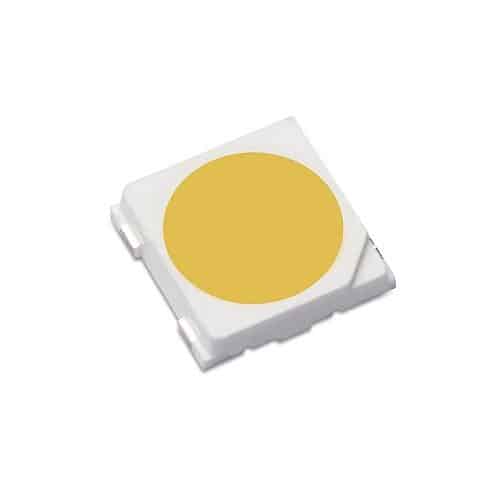

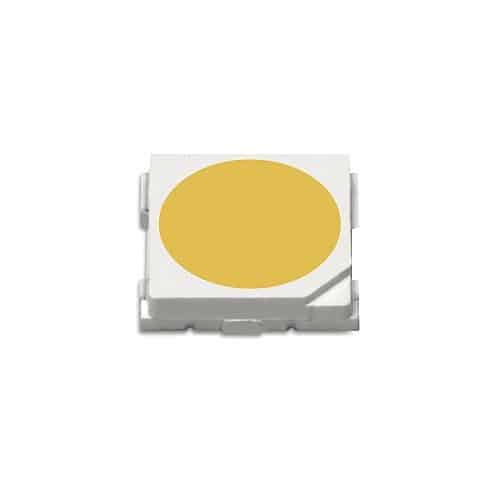

LUXEON 3535L HE Plus
(Round LES)
2700K 70 44.5 49.5 177 L135-2770CA35000P1
3000K 70 45.5 50.5 181 L135-3070CA35000P1
3500K 70 47.5 52.5 188 L135-3570CA35000P1
4000K 70 50.0 54.5 195 L135-4070CA35000P1
5000K 70 50.0 54.5 195 L135-5070CA35000P1
5700K 70 50.0 54.5 195 L135-5770CA35000P1
6500K 70 48.0 53.0 190 L135-6570CA35000P1
2700K 80 44.0 47.0 168 L135-2780CA35000P1
3000K 80 44.0 48.0 172 L135-3080CA35000P1
3500K 80 44.0 50.0 179 L135-3580CA35000P1
4000K 80 48.0 52.0 186 L135-4080CA35000P1
5000K 80 48.0 52.0 186 L135-5080CA35000P1
5700K 80 48.0 52.0 186 L135-5780CA35000P1
6500K 80 48.0 50.0 179 L135-6580CA35000P1
2700K 90 36.0 40.0 143 L135-2790CA35000P1
3000K 90 37.0 41.0 147 L135-3090CA35000P1
3500K 90 38.0 42.5 152 L135-3590CA35000P1
4000K 90 40.0 44.0 158 L135-4090CA35000P1
5000K 90 40.0 44.0 158 L135-5090CA35000P1
5700K 90 40.0 44.0 158 L135-5790CA35000P1
6500K 90 39.0 42.5 152 L135-6590CA35000P1

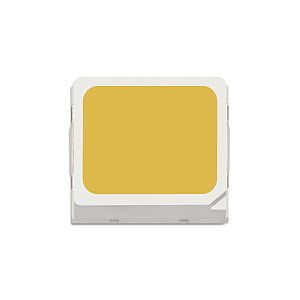

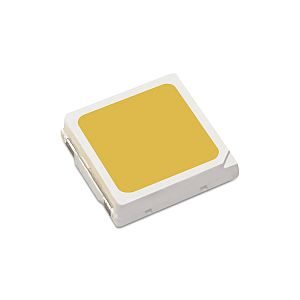

LUXEON 3535L HE Plus
(Square LES)
2700K 70 45.0 53.0 190 L135-2770SA35000P1
3000K 70 48.0 54.0 193 L135-3070SA35000P1
3500K 70 49.0 55.0 197 L135-3570SA35000P1
4000K 70 51.0 57.0 204 L135-4070SA35000P1
5000K 70 51.0 57.0 204 L135-5070SA35000P1
5700K 70 51.0 57.0 204 L135-5770SA35000P1
6500K 70 49.0 55.0 197 L135-6570SA35000P1
2700K 80 45.0 50.0 179 L135-2780SA35000P1
3000K 80 46.0 52.0 186 L135-3080SA35000P1
3500K 80 47.0 53.0 190 L135-3580SA35000P1
4000K 80 48.0 54.0 193 L135-4080SA35000P1
5000K 80 48.0 54.0 193 L135-5080SA35000P1
5700K 80 48.0 54.0 193 L135-5780SA35000P1
6500K 80 47.0 53.0 190 L135-6580SA35000P1
2700K 90 38.0 43.0 154 L135-2790SA35000P1
3000K 90 39.0 44.0 158 L135-3090SA35000P1
3500K 90 40.0 45.0 161 L135-3590SA35000P1
4000K 90 41.0 46.0 165 L135-4090SA35000P1
5000K 90 41.0 46.0 165 L135-5090SA35000P1
5700K 90 41.0 46.0 165 L135-5790SA35000P1
6500K 90 40.0 45.0 161 L135-6590SA35000P1

Documentation

Design Resources

How to Buy

Features & Benefits

  • Supports ENERGY STAR lumen maintenance certification requirements
  • Meets DLC Premium requirements
  • Maximum drive current of 200mA delivers superior lumens for reduced LED count
  • 1/7th ANSI color binning delivers tight color control
  • Enables Ts points of 105°C, which allows for higher board temperature
  • Full range of CCTs and CRI configurations for design flexibility
  • UL-recognized component [E352519]
