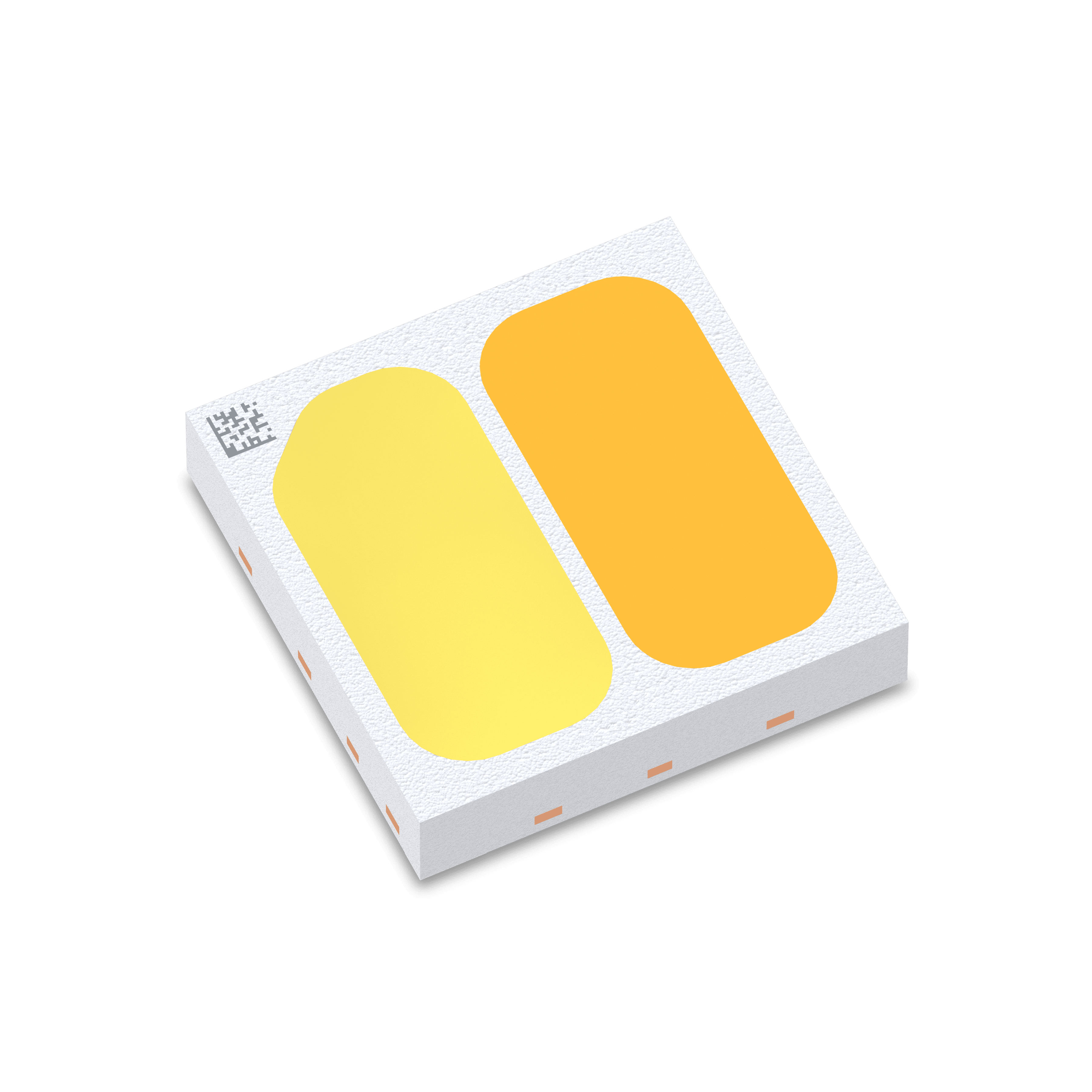

What is LUXEON Versat Dual Color Line?

LUXEON Versat Dual Color is a single source, dual color LED product family designed for combined front turn and DRL automotive signaling applications. Coupled with the exceptional thermal capabilities and robustness associated with the LUXEON Versat family, the LUXEON Versat Dual Color stands to be a pillar in the future of forward signaling.

Benefits of LUXEON Versat Dual Color Line:

  • Single source, dual color LED streamlines lamp integration and endorses design ingenuity
  • Low luminous cross-talk (< 1%) for crisp light-guide coupling capabilities and true signaling independence
  • Narrow channel cavities (0.15mm) and tighter die-to-die spacing for improved homogeneity and optical efficiency

Key Features:

  • Higher thermal capabilities offer lower system costs
  • Low Z-profile simplifies optical design and minimizes design space

Important Notes:

  • Available in the combination of Cool White – PC Amber

Products

COLOR
[DOMINANT WAVELENGTH]
PRODUCT TEST CURRENT (mA) MAX DC CURRENT (mA) MINIMUM FLUX (lm) PART NUMBER
Cool White Cool White LUXEON Versat Dual Color 150 250 53 A1VC-DT00A01xxxxxx
PC Amber PC Amber [590 nm] 33

Expand Media

Applications

  • Daytime Running Lights
  • Front Turn
Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Documentation

Design Resources

  • Optical
    LUXEON Versat Dual Color Line

    LL ID File format Title Products Modified Size (MB)
    DRO6052 PDF
    LUXEON Versat Dual Color A1VC-DT00A01000020
    A1VC-DT00A01000030
    A1VC-DT00A01000040
    02/09/2022
