What is LUXEON Altilon TopContact PnP?

LUXEON Altilon TopContact PnP is an integrated LED solution for thermally challenged head lighting applications. It offers high flux and optimized thermal performance in an easy ‘plug and play’ board configuration, while providing you the flexibility to adapt to any projector or reflector based optical system(s).

Benefits of LUXEON Altilon TopContact PnP:

  • With low thermal resistance, it enables design simplification and reduced system costs.
  • High precision x/y tolerances enables design flexibility for Engineers and minimizes design lead times.
  • With a small footprint, it allows compact and thermally efficient solutions for variety of headlamp configurations.

Key Features:

  • Higher drive current capability for increased flux performance
  • High flux output provides flexibility in styling and optical design
  • Designed for direct heat sink mount
  • LED is hot binned at 85°C monopulse (MP) to match closer to operating conditions
  • IEC/PAS 62707-1 white LED
  • Available in 1×2, 1×3, 1×4 and 1×5 configurations

Important Notes:

  • The TopContact PnP product meets both SAE and ECE color specifications and is AEC-Q102 qualified.

PRODUCTS

PRODUCT HIGH BEAM, LOW BEAM, STATIC BENDING ADAPTIVE
FRONT-LIGHTING SYSTEM
FRONT FOG DAYTIME
RUNNING LIGHTS

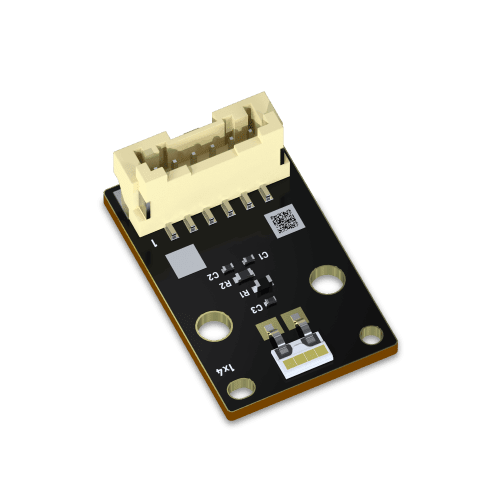

LUXEON Altilon TopContact PnP 1X2 X X X X

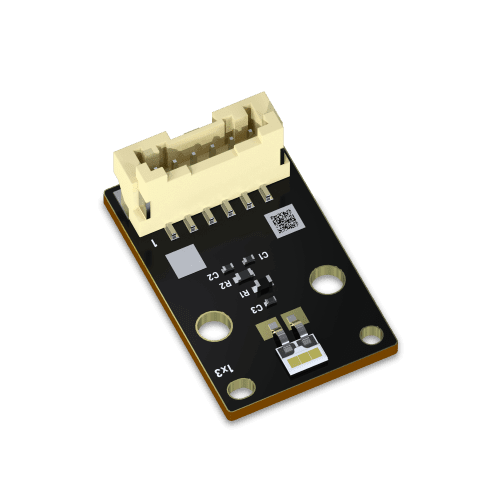

LUXEON Altilon TopContact PnP 1X3 X X X X
LUXEON Altilon TopContact PnP 1X4 X X

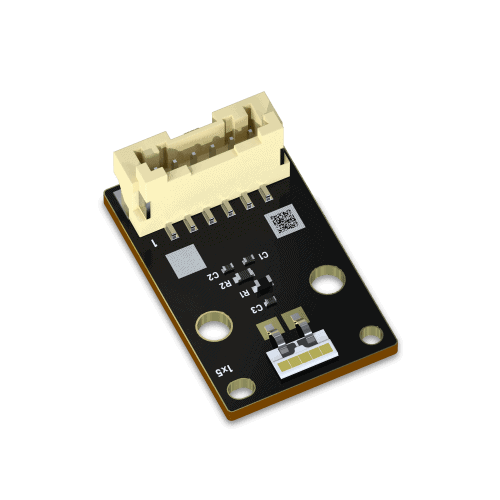

LUXEON Altilon TopContact PnP 1X5 X X

Expand Media

Applications

  • Headlighting:
    • Low Beam
    • High Beam
    • Front Fog
    • Daytime Running Lights
    • Adaptive front lighting systems
Expand Applications
