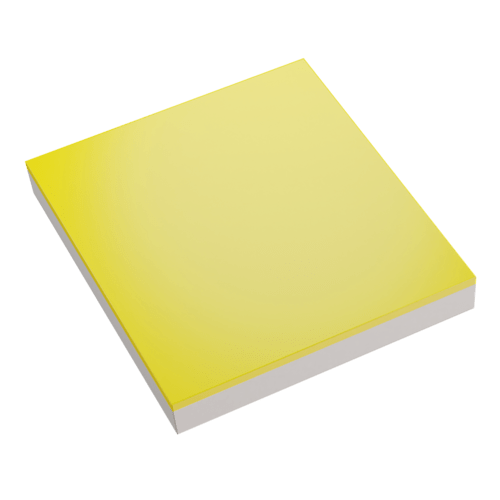

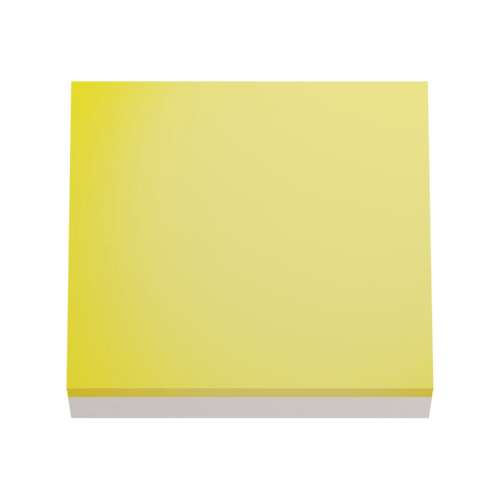

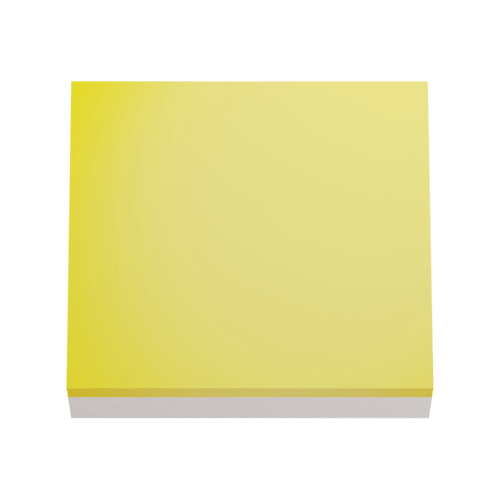

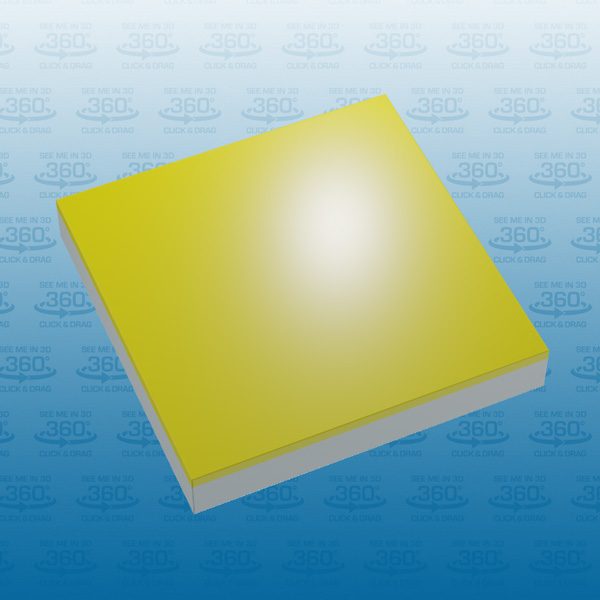

LUXEON HL2Z is a 2mm square CSP-based, high power, un-domed emitter designed to provide leading flux density, superior color consistency, high luminance, and extreme flexibility in lighting solutions. LUXEON HL2Z emitters are an ideal choice for fast time-to-market due to their ease of design-in, and their ability to lower system costs through improved performance while delivering the quality of light that is desired by lighting system designers and users.

Features & Benefits

  • Undomed source makes it easier to increase optical efficiency and to realize narrow beam angles
  • CSP die technology enables high efficacy and high driving current capability in unique applications
  • Reliable and proven package with color consistency enabling close packaging, with superior beam Performance
  • DLC R9 enabled to offer best-in-class color quality for luminaires
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON HL2Z at 700mA, Tj=85°C.

Nominal
CCT
Minimum
R9
Minimum
CRI
Luminous Flux  (lm) Typical
Luminous
Efficacy (lm/W)
Part Number
Minimum Typical
700mA
3000K -40 70 270 311 157 L1HZ-3070200000000
4000K -40 70 290 331 167 L1HZ-4070200000000
5000K -40 70 290 330 167 L1HZ-5070200000000
5700K -40 70 290 330 167 L1HZ-5770200000000
6500K -40 70 290 320 162 L1HZ-6570200000000
2200K 0 80 210 237 120 L1HZ-2280200000000
2700K 0 80 230 269 136 L1HZ-2780200000000
3000K 0 80 240 279 141 L1HZ-3080200000000
3500K 0 80 250 297 150 L1HZ-3580200000000
4000K 0 80 260 301 152 L1HZ-4080200000000
5000K 0 80 260 302 152 L1HZ-5080200000000
2700K 50 90 190 225 114 L1HZ-2790200000000
3000K 50 90 210 241 122 L1HZ-3090200000000
3500K 50 90 210 251 127 L1HZ-3590200000000
4000K 50 90 220 255 129 L1HZ-4090200000000
5000K 50 90 220 260 131 L1HZ-5090200000000
5700K 50 90 220 260 131 L1HZ-5790200000000
