LUXEON V

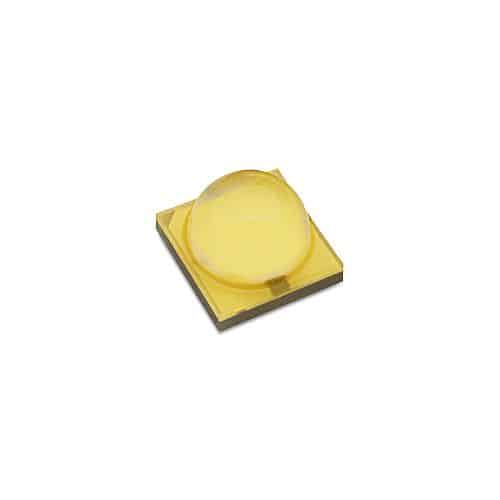

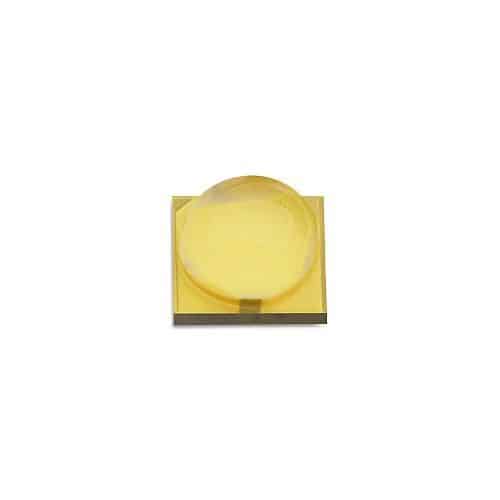

LUXEON V is a Chip Scale Package (CSP) based high power emitter designed to deliver maximum flux in a compact 4.0mm x 4.0mm foot print. LUXEON V offers a unique combination of high efficacy at high drive current with extremely low thermal resistance and optimized radiation pattern to support next generation fixture designs. Building on the strengths of Lumileds Patterned Sapphire Substrate (PSS) CSP technology, LUXEON V offers the highest drive current capability in its class.

Product performance of LUXEON V at 1400mA, Tj=85°C.

Nominal CCTCRILuminous
Flux (lm)
Typical Luminuos Efficay (lm/W)Part Number
MinimumTypical
4000K
70 minimum
570614154L1V1-407003Vx00000
5000K
70 minimum
570593149L1V1-507003Vx00000
5700K
70 minimum
570598150L1V1-577003Vx00000
6500K
70 minimum
570601151L1V1-657003Vx00000
5700K
70 typical570598150L1V1-577T03Vx00000
6500K
70 typical570601
151
L1V1-657T03Vx00000



Documentation

Design Resources

How to Buy

Features & Benefits

  • Over 2000 lumens from a single, compact source
  • Low thermal resistance of 0.8 K/W enables more efficient thermal management—smaller heatsink, more compact fixtures
  • High efficacy at high drive current provides design flexibility and supports high flux density fixtures
  • Optimized radiation pattern delivers high intensity beams from smaller optics
  • Uniform optical source supports directional applications and imaging optics

Applications
