LUXEON 3014 with FreshFocus Technology for Marbled Meat

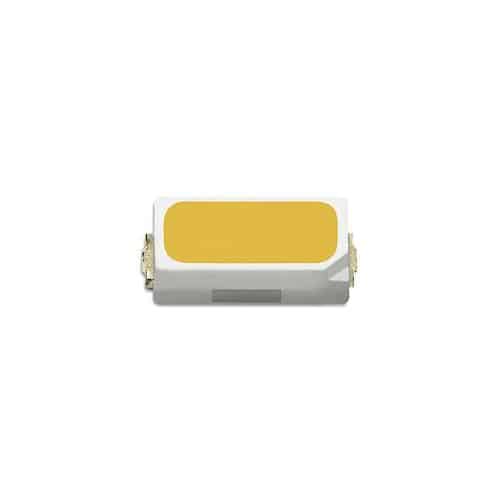

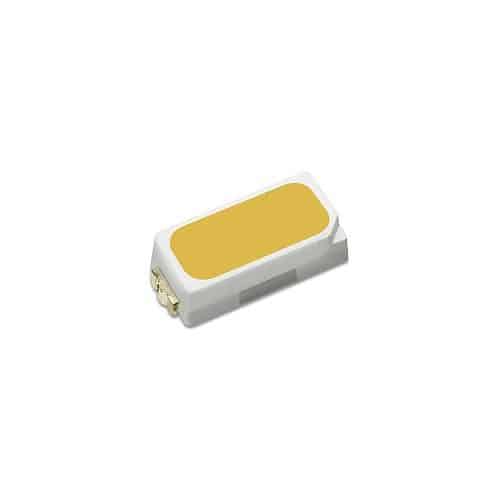

The LUXEON 3014 with FreshFocus Technology creates the most impactful lighting ever available by accentuating the freshness and overall visual appeal of a variety of fresh food areas such as supermarkets, delis, butcher shops and bakeries. LUXEON 3014 with FreshFocus Technology is an industry standard compatible 3.0mm x 1.4mm x 0.75mm footprint with specialty color and spectrum targeted for highlighting the colors of different foods.

Features & Benefits

  • Highest flux densities with industry’s smallest Light Emitting Surface (LES)
  • 3-step MacAdam ellipse color definition: Freedom from Binning for color consistency from luminaire to luminaire
  • Up to 4x lower thermal resistance than competition, enabling smaller heatsinks and higher lumens
  • Supported by a comprehensive optical, mechanical and electrical ecosystem
Expand Media

Applications

  • Specialty Lighting
    • Fresh Foods
    • Linear Display
Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

LUXEON 3014 with FreshFocus Technology for Marbled Meat product performance at specified test current, Tj=85°C.

Spectrum Minimum
CRI
Luminous Flux (lm) Typical Luminous
Efficacy (lm/W)
Part Number
Minimum Typical
Marbled Meat 80 14.5 17 86 L130-MMSA001400001
