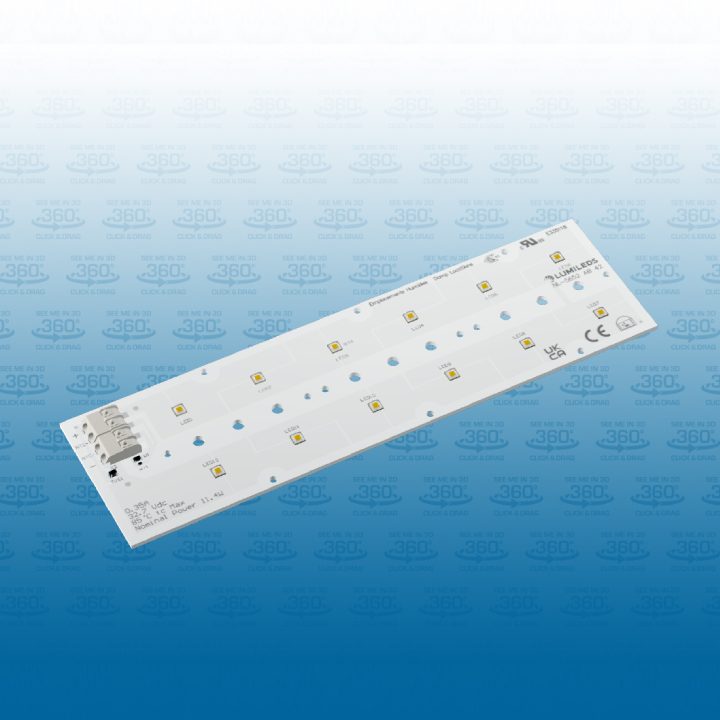

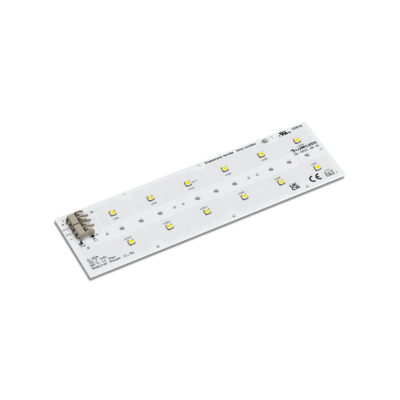

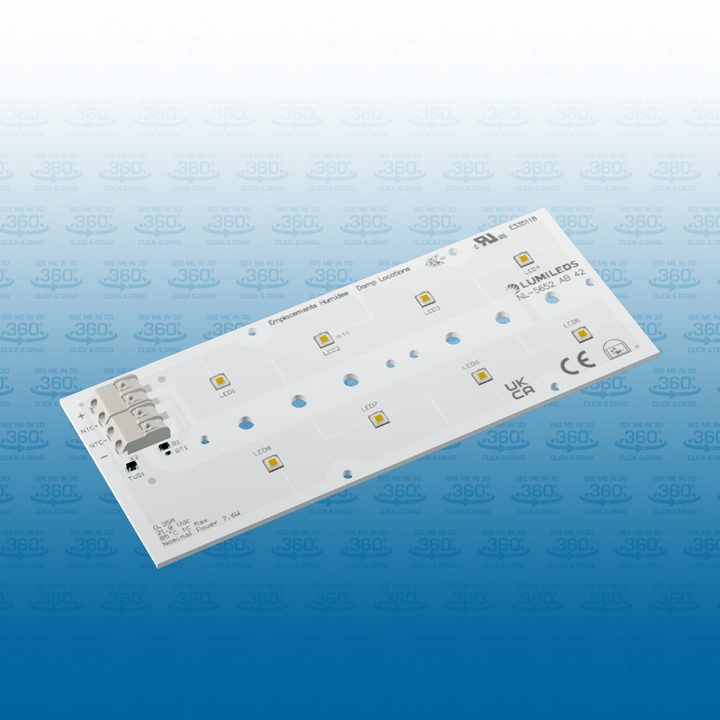

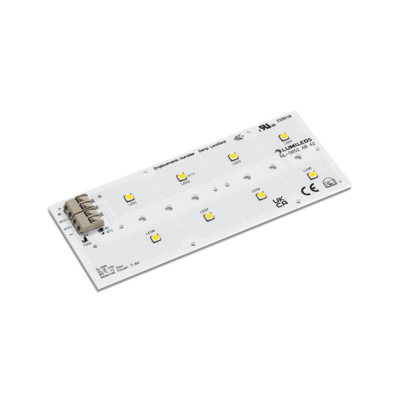

LUXEON XR-HL2X is a standard integrated module compatible with off-the-shelf drivers, optics, and heat sinks. These versatile building blocks feature 8, 12, or 16 LUXEON HL2X LEDs on a MCPCB substrate for thermal efficiency and mechanical robustness. This approach simplifies system integration and accelerates time-to-market.



LUXEON XR-HL2X and EU Ecodesign: Please consult the product datasheet for details including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019/2015. LUXEON XR-HL2X part numbers are in energy efficiency class D.

Features & Benefits

  • Efficacy and luminous flux of up to 184lm/W typical and 2800lm of output
  • CCT/CRI Options:3000K, 4000K (70 CRI)
  • Board level color control of ≤ 5SDCM
  • MCPCB for efficient heat dissipation and mechanical robustness
  • UL 8750, ENEC, CE, UKCA compliance
  • 5-year limited guarantee
Expand Media

Applications

  • High Bay
  • Low Bay
  • Sport Lights
  • Outdoor Area Lights
  • Roadway Lights
Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON XR-HL2X at 350mA, Tc=80°C.

Nominal CCT Minimum CRI Luminous Flux (lm) Typical Luminous
Efficacy (lm/W)
Part Number
Minimum Typical
3000K 70 1315 1326 174 L2H2-3070008MLU010
4000K 70 1364 1407 184 L2H2-4070008MLU010
3000K 70 1972 1988 174 L2H2-3070012MLU010
4000K 70 2046 2110 184 L2H2-4070012MLU010
3000K 70 2630 2651 174 L2H2-3070016MLU010
4000K 70 2728 2814 184 L2H2-4070016MLU010
