LUXEON HL1Z

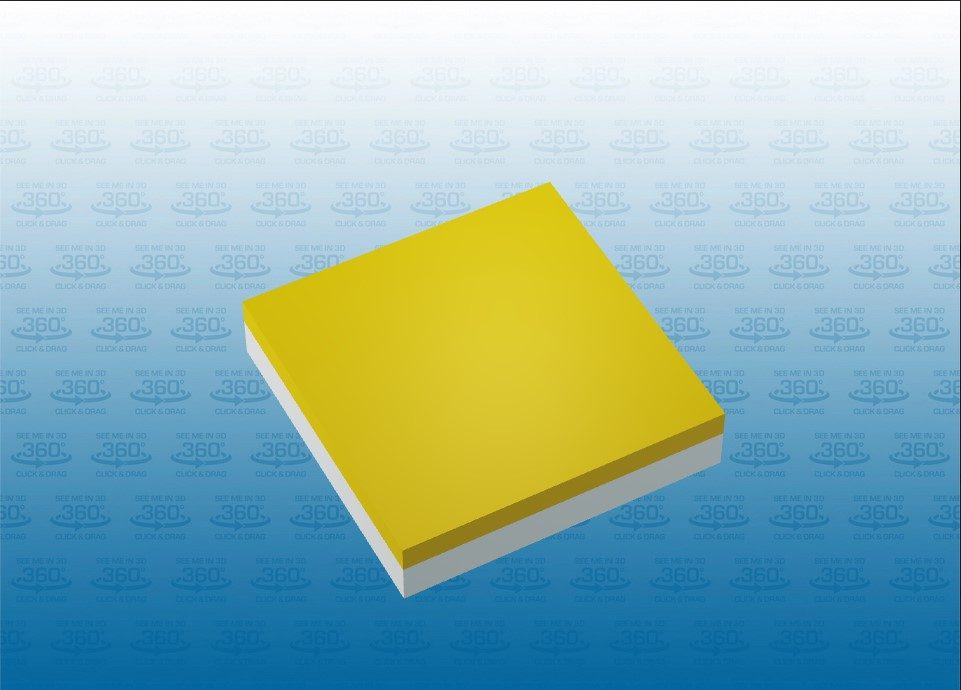

LUXEON HL1Z LEDs offer high flux density performance in a compact footprint, enabling elegant and superior luminaire designs. A wide range of CCTs in 80 and 90CRI options make them ideal for high performance indoor lighting applications, designed into tunable and white color mixing solutions. Best-in-class Color over Angle, and top emission only light output, provides designers with leading Quality of Light performance for dramatic lighting designs and small fixtures. The compact package size and high punch allows design flexibility, beam steering, and white tuning versus traditional LED light sources.

Features & Benefits

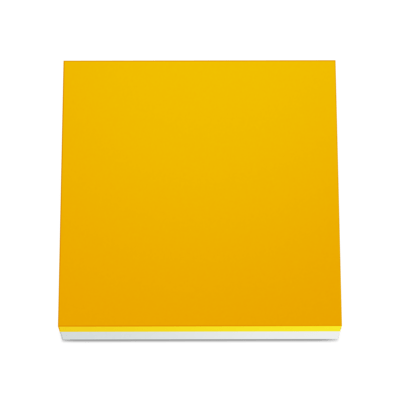

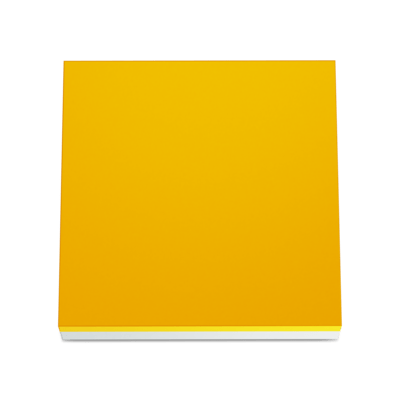

  • Small package size (1.4 x 1.4 x 0.36 mm) allows closely packed arrays for narrow beam spots
  • Enables color mixing in CCT tunable applications
  • High current densities for high lumen output and lm/$ at high lm/W
  • CSP 1mm2 with 2 pads for direct attach enables ease of assembly
  • Surface emission only for directional lighting without side light leakage
  • High package densities
Expand Media

Applications

  • Panel / Soft Lights
  • Wall Grazer
  • Track Lights
  • Linear
  • Wall Wash
  • Downlights
Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON HL1Z at 350mA, Tj=85°C.

Nominal CCT Minimum R9 Minimum CRI Luminous Flux (lm) Typical Luminous Efficacy (lm/W) Part Number
Minimum Typical
1800 0 80 70 89 91 L1HZ-1880100000000
2200 0 80 90 108 110 L1HZ-2280100000000
2700 0 80 100 127 130 L1HZ-2780100000000
3000 0 80 110 134 137 L1HZ-3080100000000
3500 0 80 110 141 144 L1HZ-3580100000000
4000 0 80 120 144 147 L1HZ-4080100000000
5000 0 80 120 143 146 L1HZ-5080100000000
5700 0 80 120 145 148 L1HZ-5780100000000
6500 0 80 120 143 146 L1HZ-6580100000000
2700 50 90 80 103 105 L1HZ-2790100000000
3000 50 90 90 108 110 L1HZ-3090100000000
3500 50 90 95 116 118 L1HZ-3590100000000
4000 50 90 100 118 120 L1HZ-4090100000000
5000 50 90 100 121 123 L1HZ-5090100000000
5700 50 90 100 124 127 L1HZ-5790100000000
6500 50 90 100 123 126 L1HZ-6590100000000
