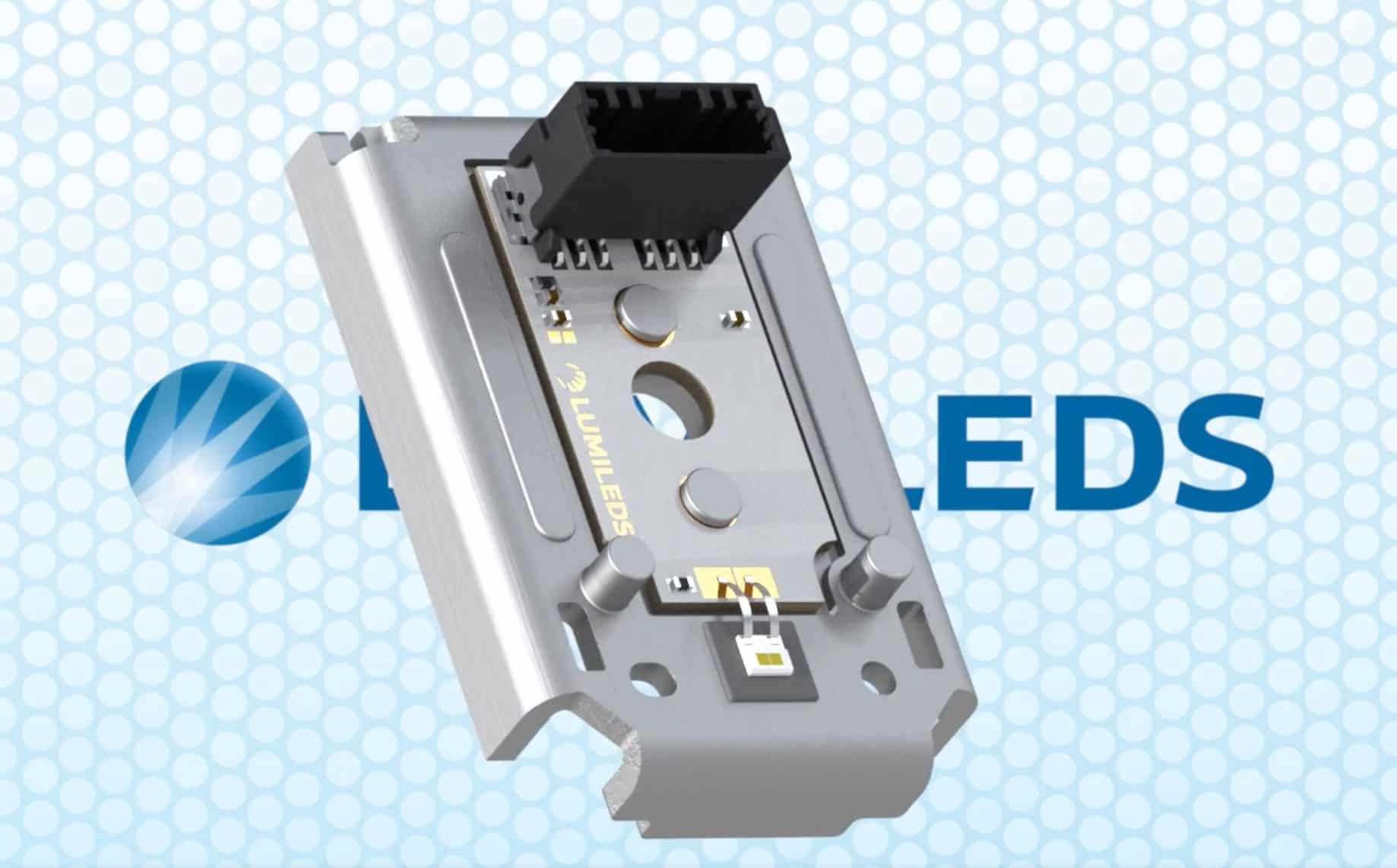

What is LUXEON Go?

LUXEON Go is an off-the-shelf building block for LED headlighting applications combining compactness, high precision, and superior thermal management. The standardized modules allow for cost-efficient LED headlamps and short development cycles.

Benefits of LUXEON Go:

  • Off-the-shelf solution with integrated heat management enabling fast time to market and low
    development effort
  • Three lumen levels and compact size allowing for flexible application in a wide variety of headlamp
    designs
  • Easy mechanical referencing and assembly during headlamp manufacturing process

Key Features:

  • Tight tolerance for increased optical system performance
  • Master/slave version with/without thermistor and bin-code resistor
  • Electrical connector with connector-position assurance (CPA) function
  • Dedicated pin for grounding of the module
  • Openings for light-shield fixation

Important Notes:

  • Available in 1×2, 1×3, 1×3 flat and 1×4 configurations
  • Validated according to LV124 requirements
  • C-samples available on request

PRODUCTS

PRODUCT

HIGH BEAM, LOW BEAMSTATIC BENDING LIGHTFRONT FOG

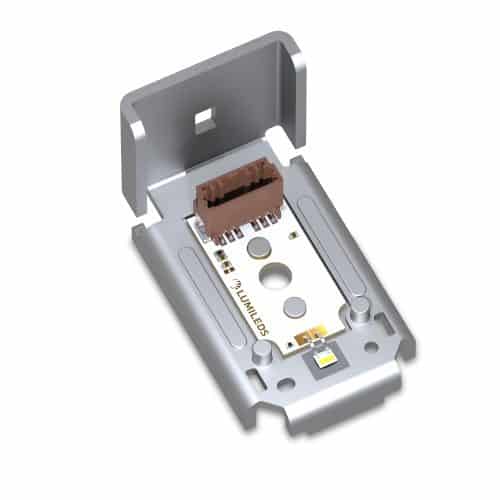

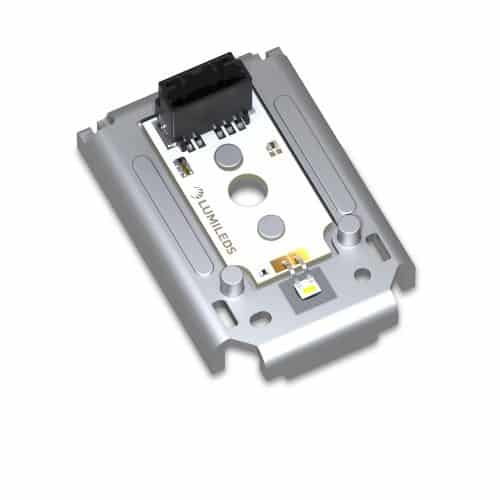

LUXEON Go 1X2XXX

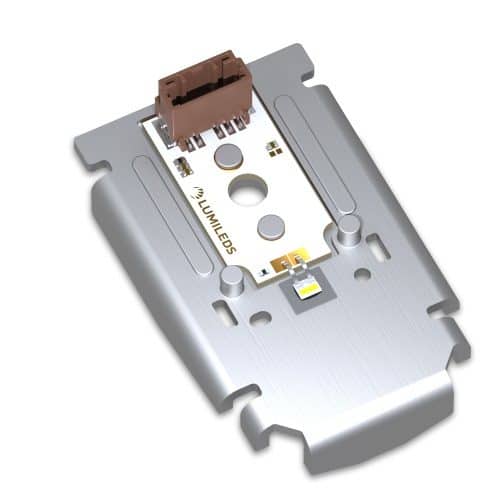

LUXEON Go 1X3XXX
LUXEON Go 1X3 FlatXXX

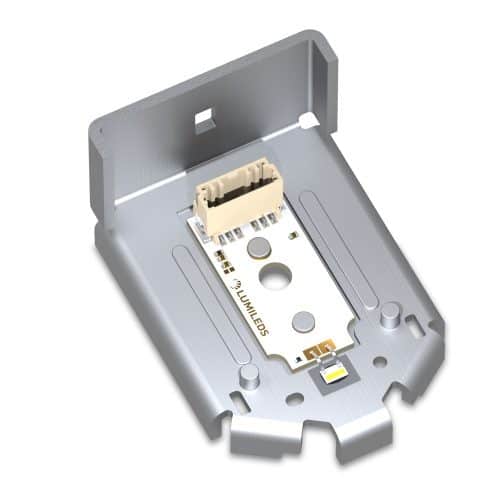

LUXEON Go 1X4XXX



PRODUCT SPECIFICATIONS

 LUXEON Go 1x2LUXEON Go 1x3LUXEON Go 1x3LUXEON Go 1x4
CONFIGURATION1X21X31X31X4
LUMEN CLASS660 – 720 lm
(T = 85 °C, 20 ms MP, 1A)
990 – 1080 lm
(T = 85 °C, 20 ms MP, 1A)
1100 lm
(T = 85 °C, 20 ms MP, 1A)
MIN. LUMEN OUTPUT660 lm
(Ta = 50 °C, 1A/DC)
880 lm
(Ta = 50 °C, 1A/DC)
1100 lm
(Ta = 50 °C, 1A/DC)
DIMENSIONS[1][2]40 X 60 X 10 mm40 X 67 X 10 mm
+ Tail: 35 mm height
47 X 75 X 11 mm55 X 77 X 10 mm
+ Tail: 30 mm height
ELECTRICAL INTERFACES
  • Master Version: 6 pin / 5 pin UJU connector, thermistor and codingresistor
  • Slave Version: with 3 pin UJU connector
  1. Please contact your local Lumileds sales representative for further product details
  2. Width x Depth x Height; Height excluding the connector

Documentation

How to Buy

Applications

  • High Beam, Low Beam
  • Static Bending Light
  • Front Fog
