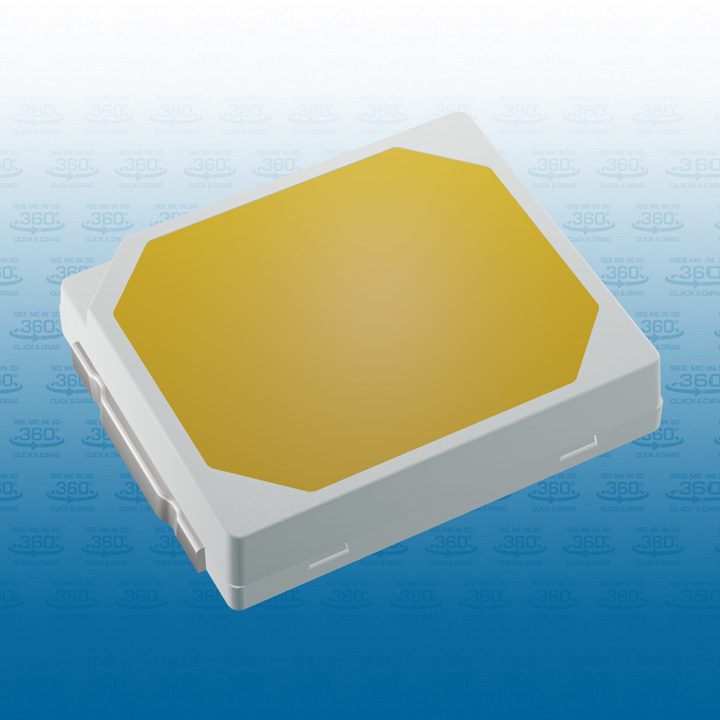

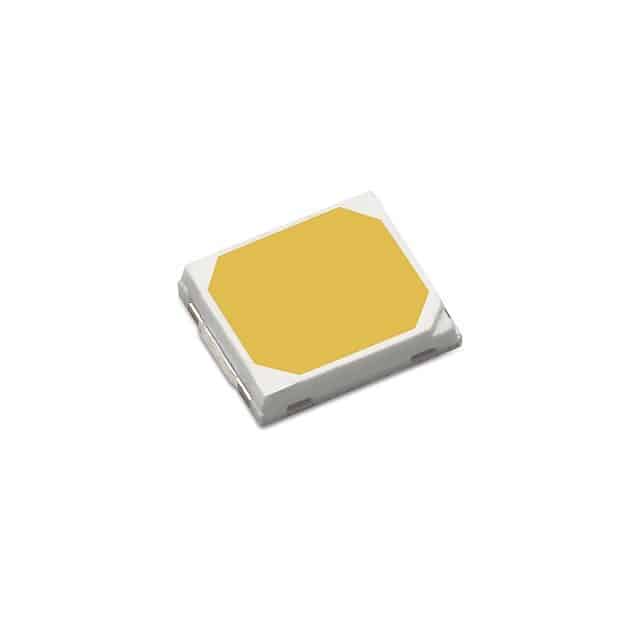

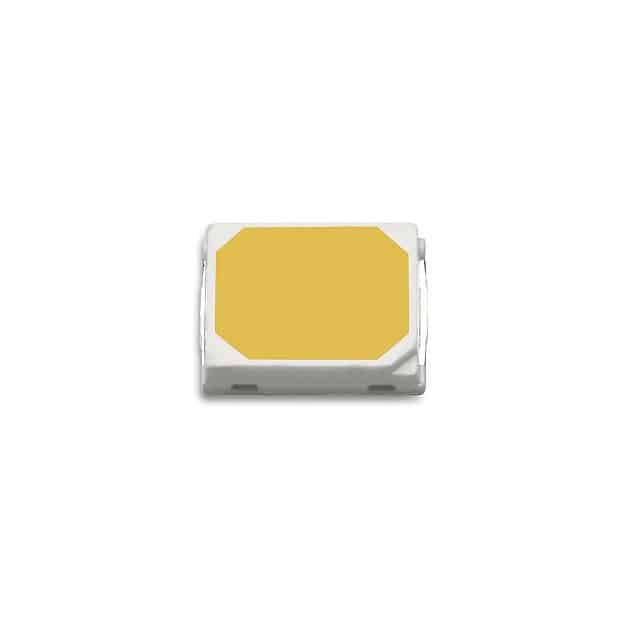

LUXEON 2835 Commercial LEDs

LUXEON 2835 Commercial mid-power LEDs are the price/performance leader for commercial indoor lighting solutions when lumens per Watt and lumens per dollar are the driving metrics for development. They are available in CCTs from 2700K to 6500K and CRIs of 80 and 90. LUXEON 2835 Commercial has a max current rating of 200mA and features a 1/5th color bin structure making it a perfect choice for indoor applications where you want the quality and reliability of LUXEON in a commercial application.

LUXEON 2835 Commercial leads its class in flux, color consistency, robustness, and reliability making it the right choice for commercial indoor luminaires.

Features & Benefits

  • Complete CCT/CRI offering for various application
  • Industry standard footprint for drop-in replacement
  • Reliable package design for commercial applications
  • 3 and 5 SDCM MacAdam ellipse enables precise color control
Expand Media

Applications

  • Panel / Soft Lights
  • Linear
  • Troffers
Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

2835 3V Parts | 2835 6V Parts

LUXEON 2835 Commercial 3V Parts

Performance of LUXEON 2835 Commercial LEDs at specified test conditions.

Nominal
CCT
Minimum
CRI
Luminous Flux (lm) Typical Luminous Efficacy (lm/W) Test Current
(mA)
Part Number
Minimum Typical
2700K 80 30.0 33.2 185.1 65 L128-2780SA35A00A1
3000K 80 32.0 34.4 192 65 L128-3080SA35A00A1
3500K 80 32.5 35.1 196 65 L128-3580SA35A00A1
4000K 80 33.0 35.8 200 65 L128-4080SA35A00A1
5000K 80 33.0 35.8 200 65 L128-5080SA35A00A1
5700K 80 33.0 35.8 200 65 L128-5780SA35A00A1
6500K 80 32.5 35.4 197.3 65 L128-6580SA35A00A1
2700K 90 25.5 27.5 153.3 65 L128-2790SA35A00A1
3000K 90 26.8 28.8 160.5 65 L128-3090SA35A00A1
3500K 90 28.1 30.2 168.3 65 L128-3590SA35A00A1
4000K 90 28.6 30.8 171.7 65 L128-4090SA35A00A1
5000K 90 28.6 30.8 171.7 65 L128-5090SA35A00A1
5700K 90 28.6 30.8 171.7 65 L128-5790SA35A00A1
6500K 90 28.3 30.4 169.5 65 L128-6590SA35A00A1
2700K 80 31.3 34.3 194.7 65 L128-2780SA35A00B1
3000K 80 32.2 35.4 201 65 L128-3080SA35A00B1
3500K 80 33.2 36.3 206.1 65 L128-3580SA35A00B1
4000K 80 33.8 36.9 209.5 65 L128-4080SA35A00B1
5000K 80 33.8 37.1 210.6 65 L128-5080SA35A00B1
5700K 80 33.8 37.1 210.6 65 L128-5780SA35A00B1
6500K 80 33.3 36.6 207.8 65 L128-6580SA35A00B1
2700K 90 26.8 28.8 163.5 65 L128-2790SA35A00B1
3000K 90 27.4 29.9 169.7 65 L128-3090SA35A00B1
3500K 90 28.3 30.8 174.9 65 L128-3590SA35A00B1
4000K 90 29.4 31.8 180.5 65 L128-4090SA35A00B1
5000K 90 29.4 31.8 180.5 65 L128-5090SA35A00B1
5700K 90 29.4 31.8 180.5 65 L128-5790SA35A00B1
6500K 90 29.4 31.8 180.5 65 L128-6590SA35A00B1
2700K 80 29.2 31.4 173.8 65 L128-2780SA35A00C1
3000K 80 30.2 32.5 179.9 65 L128-3080SA35A00C1
3500K 80 31.1 33.5 185.4 65 L128-3580SA35A00C1
4000K 80 31.6 33.9 187.6 65 L128-4080SA35A00C1
5000K 80 31.6 34.0 188.2 65 L128-5080SA35A00C1
5700K 80 31.6 34.0 188.2 65 L128-5780SA35A00C1
6500K 80 31.4 33.7 186.5 65 L128-6580SA35A00C1
2700K 90 24.9 26.8 148.3 65 L128-2790SA35A00C1
3000K 90 25.8 27.8 153.8 65 L128-3090SA35A00C1
3500K 90 26.7 28.8 159.4 65 L128-3590SA35A00C1
4000K 90 28.2 30.3 167.7 65 L128-4090SA35A00C1
5000K 90 28.2 30.4 168.2 65 L128-5090SA35A00C1
5700K 90 28.2 30.4 168.2 65 L128-5790SA35A00C1
6500K 90 27.9 30.0 166.0 65 L128-6590SA35A00C1
2700K 80 31.6 34.0 190.7 65 L128-2780SA35A00D1
3000K 80 32.4 34.8 195.1 65 L128-3080SA35A00D1
3500K 80 33.1 35.5 199.6 65 L128-3580SA35A00D1
4000K 80 33.8 36.3 204.1 65 L128-4080SA35A00D1
5000K 80 34.2 36.7 206.3 65 L128-5080SA35A00D1
5700K 80 34.2 36.7 206.3 65 L128-5780SA35A00D1
6500K 80 33.8 36.3 204.1 65 L128-6580SA35A00D1
2700K 90 27.2 29.3 164.5 65 L128-2790SA35A00D1
3000K 90 28.4 30.6 171.7 65 L128-3090SA35A00D1
3500K 90 29.4 31.6 177.3 65 L128-3590SA35A00D1
4000K 90 29.7 32.0 179.5 65 L128-4090SA35A00D1
5000K 90 29.7 32.0 179.5 65 L128-5090SA35A00D1
5700K 90 29.6 31.8 178.4 65 L128-5790SA35A00D1
6500K 90 29.4 31.6 177.3 65 L128-6590SA35A00D1
2700K 90 33.1 34.2 192.0 65 L128-2790SA35A0KD1
3000K 90 33.9 35.0 196.4 65 L128-3090SA35A0KD1
3500K 90 34.3 35.4 199.0 65 L128-3590SA35A0KD1
4000K 90 34.6 35.8 201.0 65 L128-4090SA35A0KD1
5000K 90 34.4 35.6 200.0 65 L128-5090SA35A0KD1
5700K 90 34.3 35.4 199.0 65 L128-5790SA35A0KD1
6500K 90 34.3 35.4 199.0 65 L128-6590SA35A0KD1
2700K 70 34.7 36.4 207.4 65 L128-2770SA35A00E1
3000K 70 35.7 37.4 213.1 65 L128-3070SA35A00E1
3500K 70 36.1 37.8 215.4 65 L128-3570SA35A00E1
4000K 70 37.2 39 222.2 65 L128-4070SA35A00E1
5000K 70 36.8 38.5 219.4 65 L128-5070SA35A00E1
5700K 70 36.8 38.5 219.4 65 L128-5770SA35A00E1
6500K 70 36.5 38.2 217.7 65 L128-6570SA35A00E1
2700K 80 33.8 34.2 195 65 L128-2780SA35A00E1
3000K 80 34.3 35.2 200.6 65 L128-3080SA35A00E1
3500K 80 35.3 35.9 204.6 65 L128-3580SA35A00E1
4000K 80 37.2 38.2 218 65 L128-4080SA35A00E1
5000K 80 37.2 38.2 218 65 L128-5080SA35A00E1
5700K 80 36.7 38.2 218 65 L128-5780SA35A00E1
6500K 80 35.7 37.5 214 65 L128-6580SA35A00E1
2700K 90 29.8 31 176.6 65 L128-2790SA35A00E1
3000K 90 30.6 32.2 183.5 65 L128-3090SA35A00E1
3500K 90 30.8 32.4 184.6 65 L128-3590SA35A00E1
4000K 90 31.3 32.7 186.3 65 L128-4090SA35A00E1
5000K 90 31.3 32.7 186.3 65 L128-5090SA35A00E1
5700K 90 31.3 32.7 186.3 65 L128-5790SA35A00E1
6500K 90 31.8 32.7 186.3 65 L128-6590SA35A00E1
2700K 70 35.8 37.4 213.1 65 L128-2770SA35A00F1
3000K 70 36.9 38.6 219.9 65 L128-3070SA35A00F1
3500K 70 37.3 39.1 222.8 65 L128-3570SA35A00F1
4000K 70 38.8 40.6 231.3 65 L128-4070SA35A00F1
5000K 70 38.3 40.1 228.5 65 L128-5070SA35A00F1
5700K 70 38.3 40.1 228.5 65 L128-5770SA35A00F1
6500K 70 37.8 39.6 225.6 65 L128-6570SA35A00F1
2700K 80 34.8 35.2 200.6 65 L128-2780SA35A00F1
3000K 80 35.7 36.1 205.7 65 L128-3080SA35A00F1
3500K 80 36.7 37.3 212.5 65 L128-3580SA35A00F1
4000K 80 37.5 38.6 220 65 L128-4080SA35A00F1
5000K 80 37.7 38.6 220 65 L128-5080SA35A00F1
5700K 80 37.7 38.6 220 65 L128-5780SA35A00F1
6500K 80 37.7 39.5 225.1 65 L128-6580SA35A00F1
2700K 90 29.8 31.2 177.7 65 L128-2790SA35A00F1
3000K 90 30.8 32.4 184.5 65 L128-3090SA35A00F1
3500K 90 31.8 32.6 185.6 65 L128-3590SA35A00F1
4000K 90 32.3 33.0 187.8 65 L128-4090SA35A00F1
5000K 90 32.3 33.0 187.8 65 L128-5090SA35A00F1
5700K 90 32.3 33.0 187.8 65 L128-5790SA35A00F1
6500K 90 32.3 33.0 187.8 65 L128-6590SA35A00F1
2700K 80 30.2 31.7 175.4 65 L128-2780SA35A00G1
3000K 80 30.7 32.3 178.7 65 L128-3080SA35A00G1
3500K 80 30.9 32.5 179.9 65 L128-3580SA35A00G1
4000K 80 32.5 34.2 189.3 65 L128-4080SA35A00G1
5000K 80 32.5 34.2 189.3 65 L128-5080SA35A00G1
5700K 80 32.5 34.2 189.3 65 L128-5780SA35A00G1
6500K 80 31.8 33.5 185.4 65 L128-6580SA35A00G1
2700K 90 25.0 26.1 144.4 65 L128-2790SA35A00G1
3000K 90 26.0 27.1 150.0 65 L128-3090SA35A00G1
3500K 90 27.0 28.1 155.5 65 L128-3590SA35A00G1
4000K 90 28.3 29.5 163.3 65 L128-4090SA35A00G1
5000K 90 28.0 29.2 161.6 65 L128-5090SA35A00G1
5700K 90 28.0 29.2 161.6 65 L128-5790SA35A00G1
6500K 90 27.6 28.8 159.4 65 L128-6590SA35A00G1

LUXEON 2835 Commercial 6V Parts

Performance of LUXEON 2835 Commercial LEDs at specified test conditions.

Nominal
CCT
Minimum
CRI
Luminous Flux (lm) Typical Luminous Efficacy (lm/W) Test Current
(mA)
Part Number
Minimum Typical
2700K 80 102.3 110.1 151.7 120 L128-2780SB35B00A1
3000K 80 105.1 113.2 155.9 120 L128-3080SB35B00A1
3500K 80 107.9 116.1 159.9 120 L128-3580SB35B00A1
4000K 80 110.9 119.4 164.5 120 L128-4080SB35B00A1
5000K 80 110.9 119.4 164.5 120 L128-5080SB35B00A1
5700K 80 110.9 119.4 164.5 120 L128-5780SB35B00A1
6500K 80 109.8 118.3 162.9 120 L128-6580SB35B00A1
2700K 90 85.6 92.3 127.1 120 L128-2790SB35B00A1
3000K 90 89.4 96.4 132.8 120 L128-3090SB35B00A1
3500K 90 93.3 100.6 138.6 120 L128-3590SB35B00A1
4000K 90 96.8 104.3 143.7 120 L128-4090SB35B00A1
5000K 90 96.8 104.3 143.7 120 L128-5090SB35B00A1
5700K 90 96.8 104.3 143.7 120 L128-5790SB35B00A1
6500K 90 96.4 103.9 143.1 120 L128-6590SB35B00A1

Documentation

Design Resources

  • Mechanical
    LUXEON 2835 Commercial

    LL ID File format Title Products Modified Size (MB)
    DRM2728 STEP
    LUXEON 2835 Line STEP L128-xxxxHA35000x1
    L128-xxxxEC35000x1
    L128-xxxxEB3500001
    L128-xxxxEA3500001
    More Products
    L128-xxxxCB3500001
    L128-xxxxCA3500001
    L128-RYL1003500000
    L128-RNG1003500000
    L128-RED1003500000
    L128-PCA1003500000
    L128-MNT1003500000
    L128-LME1003500000
    L128-GRN1003500000
    L128-FRD1003500000
    L128-DRD1003500000
    L128-CYN1003500000
    L128-BLU1003500000
    L128-xxxxSA35Axxxx
    L128-xxxxSB35Bxxxx
    L128-xxxxSC35B0xxx
    11/26/2018 0.04
  • Optical
    LUXEON 2835 Commercial

    LL ID File format Title Products Modified Size (MB)
    DRO-RM-2835-Commercial All Available Types
    LUXEON 2835 Commercial & LUXEON 2835 Commercial Deep Dimming Optical Rayset Read Me L128-xxxxSA35A0xxx
    L128-xxxxSB35B0xxx
    L128-xxxxSC35B0xxx
    L128-xxxxSA35A0Dxx
    09/16/2024 0.40
  • PhotoBiological Test Reports
    LUXEON 2835 Commercial
    LL ID
    Title
    Part Numbers
    Size (KB)
    Report Date
    PTR-51 LUXEON 2835 Commercial L128-xxxxSx35xxxxx
    930 Nov 27, 2023
