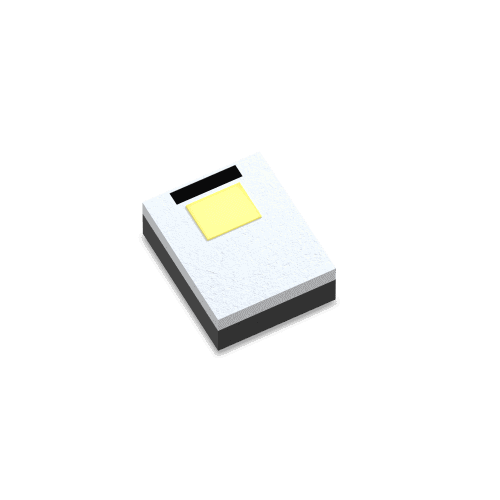

What is LUXEON Altilon Intense?

Small form factor LED with high drive current capability and contrast, for advanced headlight capabilities.

Benefits of LUXEON Altilon Intense:

  • High luminance enables higher beam intensity, the miniaturization of secondary optics, and greater design flexibility
  • Low thermal resistance and high operating case temperature allow for smaller heatsinks, efficient heat dissipation, and simplified thermal management
  • High luminance with wide flux range provides best-in-class headlight beam performance, and allows for advanced lighting systems

Key Features:

  • High luminance device
  • Low thermal resistance with dedicated thermal pad
  • Flexible packaging
  • Binned at 85°C, consistent with automotive operational environments

Important Notes:

  • Same die technology as LUXEON Altilon Intense multi die versions

Products

COLOR
[DOMINANT WAVELENGTH]
PRODUCT TEST CURRENT (mA) MAX DC CURRENT (mA) TYPICAL FLUX (lm) PART NUMBER
Cool White Cool White LUXEON Altilon Intense 1×1 1500 1600 365 A1SL-58501EH2xxxx0
Expand Media

Applications

  • Adaptive Lighting
  • High Beam
  • Low Beam
Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Documentation

Design Resources

  • Optical
    LUXEON Altilon Intense – Single Die

    In order to properly use the optical design resource file below, please download the README file for instructions.
    LL ID File format Title Products Modified Size (MB)
    DRO6000 PDF
    LUXEON Altilon Intense 1×1 A1SL-58501EH203400
    A1SL-58501EH203500
    A1SL-58501EH203600
    A1SL-58501EH203700
    More Products
    A1SL-58501EH203800
    A1SL-58501EH203900
    A1SL-58501EH204000
    01/18/2022
