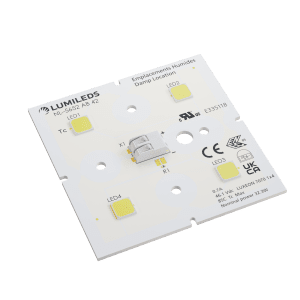

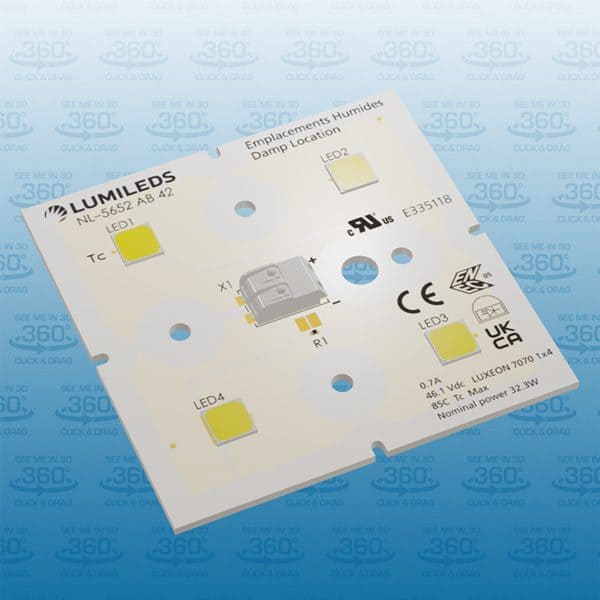

LUXEON XR-7070 product is a standard integrated module compatible with off-the-shelf drivers, optics, and heat sinks. Four LUXEON 7070 LEDs are built on a MCPCB substrate for thermal efficiency and mechanical robustness. Using this standard module eliminates LED-assembly engineering costs, tooling costs, and material inventory costs. With this versatile building-block approach, it simplifies system integration and accelerates time-to-market.

LUXEON XR-7070 and EU Ecodesign: Please consult the product datasheet for details including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019/2015. LUXEON XR-7070 part numbers are in energy efficiency classes D and E.

Features & Benefits

  • Efficacy and luminous flux of up to 170lm/W typical and 5400lm of output
  • CCT/CRI Options: 2700K, 3000K, 3500K, 4000K, 5000K (70 & 80 CRI)
  • Superior board-level color control of ≤ 3SDCM
  • MCPCB for efficient heat dissipation and mechanical robustness
  • Conformal coating option available
  • UL 8750, ENEC, CE, UKCA compliance
  • 5-year limited guarantee
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON XR-7070 at 700mA, Tc =85°C.

Nominal Minimum Luminous Flux (lm) Typical Luminous Efficacy (lm/W) Test Current Part Number Energy Efficiency Class Conformal Coating
CCT CRI Minimum Typical (mA)
2700K 70 4708 5042 156 700 L224-2770004MLU010 E w/o conformal coating
3000K 70 4878 5287 164 700 L224-3070004MLU010 E
3500K 70 5064 5354 166 700 L224-3570004MLU010 D
4000K 70 5155 5498 170 700 L224-4070004MLU010 D
5000K 70 5112 5471 169 700 L224-5070004MLU010 D
2700K 80 4374 4611 143 700 L224-2780004MLU010 E
3000K 80 4545 4818 149 700 L224-3080004MLU010 E
3500K 80 4627 4913 152 700 L224-3580004MLU010 E
4000K 80 4717 5044 156 700 L224-4080004MLU010 E
5000K 80 4693 5082 157 700 L224-5080004MLU010 E
2700K 70 4708 5042 156 700 L224-2770004MLUC10 E with conformal coating
3000K 70 4878 5287 164 700 L224-3070004MLUC10 E
3500K 70 5064 5354 166 700 L224-3570004MLUC10 D
4000K 70 5155 5498 170 700 L224-4070004MLUC10 D
5000K 70 5112 5471 169 700 L224-5070004MLUC10 D
2700K 80 4374 4611 143 700 L224-2780004MLUC10 E
3000K 80 4545 4818 149 700 L224-3080004MLUC10 E
3500K 80 4627 4913 152 700 L224-3580004MLUC10 E
4000K 80 4717 5044 156 700 L224-4080004MLUC10 E
5000K 80 4693 5082 157 700 L224-5080004MLUC10 E
