What is SignalSure?

SignalSure is a compact, surface-mount, low power LED signaling solution that delivers an elevated standard of light output, flux density, and color uniformity. SignalSure’s robust design structure, coupled with high performance specifications, ensures high quality and reliability. SignalSure products are IEC-60810 qualified.

Benefits of SignalSure:

  • Full range of flux options in amber, red orange, red, long red, and super red wavelengths
  • High maximum junction temperature and drive current allow for smaller, more efficient designs
  • Gold plated lead frame prevents sulfur corrosion and improves product robustness and reliability

Key Features:

  • Range of flux options in a common form factor
  • Available in amber, red orange, red, long red and super red
  • Low thermal resistance
  • Wide operating range

Products

COLOR
[DOMINANT WAVELENGTH]
PRODUCT TEST CURRENT (mA) MAX DC CURRENT (mA) MINIMUM FLUX (lm) PART NUMBER

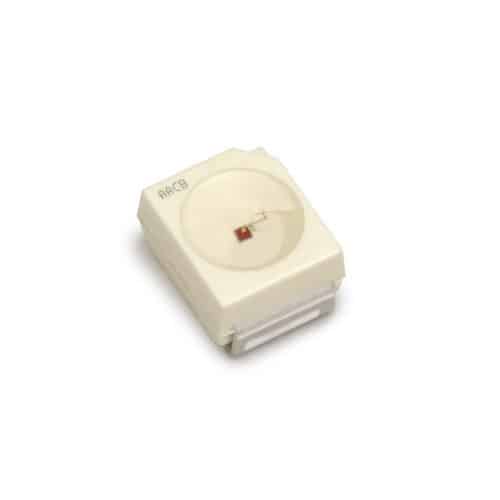

Red Orange Red-Orange [615 nm] SignalSure 30 30 60 5.1 A1DT-O621L
Red Red [623 nm] SignalSure 30 30 60 4.3 A1DT-R620L
Long Red Long Red [630 nm] SignalSure 30 30 60 3.0 A1DT-S627L
Super Red Super Red [635 nm] SignalSure 30 30 60 2.3 A1DT-S632L
PC Amber Amber  [586 nm] SignalSure 75 75 90 12.5 A1DP-A584L
PC AMBER Amber  [590 nm] SignalSure 75 75 90 13.5 A1DP-A588L
Red-Orange Red Orange [615 nm] SignalSure 75 75 90 12.5 A1DP-O612L
Red Red [623 nm] SignalSure 75 75 90 10.4 A1DP-R620L
Long Red Long Red [630 nm] SignalSure 75 75 90 8.0 A1DP-S627L
Super Red Super Red [635 nm] SignalSure 75 75 90 5.6 A1DP-A632L

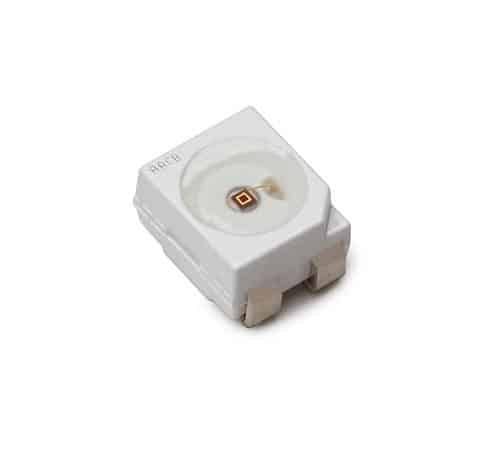

PC Amber Amber  [586 nm] SignalSure 150 150 200 23.0 A1DE-A584L
PC Amber Amber  [590 nm] SignalSure 150 150 200 23.0 A1DE-A588L
Red Orange Red Orange [615 nm] SignalSure 150 150 200 21.0 A1DE-O612L
Red Red [623 nm] SignalSure 150 150 200 18.0 A1DE-R620L
Long Red Long Red [630 nm] SignalSure 150 150 200 12.5 A1DE-S627L
Super Red Super Red [635 nm] SignalSure 150 150 200 9.5 A1DE-S632L

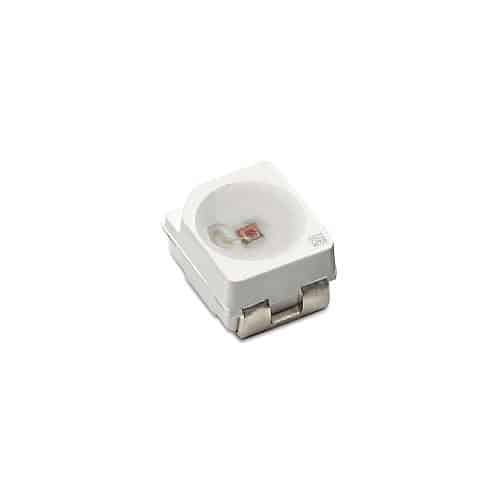

Red Orange Red Orange [615 nm] SignalSure 250 250 300 47.0 A1DL-O612L
Red Red [623 nm] SignalSure 250 250 300 36.0 A1DL-R620L
Long Red Long Red [630 nm] SignalSure 250 250 300 27.0 A1DL-S627L
Super Red Super Red  [635 nm] SignalSure 250 250 300 19.5 A1DL-S632L

Documentation

Design Resources

Applications

  • Rear Fog
  • Stop/Tail
  • CHMSL
  • Mirror/Side Repeater
  • Turn
