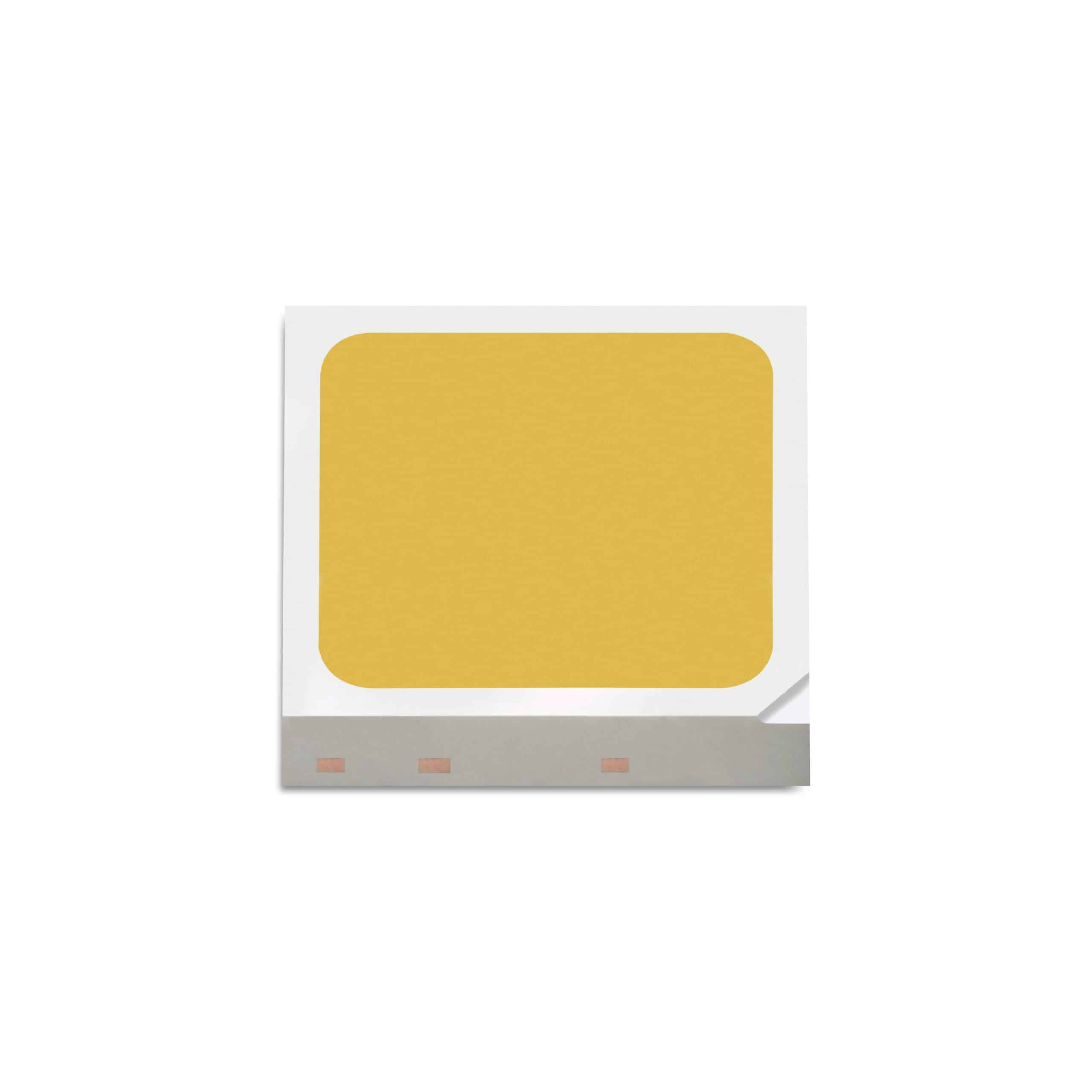

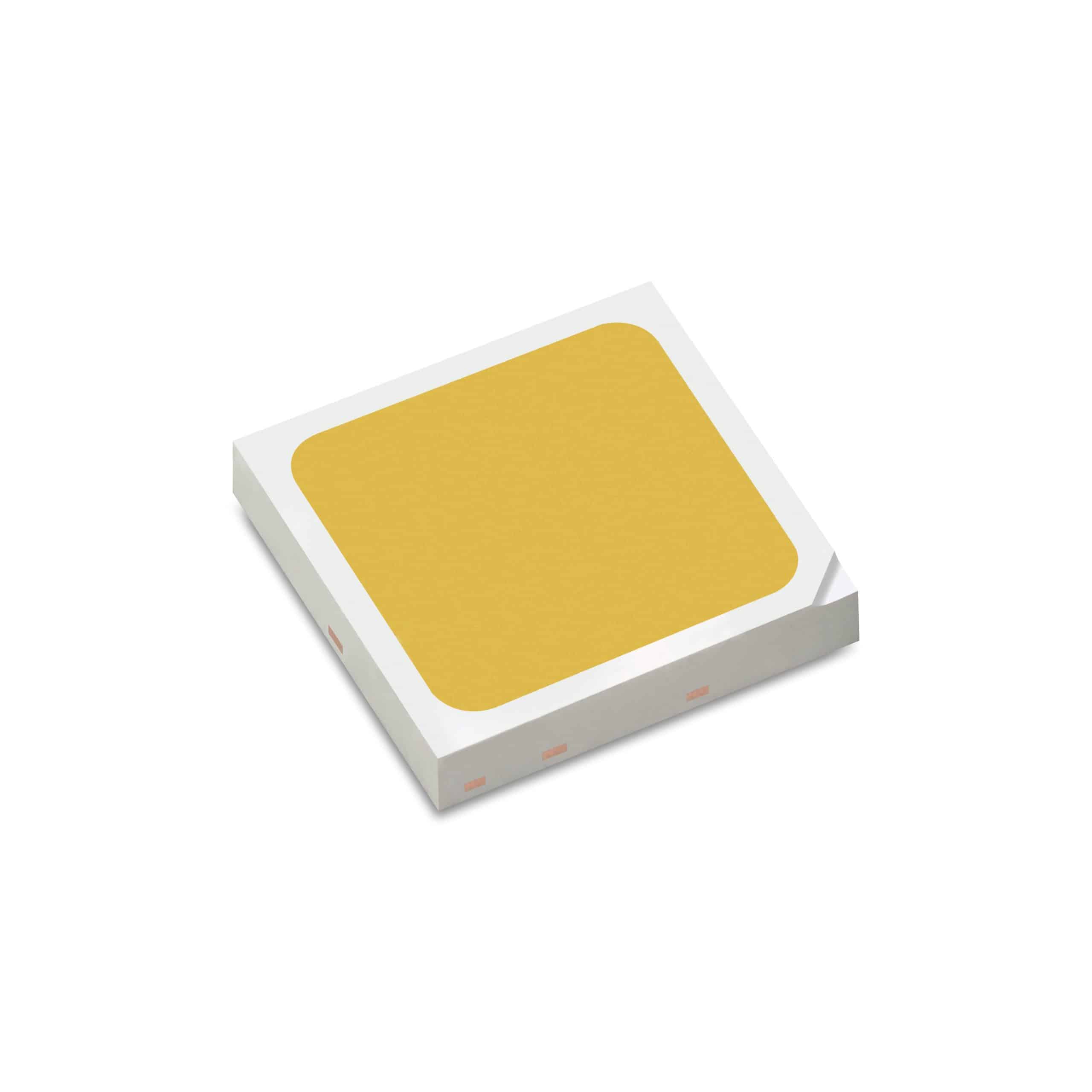

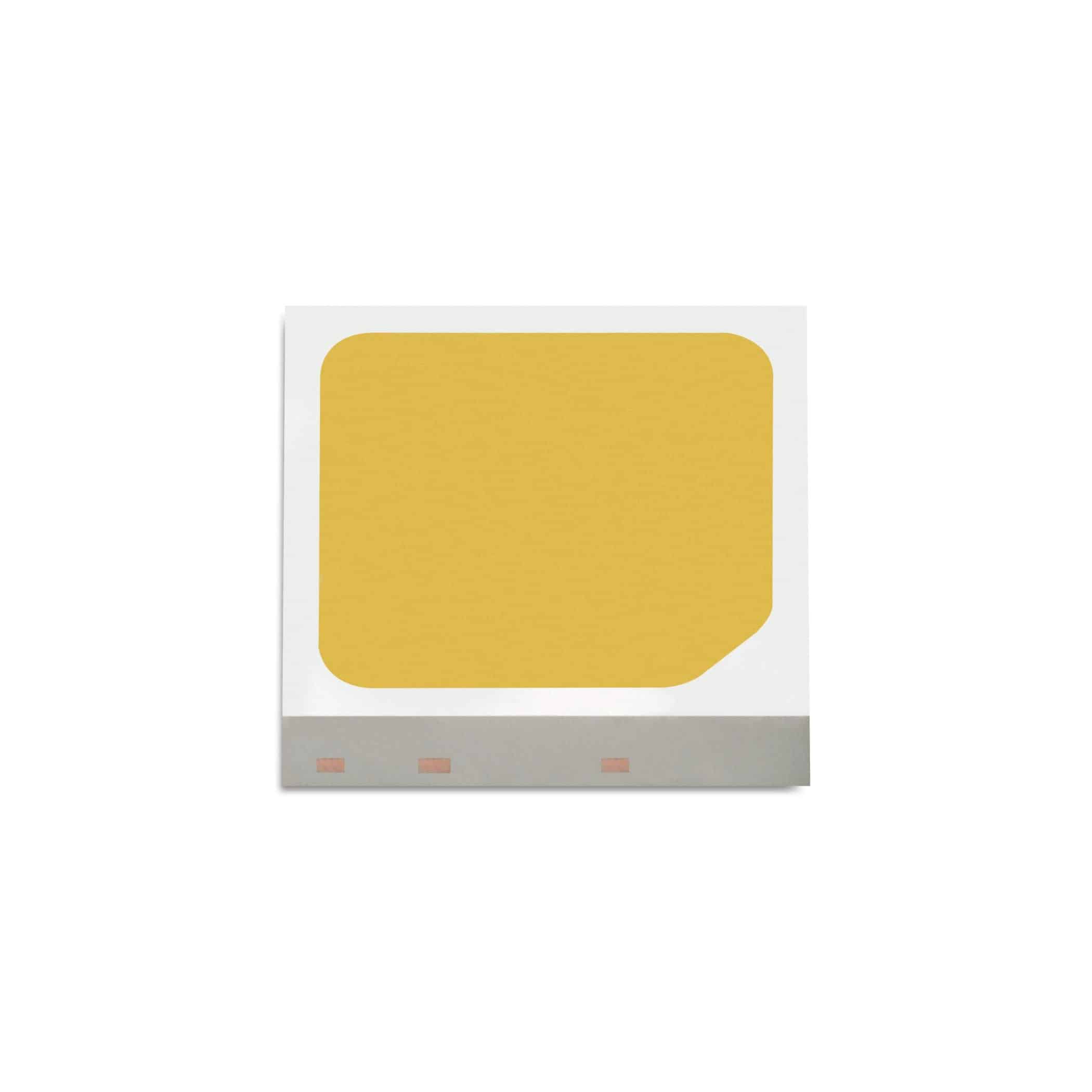

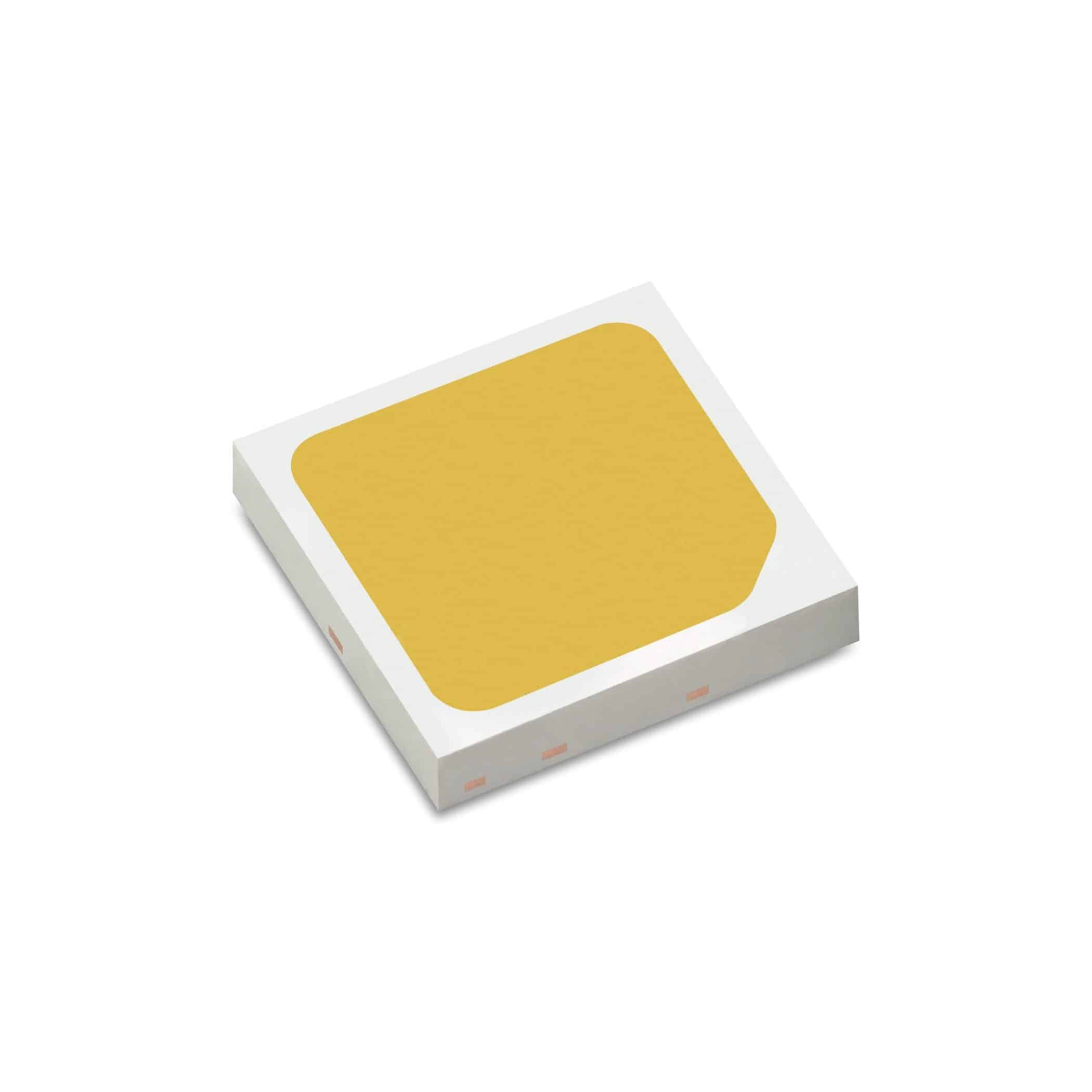

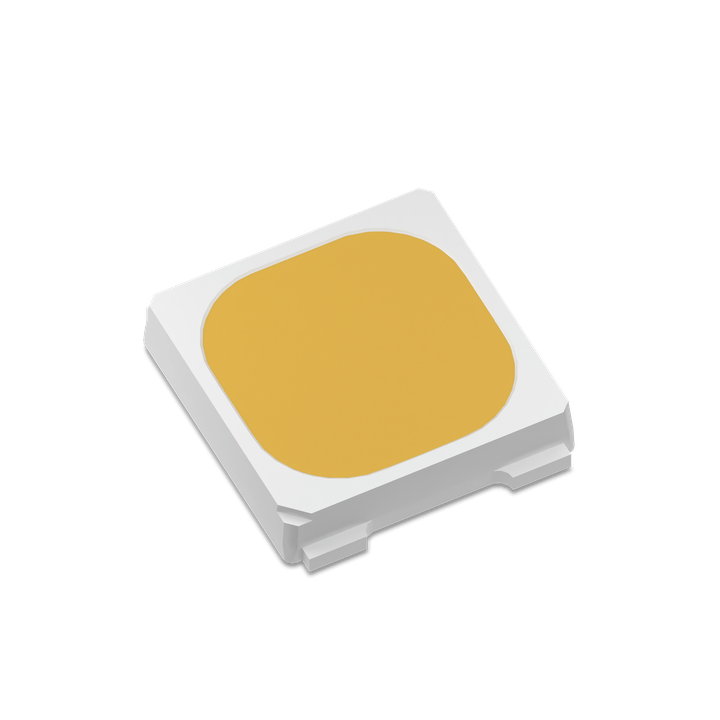

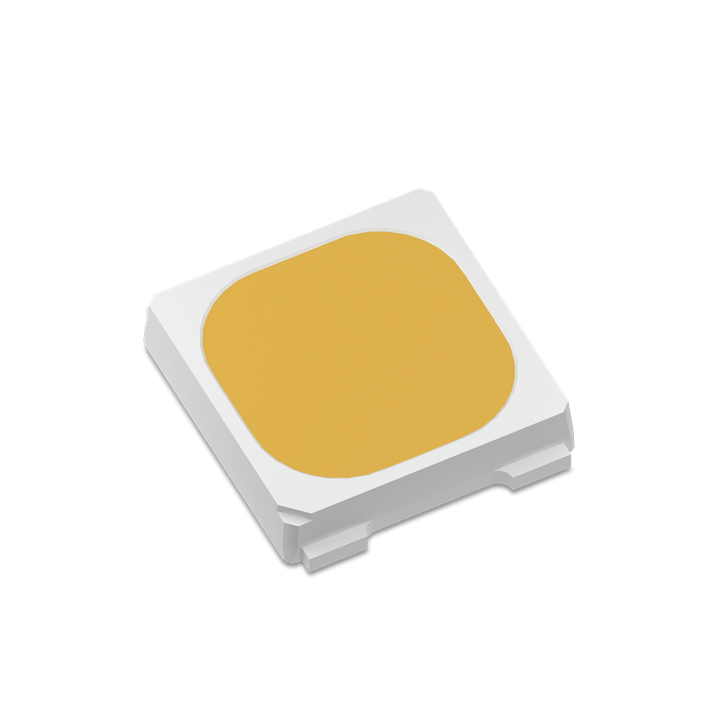

LUXEON 3030 HE

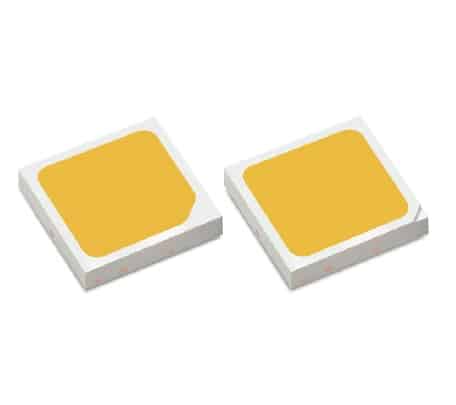

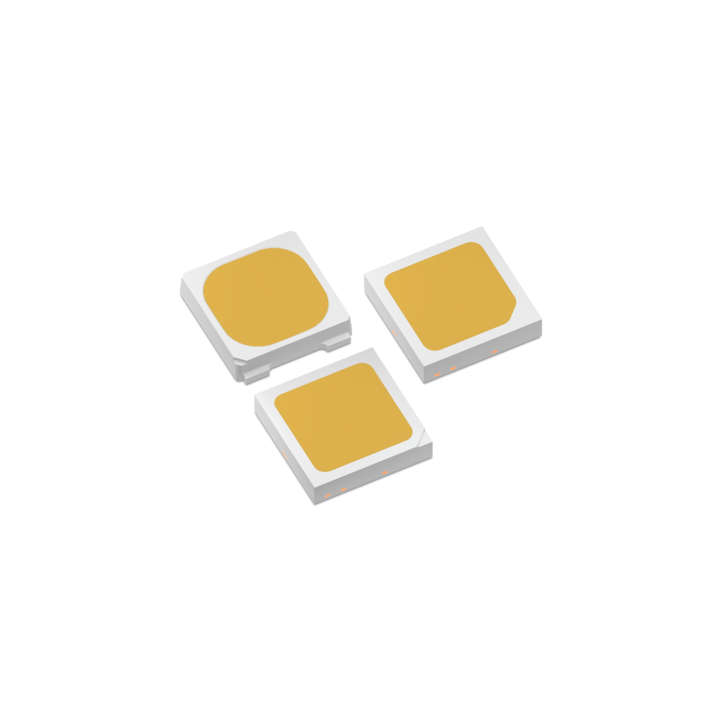

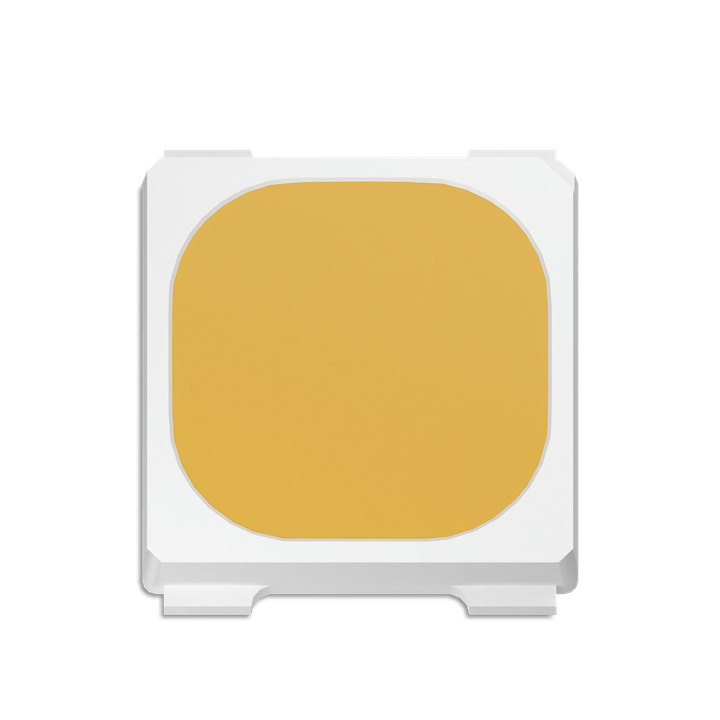

LUXEON 3030 HE and HE Plus are superior, high efficacy, mid power packages. They serve as go-to solutions for various indoor and outdoor fixture applications that require top notch lm/W performance and long lifetime. Both LUXEON 3030 HE and HE Plus LEDs adopt quadrant bin structures within 3 SDCM which enables 2 SDCM by kitting.

Product performance of LUXEON 3030 HE and LUXEON 3030 HE Plus at 65mA, Tj= 25°C.
PARTSNOMINAL
CCT [1]
MINIMUM CRI [1, 2]LUMINOUS FLUX [1, 2] (lm)TYPICAL LUMINOUS
EFFICACY (lm/W)
PART NUMBERS
MINIMUMTYPICAL
65mA
3030 HE2700K8029.032.0176L130-2780HB30000B1
3000K8029.532.5179L130-3080HB30000B1
3500K8030.033.5184L130-3580HB30000B1
4000K8032.035.5195L130-4080HB30000B1
5000K8032.035.5195L130-5080HB30000B1
5700K8032.035.0192L130-5780HB30000B1
6500K8031.035.0192L130-6580HB30000B1
2700K9024.527.4151L130-2790HB30000B1
3000K9025.027.5151L130-3090HB30000B1
3500K9026.028.5157L130-3590HB30000B1
4000K9027.530.2166L130-4090HB30000B1
5000K9027.029.5162L130-5090HB30000B1
5700K9027.029.5162L130-5790HB30000B1
6500K9027.029.5162L130-6590HB30000B1
3030 HE Plus2700K8030.033.5190L130-2780HA3000001
3000K8032.035.0199L130-3080HA3000001
3500K8033.036.0204L130-3580HA3000001
4000K8034.037.0210L130-4080HA3000001
5000K8034.037.0210L130-5080HA3000001
5700K8033.536.5207L130-5780HA3000001
6500K8033.036.0204L130-6580HA3000001
3000K7034.037.0210L130-3070HA30000B1
3500K7035.038.0216L130-3570HA30000B1
4000K7036.039.0221L130-4070HA30000B1
5000K7036.039.0221L130-5070HA30000B1
5700K7035.038.0216L130-5770HA30000B1
6500K7034.537.5213L130-6570HA30000B1
2700K8030.033.5190L130-2780HA30000B1
3000K8032.035.0199L130-3080HA30000B1
3500K8033.036.0204L130-3580HA30000B1
4000K8034.037.0210L130-4080HA30000B1
5000K8034.037.0210L130-5080HA30000B1
5700K8033.536.5207L130-5780HA30000B1
6500K8033.036.0204L130-6580HA30000B1
2700K9026.028.5162L130-2790HA30000B1
3000K9027.029.5167L130-3090HA30000B1
3500K9027.530.5173L130-3590HA30000B1
4000K9028.531.5179L130-4090HA30000B1
5000K9028.531.5179L130-5090HA30000B1
5700K9028.531.5179L130-5790HA30000B1
6500K9028.031.0176L130-6590HA30000B1

Documentation

Design Resources

Features & Benefits

  • Superior high efficacy at rated current enables outstanding lm/W at system level
  • Reliable package design from a proven product line affirms long application lifetime
  • Quadrant bin structure within 3 SDCM enables 2 SDCM by kitting
  • Industry standard package allows drop-in replacement for existing 3030 packages
