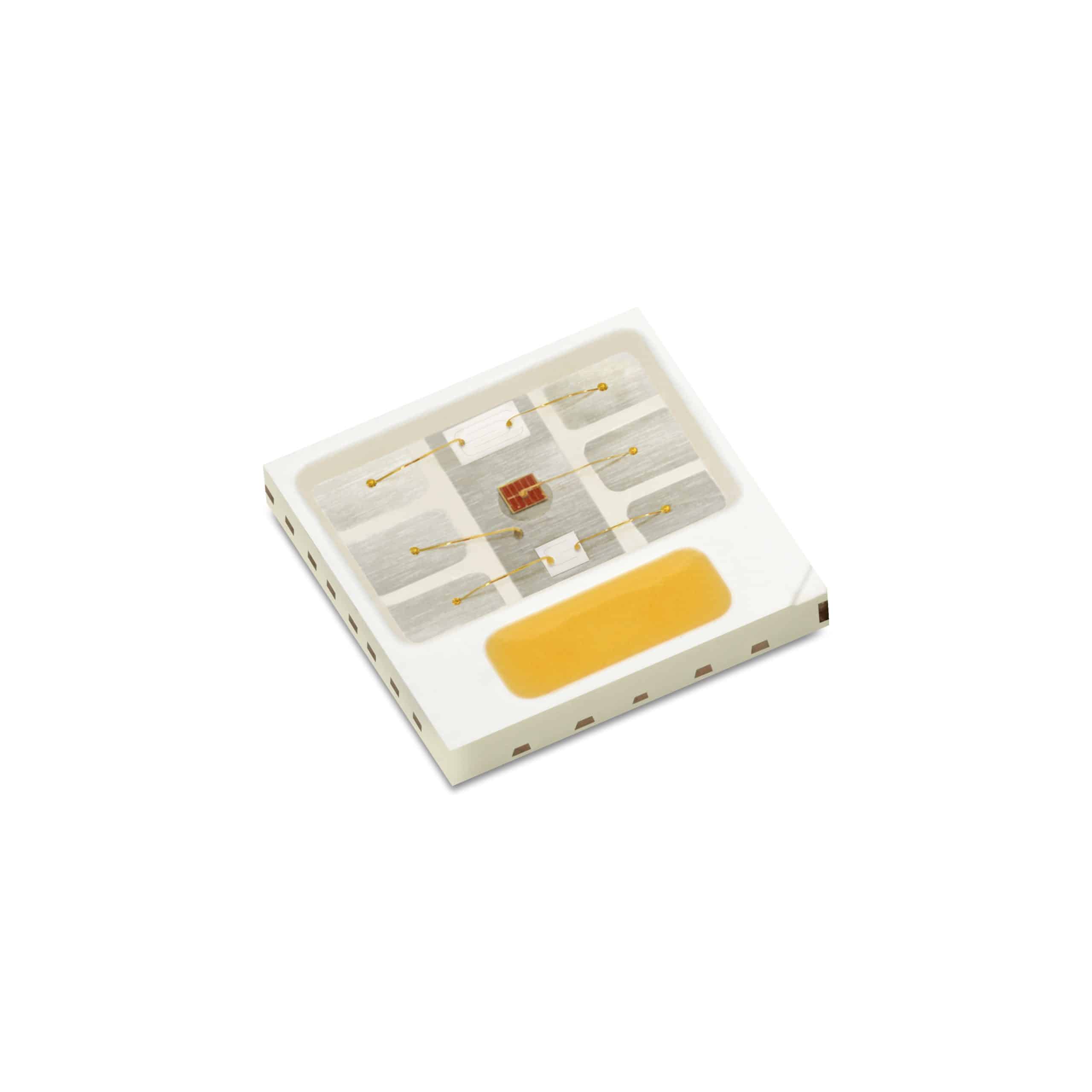

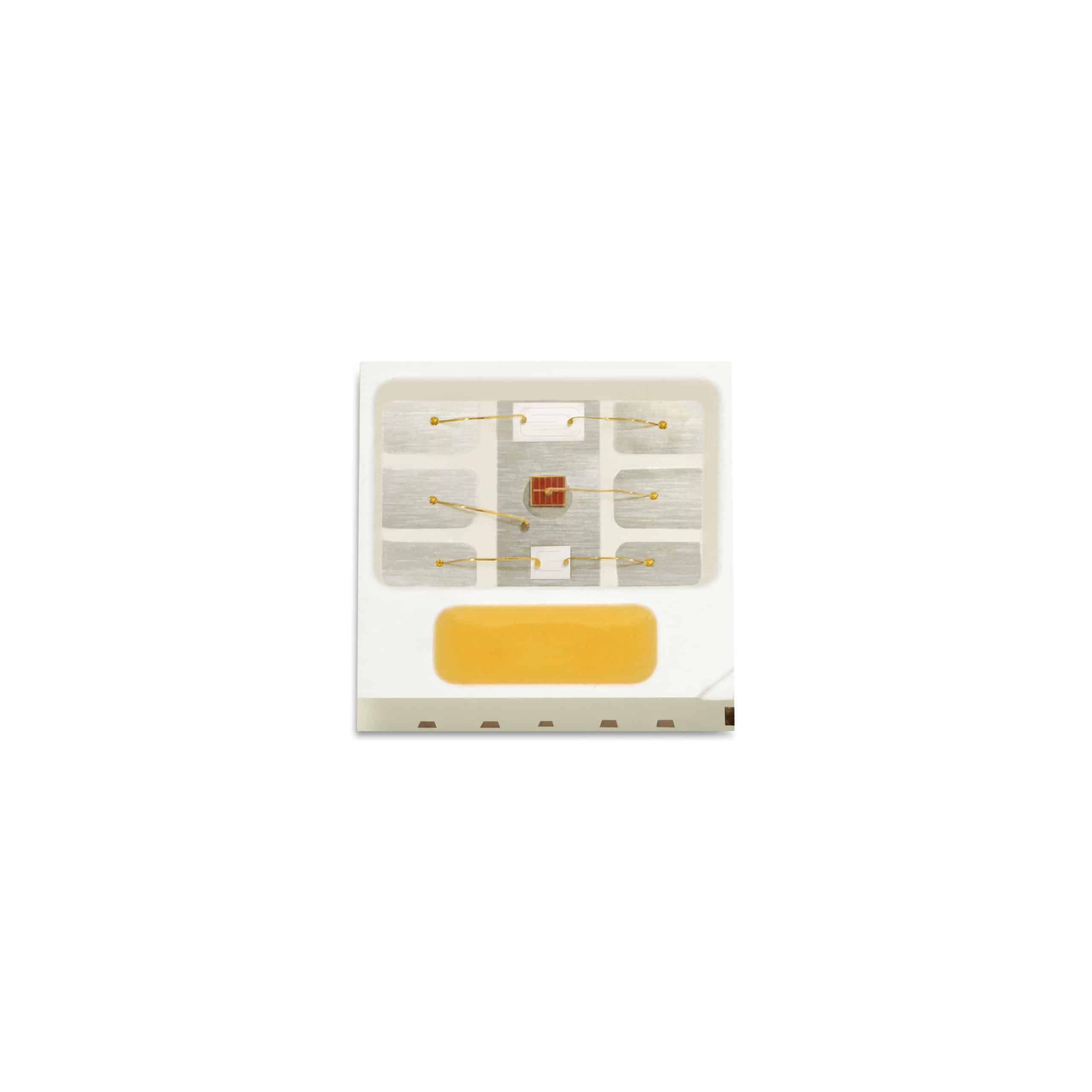

LUXEON 5052 RGBW

The LUXEON 5052 RGBW is a 4-in-1 package that makes color tuning easier. Each channel is individually addressable, enabling a large color gamut while simplifying the ability of getting just the right color point.

Features & Benefits

  • RGBW 4-in-1 module
  • 5.0mm x 5.2mm
  • Individually control each channel
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

LUXEON 5052 RGBW product performance at 120mA,Tj=25°C.

Color Dominant Wavelength (nm) Luminous Flux  (lm) Part Number
Minimum Maximum Minimum Typical
RedRed 618 625 15 18 L1MC-RGB2290500MP0
L1MC-RGB2780500MP0
L1MC-RGB3080500MP0
L1MC-RGU3080500MP0
L1MC-RGB4080500MP0
L1MC-RGU4080500MP0
L1MC-RGB5080500MP0
L1MC-RGB6570500MP0
GreenGreen 520 535 30 38
BlueBlue 465 480 7 12
RoyalRoyal Blue 460 465 6 7.5
White (2200K, 90CRI) 36 40
White (2700K, 80CRI) 48 52
White (3000K, 80CRI) 48 53
White (4000K, 80CRI) 53 57
White (5000K, 80CRI) 53 57
White (6500K, 70CRI) 53 59
RedRed Any one color bin Any one flux bin L1MC-RGBxxxx501MP0
L1MC-RGUxxxx501MP0
GreenGreen Any one color bin from 20 to 22 Any one flux bin from G to J
BlueBlue Any one color bin from 3A to 31 Any one flux bin from B to C
Royal BlueRoyal Blue Any one color bin Any one flux bin
White Any one color bin from 43 to 44 Any one flux bin from V to X
