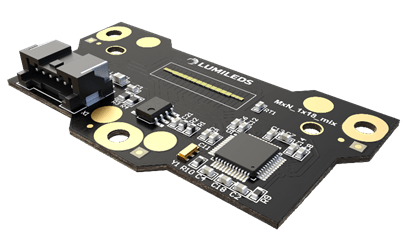

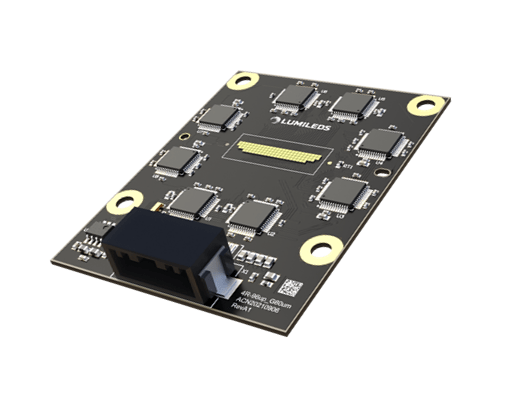

What is LUXEON MxN?

Lumileds Matrix lighting solution for Adaptive Driving Beam head lighting offers you high performance, high precision, and customizable lighting solutions for advanced lighting systems.

Benefits of LUXEON MxN:

  • Matrix configurations designed for advanced lighting systems, with best-in-class performance and features
  • Precision LED placement tolerance in x, y and z directions enables precision optical alignment and lower system costs
  • Miniaturized LED footprint enables high pixel density
  • Size and shape of board easily customized for system requirements
  • Building block approach enables fast design and validation, resulting in shortened design cycles
  • New 2nd generation enabling direct imaging optics for system simplification, unprecedented compactness and assembly robustness.

Key Features:

  • Precision x y z placement tolerance
  • Miniaturized / flexible configurations of LEDs
  • LEDS can be individually addressable
  • Flexible board configurations
  • High luminance device
  • 2nd generation with rimless LUXEON NeoExact offering gaps down to 50µm between two LED light-emitting areas.

Important Notes:

  • Utilizes LUXEON Neo in custom configurations
  • 2nd generation with LUXEON NeoExact on FR4 boards with AlN-inlay board technology.

PRODUCTS

PRODUCT I-MAX HIGH BEAM, LOW BEAM, SPOT LIGHT ADAPTIVE DRIVING BEAM DAYTIME RUNNING LIGHTS ((DRL, FRONT POSITION, PARK),
FRONT POSITION LIGHT
FRONT TURN SIGNAL, HAZARD LIGHT
LUXEON MxN 750 – 1000 mA X X X X
LUXEON MxN Gen2 1000 – 2000 mA X X X X

Applications
