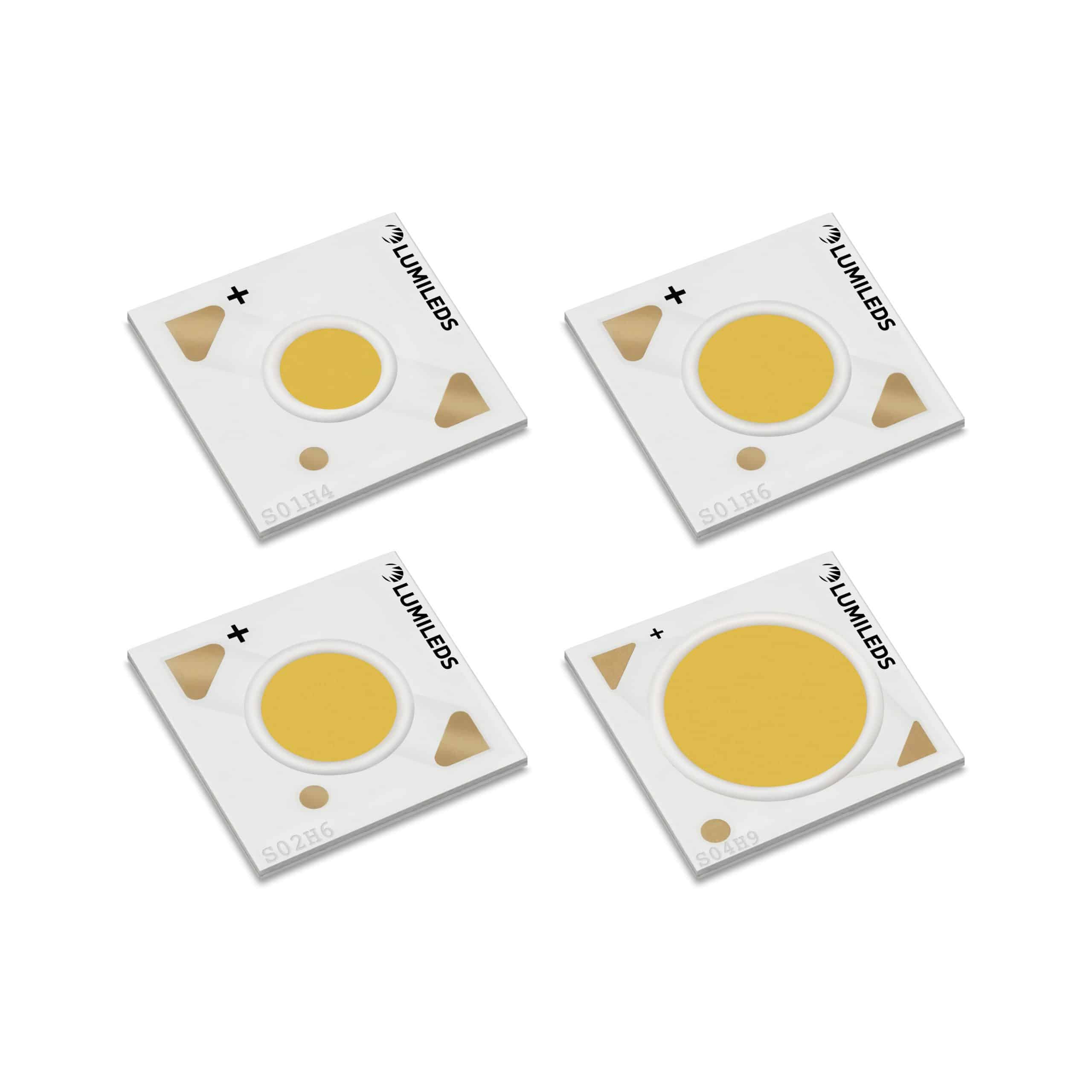

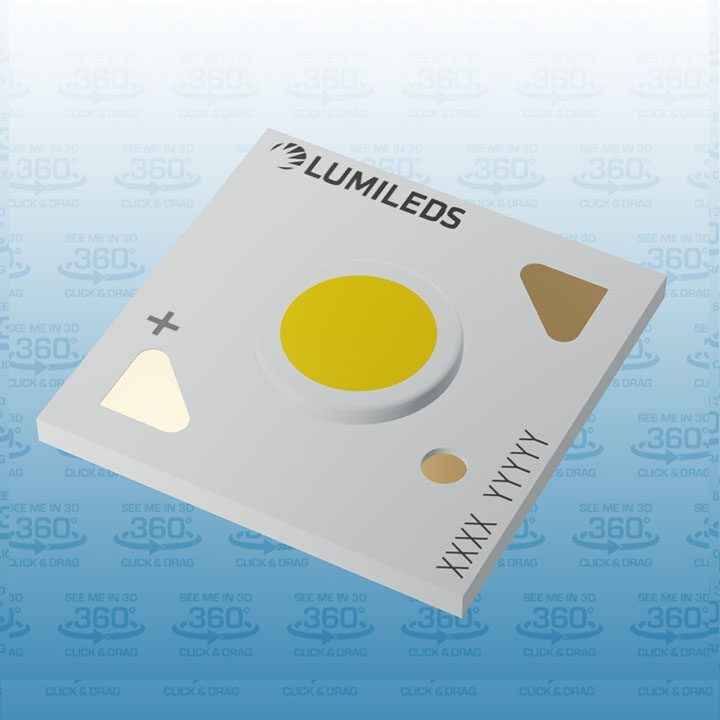

LUXEON CX Plus CoB – High Density LEDs focus on delivering the highest flux, up to 5600 lumens, with an industry standard footprint of 13.35mm x 13.35mm and Light Emitting Surfaces of 4.5mm, 6mm, and 9mm. The combination of superior performance and industry standard footprint allows for an immediate and effortless upgrade to higher flux luminaire designs within existing ecosystems. LUXEON CX Plus CoB – High Density is available in 2- and 3-step MacAdam ellipse color definition, enabling color consistency.

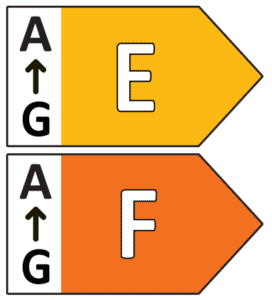

LUXEON CX Plus CoB – High Density and EU Ecodesign: Please consult the product datasheet for details including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019/2015. LUXEON CX Plus CoB – High Density Core Range part numbers are in energy efficiency classes E and F.

Features & Benefits

  • Industry’s smallest Light Emitting Surfaces (LES) for highest lumen densities
  • An immediate, effortless upgrade to existing designs using legacy CoBs with a square footprint
  • 2- and 3-step MacAdam ellipse ensuring color consistency from luminaire to luminaire
  • CoB LED package
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON CX Plus CoB – High Density at specified test current, Tj=85°C.

Product Nominal
CCT
Minimum
CRI
Luminous Flux (lm) Typical
Luminous
Efficacy
(lm/W)
Test
Current
(mA)
LES
(mm)
Part Number
Minimum Typical
LUXEON
CX Plus
CoB – HD
S01H4
2700K 80 667 725 110 175 4.5 L2C4-2780xS01F0400
3000K 80 713 775 118 175 4.5 L2C4-3080xS01F0400
3500K 80 727 790 120 175 4.5 L2C4-3580xS01F0400
4000K 80 750 815 124 175 4.5 L2C4-4080xS01F0400
5000K 80 750 815 124 175 4.5 L2C4-5080xS01F0400
2700K 90 580 630 96 175 4.5 L2C4-2790xS01F0400
3000K 90 603 655 100 175 4.5 L2C4-3090xS01F0400
3500K 90 639 695 106 175 4.5 L2C4-3590xS01F0400
4000K 90 653 710 108 175 4.5 L2C4-4090xS01F0400
5000K 90 644 700 107 175 4.5 L2C4-5090xS01F0400
LUXEON
CX Plus
CoB – HD
S01H6
2700K 80 699 760 116 175 6.0 L2C4-2780xS01FH600
3000K 80 741 805 123 175 6.0 L2C4-3080xS01FH600
3500K 80 750 815 124 175 6.0 L2C4-3580xS01FH600
4000K 80 759 825 126 175 6.0 L2C4-4080xS01FH600
5000K 80 759 825 126 175 6.0 L2C4-5080xS01FH600
2700K 90 593 645 98 175 6.0 L2C4-2790xS01FH600
3000K 90 621 675 103 175 6.0 L2C4-3090xS01FH600
3500K 90 649 705 107 175 6.0 L2C4-3590xS01FH600
4000K 90 672 730 111 175 6.0 L2C4-4090xS01FH600
5000K 90 667 725 110 175 6.0 L2C4-5090xS01FH600
LUXEON
CX Plus
CoB – HD
S02H6
2700K 80 1352 1470 112 350 6.0 L2C4-2780xS02F0600
3000K 80 1426 1550 118 350 6.0 L2C4-3080xS02F0600
3500K 80 1454 1580 120 350 6.0 L2C4-3580xS02F0600
4000K 80 1518 1650 126 350 6.0 L2C4-4080xS02F0600
5000K 80 1518 1650 126 350 6.0 L2C4-5080xS02F0600
2700K 90 1159 1260 96 350 6.0 L2C4-2790xS02F0600
3000K 90 1228 1335 102 350 6.0 L2C4-3090xS02F0600
3500K 90 1297 1410 107 350 6.0 L2C4-3590xS02F0600
4000K 90 1334 1450 110 350 6.0 L2C4-4090xS02F0600
5000K 90 1320 1435 109 350 6.0 L2C4-5090xS02F0600
LUXEON
CX Plus
CoB – HD
S04H9
2700K 80 2742 2980 114 700 9.0 L2C4-2780xS04F0900
3000K 80 2926 3180 121 700 9.0 L2C4-3080xS04F0900
3500K 80 2990 3250 124 700 9.0 L2C4-3580xS04F0900
4000K 80 3054 3320 126 700 9.0 L2C4-4080xS04F0900
5000K 80 3054 3320 126 700 9.0 L2C4-5080xS04F0900
2700K 90 2282 2480 94 700 9.0 L2C4-2790xS04F0900
3000K 90 2429 2640 101 700 9.0 L2C4-3090xS04F0900
3500K 90 2576 2800 107 700 9.0 L2C4-3590xS04F0900
4000K 90 2659 2890 110 700 9.0 L2C4-4090xS04F0900
5000K 90 2631 2860 109 700 9.0 L2C4-5090xS04F0900
