LUXEON IR Domed for Automotive Line

LUXEON IR Domed for Automotive Line are high power infrared emitters tailored to application needs by offering a variety of products at multiple infrared wavelengths and optical radiation patterns. Through best-in class thermal conductivity, LUXEON IR Domed for Automotive Line has excellent performance at actual operating conditions. Its industry standard footprint allows ease of integration and upgrading existing system designs. All LUXEON IR Domed for Automotive Line emitters are AEC-Q102 and USCAR33 qualified and are designed with innovative LUXEON technology to provide industry leading performance.

For new product designs requiring 927 or 950 nm peak wavelength emitters,  LUXEON IR Domed for Automotive Gen2 is recommended.

Product performance and optical characteristics of LUXEON IR Domed for Automotive Line at 1000mA, Tj = 25 °C.

Peak Wavelength (nm) Typical FWHM Beam Angle (°) Radiometric Power
(mW)
Typical Radiant Intensity (mW/sr) Part Number
Minimum Typical

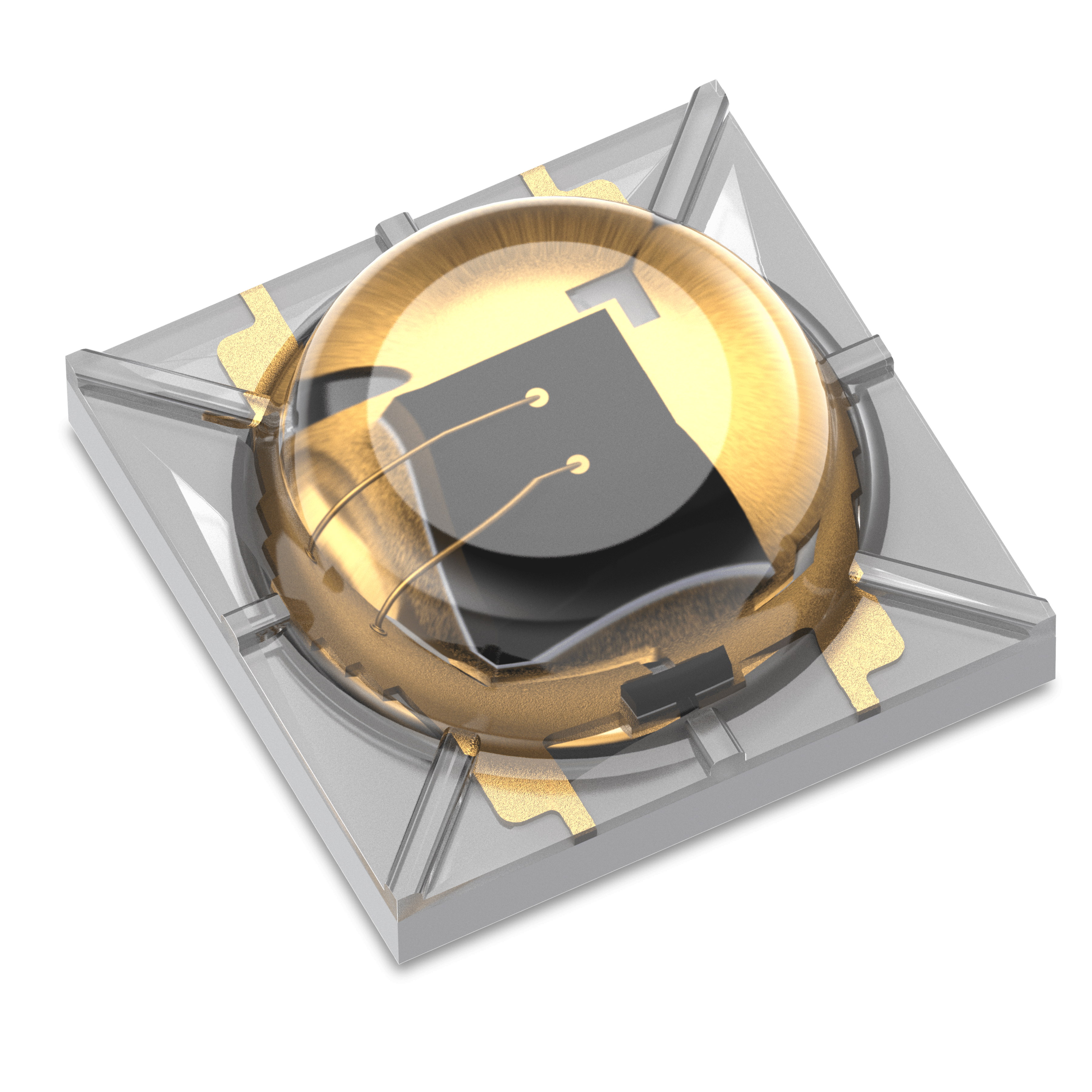

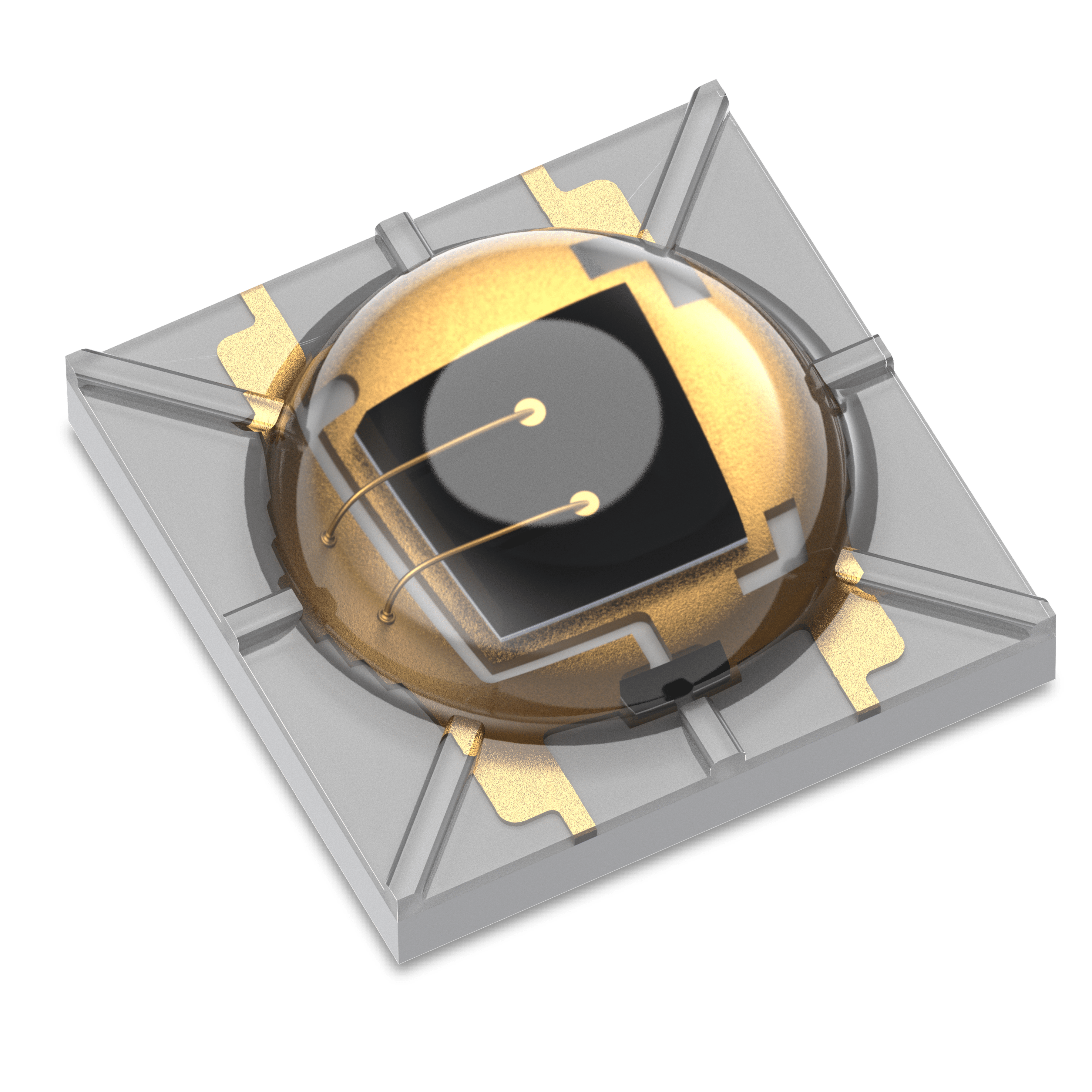

850 135 1050 1350 335 L1I0-A850150000000

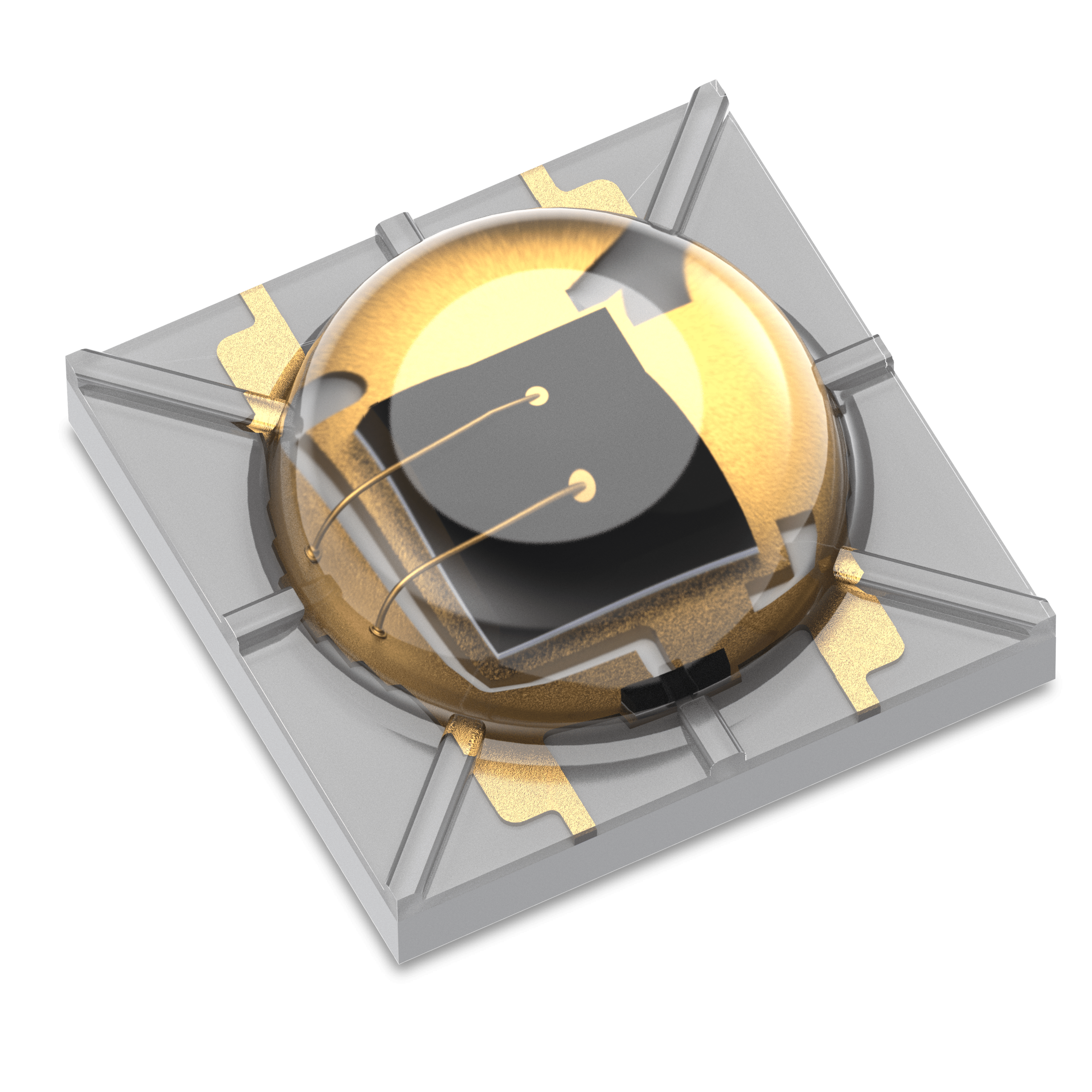

850 145 1050 1350 300 L1I0-A850145000000

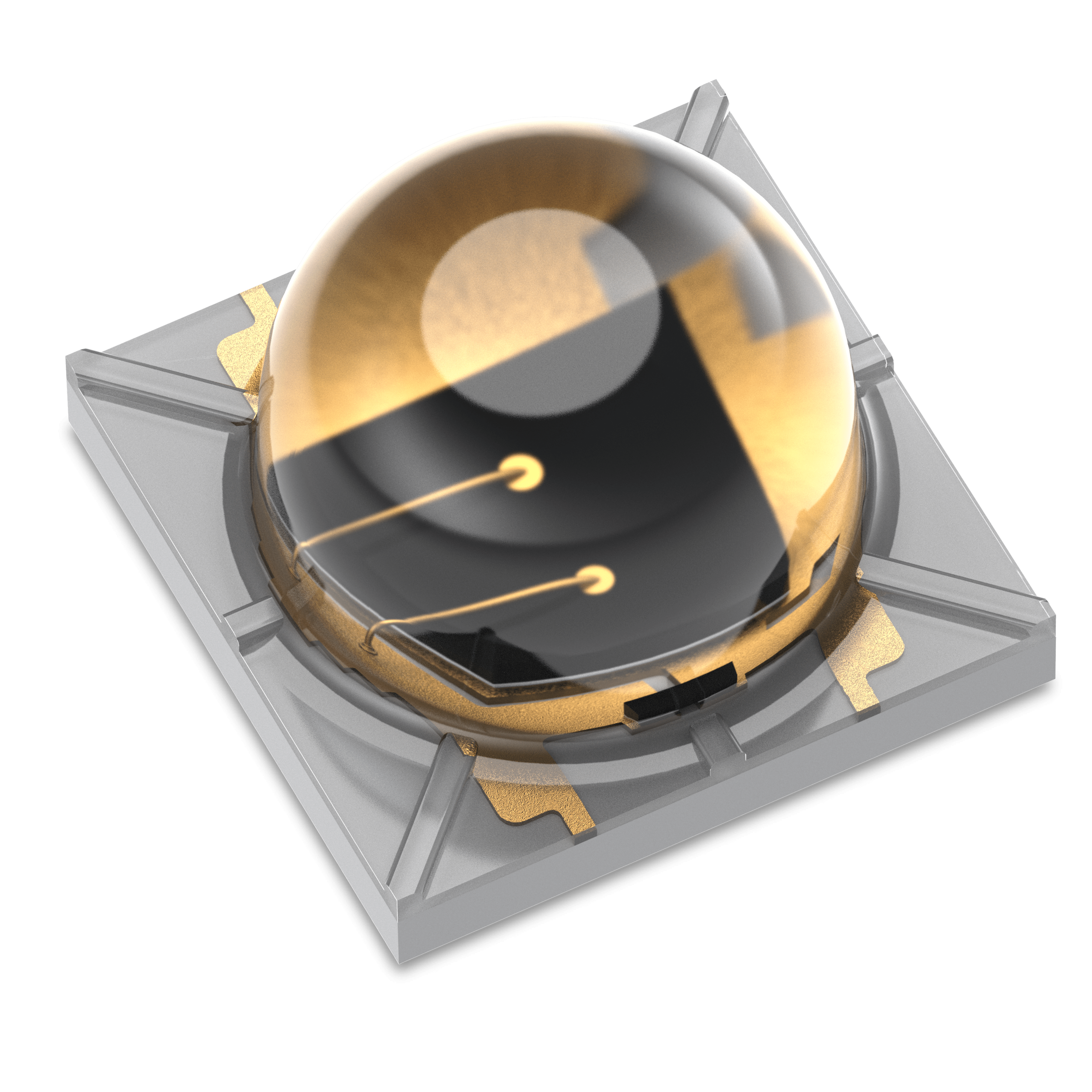

850 85 1050 1350 750 L1I0-A850090000000

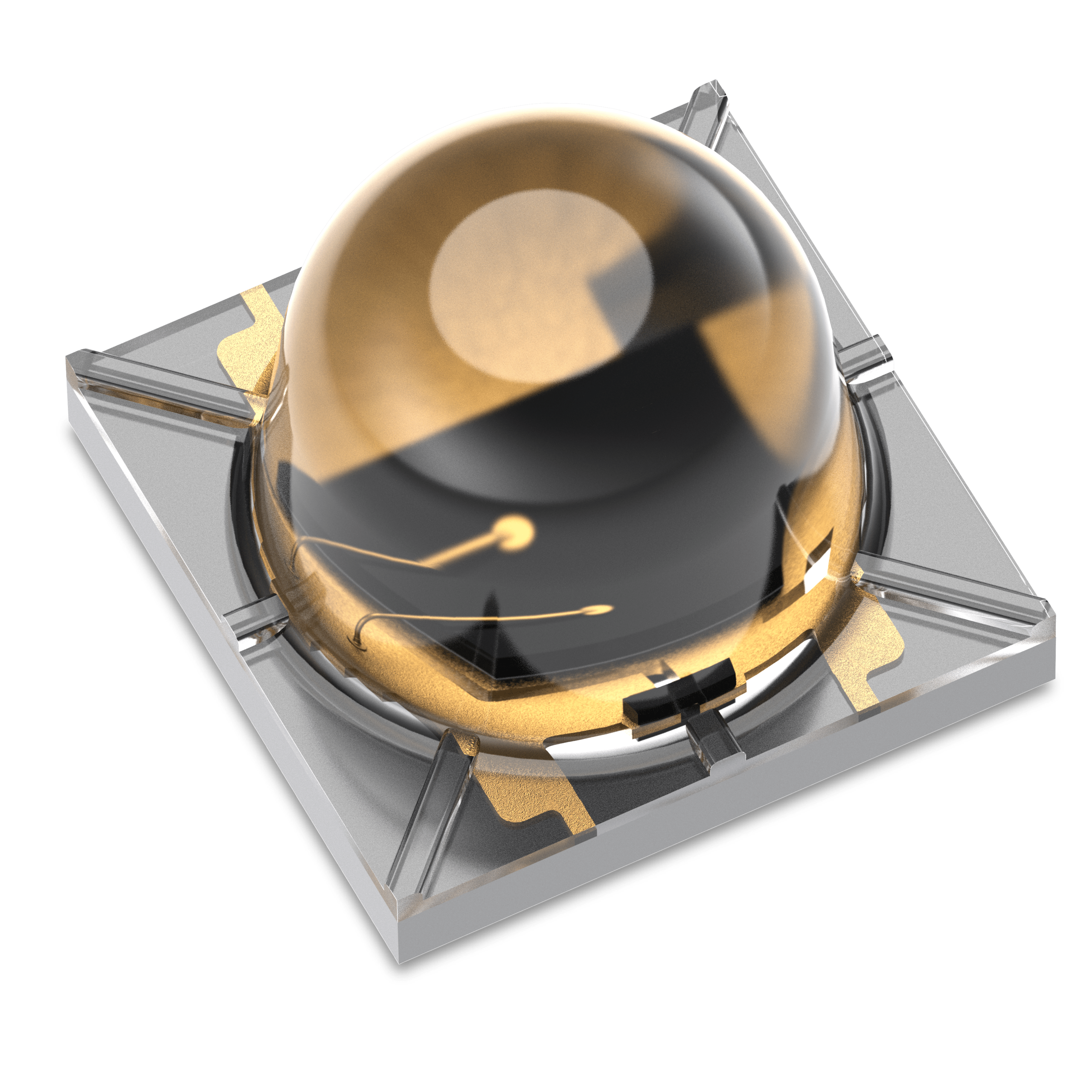

850 60 1050 1350 1150 L1I0-A850060000000

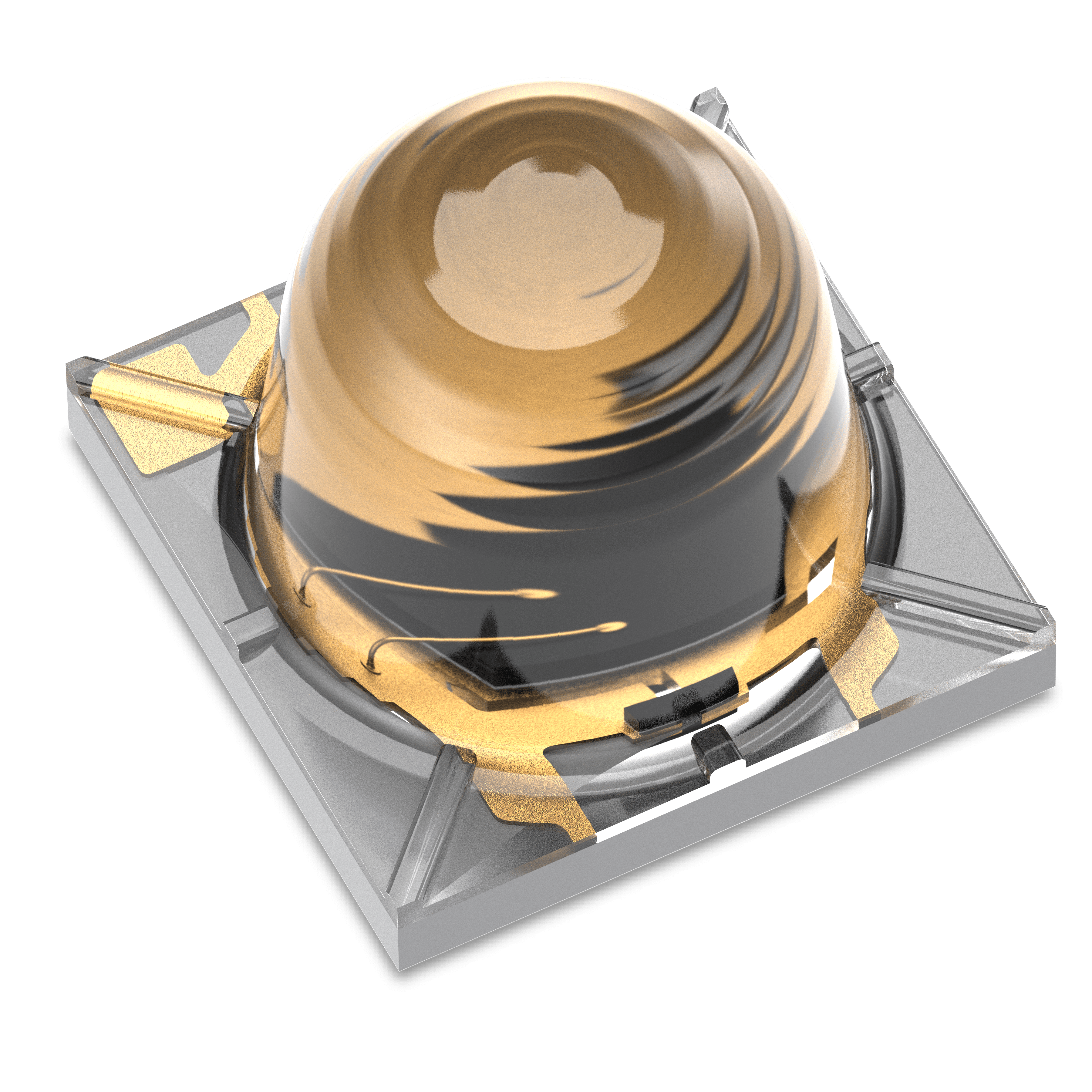

850 48 1050 1350 1255 L1I0-A850050000000
927 136 1300 1400 255 L1I0-A930135020000
927 146 1300 1400 310 L1I0-A930145020000
927 139 1300 1400 340 L1I0-A930150020000
950 45 1200 1375 1265 L1I0-A940050020000
950 61 1200 1375 1130 L1I0-A940060020000
950 90 1200 1375 740 L1I0-A940090020000
950 136 1200 1375 250 L1I0-A940135020000
950 146 1200 1375 305 L1I0-A940145020000
950 139 1200 1375 330 L1I0-A940150020000

Documentation

Design Resources

Features & Benefits

  • Available in 850 nm and 940 nm wavelengths to provide optimized performance for each type of application
  • Radiant Power of 1350 mW (850 nm) and 1450 mW (940 nm) for greater system performance

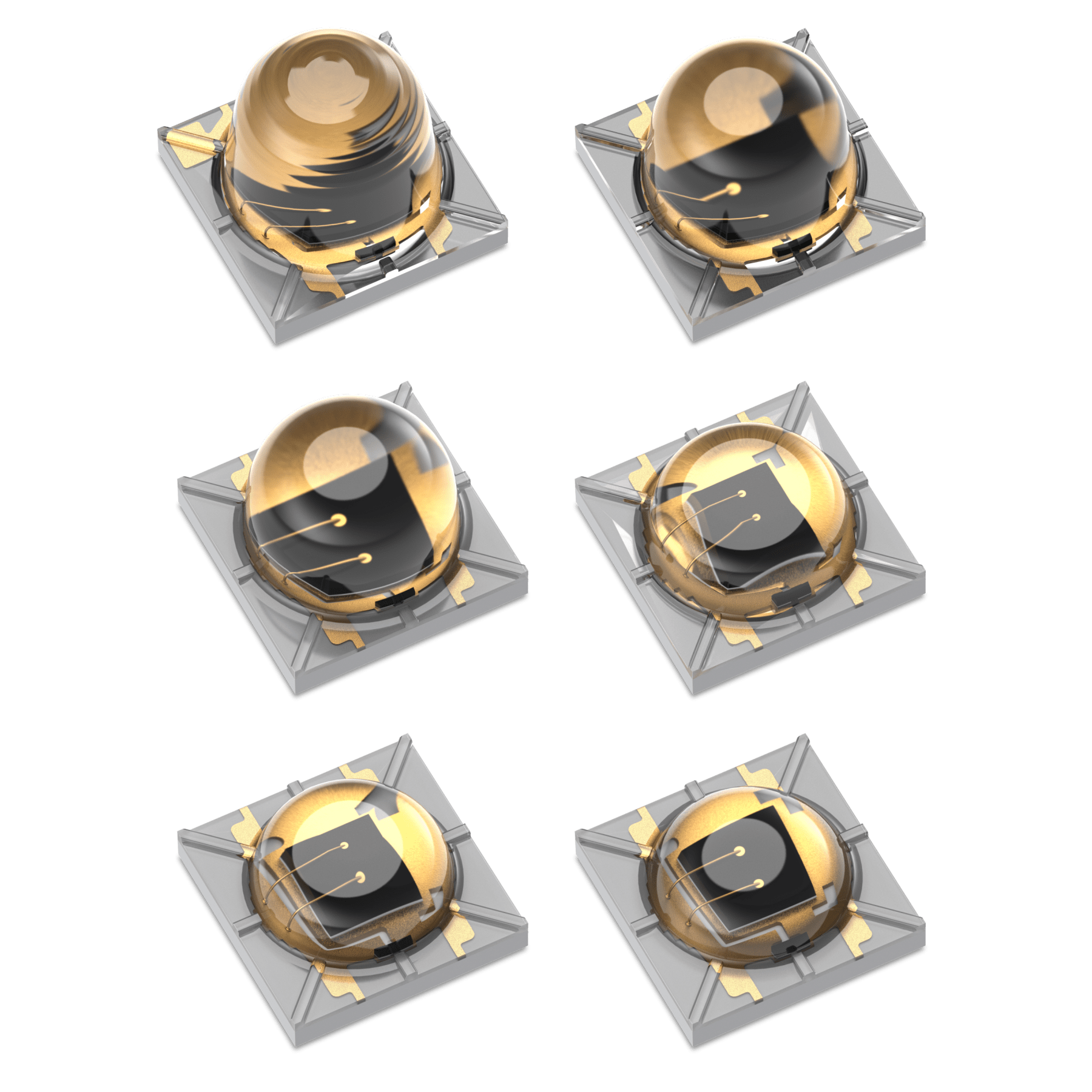

  • Four emission patterns of 50°, 60°, 90°, and 150° to address diverse application needs, high punch, long range, and high uniformity
  • 3.7 mm x 3.7 mm package with 3 pad configuration is compatible with the industry standard footprint, enabling a direct upgrade in existing designs
  • Ultra-low Rth of 2-3.1 °C/W, the industry’s best thermal conductivity, solves thermal challenges and supports space saving designs

Applications

  • Biometric Identification
  • Driver Monitoring Systems
  • Exterior Sensing Applications
  • Gesture Control
  • Interior Presence Detection
