LUXEON 7070

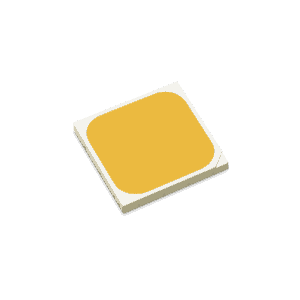

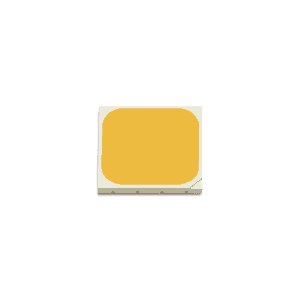

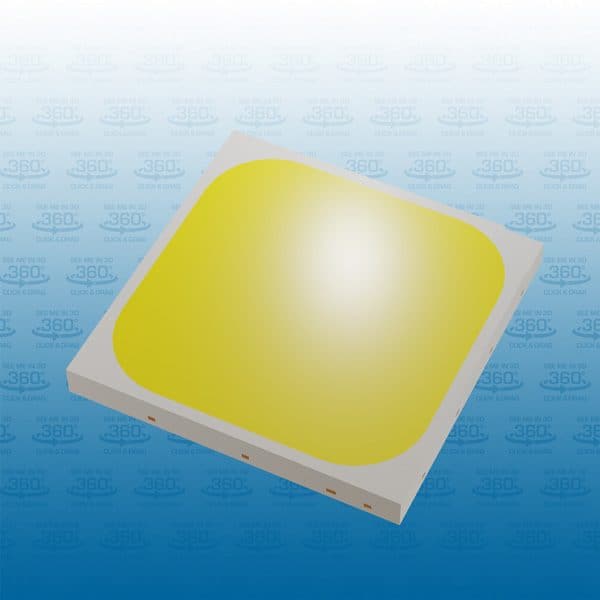

LUXEON 7070 is a multi-die, high power package that provides high luminance from a super robust package to enable cost effective, single optic and directional fixture designs. LUXEON 7070 uses an industry standard 7070 surface mount package with a small Light Emitting Surface (LES). LUXEON 7070 is offered in 70, 80, 90 CRI with a wide range of CCTs, and offers hot-color targeting to ensure that the LEDs are within color target at application conditions of 85°C.

Features & Benefits

  • Superior lm/W enables outstanding efficacy in end application
  • Extremely reliable package design affirms long lifetime in harsh environments
  • Low Rth enables effective thermal dissipation design for higher efficiency
  • Hot-color targeting ensures color is within ANSI bin at 85°C
  • 3-step and 5-step MacAdam ellipse binning structure ensures excellent color uniformity
  • Offered in different voltage options for customer design flexibility
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON 7070 at test current, Tj=25°C Flux and Tj=85°C for R9 and CRI

Voltage Nominal
CCT
Minimum
R9
Minimum
CRI
Luminous Flux(lm) Typical Luminous Efficacy (lm/W) Test Current
(mA)
Part Number
Minimum Typical
12V 2200K ≥ -40 70 1172 1260 153 700 L170-2270701200000
2700K ≥ -40 70 1295 1392 169 700 L170-2770701200000
3000K ≥ -40 70 1344 1445 175 700 L170-3070701200000
3500K ≥ -40 70 1376 1480 179 700 L170-3570701200000
4000K ≥ -40 70 1414 1520 184 700 L170-4070701200000
5000K ≥ -40 70 1404 1510 183 700 L170-5070701200000
5700K ≥ -40 70 1395 1500 182 700 L170-5770701200000
6500K ≥ -40 70 1386 1490 180 700 L170-6570701200000
2200K ≥ 0 80 1059 1139 138 700 L170-2280701200000
2700K ≥ 0 80 1176 1265 153 700 L170-2780701200000
3000K ≥ 0 80 1232 1325 160 700 L170-3080701200000
3500K ≥ 0 80 1257 1352 164 700 L170-3580701200000
4000K ≥ 0 80 1293 1390 168 700 L170-4080701200000
5000K ≥ 0 80 1288 1385 168 700 L170-5080701200000
5700K ≥ 0 80 1288 1385 168 700 L170-5780701200000
6500K ≥ 0 80 1283 1380 167 700 L170-6580701200000
2200K ≥ 50 90 911 980 119 700 L170-2290701200000
2700K ≥ 50 90 1018 1095 133 700 L170-2790701200000
3000K ≥ 50 90 1049 1128 137 700 L170-3090701200000
3500K ≥ 50 90 1075 1156 140 700 L170-3590701200000
4000K ≥ 50 90 1102 1185 143 700 L170-4090701200000
5000K ≥ 50 90 1097 1180 143 700 L170-5090701200000
5700K ≥ 50 90 1086 1168 141 700 L170-5790701200000
6500K ≥ 50 90 1075 1156 140 700 L170-6590701200000
36V 2200K ≥ -40 70 1172 1260 152 233 L170-2270703600000
2700K ≥ -40 70 1295 1392 168 233 L170-2770703600000
3000K ≥ -40 70 1344 1445 175 233 L170-3070703600000
3500K ≥ -40 70 1376 1480 179 233 L170-3570703600000
4000K ≥ -40 70 1414 1520 184 233 L170-4070703600000
5000K ≥ -40 70 1404 1510 182 233 L170-5070703600000
5700K ≥ -40 70 1395 1500 181 233 L170-5770703600000
6500K ≥ -40 70 1386 1490 180 233 L170-6570703600000
 2200K ≥ 0 80 1059 1139 138 233 L170-2280703600000
2700K ≥ 0 80 1176 1265 153 233 L170-2780703600000
3000K ≥ 0 80 1232 1325 160 233 L170-3080703600000
3500K ≥ 0 80 1257 1352 164 233 L170-3580703600000
4000K ≥ 0 80 1293 1390 168 233 L170-4080703600000
5000K ≥ 0 80 1288 1385 168 233 L170-5080703600000
5700K ≥ 0 80 1288 1385 168 233 L170-5780703600000
6500K ≥ 0 80 1283 1380 167 233 L170-6580703600000
2200K ≥ 50 90 911 980 119 233 L170-2290703600000
2700K ≥ 50 90 1018 1095 133 233 L170-2790703600000
3000K ≥ 50 90 1049 1128 137 233 L170-3090703600000
3500K ≥ 50 90 1075 1156 140 233 L170-3590703600000
4000K ≥ 50 90 1102 1185 143 233 L170-4090703600000
5000K ≥ 50 90 1097 1180 143 233 L170-5090703600000
5700K ≥ 50 90 1086 1168 141 233 L170-5790703600000
6500K ≥ 50 90 1075 1156 140 233 L170-6590703600000
