Standardized LED solutions for cost-effective automotive lighting

We offer a large range of regulated and standardized LED bulbs and modules for automotive lighting applications. Reliable, powerful and yet compact, LUXEON LxN standard modules give you the design freedom you need to meet current styling needs.

Our standard interfaces mean there is a minimal effort in the design phase. You can also build and roll out units faster, and the cost to do so is much lower.

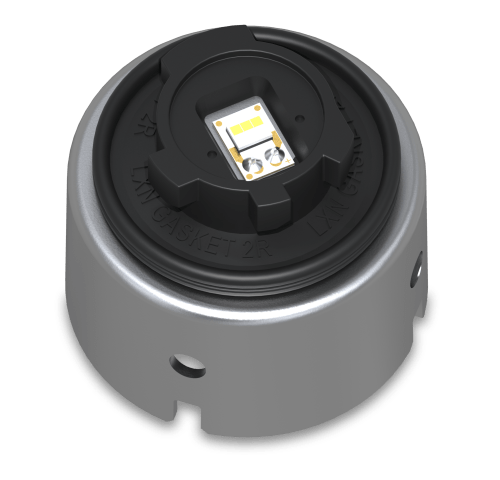

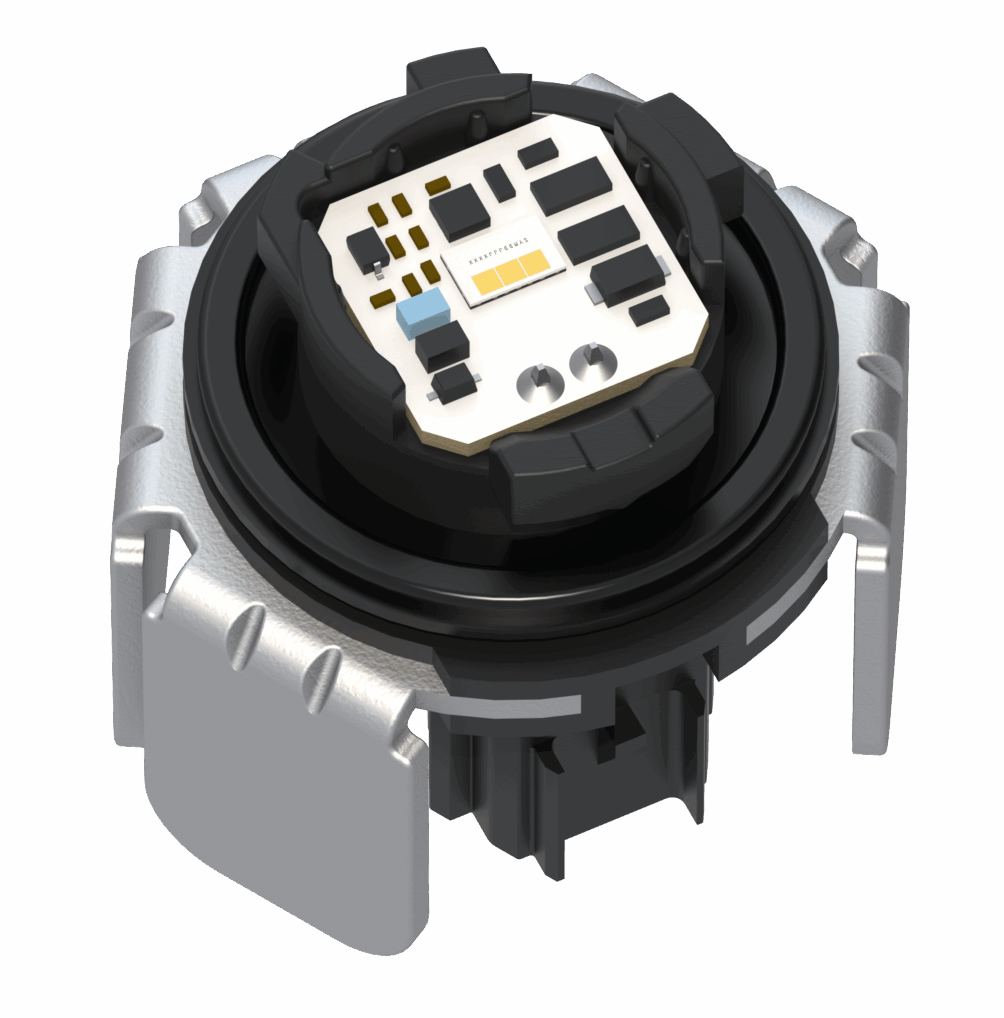

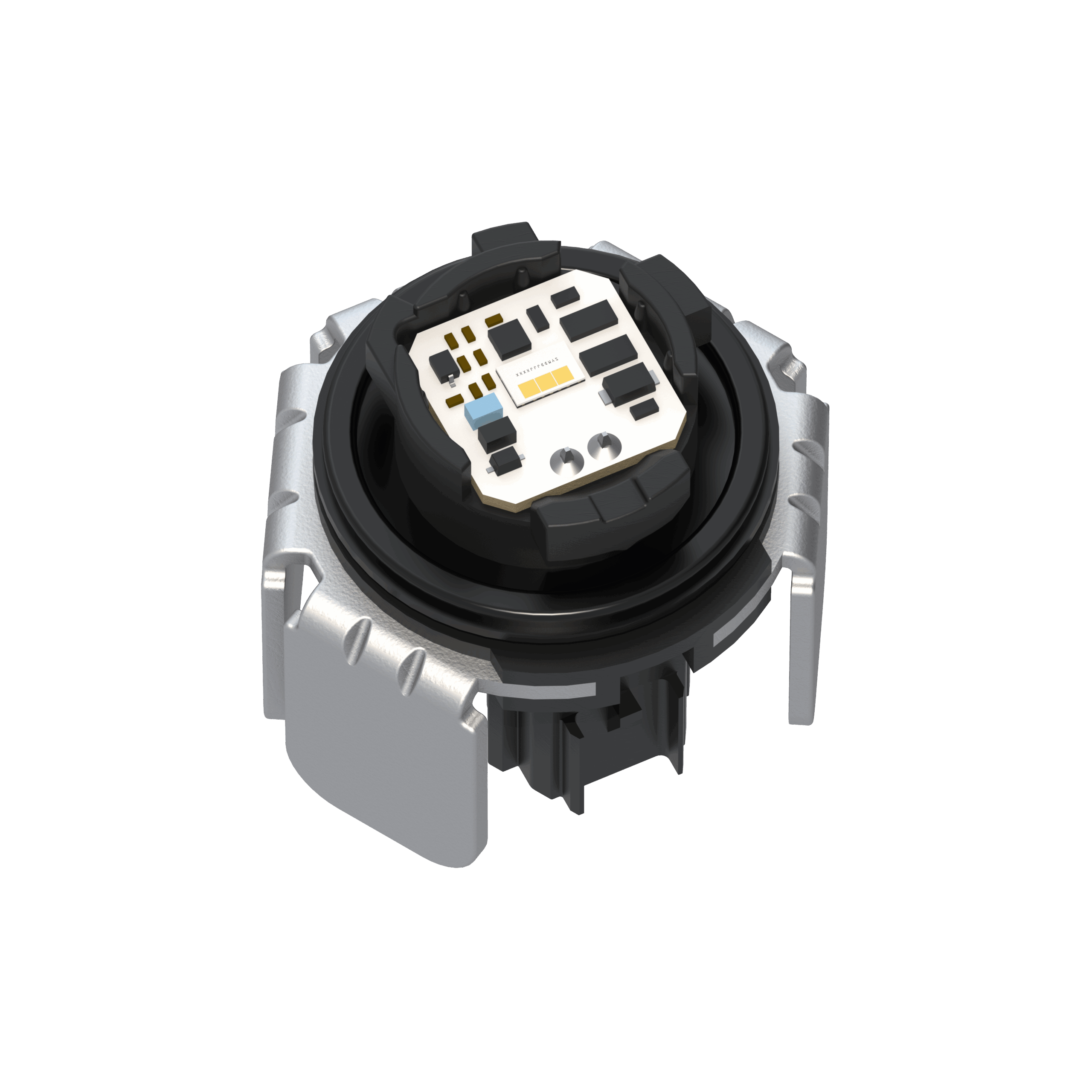

LUXEON LxN L1: REGULATED BULB FOR SIMPLE, REFLECTOR-BASED, FRONT-FOG SOLUTIONS

  • Enables a compact front-fog design
  • Precise LED placement ensures uniform illumination
  • Sharp cut-off of the top of the beam prevents glare

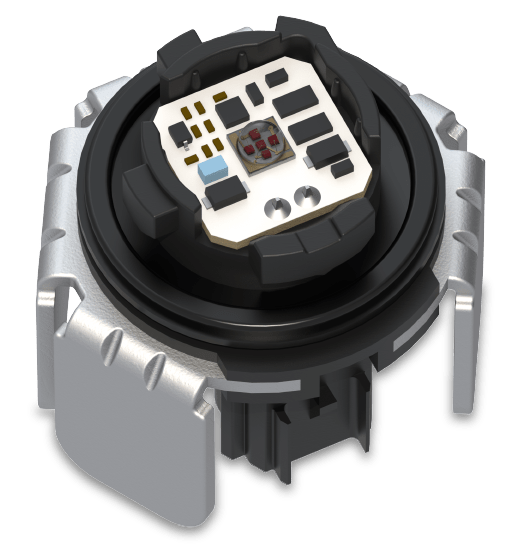

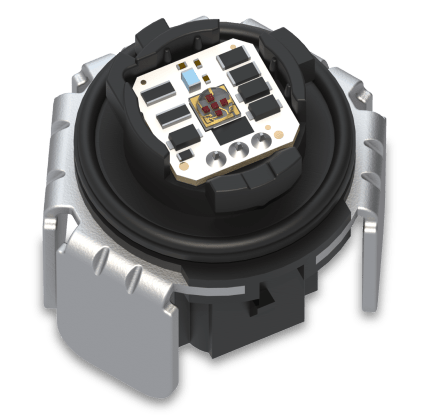

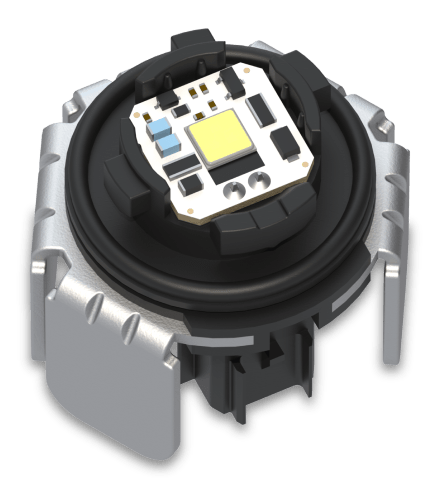

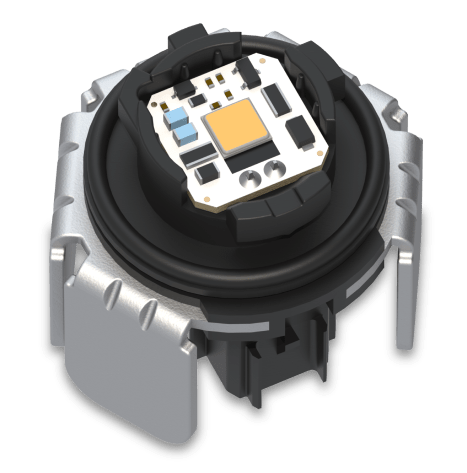

LUXEON LxN LR4, LR5, LW5 AND LY5 REGULATED BULBS FOR REAR LIGHTING

  • High luminous flux from a single module, enabling various styling possibilities, including stylish light-guide designs for fog, turn, stop and tail lighting
  • Easy thermal management and electrical integration into your systems

LUXEON LxN LED Product Overview

Regulated LED Bulbs

LR4 A/BLR5 A/BLW5 A/BLY5 A/BL1B
FunctionStop / TailStop / Tail, Rear FogDRL, Reverse Light Turn Front Fog
Luminous Flux (lm)80 / 6120350 280 355
Voltage Range (V)9 – 169 – 169 – 16 9 – 16 9 – 16
Typ. Power Consumption (W)2.2 / 0.42.24.7 5.1 5.0
Operating Temperature-40°C to 85°C-40°C to 85°C-40°C to 85°C -40°C to 85°C -40°C to 85°C
