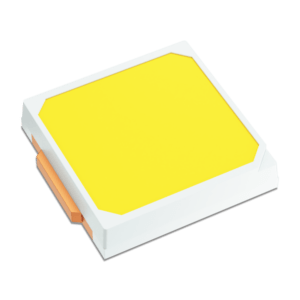

LUXEON SkyBlue

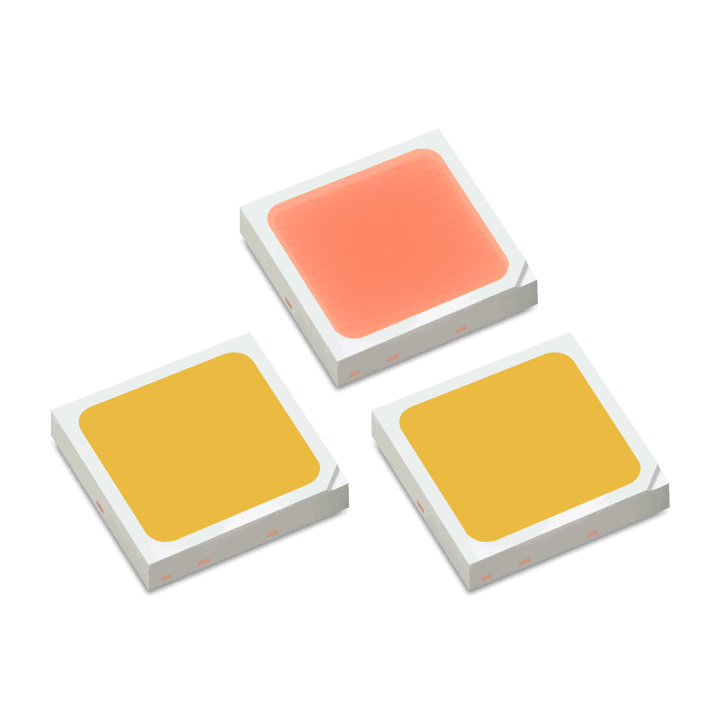

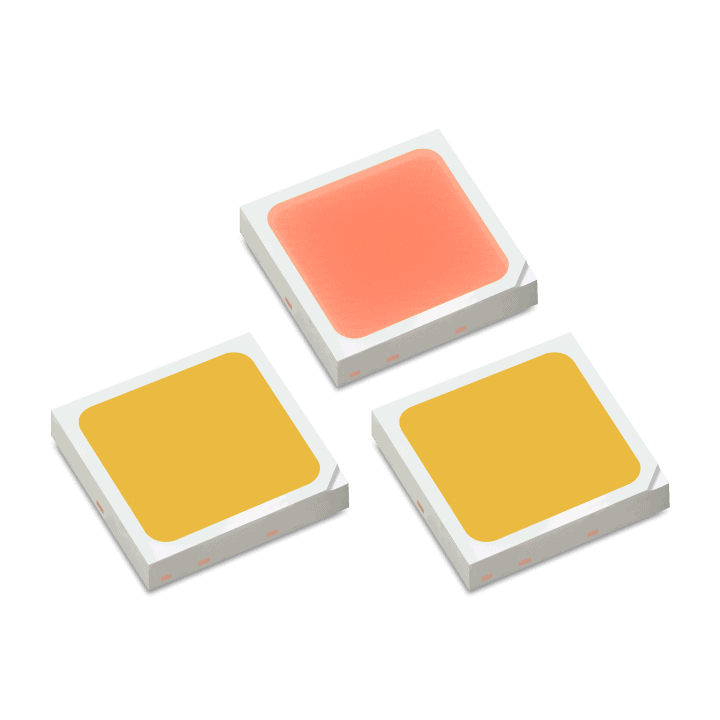

The LUXEON SkyBlue Kit LED solution is comprised of LUXEON SkyBlue and white LUXEON 3030 HE Plus LEDs that are factory matched to provide optimal melanopic ratio, superior efficacy, and light output with exceptional uniformity. Available in CCTs of 3000K, 3500K, and 4000K, each kit simplifies the analysis and engineering necessary to produce a circadian illumination system used for human centric lighting.

Lumileds partnership with BIOS Lighting allows the integration of the leading scientific knowledge and technology for circadian lighting with Lumileds expertise in LED design, engineering, and production. The spectrally optimized light for circadian illumination that is the result of this partnership can deliver the specific and measurable physiological impact that is desired in schools, offices, factories, health-care settings, and similar locations.

Features & Benefits

  • Superior melanopic ratio, high-efficacy circadian LED lighting
  • Unmatched ease of use and time to market
  • Industry standard 3030 packaging allows simple design-in
  • Seamless connection between lighting specification, fixture performance and LED selection
  • Very high CRI, R9, and low Cyanosis Observation Index
  • Human centric lighting
  • Lighting uniformity within a 3 MacAdam ellipse color space
Expand Media

Applications

  • Healthcare Settings
  • Schools
  • Factories
  • Offices
Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

LUXEON SkyBlue Kit Performance

HUMAN CENTRIC LIGHTING
CIRCADIAN SOLUTION
CCT TYPICAL M/P RATIO CRI/R9 TYPICAL LUMINOUS EFFICACY (lm/W) LUMINOUS FLUX (LM) COLOR CLOUD LUXEON SkyBlue Kit PART NUMBER
MDER MEER
1:2 LUXEON SkyBlue &
LUXEON 3030 HE Plus
3000K 0.67 0.74 83 / 90 148 58 3 MacAdam ellipse L130-3080HA30SBB30
3500K 0.76 0.84 85 / 90 158 62 3 MacAdam ellipse L130-3580HA30SBB30
4000K 0.85 0.94 85 / 90 160 64 3 MacAdam ellipse L130-4080HA30SBB30
