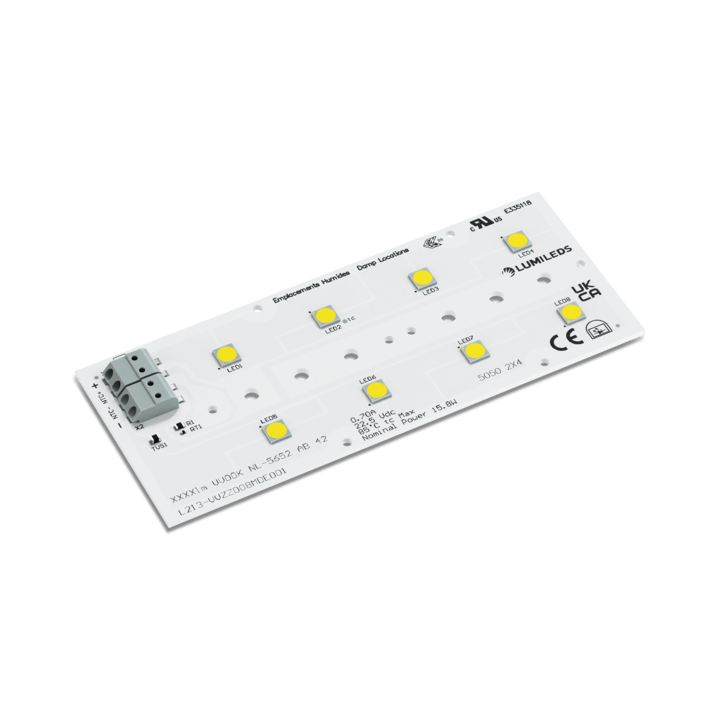

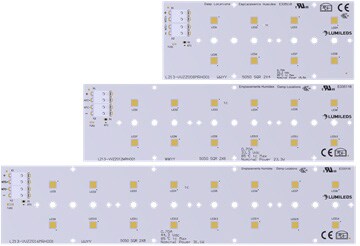

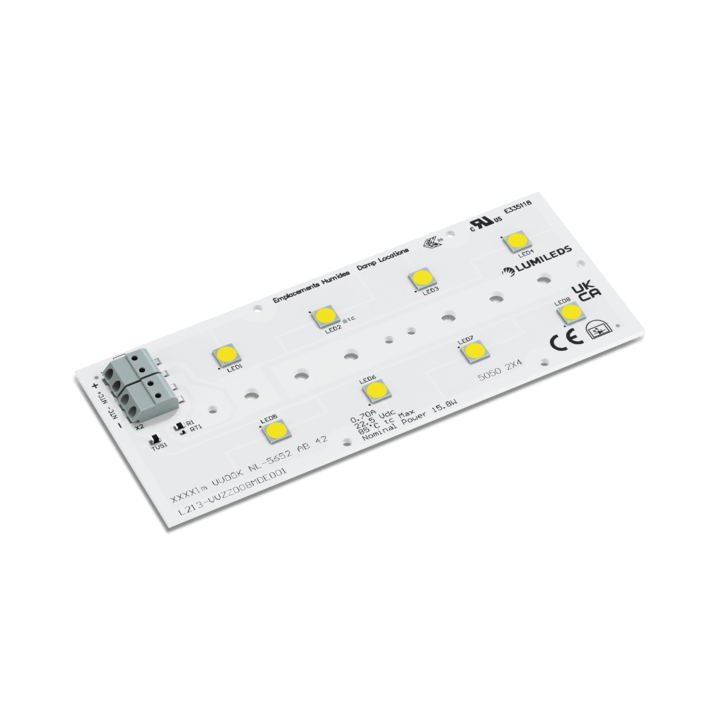

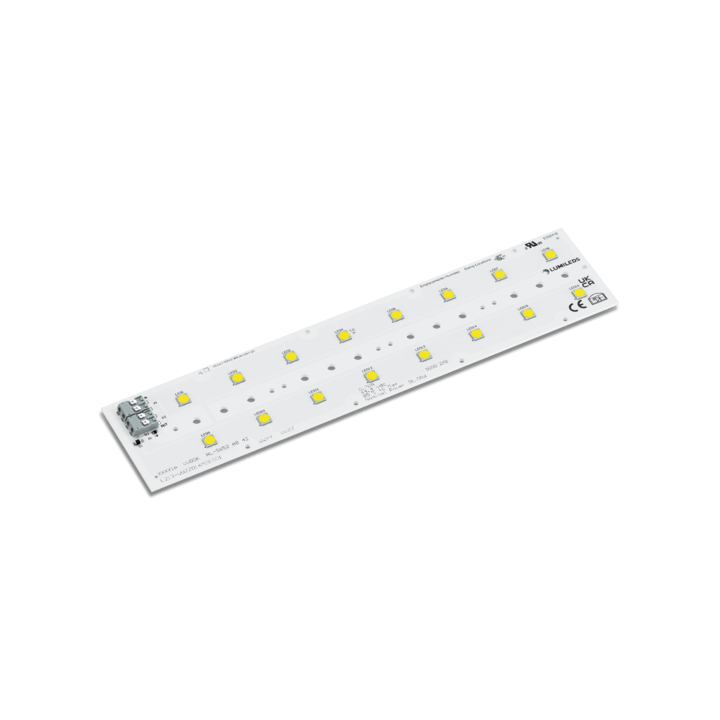

LUXEON XR-5050 Round products are LED modules optimized for lighting applications requiring high-efficacy LED arrays mounted on a rigid, thermally conductive substrate. These versatile building blocks feature 8, 12, or 16 LUXEON 5050 Square LEDs on a MCPCB substrate, electrical connectors, and are designed for ease of system integration, faster time to market, and use with industry-standard optics. LUXEON XR-5050 Round is a complete solution when used in combination with standard third-party optics and heatsinks.

LUXEON XR-5050 Round and EU Ecodesign: Please consult the product datasheet for details including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019/2015. LUXEON XR-5050 Round part numbers are in energy efficiency classes D and E.

Features & Benefits

  • Efficacy and luminous flux of up to 184lm/W and 5700lm of output
  • Superior board-level color control of ≤ 3SDCM
  • Compatible with standard third-party optics
  • Features LUXEON 5050 Round LEDs with industry-leading efficacy and lumens in multi-die, high power package
  • 5-year guarantee
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON XR-5050 Round at 700mA, Tc =85°C.

Nominal Minimum Luminous Flux (lm) Typical Part Number
CCT (K) CRI Minimum Typical Luminous Efficacy (lm/W)
700mA
2200 70 2238 2407 153 L213-2270008MDE001
2700 70 2441 2643 168 L213-2770008MDE001
3000 70 2380 2760 175 L213-3070008MDE001
3500 70 2564 2795 177 L213-3570008MDE001
4000 70 2663 2841 180 L213-4070008MDE001
5000 70 2647 2824 179 L213-5070008MDE001
5700 70 2443 2761 175 L213-5770008MDE001
2700 80 2187 2374 151 L213-2780008MDE001
3000 80 2245 2477 157 L213-3080008MDE001
4000 80 2356 2632 167 L213-4080008MDE001
2200 70 3340 3592 154 L213-2270012MDE001
2700 70 3644 3945 169 L213-2770012MDE001
3000 70 3626 4206 180 L213-3070012MDE001
3500 70 3929 4228 181 L213-3570012MDE001
4000 70 4034 4304 184 L213-4070012MDE001
5000 70 4015 4284 184 L213-5070012MDE001
5700 70 3671 4149 178 L213-5770012MDE001
2700 80 3237 3543 152 L213-2780012MDE001
3000 80 3353 3699 159 L213-3080012MDE001
4000 80 3619 3988 171 L213-4080012MDE001
2200 70 4454 4790 154 L213-2270016MDE001
2700 70 4859 5260 169 L213-2770016MDE001
3000 70 4835 5607 180 L213-3070016MDE001
3500 70 5172 5638 181 L213-3570016MDE001
4000 70 5379 5739 184 L213-4070016MDE001
5000 70 5354 5712 184 L213-5070016MDE001
5700 70 4895 5532 178 L213-5770016MDE001
2700 80 4353 4724 152 L213-2780016MDE001
3000 80 4471 4932 159 L213-3080016MDE001
4000 80 4759 5317 171 L213-4080016MDE001
