LUXEON SunPlus 5050

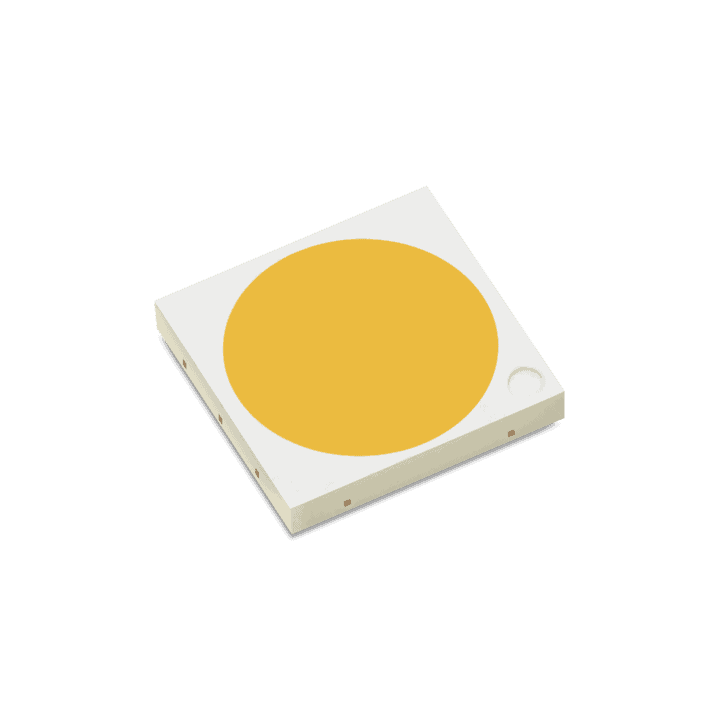

LUXEON SunPlus 5050 is a multi-die, high power robust LEDs using an industry-standard 5050 surface mount package with a small Light Emitting Surface (LES). LUXEON LUXEON SunPlus 5050 delivers top-rated μmol/J and PPF (μmol/s) performance and long lifetime with CCTs ranging from 1800K to 6500K and CRIs of 70, 80, and 90. It offers hot-color targeting to ensure that the LEDs are within color target at application conditions of 85°C.

Features & Benefits

  • Top-rated μmol/J and PPF (μmol/s) performance
  • Extremely reliable package design affirms long lifetime in hash environments
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Round Parts | Square Parts | HE Parts

SunPlus 5050 Round Parts

Product performance of LUXEON SunPlus 5050 at specified current, Tj=25°C. Correlated color temperature is hot targeted at Tj=85°C..

Product Nominal
CCT
Minimum
CRI
PPF (umol/s) PPF/W Typical
(umol/J)
Part Number
Minimum Typical
Round LES 24V 2200K 70 7.50 8.32 2.13 L150-2270502400000
2700K 70 7.28 8.53 2.18 L150-2770502400000
3000K 70 7.66 8.69 2.23 L150-3070502400000
3500K 70 8.30 8.75 2.24 L150-3570502400000
4000K 70 7.10 8.84 2.26 L150-4070502400000
5000K 70 8.01 8.90 2.28 L150-5070502400000
5700K 70 8.02 8.84 2.27 L150-5770502400000
6500K 70 8.04 8.86 2.27 L150-6570502400000
2200K 80 6.94 7.85 2.01 L150-2280502400000
2700K 80 7.20 8.14 2.09 L150-2780502400000
3000K 80 7.16 8.34 2.14 L150-3080502400000
3500K 80 5.40 8.42 2.16 L150-3580502400000
4000K 80 7.95 8.59 2.20 L150-4080502400000
5000K 80 7.74 8.60 2.20 L150-5080502400000
5700K 80 7.75 8.55 2.19 L150-5780502400000
6500K 80 8.00 8.60 2.20 L150-6580502400000
2700K 90 6.77 7.59 1.94 L150-2790502400000
3000K 90 6.97 7.75 1.98 L150-3090502400000
3500K 90 7.23 7.90 2.02 L150-3590502400000
4000K 90 7.58 8.17 2.09 L150-4090502400000
5000K 90 7.67 8.13 2.08 L150-5090502400000
5700K 90 7.49 8.08 2.07 L150-5790502400000
Round LES 6V 2200K 70 7.50 8.32 2.13 L150-2270500600000
2700K 70 7.28 8.53 2.18 L150-2770500600000
3000K 70 7.66 8.69 2.23 L150-3070500600000
3500K 70 8.30 8.75 2.24 L150-3570500600000
4000K 70 7.10 8.84 2.26 L150-4070500600000
5000K 70 8.01 8.90 2.28 L150-5070500600000
5700K 70 8.02 8.84 2.27 L150-5770500600000
6500K 70 8.04 8.86 2.27 L150-6570500600000
2200K 80 6.94 7.85 2.01 L150-2280500600000
2700K 80 7.20 8.14 2.09 L150-2780500600000
3000K 80 7.16 8.34 2.14 L150-3080500600000
3500K 80 5.40 8.42 2.16 L150-3580500600000
4000K 80 7.95 8.59 2.20 L150-4080500600000
5000K 80 7.74 8.60 2.20 L150-5080500600000
5700K 80 7.75 8.55 2.19 L150-5780500600000
6500K 80 8.00 8.60 2.20 L150-6580500600000
2700K 90 6.77 7.59 1.94 L150-2790500600000
3000K 90 6.97 7.75 1.98 L150-3090500600000
3500K 90 7.23 7.90 2.02 L150-3590500600000
4000K 90 7.58 8.17 2.09 L150-4090500600000
5000K 90 7.67 8.13 2.08 L150-5090500600000
5700K 90 7.49 8.08 2.07 L150-5790500600000

SunPlus 5050 Square Parts

Product performance of LUXEON SunPlus 5050 at specified current, Tj=25°C. Correlated color temperature is hot targeted at Tj=85°C

Product Nominal
CCT
Minimum
CRI
PPF (umol/s) PPF/W Typical
(umol/J)
Part Number
Minimum Typical
Square LES 30V 1800K 70 9.03 9.70 1.99 L150-18705030000S0
2200K 70 9.03 10.30 2.11 L150-22705030000S0
2700K 70 9.36 10.60 2.17 L150-27705030000S0
3000K 70 9.71 10.70 2.19 L150-30705030000S0
3500K 70 9.53 10.80 2.21 L150-35705030000S0
4000K 70 9.68 10.90 2.23 L150-40705030000S0
5000K 70 9.69 11.00 2.25 L150-50705030000S0
5700K 70 9.98 11.10 2.27 L150-57705030000S0
6500K 70 9.56 11.00 2.25 L150-65705030000S0
2200K 80 9.23 9.85 2.02 L150-22805030000S0
2700K 80 9.29 9.97 2.04 L150-27805030000S0
3000K 80 9.70 10.24 2.10 L150-30805030000S0
3500K 80 9.25 10.12 2.07 L150-35805030000S0
4000K 80 9.87 10.52 2.16 L150-40805030000S0
5000K 80 9.93 10.66 2.18 L150-50805030000S0
5700K 80 9.76 10.67 2.19 L150-57805030000S0
6500K 80 10.26 10.59 2.17 L150-65805030000S0
2700K 90 9.55 9.82 2.01 L150-27905030000S0
3000K 90 9.48 10.09 2.07 L150-30905030000S0
3500K 90 9.48 10.06 2.06 L150-35905030000S0
4000K 90 9.81 10.16 2.08 L150-40905030000S0
5000K 90 9.88 10.23 2.10 L150-50905030000S0
5700K 90 9.87 10.28 2.11 L150-57905030000S0
Square LES 6V 1800K 70 9.03 9.70 1.99 L150-18705006000S0
2200K 70 9.03 10.30 2.11 L150-22705006000S0
2700K 70 9.36 10.60 2.17 L150-27705006000S0
3000K 70 9.71 10.70 2.19 L150-30705006000S0
3500K 70 9.53 10.80 2.21 L150-35705006000S0
4000K 70 9.68 10.90 2.23 L150-40705006000S0
5000K 70 9.69 11.00 2.25 L150-50705006000S0
5700K 70 9.98 11.10 2.27 L150-57705006000S0
6500K 70 9.56 11.00 2.25 L150-65705006000S0
2200K 80 9.23 9.85 2.02 L150-22805006000S0
2700K 80 9.29 9.97 2.04 L150-27805006000S0
3000K 80 9.70 10.24 2.10 L150-30805006000S0
3500K 80 9.25 10.12 2.07 L150-35805006000S0
4000K 80 9.87 10.52 2.16 L150-40805006000S0
5000K 80 9.93 10.66 2.18 L150-50805006000S0
5700K 80 9.76 10.67 2.19 L150-57805006000S0
6500K 80 10.26 10.59 2.17 L150-65805006000S0
2700K 90 9.55 9.82 2.01 L150-27905006000S0
3000K 90 9.48 10.09 2.07 L150-30905006000S0
3500K 90 9.48 10.06 2.06 L150-35905006000S0
4000K 90 9.81 10.16 2.08 L150-40905006000S0
5000K 90 9.88 10.23 2.10 L150-50905006000S0
5700K 90 9.87 10.28 2.11 L150-57905006000S0

SunPlus 5050 HE Parts

Product performance of LUXEON SunPlus 5050 at specified current, Tj=25°C. Correlated color temperature is hot targeted at Tj=85°C

Product Nominal
CCT
Minimum
CRI
PPF (umol/s) PPF/W Typical
(umol/J)
Part Number
Minimum Typical
HE 24V 1800K 70 7.30 8.04 2.08 L150-18705024000H0
2200K 70 8.06 8.67 2.24 L150-22705024000H0
2700K 70 8.38 8.94 2.31 L150-27705024000H0
3000K 70 8.29 9.09 2.35 L150-30705024000H0
3500K 70 8.21 9.28 2.40 L150-35705024000H0
4000K 70 8.42 9.37 2.42 L150-40705024000H0
5000K 70 8.61 9.47 2.45 L150-50705024000H0
5700K 70 9.00 9.51 2.46 L150-57705024000H0
6500K 70 8.58 9.62 2.48 L150-65705024000H0
2200K 80 7.51 8.01 2.07 L150-22805024000H0
2700K 80 7.84 8.31 2.15 L150-27805024000H0
3000K 80 7.66 8.52 2.20 L150-30805024000H0
3500K 80 8.09 8.75 2.26 L150-35805024000H0
4000K 80 8.18 8.90 2.30 L150-40805024000H0
5000K 80 8.42 8.99 2.32 L150-50805024000H0
5700K 80 8.29 9.05 2.34 L150-57805024000H0
6500K 80 8.58 9.09 2.35 L150-65805024000H0
2700K 90 7.73 8.20 2.12 L150-27905024000H0
3000K 90 7.92 8.28 2.14 L150-30905024000H0
3500K 90 8.11 8.42 2.18 L150-35905024000H0
4000K 90 8.14 8.58 2.22 L150-40905024000H0
5000K 90 8.36 8.77 2.26 L150-50905024000H0
5700K 90 8.31 8.79 2.27 L150-57905024000H0
1800K 70 7.30 8.00 2.07 L150-1870502400TH0
2200K 70 8.06 8.63 2.23 L150-2270502400TH0
2700K 70 8.38 8.90 2.3 L150-2770502400TH0
3000K 70 8.29 9.04 2.34 L150-3070502400TH0
3500K 70 8.21 9.23 2.38 L150-3570502400TH0
4000K 70 8.42 9.32 2.41 L150-4070502400TH0
5000K 70 8.61 9.42 2.43 L150-5070502400TH0
5700K 70 9.00 9.46 2.44 L150-5770502400TH0
6500K 70 8.58 9.57 2.47 L150-6570502400TH0
HE 6V 1800K 70 7.30 8.04 2.08 L150-18705006000H0
2200K 70 8.06 8.67 2.24 L150-22705006000H0
2700K 70 8.38 8.94 2.31 L150-27705006000H0
3000K 70 8.29 9.09 2.35 L150-30705006000H0
3500K 70 8.21 9.28 2.40 L150-35705006000H0
4000K 70 8.42 9.37 2.42 L150-40705006000H0
5000K 70 8.61 9.47 2.45 L150-50705006000H0
5700K 70 9.00 9.51 2.46 L150-57705006000H0
6500K 70 8.58 9.62 2.48 L150-65705006000H0
2200K 80 7.51 8.01 2.07 L150-22805006000H0
2700K 80 7.84 8.31 2.15 L150-27805006000H0
3000K 80 7.66 8.52 2.20 L150-30805006000H0
3500K 80 8.09 8.75 2.26 L150-35805006000H0
4000K 80 8.18 8.90 2.30 L150-40805006000H0
5000K 80 8.42 8.99 2.32 L150-50805006000H0
5700K 80 8.29 9.05 2.34 L150-57805006000H0
6500K 80 8.58 9.09 2.35 L150-65805006000H0
2700K 90 7.73 8.20 2.12 L150-27905006000H0
3000K 90 7.92 8.28 2.14 L150-30905006000H0
3500K 90 8.11 8.42 2.18 L150-35905006000H0
4000K 90 8.14 8.58 2.22 L150-40905006000H0
5000K 90 8.36 8.77 2.26 L150-50905006000H0
5700K 90 8.31 8.79 2.27 L150-57905006000H0
1800K 70 7.30 8.00 2.07 L150-1870500600TH0
2200K 70 8.06 8.63 2.23 L150-2270500600TH0
2700K 70 8.38 8.90 2.30 L150-2770500600TH0
3000K 70 8.29 9.04 2.34 L150-3070500600TH0
3500K 70 8.21 9.23 2.38 L150-3570500600TH0
4000K 70 8.42 9.32 2.41 L150-4070500600TH0
5000K 70 8.61 9.42 2.43 L150-5070500600TH0
5700K 70 9.00 9.46 2.44 L150-5770500600TH0
6500K 70 8.58 9.57 2.47 L150-6570500600TH0
