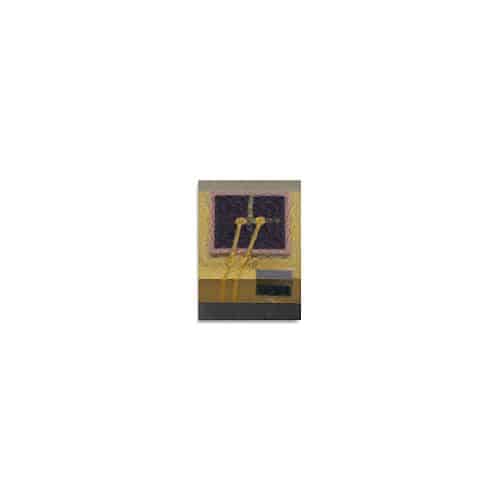

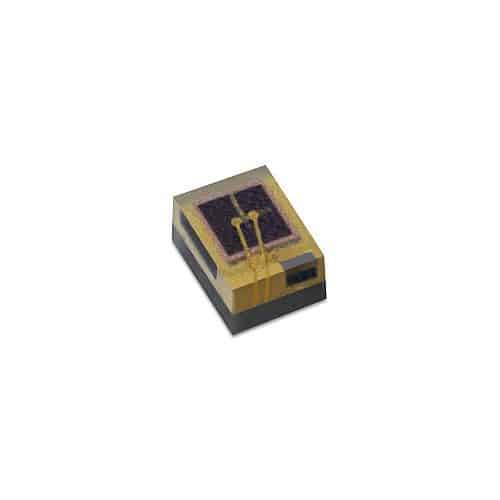

LUXEON IR Compact Line

The LUXEON IR Compact Line is a product line of high power infrared emitters specifically designed for high efficiency as required in small spaces. Their compact and well-defined light source geometry allows them to be easily coupled into secondary optics for tight beam control. LUXEON IR Compact Line is designed with innovative LUXEON technology to provide industry-leading performance. Through best-in-class thermal conductivity, LUXEON IR Compact Line has excellent performance at actual operating conditions.

Features & Benefits

  • Available in 850nm and 940nm wavelengths to provide optimized performance for each type of application
  • Radiant Power: 1050mW (850nm) and 1150mW (940nm) for a greater system performance
  • Compact package of 1.9mm x 1.37mm with a 2-pad configuration provides the highest power density in the industry for a new level of miniaturization
  • Ultra-low Rth of 2.8°C/W, solves thermal challenges and supports space saving designs
Expand Media

Applications

  • 3D Scanning/Time of Flight
  • Augmented/Virtual Reality
  • Biometric Identification
  • Machine Vision
  • Surveillance/CCTV
  • User Interface Control
Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON IR Compact Line at 1000mA, Tj=25°C.

Peak Wavelength (nm) Typical FWHM Beam Angle (°) Radiometric Power
(mW)
Typical Radiant Intensity (mW/sr) Typical Spectrum FWHM (nm) Part Number
Minimum Typical
850 150 900 1050 250 35 L1IZ-0850000000000
940 150 1000 1150 300 50 L1IZ-0940000000000
