What is LUXEON Versat 3030 Line?

LUXEON Versat is perfect for high-volume assembly where consistency is never compromised. This family of products  provides design flexibility, automotive reliability and ease of integration/manufacturing to facilitate simplified system integration for high volume automotive designs.

Benefits of LUXEON Versat 3030 Line:

  • Industry standard footprint enables simple integration
  • Package optimized for light extraction, achieving industry leading efficacy:
    • Front – Industry leading efficacy in a mid power package. Superior flux performance at max. current for reduced LED count and lower cost of ownership
    • Rear – Lower Rth for greater light output and lower heatsink costs. Robust package with high resistance to sulphur corrosion

Key Features:

  • Optimized package drives efficient light extraction
  • Industry standard footprint of 3.0 x 3.0 mm for simple integration
  • Low Z profile simplifies optical design and minimizes design space

Important Notes:

  • Available in white, PC amber, red-orange, red, super red and PC green

Products

COLOR
[DOMINANT WAVELENGTH]
PRODUCT TEST CURRENT (mA) MAX DC CURRENT (mA) MINIMUM FLUX (lm) PART NUMBER
Red Cool White LUXEON Versat 3030 ST 150 CW 150 250 53 A1VC-5850A0100xxx0

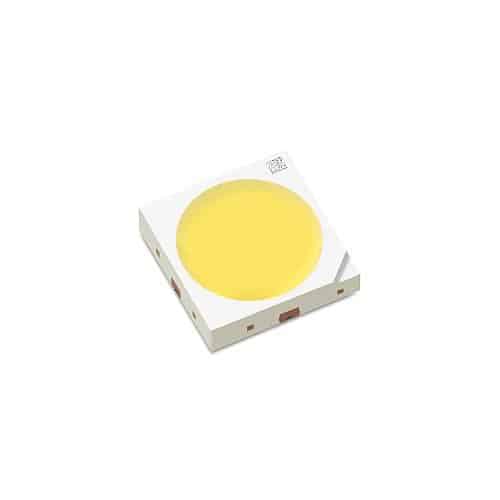

Cool White Cool White LUXEON Versat 3030 ST 350 CW 350 500 119 A1VC-5850C0100xxx0
Amber PC Amber LUXEON Versat 3030 ST 150 PCA 150 250 33 A1VC-P591A010xxxx0

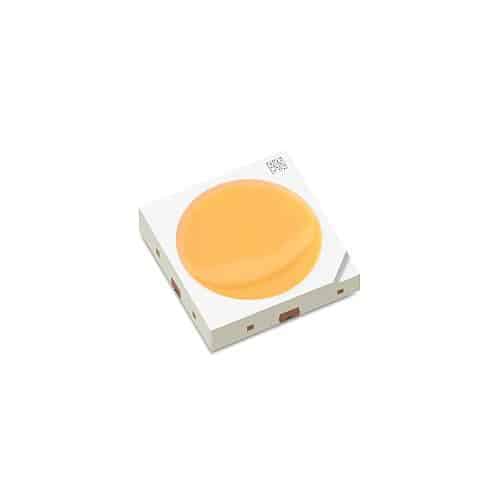

Amber PC Amber LUXEON Versat 3030 ST 350 PCA 350 500 76 A1VC-P591C0100xxx0

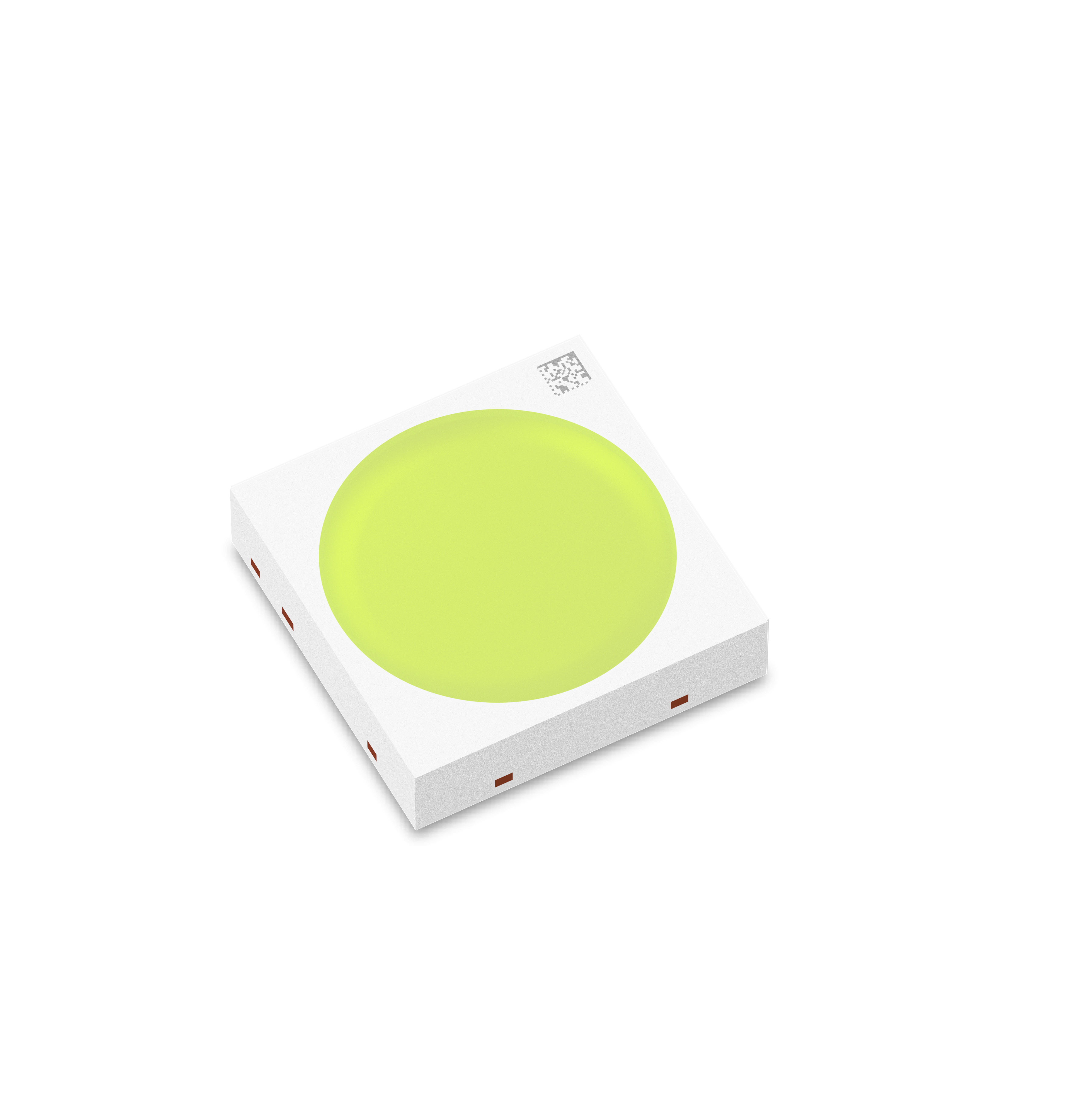

PC Green PC Green LUXEON Versat 3030 ST 350 PCG 350 500 126 A1VC-G507C0100xxx0
Red Orange Red Orange [615 nm] LUXEON Versat 3030 ST 200 200 300 36 A1VC-O612Axxxxxxx0

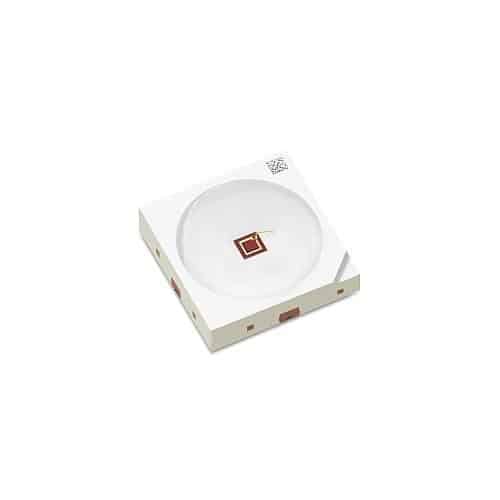

Red Red [623 nm] LUXEON Versat 3030 ST 200 200 300 30 A1VC-R620Axxxxxxx0
Long Red Long Red [630 nm] LUXEON Versat 3030 ST 200 200 300 21 A1VC-S627Axxxxxxx0
Super Red Super Red [635 nm] LUXEON Versat 3030 ST 200 200 300 15 A1VC-S632Axxxxxxx0
Red Orange Red Orange [615 nm] LUXEON Versat 3030 ST 350 350 500 70 A1VC-O612Dxxxxxxx0
Red Red [623 nm] LUXEON Versat 3030 ST 350 350 500 50 A1VC-R620Dxxxxxxx0
Long Red Long Red [630 nm] LUXEON Versat 3030 ST 350 350 500 40 A1VC-S627Dxxxxxxx0
Super Red Super Red [635 nm] LUXEON Versat 3030 ST 350 350 500 30 A1VC-S632Dxxxxxxx0
Red Orange Red Orange [615 nm] LUXEON Versat 3030 ST 700 700 1000 130 A1VC-O612C10xxxxxx

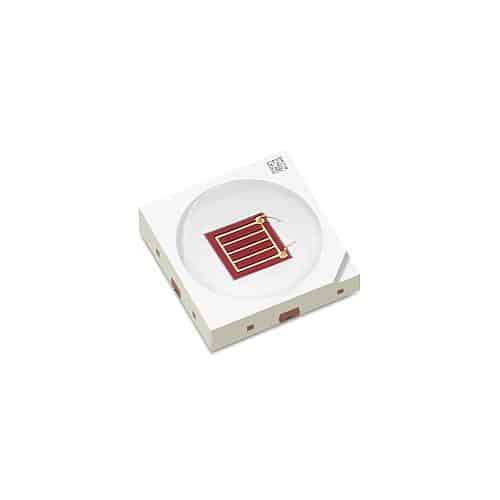

Red Red [623 nm] LUXEON Versat 3030 ST 700 700 1000 107 A1VC-R620C10xxxxxx
Long Red Long Red [630 nm] LUXEON Versat 3030 ST 700 700 1000 83 A1VC-S627C10xxxxxx
Super Red Super Red [635 nm] LUXEON Versat 3030 ST 700 700 1000 62 A1VC-S632C10xxxxxx

Expand Media

Applications

  • Back-Up/Reverse
  • Daytime Running Lights
  • Front Fog
  • Rear Fog
  • Front Turn
  • Rear Turn
  • Stop/Tail
  • License Plate
  • Side Marker
Expand Applications
