Retail and hospitality lighting needs are crystal clear: very high efficacy and excellent quality of light that makes colors pop and encourages customers to engage with displays and products. LUXEON CoB Core Pro delivers the light and efficacy along with long-life and color stability for high value installations.

LUXEON CoB Core Pro and EU Ecodesign: Please consult the product datasheet for details including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019/2015. LUXEON CoB Core Pro part numbers are in energy efficiency classes E and F.

Features & Benefits

  • Best in class efficacy and superior color quality
  • Multiple LES sizes and flux output that fit different applications and requirements
  • Superior thermal resistance enables the use of smaller heatsinks and prolonged product life span
  • Supported by a comprehensive optical, mechanical, and electrical ecosystem

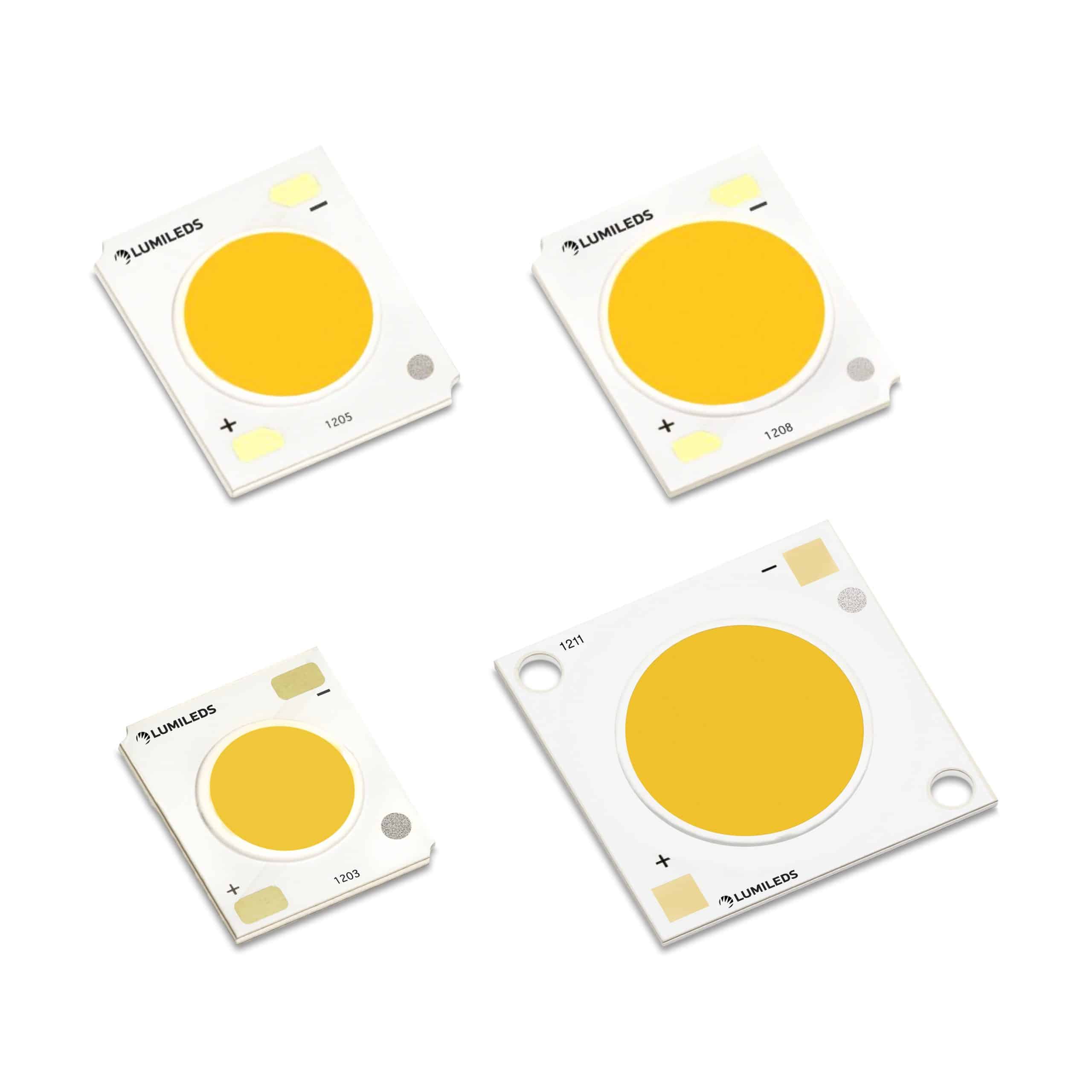

  • CoB LED package
Expand Media


  • Spotlight
  • Track Lights
  • Downlights
  • Low Bay
Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON CoB Core Range PW at specified test current, Tj=85°C.

Luminous Flux (lm) Typical Luminous Efficacy (lm/W) Test Current
Energy Efficiency Class Part Number
Minimum Typical
9 3000K 90 729 810 117 200 F L2C5-30901202X09B0
9 3000K 90 1210 1344 130 300 E L2C5-30901203X09B0
13 3000K 90 2462 2735 130 600 E L2C5-30901205X13B0
15 3000K 90 3676 4084 130 900 E L2C5-30901208X15B0
15 3000K 90 3780 4200 134 900 E L2C5-30901208X15B1
15 3000K 90 3879 4310 141 900 E L2C5-30901210X15B0
19 3000K 90 4959 5510 132 1200 E L2C5-30901211X19B0


Design Resources

  • Mechanical
    LUXEON CoB Core Pro

    LL ID File format Title Products Modified Size (MB)
    DRM1520 STEP
    LUXEON CoB 1208 STEP L2C5-xxxx1210x15xx
    03/18/2022 0.25
