What is LUXEON Neo?

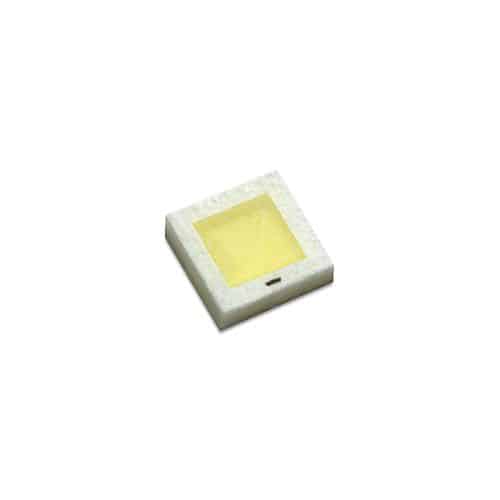

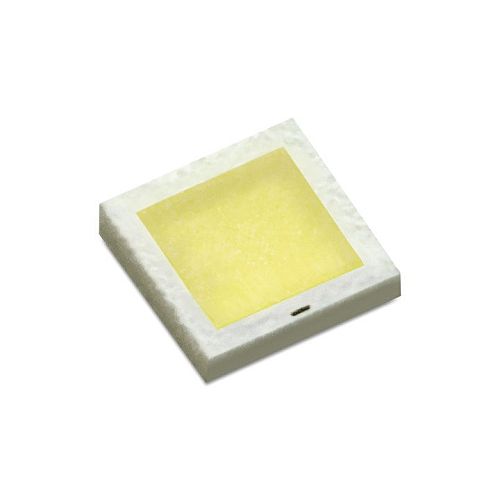

LUXEON Neo LEDs, with their miniaturized form factor and low mechanical tolerances, enable higher LED density on board, which are essential for matrix headlighting.

Benefits of LUXEON Neo:

  • The miniaturized package and low mechanical tolerances provide an ideal light source for matrix head-lighting
  • Low thermal resistance results in simplified thermal management
  • 2 die sizes provide flux and mechanical dimension flexibility

Key Features:

  • Low mechanical tolerances
  • Miniaturized package
  • Higher drive current capability
  • Binned at 85 °C, consistent with automotive operational environments

Products

COLOR
[DOMINANT WAVELENGTH]
PRODUCT TEST CURRENT (mA) MAX DC CURRENT (mA) TYPICAL FLUX (lm) PART NUMBER
Cool White Cool White LUXEON Neo 0.5 mm² CW 500 750 150 A1N1-58500BH00xxx0
Cool White Cool White LUXEON Neo 1 mm² CW 1000 1500 320 A1N1-58501DH00xxx0
PC Amber PC Amber  [591 nm] LUXEON Neo 1 mm² PCA 1000 1000 205 A1N1-05911DH00xxx0

Documentation

Design Resources

  • Optical
    LUXEON Neo

    LL ID File format Title Products Modified Size (MB)
    DRO6026 PDF
    LUXEON Neo 0.5mm² A1N1-58500BH001250
    A1N1-58500BH001300
    A1N1-58500BH001350
    A1N1-58500BH001400
    More Products
    A1N1-58500BH001450
    A1N1-58500BH001500
    A1N1-58500BH001550
    A1N1-58500BH001600
    A1N1-58500BH001650
    01/21/2022 0.42
    DRO6066 PDF
    LUXEON_Neo_1.mm2_CW A1N1-58501DH002900
    A1N1-58501DH003000
    A1N1-58501DH003100
    A1N1-58501DH003200
    More Products
    A1N1-58501DH003300
    A1N1-58501DH003400
    08/17/2022 1.40
    DRO6067 PDF
    LUXEON_Neo_1.mm2_PCA.pdf A1N1-05911DH001800
    A1N1-05911DH001900
    A1N1-05911DH002000
    A1N1-05911DH002100
    08/17/2022 1.33

Applications

  • Adaptive Lighting
  • High Beam
  • Low Beam
  • Front Turn
  • Rear Turn
  • Side Marker
  • Daytime Running Lights
