Mid/Low Power White LEDs

Lumileds offers mid power white LEDs and low power white LEDs in a full range of lumen and performance levels and packages—with proven LUXEON reliability. With our industry leading color quality, consistency and lumen maintenance, mid and low power white LEDs from Lumileds are an ideal choice for designers and manufacturers, especially of indoor area lighting and retrofit lamp applications.

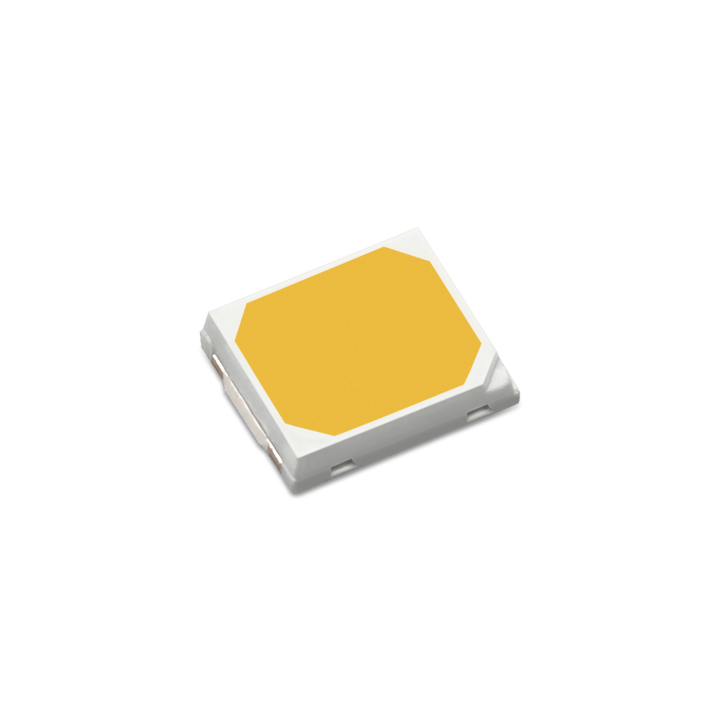

LUXEON 2835 Architectural

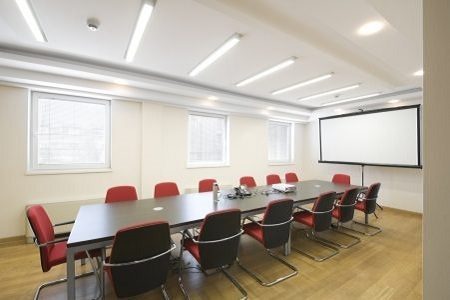

LUXEON 2835 Architectural mid-power LEDs deliver the color quality, consistency, efficacy, and longevity required for architectural lighting solutions. They feature an industry standard footprint and are available in a broad range of CCTs, CRIs and voltages to meet your specific needs. 1/9th micro bins as well as 2, 3, 4, and 5-step MacAdam ellipse options make LUXEON 2835 the most flexible and efficient system solution for projects in need of high lumen output and great efficacy.

LUXEON 2835 Architectural is a superior overall system solution for projects in need of excellent quality of light, high lumen output, and high efficacy.

  • Various configurations of voltage and die count to meet a wide range of application requirements
  • Industry standard footprint for drop-in replacement designs
  • Maximum drive current of up to 240mA allows for reduction of LED count
  • 6V and 9V hot-color targeting and 1/9th micro-color binning enable tight color control
  • 3-, 4- and 5-step MacAdam ellipse color kits available

LUXEON 2835 Commercial

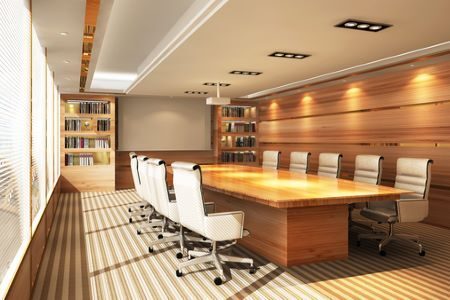

LUXEON 2835 Commercial mid-power LEDs are the price/performance leader for commercial indoor lighting solutions when lumens per Watt and lumens per dollar are the driving metrics for development. They are available in CCTs from 2700K to 6500K and CRIs of 80 and 90. LUXEON 2835 Commercial has a max current rating of 200mA and features a 1/5th color bin structure making it a perfect choice for indoor applications where you want the quality and reliability of LUXEON in a commercial application. LUXEON 2835 Commercial leads its class in flux, color consistency, robustness, and reliability making it the right choice for commercial indoor luminaires.

  • Complete CCT/CRI offering for various application
  • Industry standard footprint for drop-in replacement
  • Reliable package design for commercial applications
  • 3 and 5 SDCM MacAdam ellipse enable precise color control and flexibility

LUXEON 2835 Commercial Deep Dimming

LUXEON 2835 Commercial Deep Dimming delivers the industry’s most cost effective of standard 2835 package.  It is specially designed for dimming applications which require enormously uniform light output throughout rated and deep dimming operating conditions. This innovative product enables not only top-notch lm/W performance and long lifetime, but also 0.05 VF range by default for end applications. Utmost, this product leads its class in flux, color consistency, robustness, and reliability making it the right choice for commercial indoor luminaires. Utmost, this product leads its class in flux, color consistency, robustness, and reliability making it the right choice for commercial indoor luminaires.

– Dedicated deep dimming bin achieves best-in-class dimming effects at 1% dimming current.
– 05 VF range by default, free customer from complex driver compatibility design.
– Industry standard footprint for drop-in replacement designs.
– Complete CCT/CRI offering for various application.
– Reliable package design for commercial applications that prioritize lumens per Dollar and lumens per Watt.
– 3 & 5-step MacAdam ellipses enable precise color control.



LUXEON 2835 with CrispColor Technology

LUXEON 2835 with CrispColor Technology is the ultimate retail LED solution that makes fabrics come to life. With efficient solid state lighting technology, the contrast of colors has never been so vivid. Our special LED phosphor technology results in a higher color gamut than other solutions and it has a specific color point below the Black Body Line to allow for Class A products. LUXEON 2835 with CrispColor Technology retail LEDs create a highly impactful experience.

  • Industry standard footprint for drop-in replacement designs
  • Maximum drive current of up to 240mA allows for reduction of LED count
  • 3- and 5-step MacAdam ellipse color kits available
Halogen is a type of incandescent light known for good color rendering; however, recent trends in store designs demand cooler/whiter solutions with greater contrast. CrispColor Technology has high color gamut, which enables richer colors and increased contrast.

LUXEON 2835 with FreshFocus Technology

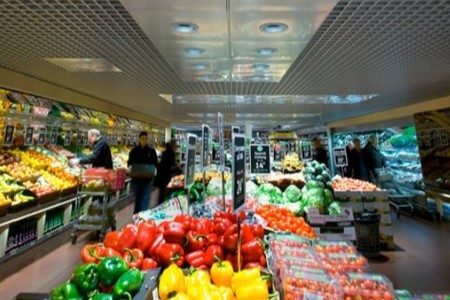

LUXEON 2835 with FreshFocus Technology LEDs create impactful lighting by accentuating the freshness and overall visual appeal of a variety of fresh food in supermarkets, delis, butcher shops and bakeries. These LEDs for food display bring out reds for greater visual appeal to meat; increases the appetite appeal of bread and pastries; exhibits the most natural and attractive fish; and emphasizes the “just picked” appearance for produce.

LUXEON 3014

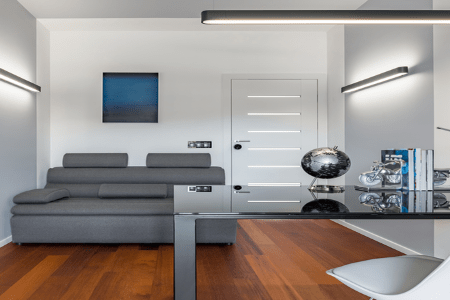

LUXEON 3014 is an industry standard compatible footprint for ease of installation into existing 3014 sockets and stays consistent with a 3.0mm x 1.4mm x 0.75mm package. LUXEON 3014 is hot-color targeted at operating conditions — 65°C. This low power device is an ideal choice when uniformity and reduction in spottiness is necessary for indoor designs.

  • Industry standard footprint and package offering compatibility with existing designs
  • 1/9th ANSI micro-color binning enables tight color control
  • Hot-color targeted at 65°C which leads to better color accuracy
  • Rectangular package design allows for increased uniformity
  • Drive at max current for superior value

LUXEON 3014 with FreshFocus Technology

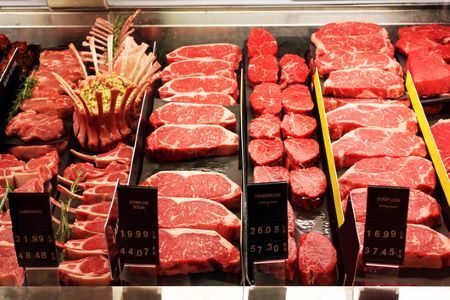

The LUXEON 3014 with FreshFocus Technology creates the most impactful lighting ever available by accentuating the freshness and overall visual appeal of a variety of fresh food areas such as supermarkets, delis, butcher shops and bakeries. LUXEON 3014 with FreshFocus Technology LEDs are an industry standard 3.0mm x 1.4mm x 0.75mm footprint. These LEDs for marbled meats and other foods offer a specialized color and spectrum designed to highlight the colors of different foods.

LUXEON 3020

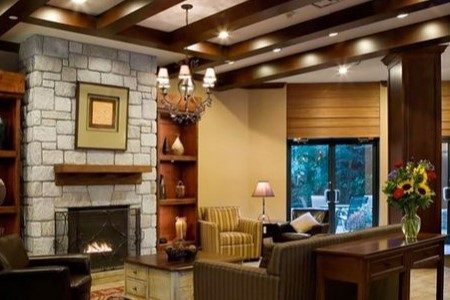

LUXEON 3020 is the first and only hot-color targeted EMC-based 3.0mm x 2.0mm QFN, delivering superior efficacy with superior lumen maintenance and assurance of ANSI color compliance at operating conditions — 85°C. Lumileds enables mass production of affordable and reliable bulbs and lamps by simplifying system designs and integration with leading lm/$ and hot-color targeting.

  • High efficacy delivers superior lumen maintenance
  • Reliable QFN EMC package delivers superior thermal properties and reliability
  • 1/9th ANSI micro-color binning enables tight color control
  • Hot-color targeted at 85°C which leads to better color accuracy
  • Drive at max current for superior value

LUXEON 3030 2D

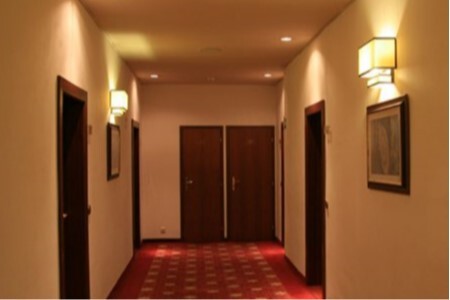

LUXEON 3030 2D is the first hot-color targeted mid power LED. Hot-color targeting ensures that the LEDs are within color target at application conditions — 85°C. Using an industry standard packaging of 3.0mm x 3.0mm x 0.5mm and 6V surface-mount emitter solution, LUXEON 3030 2D comes in all ANSI CCTs and delivers the efficacy and reliability required for indoor illumination markets.

  • Industry standard package enables drop-in replacement for existing 3030 packages
  • 1/9th micro-color binning enables tight color control
  • Superior luminous flux at max current from reduced LED count
  • Hot-color targeting ensures that color is within ANSI bin at typical application conditions, 85°C
  • Enables 3, 4, 5-step MacAdam ellipse kits

LUXEON 3030 HE

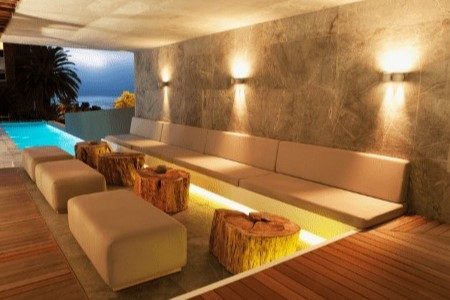

LUXEON 3030 HE and HE Plus are superior, high efficacy, mid power packages. They serve as go-to solutions for various indoor and outdoor fixture applications that require top notch lm/W performance and long lifetime. Both LUXEON 3030 HE and HE Plus LEDs adopt quadrant bin structures within 3 SDCM which enables 2 SDCM by kitting.

  • Broadband white light with less than 2% blue content – NightScape Technology
  • Superior high efficacy at rated current enables outstanding lm/W at system level
  • Reliable package design from a proven product line affirms long application lifetime
  • Quadrant bin structure within 3 SDCM enables 2 SDCM by kitting
  • Industry standard package allows drop-in replacement for existing 3030 packages
  • Robust coating design for enhanced sulfur protection capability (LUXEON 3030 HE Plus)

LUXEON 3030 HE Plus Deep Dimming

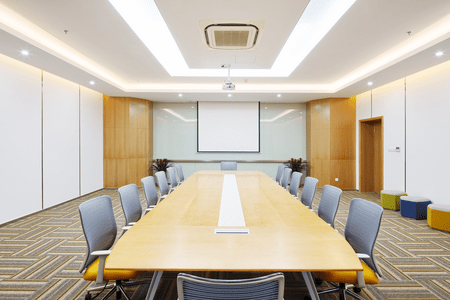

LUXEON 3030 HE Plus – Deep Dimming is superior high efficacy, mid power package built on the legacy of the LUXEON 3030 product line. It is specially designed for dimming applications which require extremely uniform light output throughout rated and deep dimming operating conditions. This innovative product enables not only top notch lm/W performance and long lifetime, but also pure 3 SDCM color bin and 0.1 Vf width by default for end applications.

– Dedicated deep dimming bin achieves best-of-class dimming effects
– 3 SDCM color bin by default, eliminate customer concern on color consistency
– 0.1 Vf width by default, free customer from complex driver compatibility design
– Superior high efficacy at rated current enables outstanding lm/W at system level
– Reliable package design from a proven product line affirms long lifetime for end application
– Industry standard package allows drop-in replacement for existing 3030 packages



LUXEON 3030 HV

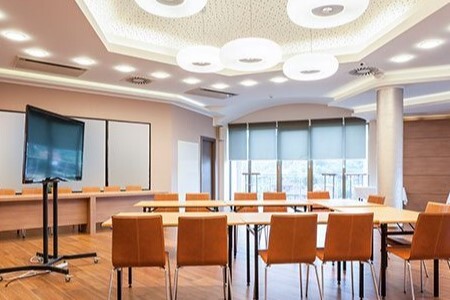

LUXEON 3030 HV is an industry standard package to optimize total voltage output, available in 24V and 48V. This high voltage at low current architecture allows system design freedom and is compatible with more efficient and cost effective drivers. This mid power LED is 1/9th micro-color binned for tight color control and hot-color targeted to ensure that the LEDs are within color target at application conditions—85°C. LUXEON 3030 HV delivers efficacy and reliability for a variety of applications such as downlights, lamps and spotlights.

  • High voltage at low current, compatible with more efficient and cost effective drivers
  • 24V and 48V options available to optimize total voltage output
  • 1/9th micro color binning and 85°C hot color targeting enables tight color control
  • EMC based package affirms lumen maintenance and long lifetime

LUXEON 3535L Line

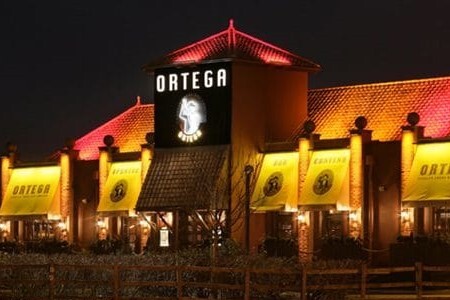

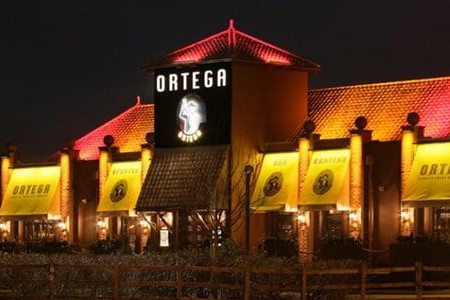

The LUXEON 3535L Line boasts the efficacy and reliability required by the indoor and outdoor illumination markets. It delivers optimized performance in combination with the Quality of Light needed for distributed light source applications in four performance levels.

In addition to offering specified correlated color temperature and color rendering combinations, LUXEON 3535L Line is available in four products:
LUXEON 3535LS – Entry Flux and Efficacy
LUXEON 3535L – Medium Flux and Efficacy
LUXEON 3535L HE – High Flux and Efficacy
LUXEON 3535L HE Plus – High Flux and Highest Efficacy

  • Supports ENERGY STAR lumen maintenance certification requirements
  • Maximum drive current of 200mA delivers superior lumens for reduced LED count
  • 1/7th ANSI color binning delivers tight color control
  • Enables Ts points of 105°C, which allows for higher board temperature
  • Full range of CCTs and CRI configurations for design flexibility
  • UL-recognized component [E352519]
