Standardized LED solutions for cost-effective automotive lighting

We offer a large range of regulated and standardized LED bulbs and modules for automotive lighting applications. Reliable, powerful and yet compact, LUXEON LxN standard modules give you the design freedom you need to meet current styling needs.

Our standard interfaces mean there is a minimal effort in the design phase. You can also build and roll out units faster, and the cost to do so is much lower.

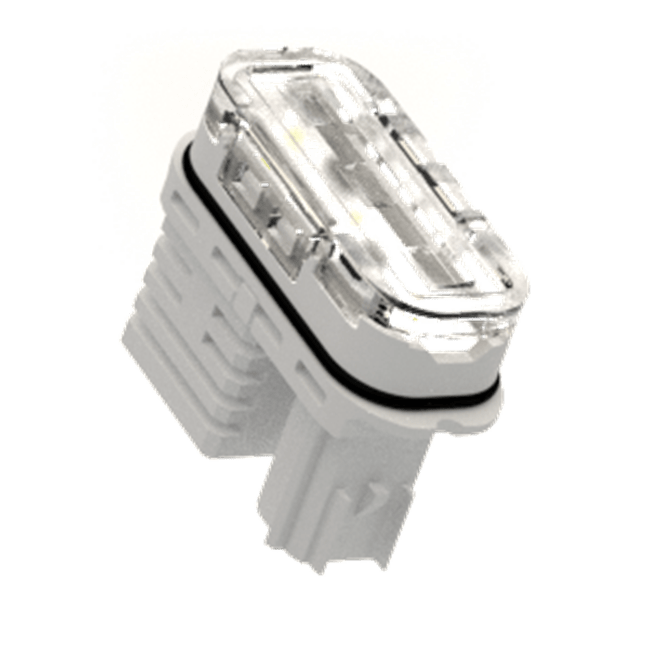

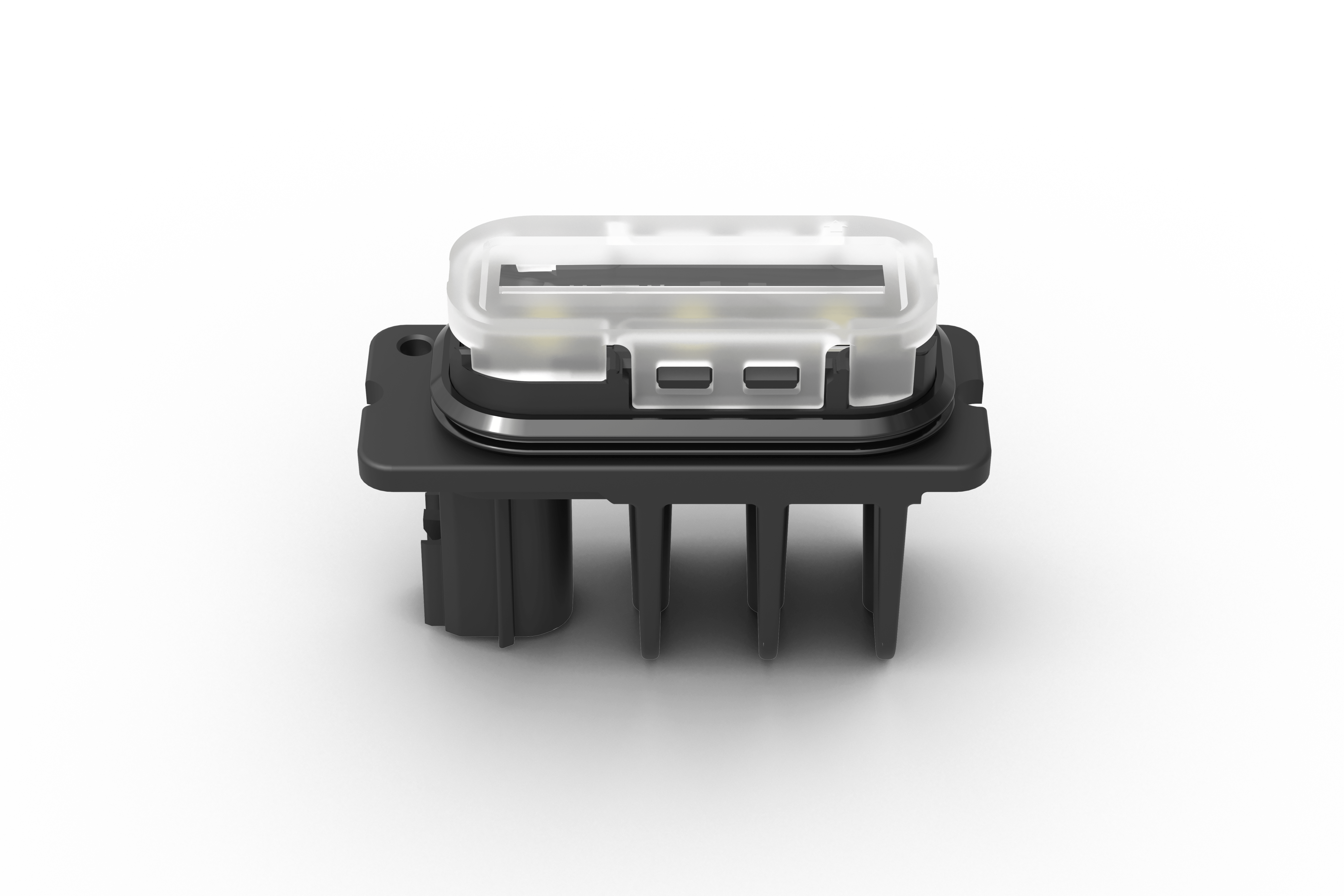

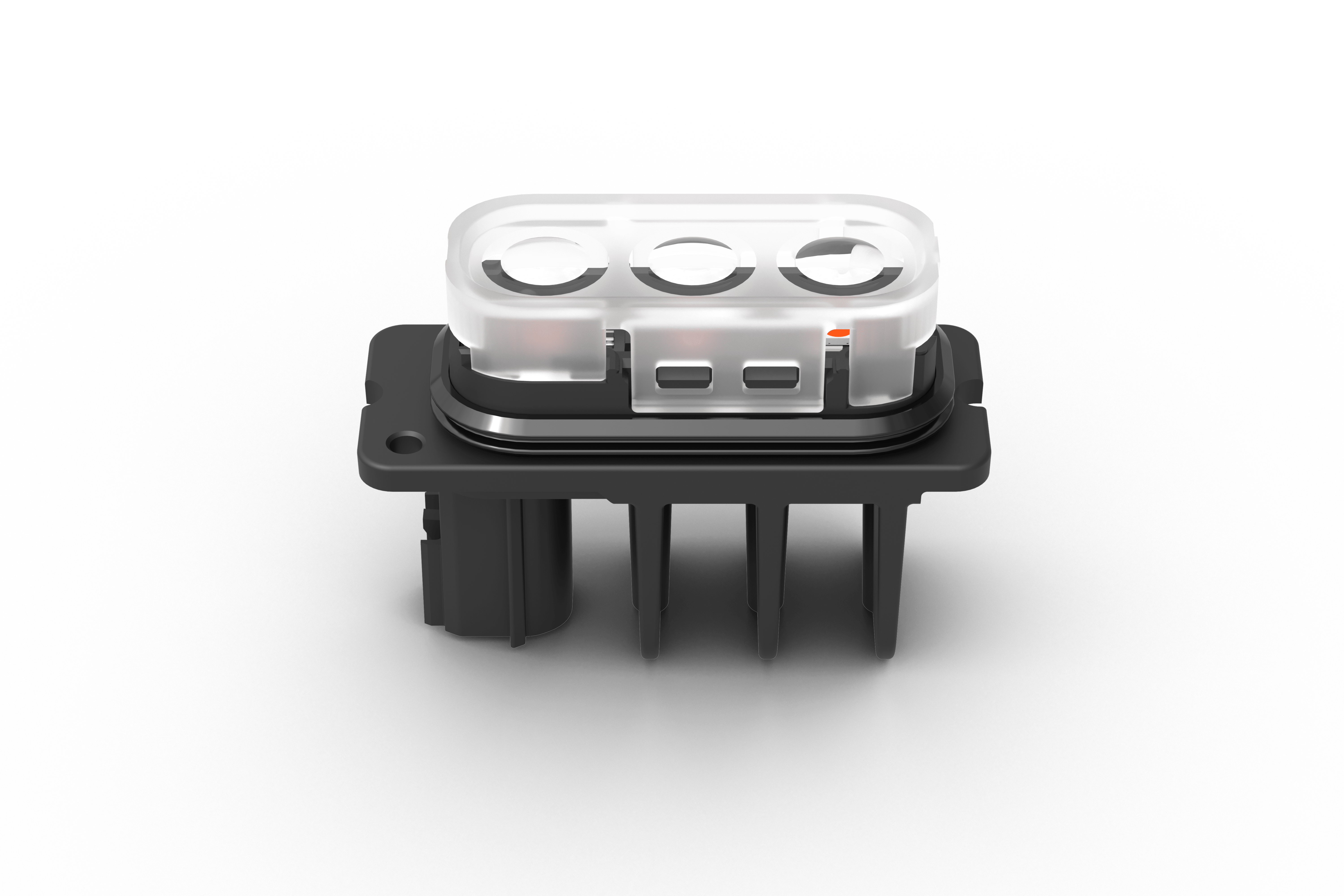

REAR FOG AND BACKUP MODULES: STANDARDIZED MODULES FOR REAR FOG AND REVERSE FUNCTION

  • Standard modules for rear fog and backup functions, meeting ECE R38 and ECE R23 with minimal design effort
  • Easy mechanical integration into your rear combination lamps or bumper leading to a fully sealed solution
  • Same mechanical footprint between modules for an easy adaptation to different hand drive sides
  • No electronic drivers required for direct operation on board net
  • Standalone in thermal management
  • Industry standard connector types

Standardized Modules

Rear Fog ModuleBackup Module
FunctionRear FogBack-Up Light
Luminous Flux (lm)ECE R38ECE R23
Voltage Range (V)9 – 169 – 16
Typ. Power Consumption (W)1.9 (RF75) 1.5 (RF92)2.5
Ambient Temperature-40 °C to 85 °C-40 °C to 85 °C
