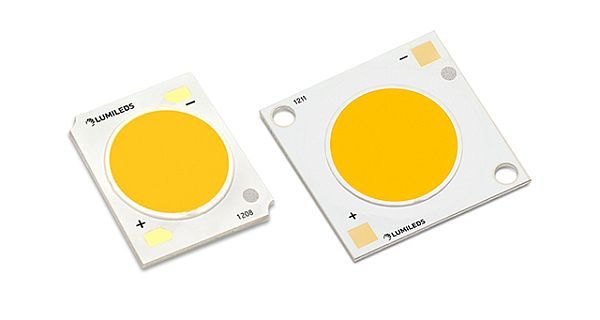

The LUXEON CoB with FreshFocus Technology creates the most impactful lighting ever available by accentuating the freshness and overall visual appeal of a variety of fresh food areas such as supermarkets, delis, butcher shops and bakeries.

LUXEON CoB with FreshFocus Technology brings out reds for greater visual appeal to meat; increases the appetite appeal of bread and pastries; exhibits the most natural and attractive fish and emphasizes the “just picked” appearance for produce (fruits and vegetables).

LUXEON CoB with FreshFocus Technology and EU Ecodesign: Please consult the product datasheet for details including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019 / 2015. LUXEON CoB with FreshFocus Technology part numbers are in energy efficiency classes E and F.

Features & Benefits

  • Highest flux densities with industry’s smallest Light Emitting Surface (LES)
  • 3-step MacAdam ellipse color definition: Freedom from Binning for color consistency from luminaire to luminaire
  • Up to 4x lower thermal resistance than competition, enabling smaller heatsinks and higher lumens
  • Supported by a comprehensive optical, mechanical and electrical ecosystem
  • CoB LED package
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

LUXEON CoB with FreshFocus Technology product performance at specified test current, Tj=85°C.

Spectrum Product Luminous
Flux (lm)
Typical Luminous Efficacy (lm/W) Test
Current
(mA)
LES (mm) Part Number
Minimum Typical

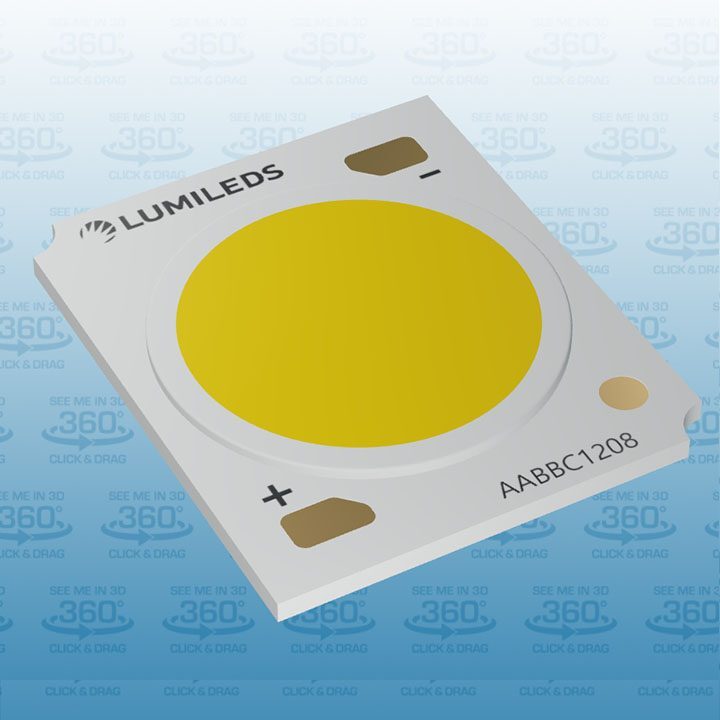

Produce LUXEON CoB 1208 3056 3396 108 900 15 L2C5-PR001208E1500
LUXEON CoB 1211 4032 4480 107 1200 19 L2C5-PR001211E1900
Red Meat LUXEON CoB 1208 2196 2440 78 900 15 L2C5-RM001208E1500
LUXEON CoB 1211 2920 3244 78 1200 19 L2C5-RM001211E1900
Marbled Meat LUXEON CoB 1208 2905 2328 74 900 15 L2C5-MM001208E1500
LUXEON CoB 1211 2803 3114 75 1200 19 L2C5-MM001211E1900
Fish LUXEON CoB 1208 3519 3910 125 900 15 L2C5-FS001208E1500
LUXEON CoB 1211 4847 5386 129 1200 19 L2C5-FS001211E1900
Bread & Pastries LUXEON CoB 1208 3337 3708 118 900 15 L2C5-BD001208E1500
LUXEON CoB 1211 4481 4979 119 1200 19 L2C5-BD001211E1900
