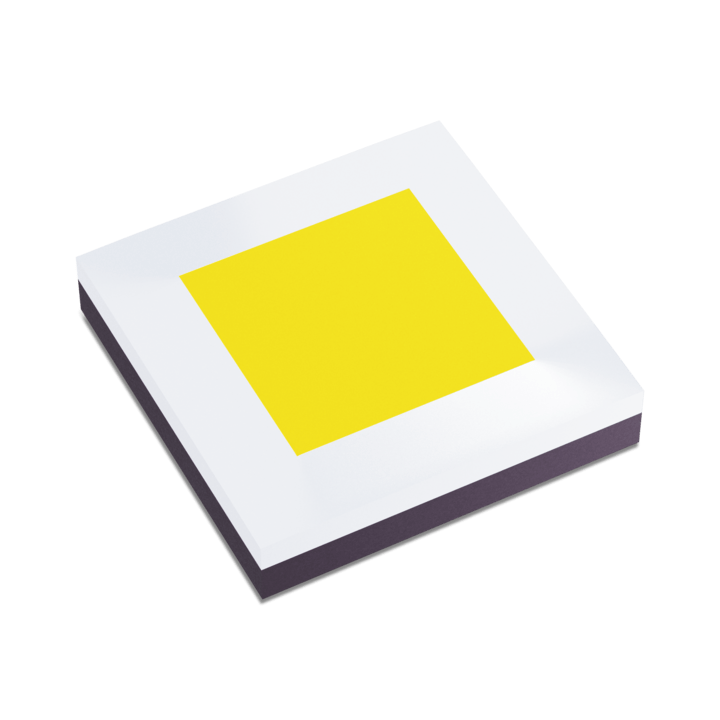

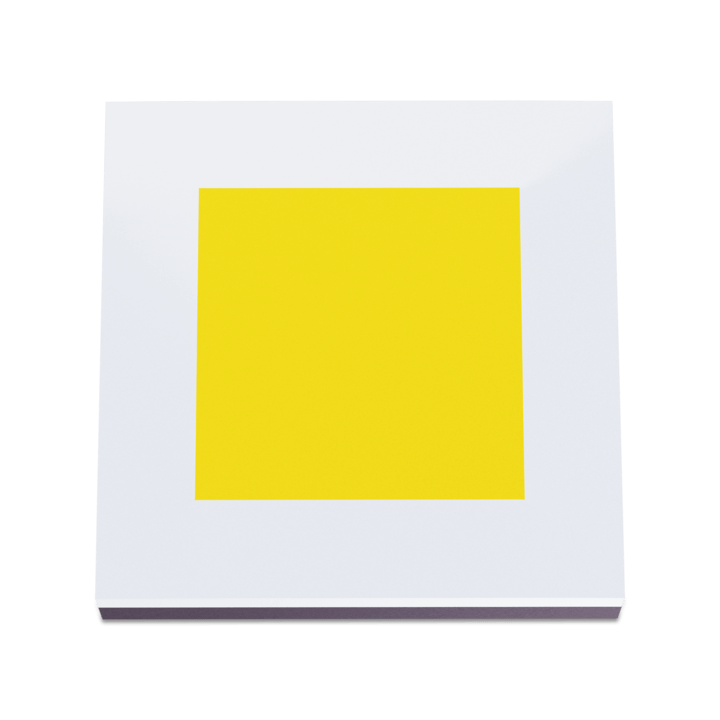

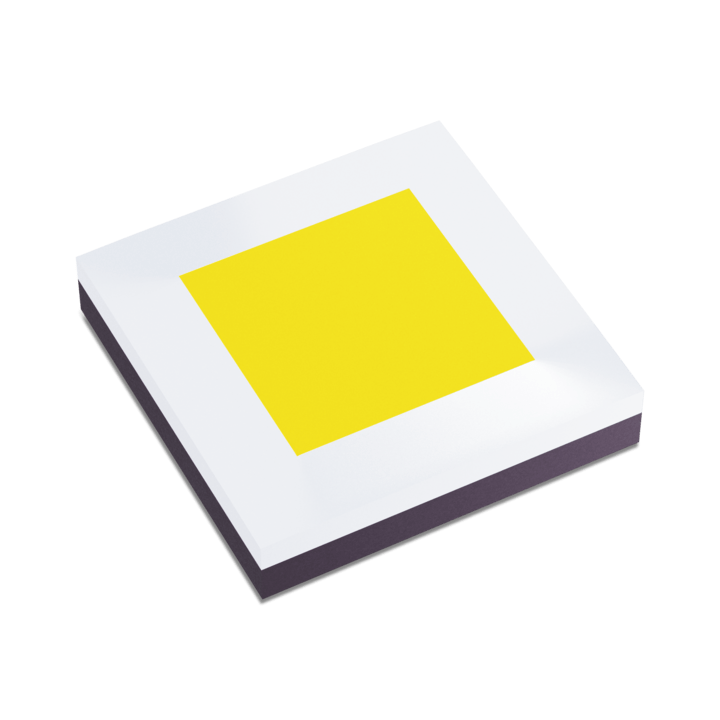

LUXEON HL4Z is a specially designed high-power undomed emitter suitable for outdoor and industrial applications like stadium lights, streetlights, and high bay luminaires.

LUXEON HL4Z provides maximum lumen outputs and overall system efficacy in an industry-standard 3535 package with a 3-stripe footprint.  With plenty of light coming from a small LES device and flexibility of optical control, it is perfect for fixture designs need high flux density and precision light controls.

Features & Benefits

  • Industry standard 3535 package with a 3-stripe footprint, offers the flexibility of design and ease of use and enables faster design-in/time to market
  • Meets or exceeds requirements for applications that require maximum light output, excellent efficacy, superior color consistency, and reliability you can count on, such as stadium lighting, floodlighting, etc…
  • Highest lumens per emitter on smallest LES , enable the system design with the highest lumen density
  • Package design enables solutions to minimize energy use and generated heat
  • High drive current enables output to be maximized and LED count minimized.
  • Large thermal pad allows high drive currents and makes it possible to create close-packed LED clusters
  • Full range of reliability testing, with LM-80 in progress. Peace of mind with a proven, robust package designed for outdoor and indoor/industrial use
  • Multiple CCT-CRI offerings (CCT:2200K-6500K / 70,80,90CRI)
Expand Media


    • Outdoor High Mast

    • Floodlights

    • Spotlights

    • High Bay

    • Low Bay

    • Torch

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON HL4Z at 1400mA, Tj=85°C.

Luminous Flux (lm) Typical
Efficacy (lm/W)
Part Number
Minimum Typical
3000K -40 70 560 600 149 L1HZ-3070400000000
4000K -40 70 585 626 155 L1HZ-4070400000000
5000K -40 70 590 630 156 L1HZ-5070400000000
5700K -40 70 595 635 157 L1HZ-5770400000000
6500K -40 70 595 635 157 L1HZ-6570400000000
3000K 0 80 475 517 128 L1HZ-3080400000000
4000K 0 80 510 550 136 L1HZ-4080400000000
5000K 0 80 520 560 139 L1HZ-5080400000000
5700K 0 80 525 565 140 L1HZ-5780400000000
3000K 50 90 395 440 109 L1HZ-3090400000000
4000K 50 90 405 450 112 L1HZ-4090400000000
5000K 50 90 415 470 117 L1HZ-5090400000000
5700K 50 90 470 514 127 L1HZ-5790400000000
