LUXEON CX Plus CoB – High Density (Below BBL)

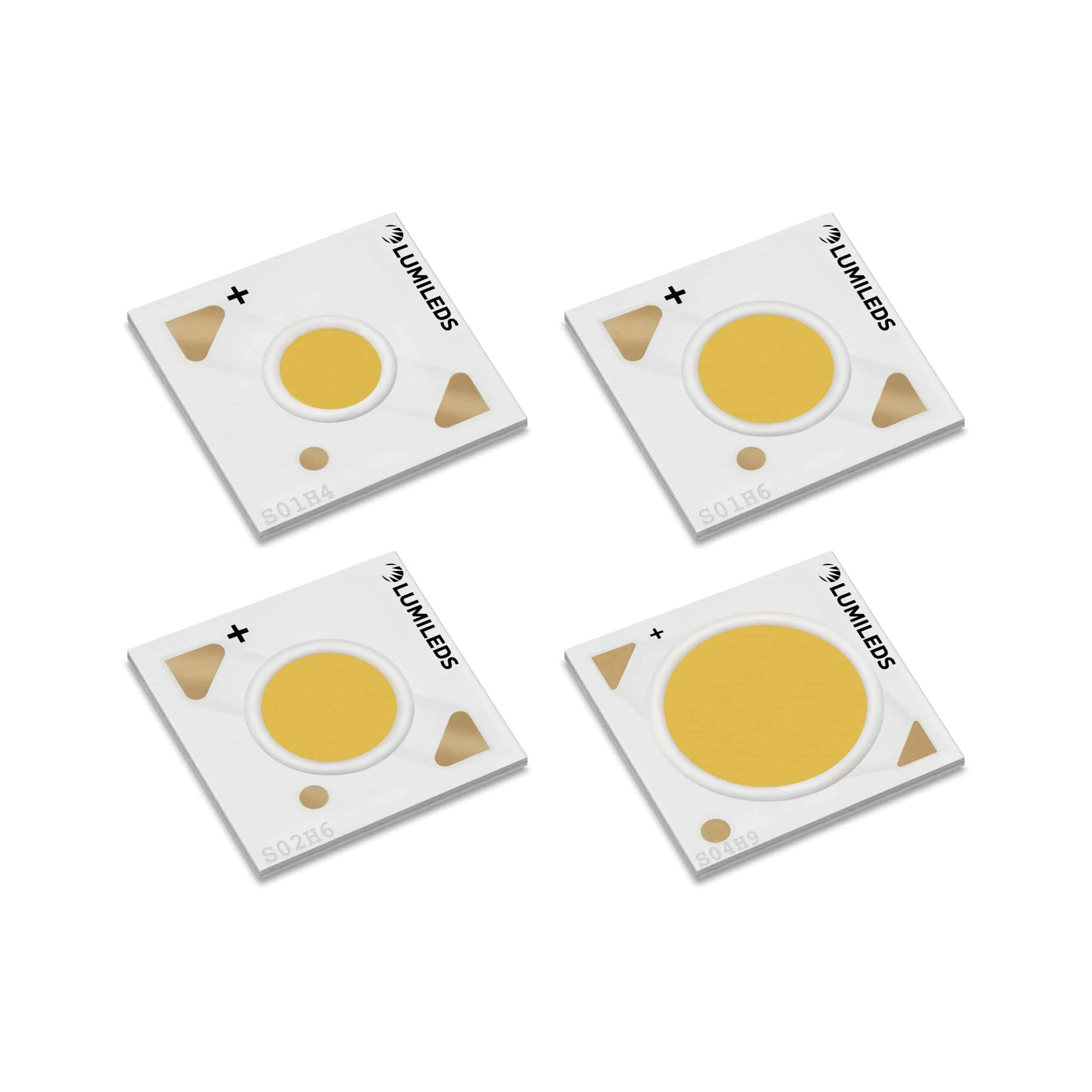

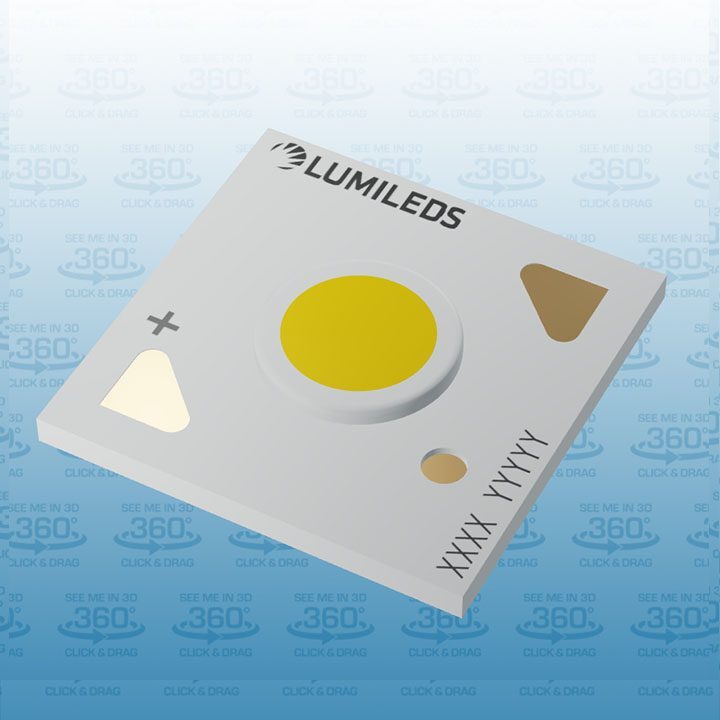

LUXEON CX Plus CoB – High Density (Below BBL) creates remarkable and impressive white color at 95CRI, 2- and 3-step MacAdam ellipse Below Black Body Line. Using the same mechanical dimensions as LUXEON CX Plus CoB – High Density, Light Emitting Surfaces of 4.5mm, 6mm, and 9mm, and an industry standard footprint of 13.35mm x 13.35mm, LUXEON CX Plus CoB – High Density (Below BBL) benefits from an e xisting ecosystem allowing immediate and effortless upgrades to a premium luminaire design.

LUXEON CX Plus CoB – High Density (Below BBL) and EU Ecodesign: Please consult the product datasheet for details including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019/2015. LUXEON CX Plus CoB – High Density (Below BBL) are in energy efficiency classes F and G.

Product performance of LUXEON CX Plus CoB – High Density (Below BBL) at specified test current, Tj=85°C.

Product Nominal
CCT
Minimum
CRI
Luminous Flux (lm) Typical
Luminous
Efficacy
(lm/W)
Test
Current
(mA)
LES
(mm)
Part Number
Minimum Typical
LUXEON
CX Plus
CoB – HD
S02H4
2700K 95 508 552 89 175 4.5 L2C4-2795xS02F04B0
3000K 95 540 587 94 175 4.5 L2C4-3095xS02F04B0
3500K 95 558 606 98 175 4.5 L2C4-3595xS02F04B0
4000K 95 578 628 101 175 4.5 L2C4-4095xS02F04B0
LUXEON
CX Plus
CoB – HD
S02H6L
2700K 95 532 578 93 175 6.0 L2C4-2795xS02FH6B0
3000K 95 564 613 99 175 6.0 L2C4-3095xS02FH6B0
3500K 95 588 639 103 175 6.0 L2C4-3595xS02FH6B0
4000K 95 609 662 107 175 6.0 L2C4-4095xS02FH6B0
LUXEON
CX Plus
CoB – HD
S02H6
2700K 95 1053 1145 87 350 6.0 L2C4-2795xS02F06B0
3000K 95 1104 1200 91 350 6.0 L2C4-3095xS02F06B0
3500K 95 1141 1240 94 350 6.0 L2C4-3595xS02F06B0
4000K 95 1182 1285 98 350 6.0 L2C4-4095xS02F06B0
LUXEON
CX Plus
CoB – HD
S04H9
2700K 95 2171 2360 90 700 9.0 L2C4-2795xS04F09B0
3000K 95 2309 2510 96 700 9.0 L2C4-3095xS04F09B0
3500K 95 2392 2600 99 700 9.0 L2C4-3595xS04F09B0
4000K 95 2484 2700 103 700 9.0 L2C4-4095xS04F09B0

Documentation

Design Resources

How to Buy

Features & Benefits

  • Industry’s smallest Light Emitting Surfaces (LES) for highest lumen densities at 95CRI
  • An immediate, effortless upgrade to existing designs using legacy CoBs with a square footprint
  • 2- and 3-step MacAdam ellipse ensuring color consistency from luminaire to luminaire
