Illumination
A comprehensive portfolio of application optimized LUXEON LEDs and the infinitely configurable Matrix Platform.
Explore illumination >Explore Our Lighting Solutions
LUXEON 2835 ArchitecturalDesigned for demanding indoor applications. 1/9th micro bins 2, 3, 4, and 5-step SDCM, 3V, 6V, 9V options and full CCT and CRI options.- LUXEON 2835 CommercialDesigned to be the price/performance leader for commercial indoor lighting solutions when lumens per Watt and lumens per dollar are the driving metrics for development.
- LUXEON 2835 Commercial Deep DimmingThe mid-power product with Deep Dimming capability ensures that your fixtures and installations remain uniform when dimming the current levels to 1% of the typical current or less.
- LUXEON 2835 Commercial Visual ConsistencyWith broad CCT/CRI options, tight 3-step SDCM, single VF bins, and Deep Dimming capability below 10%, it delivers premium light quality and exceptional visual consistency for commercial and architectural applications.
- LUXEON 2835 with CrispColor TechnologyThe perfect 2835 mid-power LED for fashion retail lighting highlighting rich color and increasing contrast. CrispColor technology brings fabrics and textures to life.
- LUXEON 2835 with FreshFocus TechnologyBring out reds for greater visual appeal to meat, or breads and pastries. Emphasizes the natural colors of fish and gives that “just picked” appearance to produce.
- LUXEON 3014Compact package: 3.0mm x 1.4mm x 0.7mm—is ideal for achieving uniform light output where space is limited. Hot-color targeted at a junction temperature of 65°C.
- LUXEON 3014 with FreshFocus TechnologyCompact package: 3.0mm x 1.4mm x 0.7mm. FreshFocus Technology spectrum highlights food items.
- LUXEON 3020Hot-color targeted EMC-based 3.0mm x 2.0mm package, delivers superior efficacy, lumen maintenance, and assurance of ANSI color compliance at operating conditions of 85°C.
- LUXEON 3030 2DThis high flux, hot-color targeted to ensure color performance at application conditions of 85°C. 120mA, 6V surface-mount emitter solution.
- LUXEON 3030 2D PlusExceptional luminous efficacy and cost efficiency within a robust 3030 6V package, and designed for outdoor and industrial lighting applications
- LUXEON 3030 HEThis go-to 3030 mid-power package delivers high flux and efficacy with proven robustness for linear and horticutural applications.
- LUXEON 3030 HE PlusIndustry leading performance in 3030 3V package. The go-to solution when top flux and efficacy are required. Designed for indoor and outdoor with full CRI and CCT coverage and able to kit to 2 SDCM.
- LUXEON 3030 HE Plus Deep DimmingFor dimming applications that require extremely uniform light output while dimming. Top notch lm/W performance, lifetime, and pure 3 SDCM color bin with 0.1 Vf width.
- LUXEON 3030 HVHigh voltage, low current package compatible with more efficient and cost effective drivers. 1/9th micro-color binned for tight color control and hot-color targeted - 85°C.
- LUXEON 3535L LineBroad flux and efficacy combinations and with full CCT and CRI options and a max drive of 200mA. Supports EnergyStar and DLC. 1/7th ANSI color binning delivers tight color control.
- LUXEON HL1ZOffers high flux density performance in a compact footprint, enabling elegant and superior luminaire designs
- LUXEON RebelProven reliable, 4530 high-power LED that gives you the design flexibility and performance you need
- LUXEON Rebel PLUSProven reliable, hot-tested at 85C, this 4530 high-power LED offers color consistency at 80CRI for a range of CCTs.
- LUXEON ZAt 1.3mm x 1.7mm, it is perfect for use in close-packed applications requiring an undomed solution. Performance specified at 500mA and Tj=85°C
- LUXEON ZAt 1.3mm x 1.7mm, it is perfect for use in close-packed applications requiring an undomed solution. Performance specified at 500mA and Tj=85°C
- LUXEON ZAt 1.3mm x 1.7mm, it is perfect for use in close-packed applications requiring an undomed solution. Performance specified at 500mA and Tj=85°C
- LUXEON HL2XThis high-power, domed emitter for outdoor and industrial applications. Standard 3535 package with 3-stripe footprint delivers superior output, efficacy, and color stability.
- LUXEON HL2Z2mm square CSP-based, high power, un-domed emitter designed to provide leading flux density, superior color consistency, high luminance, and extreme flexibility in lighting solutions.
- LUXEON Rebel ESTested and binned at 700mA, this high-power package is more efficient for 4100K and 5650K applications.
- LUXEON Z ESExtreme flux density in a micro footprint package for precise optical control. Product performance at 700mA and 350mA, Tj=85°C.
- LUXEON TXSpecified, targeted and tested hot, at 85°C, to ensure in-application performance. 3 and 5 Step Freedom from Binning , 70, 80 and 90 CRI. Max current of 1.5A.
- LUXEON TXSpecified, targeted and tested hot, at 85°C, to ensure in-application performance. 3 and 5 Step Freedom from Binning , 70, 80 and 90 CRI. Max current of 1.5A.
- LUXEON HL4XA high-power directional emitter designed for outdoor and industrial applications with maximized lumen output and ability to sustain maximum drive current at 4A.
- LUXEON HL4ZA high-power, high-luminance emitter that delivers industry leading efficacy of 157lm/W and lumen output 635lm (typical) from a 2.16mmx2.16mm light emitting surface in a standard 3535 undomed package.
- LUXEON 5050Multi-die high power package with extreme robust package design and efficacy of 200 lm/W. 70-80-90 CRI, hot color targeted and available in Round (6V, 24V), Square (6V, 30V), and HE/HE Plus (6V, 24V) versions with Industrial standard 5050 footprint.
- LUXEON V4mm x 4mm footprint offers unique combination of high efficacy at high drive current with very low thermal resistance. Product performance at 1400mA, Tj=85°C
- LUXEON V4mm x 4mm footprint offers unique combination of high efficacy at high drive current with very low thermal resistance. Product performance at 1400mA, Tj=85°C
- LUXEON MXDelivers efficacy up to 157 lm/W and optically compatible with LUXEON M. Product performance at 700mA and 1400mA, Tj=85°C. 70-80-90CRI, 6V and 12V.
- LUXEON MZUndomed for tighter beam control and higher punch with identical solder footprint to LUXEON M. Product performance at 700mA and 1400mA, Tj=85°C. 70-80-90CRI, 3V, 6V and 12V.
- LUXEON 7070Exceptionally robust with output >1400lm and efficacy > 180 lm/W. Hot tested, 70-80-90CRI and a full range of CCTs. Performance at 700mA, Tj=25°C Flux and Tj=85°C for R9 and CRI
- LUXEON HL1Z Color Line & FusionA CSP LEDs that support high output with low current. The small package size of 1414 helps with design in a solution for a constrained space.
- LUXEON C ES Color LineDesign powerful, complex multi-color arrays with minimal LED-to-LED spacing
- LUXEON C Color LineDesigned for flawless color mixing with a single focal length. 14 colors plus white CCTs 2200K to 6500K and 70 to 90 CRI.
- LUXEON CZ Color LineUndomed 2.0mm x 2.0mm package for maximum flexibility and color mixing . 14 colors plus white CCTs 2200K to 5700K and 70 to 90 CRI.
- LUXEON CZ ES Color LineHigh-power color LEDs with 2mm² die on a ceramic base. Undomed design for close-proximity optics and mixing rods.
- LUXEON RubixHigh drive, up to 1.6A, in a tiny, undomed 1414 package is the ultimate choice for flexibility and punch in color applications. 7 different colors plus white.
- LUXEON Z Color Line2.2mm2, undomed compact design. 10 colors from deep red to royal blue. Performance tested at 500mA,Tj=25°C and Tj=85°C
- LUXEON Rebel Color LineIdeal for a wide variety of lighting, signaling, signage, and entertainment applications. 10 colors in a proven 350mA package.
- LUXEON 3535L Color LineSeven colors in a standard 3535 package tested at 100mA, Tj=25°C. Same focal length as LUXEON Rebel and LUXEON Z.
- LUXEON 2835 Color Line13 colors plus 3 whites in an efficient 2835 mid-power package. Perfect for a wide range of indoor and outdoor applications.
- LUXEON 3528This slim package is only 1.75mm high, can manage 0.5W of power, and has an IPX8 water resistance rating. The white package is suitable for indoor and outdoor applications.
- LUXEON 5052 RGBWMake color tuning easier with this 4-in-1 RGBW package. Choose Blue or Royal Blue and a white with CCT from 2200K to 6500K. Product performance tested at 120mA,Tj=25°C.
- LUXEON SunPlus 20 LineThe 2.0mm2 package is available in Far Red, Deep Red, Royal Blue, Lime, and Cool White with viewing angles of 120° and 150°. Product performance is at 350mA, Tj=85°C.
- LUXEON SunPlus 2835 LineBinned and tested based on Photosynthetic Photon Flux (PPF) color options include Purple (2.5% to 25% Blue), Horticulture White, Far Red, Deep Red, Royal Blue, and Lime.
- LUXEON SunPlus 35 LineBinned and tested based on Photosynthetic Photon Flux (PPF) color options include Purple (2.5% to 25% Blue), and Lime. Product performance is at 100mA, Tj=25°C.
- LUXEON SunPlus CoB LineLUXEON SunPlus CoB Line includes three different LES sizes: 15mm, 19mm, and 32mm. Available in Purple (12.5% Blue) and Rose. Typ. PPF (
μmol/s) in PAR (400 to 700nm) is 53 to 200. - LUXEON SunPlus HPEWith an industry-standard footprint of 3.5mm x 3.5mm, LUXEON SunPlus HPE is a deep red High Power LED with a peak wavelength of 660nm, the best in class performance and efficacy for horticulture applications.
- LUXEON SunPlus 3030Widely available, this top performing broad-spectrum white light delivers top rated μmol/J and PPF (μmol/s) performance and long lifetime with CCTs ranging from 2200K to 6500K.
- LUXEON SunPlus 5050Four versions, Round, Square, HE and HE Plus, 6-30V options, and a package designed for harsh environments make this a perfect choice for horticulture applications.
- LUXEON CoB Core RangeReliable and efficient options for the widest range of applications. 5 PCB sizes, 8 LES sizes from 6.5 to 32.8 mm. 2200K to 6500K CCT, 70 to 95 CRI. Standard and PW color spaces.
- LUXEON CoB Core ProLES sizes of 9, 13, 15 and 19 at 3000K make for a very high efficacy and excellent quality of light option that makes colors pop.
- LUXEON CoB Core Range PWBuilt for applications that need the highest quality of light combined with market leading performances. Beautiful color transforms areas into vibrant spaces. LES from 9 to 19mm.
- LUXEON CoB Core Range High DensityDouble the flux in the same form factor. Focus on achieving the highest Center Beam Candle Power. 6, 9, and 11mm LES and a flux range as high as 8,000 lumens
- LUXEON CS CoBIndustry standard square footprint enables easy design-in for new luminaire programs and a cost-effective replacement for existing solutions where an upgrade is desired.
- LUXEON CS Pro CoBWith spectra tailored to retail lighting, the CS Pro CoBs are easy to design-in and are a cost-effective replacement for solutions where superior quality of white light is required
- LUXEON CS CoB High DensityDouble the flux in the same form factor. Engineered for maximum CBCP. 3,3, 4.2, 6, 8.5 mm LES and available in 12V, 18V, 21v, and 36V
- LUXEON CX Plus CoB (Gen 2)Industry standard footprint. LES of 6, 9, 12, 14mm. CCT 2700K to 5000K and CRI or 80 and 90. Easy design-in.
- LUXEON CX Plus CoB High DensityFlux, up to 5600 lm, an industry standard footprint of 13.35mm2, and LES of 4.5mm, 6mm, and 9mm. An effortless upgrade to higher flux and better value.
- LUXEON CX Plus CoB High Density (Below BBL)Impressive white color at 95CRI, 2- and 3-step MacAdam ellipse Below Black Body Line. Industry standard footprint of 13.35mm2, and LES of 4.5mm, 6mm, and 9mm.
- LUXEON CoB with CrispWhite TechnologyCrispWhite Technology delivers a natural crisp whiteness by activating Fluorescent Whitening Agents in paints and fabrics to boost attractiveness in retail shops.
- LUXEON CS CoB with CrispWhite TechnologyCrispWhite Technology delivers a natural crisp whiteness by activating Fluorescent Whitening Agents in paints and fabrics to boost attractiveness in retail shops.
- LUXEON CoB with CrispColor TechnologySpecial phosphor technology creates a higher gamut color rendering than existing solutions. A specific color point be low the Black Body Line makes colors pop and fabrics come to life.
- LUXEON CoB with CrispColor TechnologySpecial phosphor technology creates a higher gamut color rendering than existing solutions. A specific color point be low the Black Body Line makes colors pop and fabrics come to life.
- LUXEON CoB with FreshFocus TechnologyFreshFocus Technology creates the most impactful lighting by accentuating the appeal of a variety of fresh food areas such as supermarkets, delis, butcher shops and bakeries.
- LUXEON CoB with FreshFocus TechnologyFreshFocus Technology creates the most impactful lighting by accentuating the appeal of a variety of fresh food areas such as supermarkets, delis, butcher shops and bakeries.
- LUXEON XR-5050 HEStandard integrated module with 8, 12, 16, and 24 LUXEON 5050 HE emitters delivers over 180 lm/w and up to 8600 lumens of highly efficient white light.
- LUXEON XR-5050 Round
- LUXEON XR-5050 SQR8, 12 or 16 LUXEON 5050 Square LEDs on a MCPCB substrate, with electrical connectors. Easier system integration, faster time to market, and use with industry standard optics.
- LUXEON XR-70704 LEDs on an MCPCB deliver more than 5000 lm at 170 lm/W. Eliminates LED-assembly engineering costs, tooling costs, and material inventory costs while accelerating time-to-market.
- LUXEON XR-HL2XStandard modules in 8-up, 12-up, and 16-up formats on MCPCB deliver more than 2800 lumens and 184 lm/W. Simplifies and speeds up luminaire design.
- LUXEON FusionA single platform for Dim-to-Warm, Color Tuning, and Full-Output White light. 1800K to 10000K, CRI>90 and micro color tuning in one SKU.
- LUXEON® SkyBlue™The simplest, most efficient circadian lighting LED solution. Deliver superior melanopic ratios at comfortable CCTs and minimize engineering costs.
- LUXEON 2835 Commercial Deep DimmingThe mid-power product with Deep Dimming capability ensures that your fixtures and installations remain uniform when dimming the current levels to 1% of the typical current or less.
- LUXEON 3030 HE Plus Deep DimmingConsistent and uniform deep-dimming. 0.1 Vf width by default. Top lm/W performance, long lifetime, and pure 3 SDCM color bin.
- LUXEON IR 2720 LineHigh-power IR at 850nm and 940nm. 1300mW of radiometric Power at 1000mA, Tj=25°C.
- LUXEON IR Compact Line1.9mm x 1.37 IR package delivers 1050 mW at 850nm and 1150mW at 940nm.
- LUXEON IR Domed Line3.7mm x 3.7mm domed package delivers 5 emission patterns 50°, 60°, 90°, 150°, and 95 x 58°. 1350mW @ 850nm and 1450mW @ 940nm.
- LUXEON IR Family for Automotive
- LUXEON IR ONYXContinuous broadband infrared (IR) emission from 650 to 1100nm from a 2.75mm x 2.0mm package with 2 pad configuration.
- LUXEON UV FC LineUVA 380nm to 420nm from a 1.0mm2 CSP package with a maximum drive current of 1A/mm2 for superior flux and reduced LED count.
- LUXEON UV U LineUVA SMT LED features 200 micron spacing for high power density (W/cm²), superior efficiency, and design freedom.
- LUXEON Display LEDsPurpose built LEDs optimized for display backlighting with leading lm/$ and lm/W
- LUXEON Flash 9 FamilyThe clear choice for the bext possible images in a digital imaging platform
- LUXEON Flash 9X FamilyThe clear choice for the bext possible images in a digital imaging platform
- LUXEON Flash 7 FamilyThe clear choice for the bext possible images in a digital imaging platform
- LUXEON Flash V1 FamilyThe clear choice for the bext possible images in a digital imaging platform
- LUXEON FX2LUXEON FX2 is an 1mm2 emitter available in 2-pad/3-pad layouts, and flux enhanced versions. Ideal LED for headlighting applications.
- LUXEON FX3A 0.5mm2 emitter available in 2-pad layouts with excellent luminous efficacy. Ideal for Adaptive Driving Beam application.
- LUXEON NeoLUXEON Neo - 0.5mm2 product optimized for miniature size enabling high density advanced digital beam headlights.
- LUXEON Altilon IntenseSingle die, 0.5mm2 emitter optimized for small source size to enable slim head lamps.
- LUXEON Altilon TopContact - Single DieThe emitters that can be directly mounted onto heat sinks, providing unparalleled thermal advantages and reducing high-grade PCB costs
- LUXEON Altilon SMDMulti-emitter family with the smallest form factors and ease of attachment to PCBs - for headlighting applications.
- LUXEON Altilon IntenseA family of 0.5mm2 multi-die products optimized for small source sizes to enable slim head lamps.
- LUXEON Altilon TopContact - Multi DieThe emitters that can be directly mounted onto heat sinks, providing unparalleled thermal advantages and reducing high-grade PCB costs
- LUXEON GoStandard LED module with heat-sink for headlighting applications with small size, excellent thermals and precision alignments for optics.
- LUXEON LxNRegulated LED bulbs made to last, using the latest LED technology and most durable components.
- LUXEON MxNTurnkey integrated, high performance LED solutions for unique adaptive driving beam requirements.
- LUXEON Altilon SMD PnPIntegrated L2 with multi-emitter solutions for ease of integration.
- LUXEON Altilon TopContact PnPLeading integrated high power LED solution for front lighting applications.
- LUXEON FX2LUXEON FX2 is an 1mm2 emitter available in 2-pad/3-pad layouts, and flux enhanced versions. Ideal LED for headlighting applications.
- LUXEON NeoLUXEON Neo - 0.5mm2 product optimized for miniature size enabling high density advanced digital beam headlights.
- LUXEON Versat 2016 LineCompact and distinctive auto-grade emitter delivers seamless integration and striking performance.
- LUXEON Versat 2020 LineSmallest auto-grade emitter avaiable in CW, PCA, Amber and Reds.
- LUXEON Versat 3030 LineIndustry standard emitter available in CW, PCA, Red, Amber, and PC Green.
- LUXEON Altilon SMD DTIndustry-leading dual color SMD solutions for daytime running and front turn lamps
- LUXEON Versat Dual ColorSingle source, dual color LED product family designed for combined front turn and DRL automotive signaling applications
- LUXEON LxNRegulated LED bulbs made to last, using the latest LED technology and most durable components.
- LUXEON 3D LEDLUXEON 3D LED helps you bring to life the versatile shapes of your 3D lighting design for all exterior signaling and styling functions.
- LUXEON Versat 2016 LineCompact and distinctive auto-grade emitter delivers seamless integration and striking performance.
- LUXEON Versat 2020 LineSmallest auto-grade emitter available in CW, PCA, Amber and Reds.
- LUXEON Versat 3030 LineIndustry standard emitter available in CW, PCA, Red, Amber, and PC Green.
- SignalSureLow to Mid Power LED in an industry standard footprint for rear signaling
- LUXEON LxNRegulated LED bulbs made to last, using the latest LED technology and most durable components.
- LUXEON 3D LEDLUXEON 3D LED helps you bring to life the versatile shapes of your 3D lighting design for all exterior signaling and styling functions.
- LUXEON Standard ModuleStandard LED Module for non-styling automotive signal lights, cut cost via scale, with ready-to-use optics, and save development and validation efforts
- LUXEON 3D LEDLUXEON 3D LED helps you bring to life the versatile shapes of your 3D lighting design for all exterior signaling and styling functions.
- LUXEON Versat 2016 LineCompact and distinctive auto-grade emitter delivers seamless integration and striking performance.
- LUXEON IR Domed for Automotive LineHigh power infrared emitters with engineered primary optics for high efficiency and beam control
LED Technology
Exclusive technology at every level of LED manufacturing enables LUXEON illumination grade LED light engines.
Spotlight
NightScape Technology
NightScape Technology preserves the well-being of animals, plants, and people, reduces light pollution, and supports dark sky initiatives.
Learn more about NightScape Technology >CoB Technology
Understanding CoB Technology
CoBs are an essential LED format that enable highly efficient and very high quality light in many indoor and outdoor applications.
CoB LED Technology >
Lumileds CoB Finder
Lumileds offers thousands of LUXEON CoB options for LES, CRI, CCT, light output, light spectra, and more. Our LUXEON CoB Finder makes it easy to find the product you need.
CoB Product Finder >Video Library
Application Brief

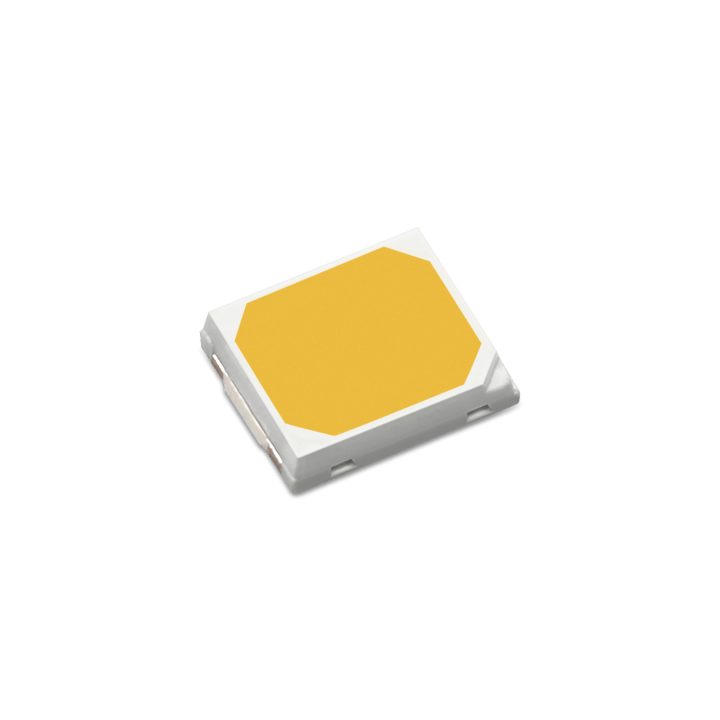

LUXEON 2835 Commercial
