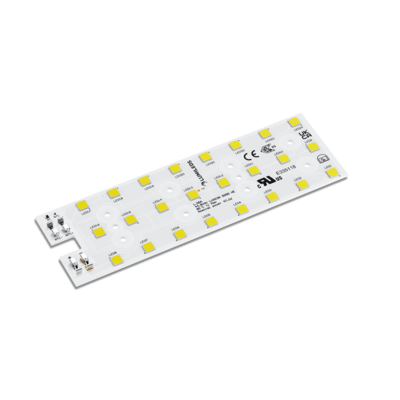

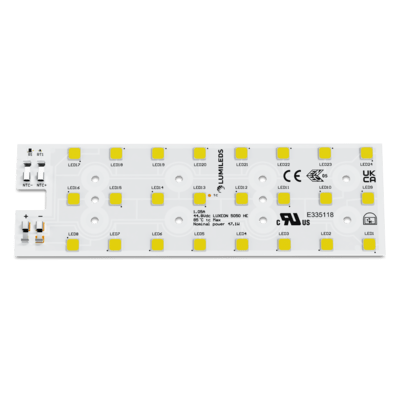

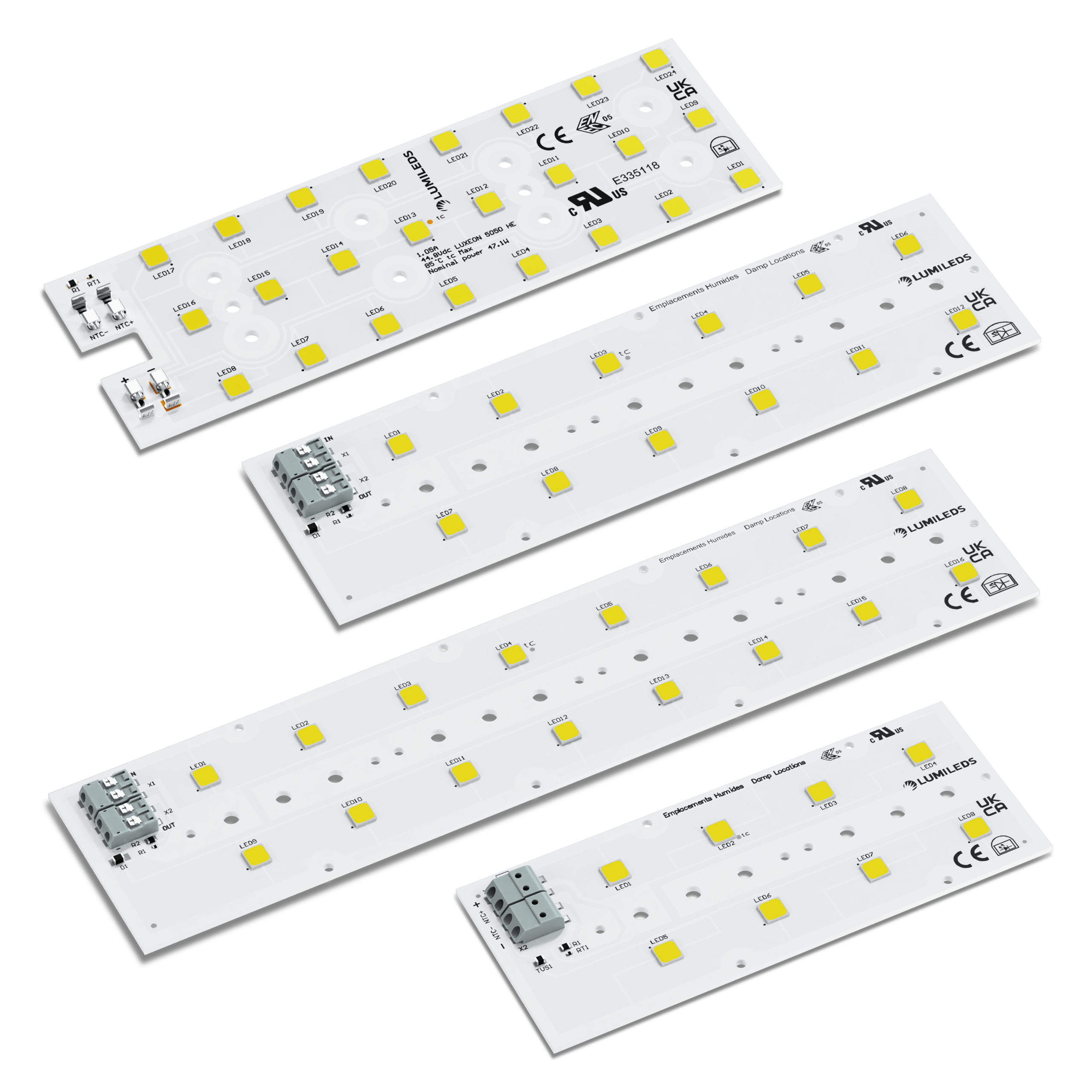

LUXEON XR-5050 HE products are standard integrated modules compatible with off-the-shelf drivers, optics and heat sinks. They are constructed with MCPCB substrates for thermal efficiency and mechanical robustness and eliminate engineering design costs, tooling costs, and material inventory costs. This versatile building-block approach simplifies system integration and accelerates time-to-market.

LUXEON XR-5050 HE and EU Ecodesign: Please consult the product datasheet for details including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019/2015. LUXEON XR-5050 HE part numbers are in energy efficiency classes D and E.

Features & Benefits

  • Efficacy and luminous flux of up to 184lm/W typical and 8600lm of output
  • Superior board level color control of ≤ 3SDCM
  • MCPCB for efficient heat dissipation and mechanical robustness
  • UL 8750, ENEC, CE, UKCA compliance
  • 5-year limited guarantee
Expand Media

Applications

  • High Bay
  • Low Bay
  • Sport Lights
  • Outdoor Area Lights
  • Roadway Lights
Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON XR-5050 HE at 1050mA, Tc=85°C.

Nominal CCT Minimum CRI Luminous Flux (lm) Typical Luminous
Efficacy (lm/W)
Part Number
Minimum Typical
2200K 70 6856 7272 155 L225-2270024MLU010
2700K 70 7618 8042 171 L225-2770024MLU010
3000K 70 7923 8328 177 L225-3070024MLU010
4000K 70 8317 8636 184 L225-4070024MLU010
5000K 70 8317 8636 184 L225-5070024MLU010
5700K 70 8121 8442 179 L225-5770024MLU010
2700K 80 6733 7241 154 L225-2780024MLU010
3000K 80 7039 7553 161 L225-3080024MLU010
4000K 80 7661 8025 171 L225-4080024MLU010
5000K 80 7661 8025 171 L225-5080024MLU010
5700K 80 7578 7914 168 L225-5780024MLU010
5700K 90 6396 6834 145 L225-5790024MLU010
