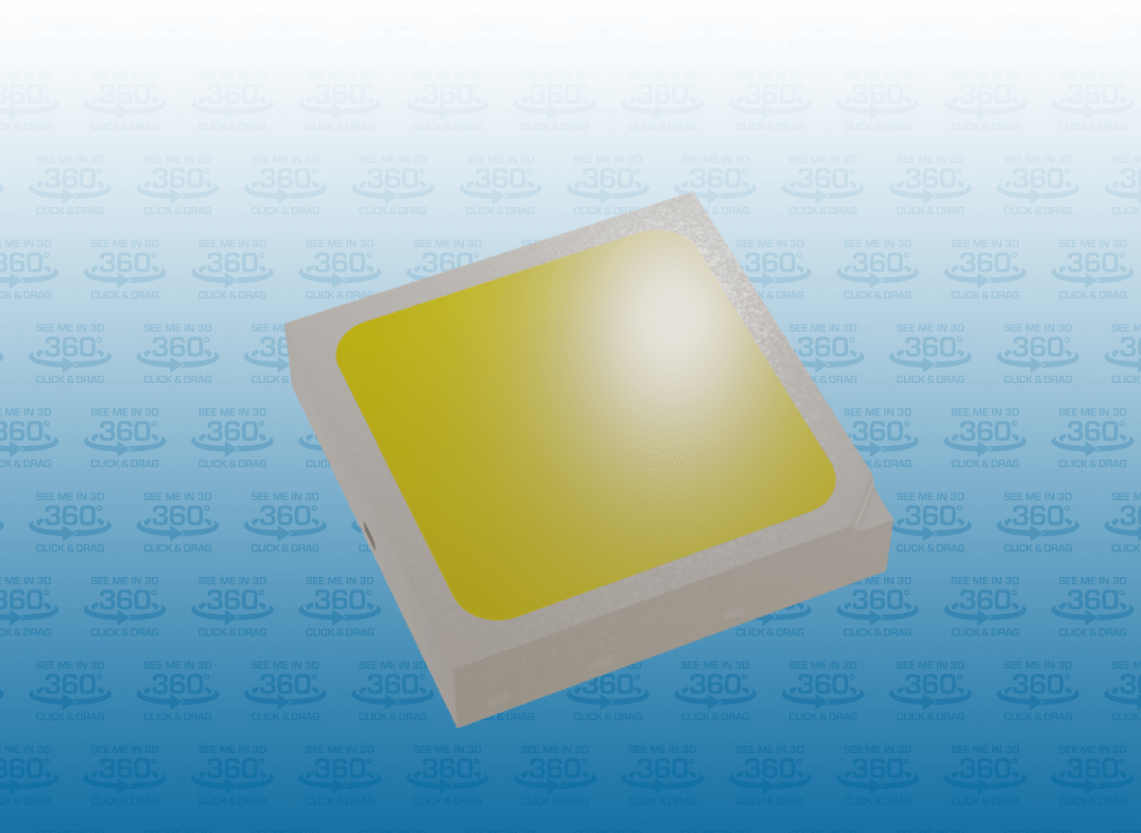

LUXEON SunPlus 3030

LUXEON SunPlus 3030 is a superior high efficacy, mid power package – the same “go-to-package” that’s enabling the global growth of high quality and efficient luminaires. Serving a wide range of horticulture applications that utilize broad-spectrum white light, LUXEON SunPlus 3030 delivers top rated μmol/J and PPF (μmol/s) performance and long lifetime with CCTs ranging from 2200K to 6500K and CRIs of 70, 80, and 90.

Product performance of LUXEON SunPlus 3030 at 65mA, Tj= 25°C.

Nominal CCT Minimum CRI PPF (μmol/s) in PAR (400 to 700nm) PPF/W Typical (µmol/J) Part Numbers
Minimum Typical
2200K 70 0.422 0.464 2.634 L130-2270HA30000B1
3000K 70 0.443 0.487 2.762 L130-3070HA30000B1
3500K 70 0.455 0.500 2.839 L130-3570HA30000B1
4000K 70 0.458 0.503 2.858 L130-4070HA30000B1
5000K 70 0.466 0.512 2.906 L130-5070HA30000B1
5700K 70 0.466 0.512 2.904 L130-5770HA30000B1
6500K 70 0.468 0.514 2.919 L130-6570HA30000B1
2700K 80 0.438 0.481 2.732 L130-2780HA30000B1
3000K 80 0.448 0.492 2.793 L130-3080HA30000B1
3500K 80 0.45 0.494 2.806 L130-3580HA30000B1
4000K 80 0.459 0.505 2.865 L130-4080HA30000B1
5000K 80 0.46 0.506 2.871 L130-5080HA30000B1
5700K 80 0.453 0.498 2.826 L130-5780HA30000B1
6500K 80 0.463 0.509 2.889 L130-6580HA30000B1
2700K 90 0.42 0.462 2.622 L130-2790HA30000B1
3000K 90 0.426 0.469 2.660 L130-3090HA30000B1
3500K 90 0.429 0.472 2.679 L130-3590HA30000B1
4000K 90 0.437 0.481 2.729 L130-4090HA30000B1
5000K 90 0.435 0.478 2.714 L130-5090HA30000B1
5700K 90 0.441 0.485 2.753 L130-5790HA30000B1
6500K 90 0.446 0.490 2.783 L130-6590HA30000B1
2200K 70 0.422 0.478 2.721 L130-2270HA30000C1
3000K 70 0.443 0.497 2.830 L130-3070HA30000C1
3500K 70 0.455 0.505 2.877 L130-3570HA30000C1
4000K 70 0.458 0.507 2.888 L130-4070HA30000C1
5000K 70 0.466 0.514 2.929 L130-5070HA30000C1
5700K 70 0.466 0.514 2.929 L130-5770HA30000C1
6500K 70 0.468 0.515 2.934 L130-6570HA30000C1
2700K 80 0.438 0.485 2.763 L130-2780HA30000C1
3000K 80 0.448 0.494 2.815 L130-3080HA30000C1
3500K 80 0.45 0.501 2.855 L130-3580HA30000C1
4000K 80 0.459 0.512 2.916 L130-4080HA30000C1
5000K 80 0.46 0.512 2.916 L130-5080HA30000C1
5700K 80 0.453 0.504 2.872 L130-5780HA30000C1
6500K 80 0.463 0.518 2.952 L130-6580HA30000C1
2700K 90 0.42 0.463 2.638 L130-2790HA30000C1
3000K 90 0.426 0.476 2.712 L130-3090HA30000C1
3500K 90 0.429 0.472 2.687 L130-3590HA30000C1
4000K 90 0.437 0.484 2.758 L130-4090HA30000C1
5000K 90 0.435 0.486 2.769 L130-5090HA30000C1
5700K 90 0.441 0.491 2.798 L130-5790HA30000C1
6500K 90 0.446 0.497 2.832 L130-6590HA30000C1

Documentation

Design Resources

How to Buy

Zero Worry Lead Time

Features & Benefits

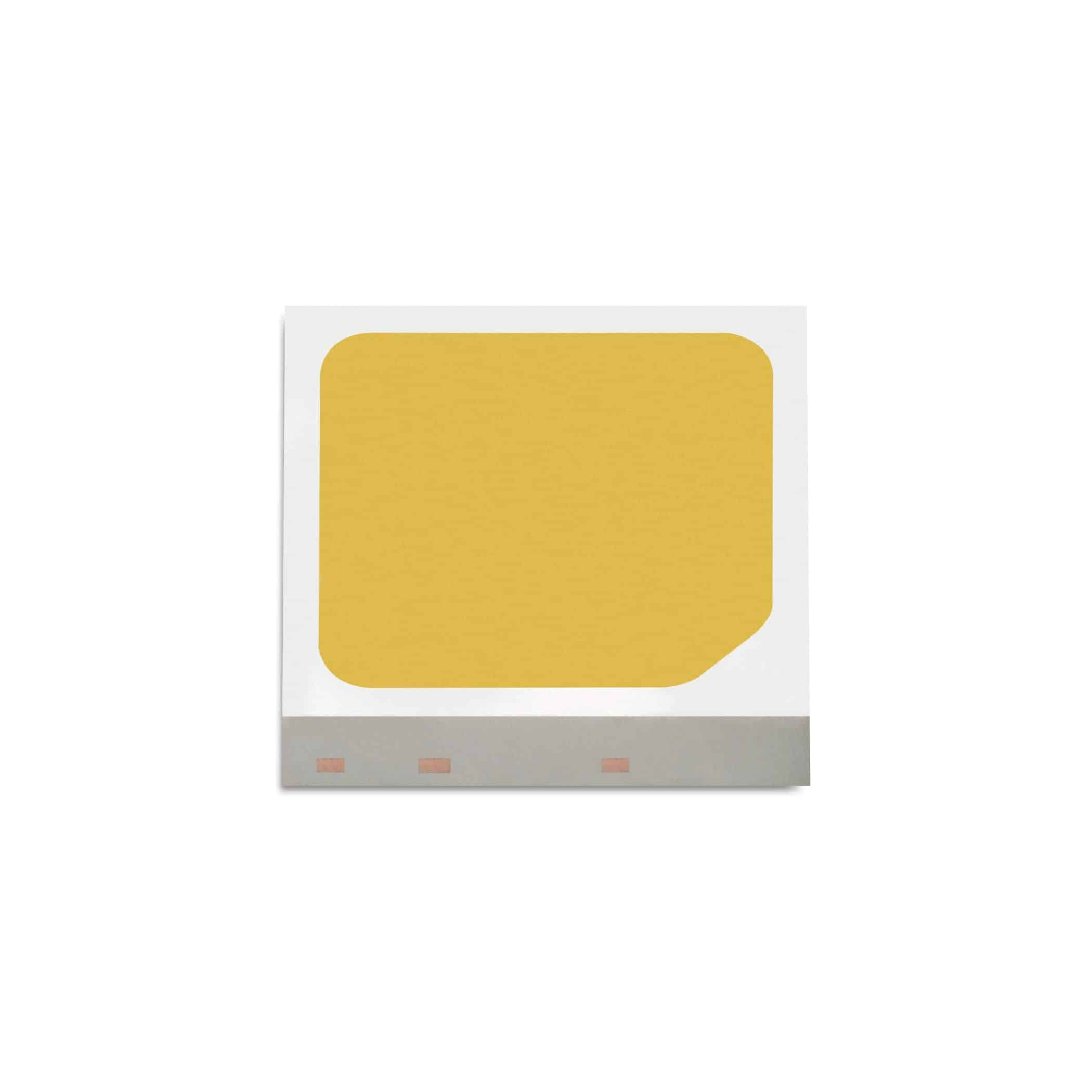

  • 3.0 x 3.0 package footprint
  • Top rated μmol/J and PPF (μmol/s) performance
  • Ideal solution for horticulture applications that utilize broad-spectrum white light

Applications
