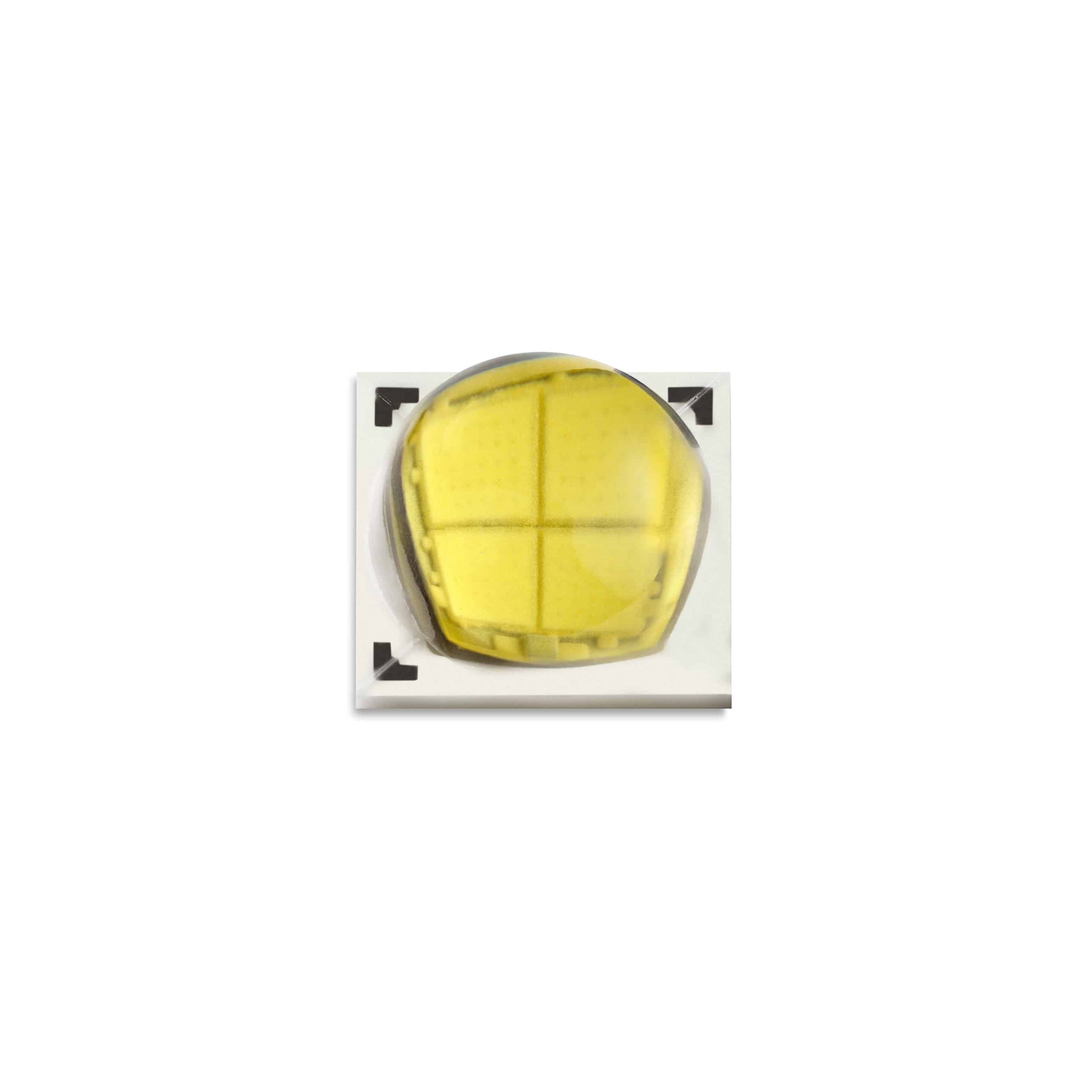

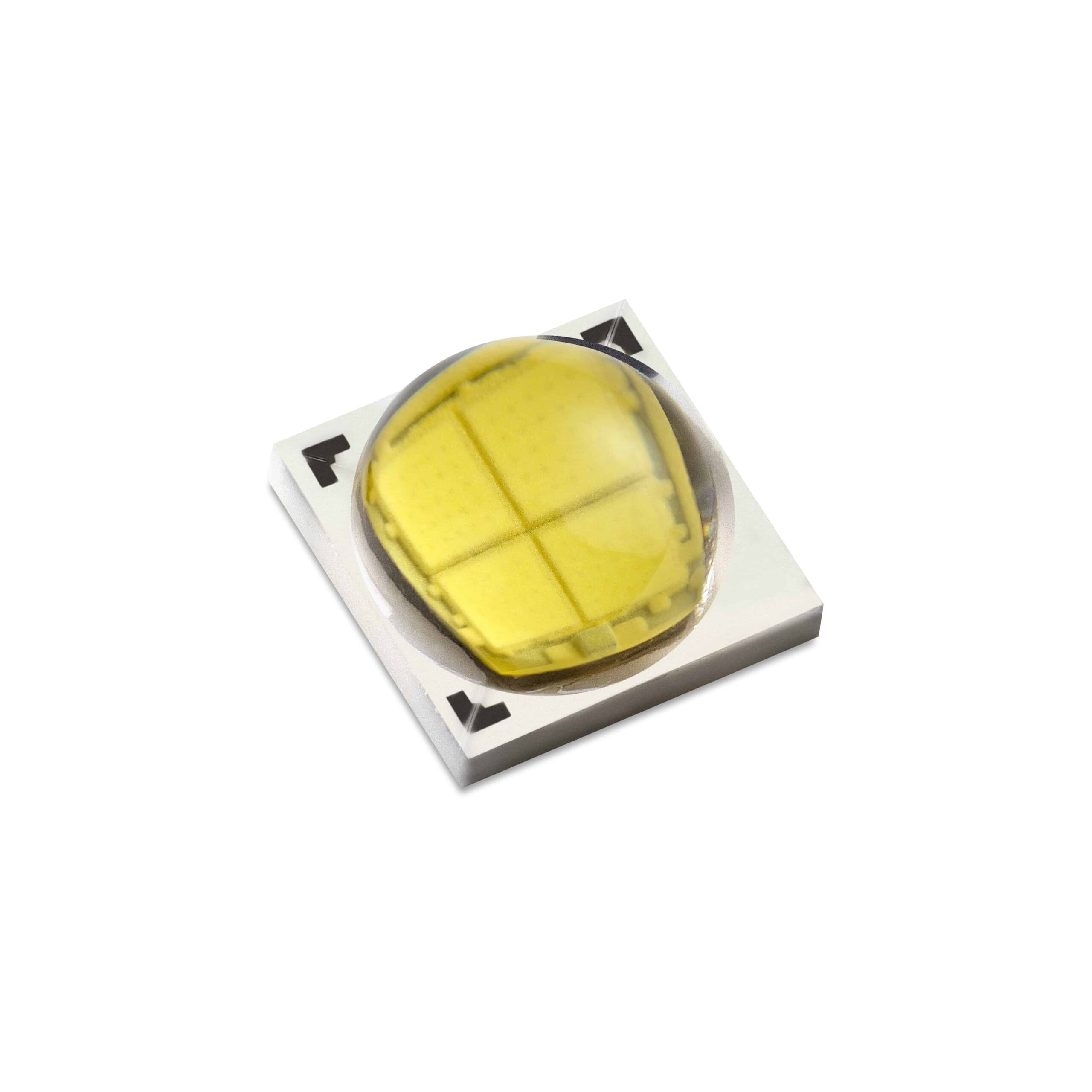

LUXEON MX

LUXEON MX is a high power emitter enabling cost effective, high reliability fixtures for High Bay and Outdoor applications requiring system efficiency of up to 157 lm/W. This breakthrough LED provides double the flux compared to previous generations with an even more robust high power design. Designed to be optically compatible with LUXEON M, LUXEON MX enables luminaire manufacturers to instantly upgrade their systems to market leading efficiency without investing design resources.

Features & Benefits

  • 2000 lumens at 130 lm/W enables cost effective 100 lm/W fixtures
  • 1200 lumens at 150 lm/W enables high performance 120 lm/W fixtures
  • Double the flux vs. comparable emitters in 120 lm/W systems
  • More robust package for improved reliability at higher drive currents
  • Same footprint and optically compatible with LUXEON M for an instant upgrade
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance for LUXEON MX at test current, Tj=85°C.

Voltage Nominal
CCT
Minimum
CRI
Luminous Flux
(lm)
Test Current
(mA)
Part Number
Minimum Typical Typical Tj=25°C
12V 2700K 70 970 1050 1095 700 L1MX-277012V000000
3000K 70 1040 1161 1270 700 L1MX-307012V000000
4000K 70 1160 1232 1345 700 L1MX-407012V000000
5000K 70 1160 1232 1345 700 L1MX-507012V000000
5700k 70 1160 1232 1345 700 L1MX-577012V000000
6500K 70 1160 1232 1345 700 L1MX-657012V000000
2700K 80 900 988 1095 700 L1MX-278012V000000
3000K 80 970 1000 1110 700 L1MX-308012V000000
4000K 80 1040 1115 1220 700 L1MX-408012V000000
5000K 80 1040 1115 1220 700 L1MX-508012V000000
2700K 90 730 800 872 700 L1MX-279012V000000
3000K 90 730 835 910 700 L1MX-309012V000000
4000K 90 900 965 1046 700 L1MX-409012V000000
5700K 90 900 965 1046 700 L1MX-579012V000000
6V 2700K 70 970 1050 1095 1400 L1MX-277006V000000
3000K 70 1040 1161 1270 1400 L1MX-307006V000000
4000K 70 1160 1232 1345 1400 L1MX-407006V000000
5000K 70 1160 1232 1345 1400 L1MX-507006V000000
5700K 70 1160 1232 1345 1400 L1MX-577006V000000
6500K 70 1160 1232 1345 1400 L1MX-657006V000000
2700K 80 900 988 1095 1400 L1MX-278006V000000
3000K 80 970 1000 1110 1400 L1MX-308006V000000
4000K 80 1040 1115 1220 1400 L1MX-408006V000000
5000K 80 1040 1115 1220 1400 L1MX-508006V000000
2700K 90 730 800 872 1400 L1MX-279006V000000
3000K 90 730 835 910 1400 L1MX-309006V000000
4000K 90 900 965 965 1400 L1MX-409006V000000
5700K 90 900 965 1046 1400 L1MX-579006V000000
