LUXEON Stylist Series: AtmoSphere Technology

AtmoSphere Technology creates the perfect ambiance with a warm glow that feels comfortable and inviting. Designed to enhance the dining experience by providing a relaxed atmosphere for restaurants, bars and other gathering places, AtmoSphere Technology can reinforce image and brand…all with the additional benefits of reduced energy costs and a minimized environmental footprint that LEDs bring.

LUXEON CoB with AtmoSphere Technology product performance at specified test current, Tj=85°C.

Product Nominal CCT Minimum CRI Luminous
Flux (lm)
Typical Luminous Efficacy (lm/W) Test
Current
(mA)
LES (mm) Part Number
Minimum Typical
LUXEON CoB 205 2200K 90 452 502 93 150 6.5 L2C3-2290205E06000
LUXEON CoB 209 2200K 90 757 841 95 250 6.5 L2C3-2290209E06000
LUXEON CoB 1202s 2200K 90 589 654 95 200 6.5 L2C5-22901202E0600
LUXEON CoB 1202 2200K 90 625 694 101 200 9.0 L2C5-22901202E0900
LUXEON CoB 1203 2200K 90 929 1032 100 300 9.0 L2C5-22901203E0900
LUXEON CoB 1204 2200K 90 1430 1589 102 450 13.0 L2C5-22901204E1300
LUXEON CoB 1205 2200K 90 1857 2063 98 600 13.0 L2C5-22901205E1300
LUXEON CoB 1208 2200K 90 2785 3095 99 900 15.0 L2C5-22901208E1500
LUXEON CoB 1211 2200K 90 3749 4165 100 1200 19.0 L2C5-22901211E1900
LUXEON CoB 1216 2200K 90 5013 5570 101 1600 23.0 L2C5-22901216E2300

Matrix Platform Built-to-Spec

In addition to individual LEDs, the LUXEON Stylist Series with AtmoSphere Technology can be deployed in built-to-spec Matrix Platform options. The proprietary Oberon pick-and-place technology is used to pinpoint module color points to provide color tunable solutions that use any combination of low power, mid power and high power LUXEON LEDs. For more information about how the Matrix Platform can help achieve the perfect “dim to warm” effect in hospitality venues, please contact a Lumileds Sales Representative.

Features & Benefits

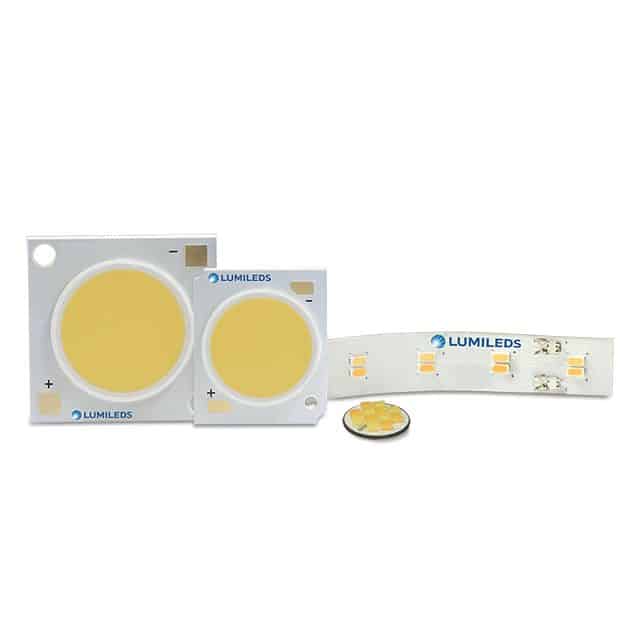

  • LUXEON CoB
    • 2200K CCT provides a warm ambiance that is comfortable and inviting
    • Lumen packages from 500 to 5,000 lumens for a range of options
  • Matrix Platform
    • Dim to warm effect available in built-to-spec Matrix Platform LED modules with AtmoSphere Technology
