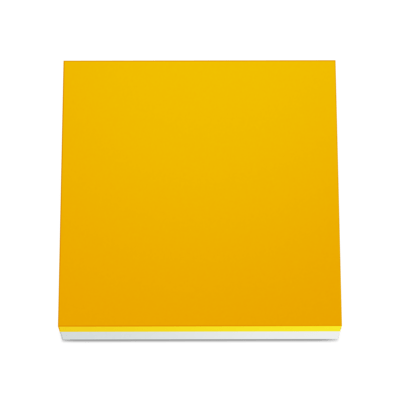

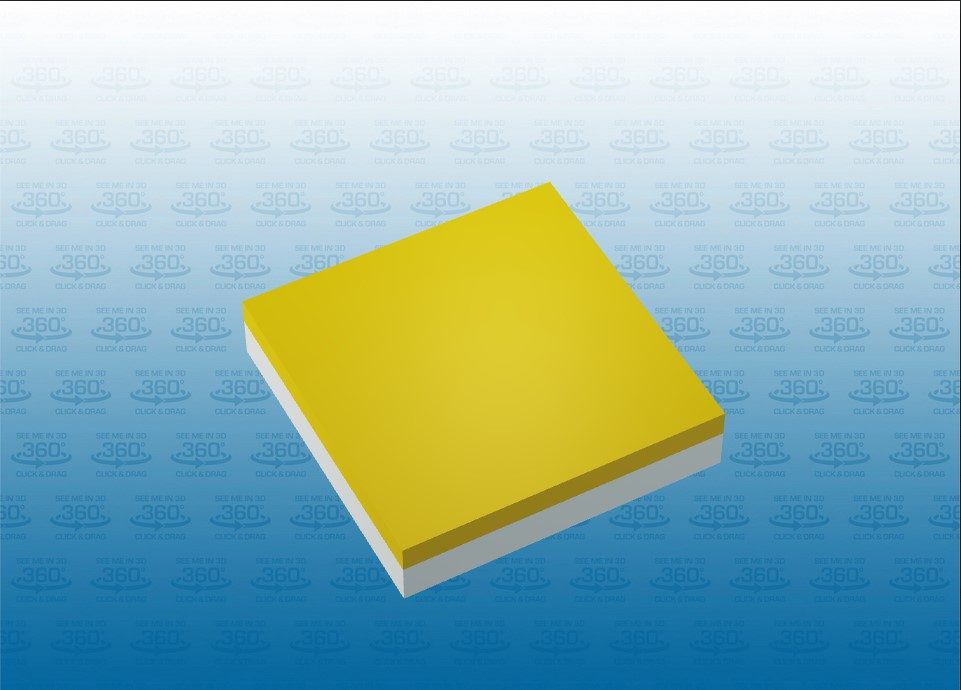

LUXEON HL1Z

LUXEON HL1Z LEDs offer high flux density performance in a compact footprint, enabling elegant and superior luminaire designs. A wide range of CCTs in 80 and 90CRI options make them ideal for high performance indoor lighting applications, designed into tunable and white color mixing solutions. Best-in-class Color over Angle, and top emission only light output, provides designers with leading Quality of Light performance for dramatic lighting designs and small fixtures. The compact package size and high punch allows design flexibility, beam steering, and white tuning versus traditional LED light sources.

Product performance of LUXEON HL1Z at 350mA, Tj=85°C.

Nominal CCT Minimum R9 Minimum CRI Luminous Flux (lm) Typical Luminous Efficacy (lm/W) Part Number
Minimum Typical
1800 0 80 70 82 84 L1HZ-1880100000000
2200 0 80 90 100 102 L1HZ-2280100000000
2700 0 80 100 117 119 L1HZ-2780100000000
3000 0 80 110 124 127 L1HZ-3080100000000
3500 0 80 110 125 128 L1HZ-3580100000000
4000 0 80 120 133 136 L1HZ-4080100000000
5000 0 80 120 132 135 L1HZ-5080100000000
5700 0 80 120 132 135 L1HZ-5780100000000
6500 0 80 120 132 135 L1HZ-6580100000000
3000 50 90 90 100 102 L1HZ-3590100000000
3500 50 90 95 107 109 L1HZ-3590100000000
4000 50 90 100 109 111 L1HZ-4090100000000
5000 50 90 100 111 113 L1HZ-5090100000000
5700 50 90 100 115 117 L1HZ-5790100000000
6500 50 90 100 110 112 L1HZ-6590100000000

Documentation

Design Resources

How to Buy

Features & Benefits

  • Small package size (1.4 x 1.4 x 0.36 mm) allows closely packed arrays for narrow beam spots
  • Enables color mixing in CCT tunable applications B5
  • High current densities for high lumen output and lm/$ at high lm/W
  • CSP 1mm2 with 2 pads for direct attach enables ease of assembly
  • Surface emission only for directional lighting without side light leakage
  • High package densities

Applications

  • Panel / Soft Lights
  • Wall Grazer
  • Track Lights
  • Linear
  • Wall Wash
  • Downlights
