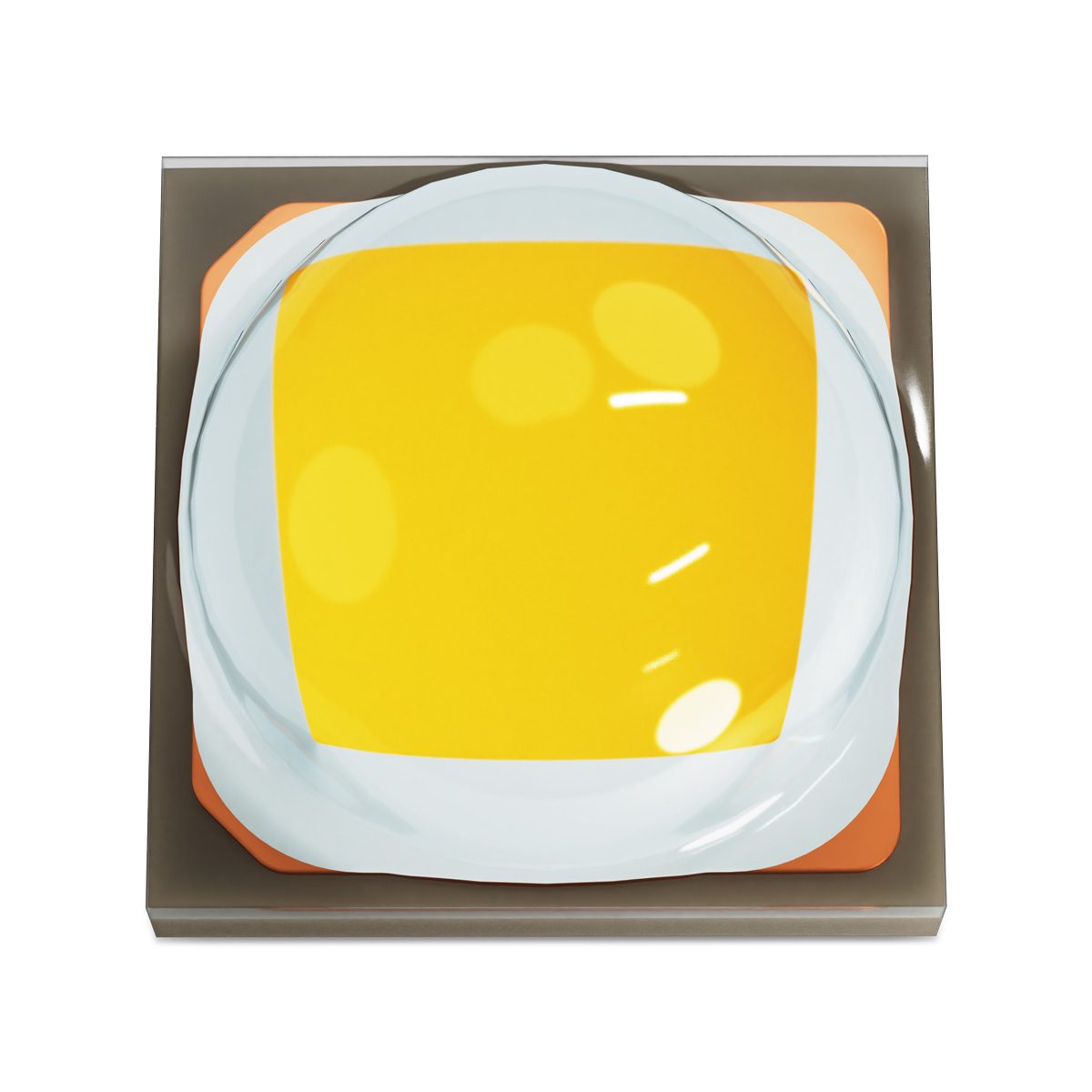

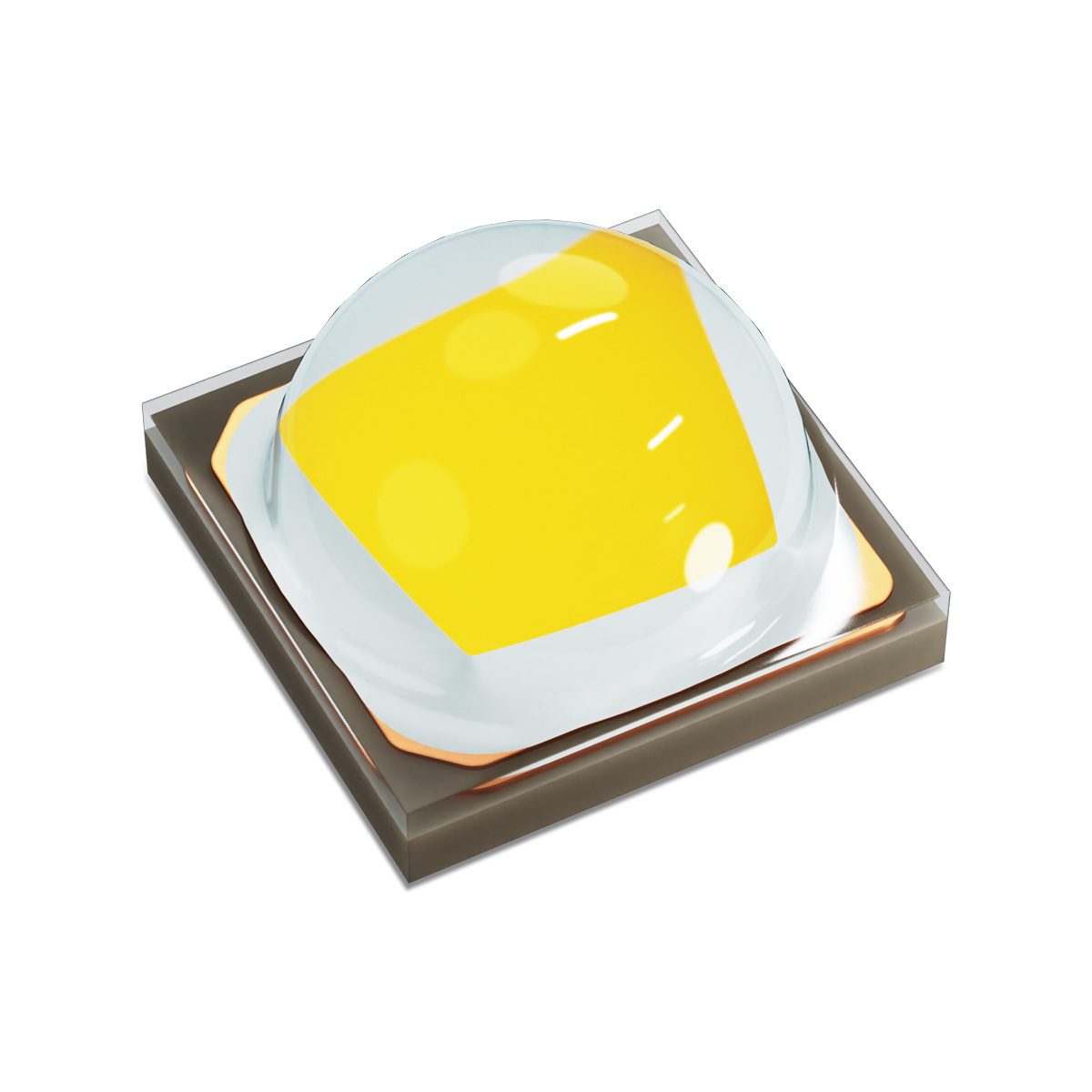

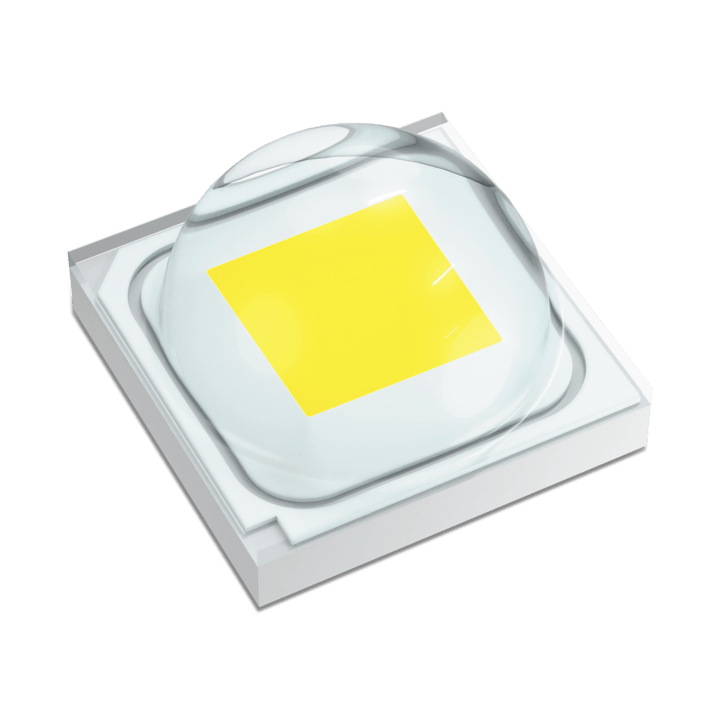

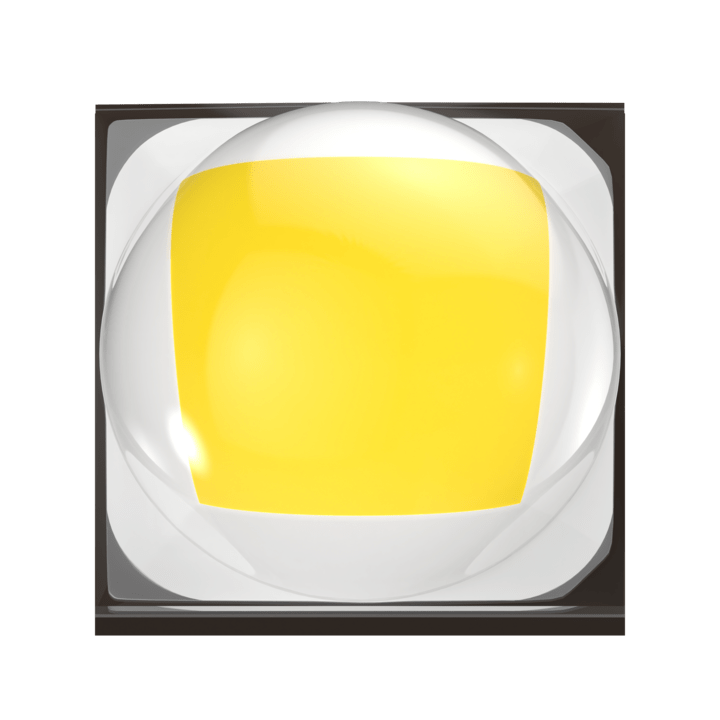

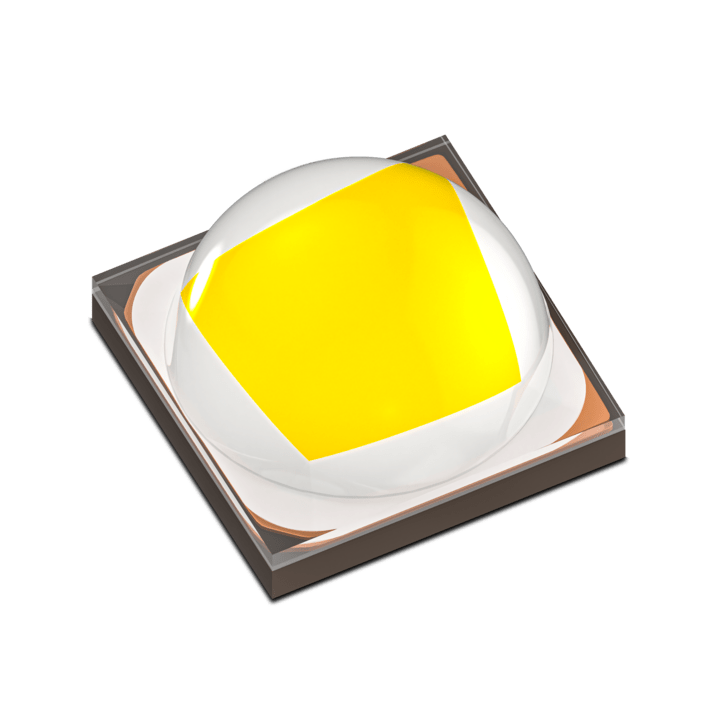

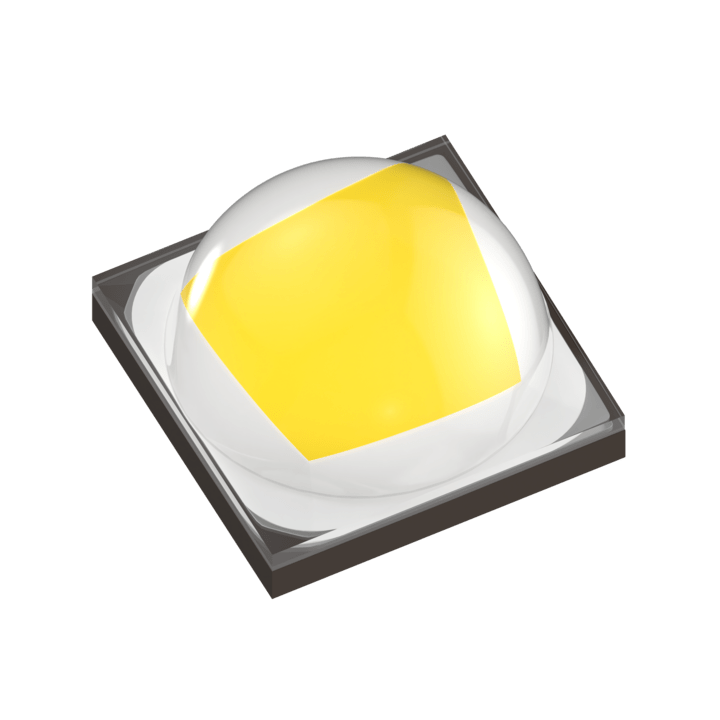

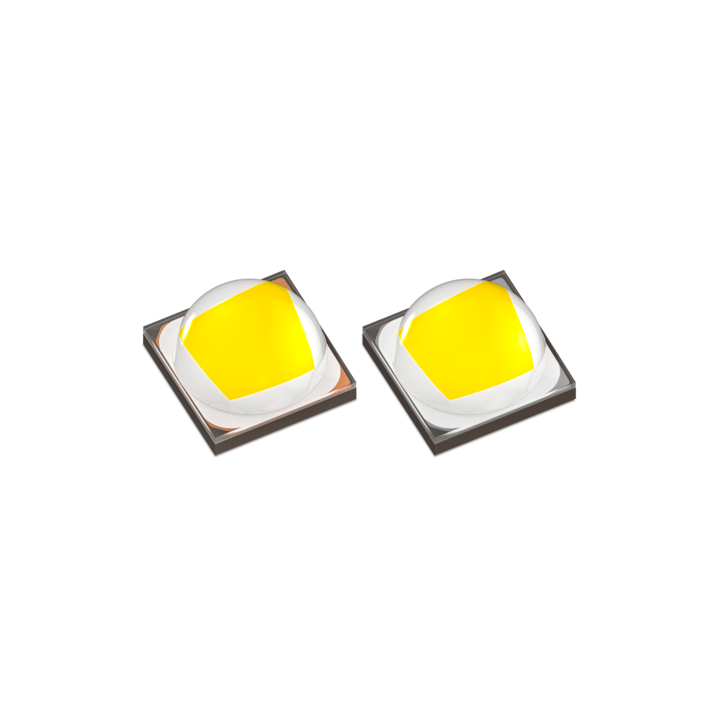

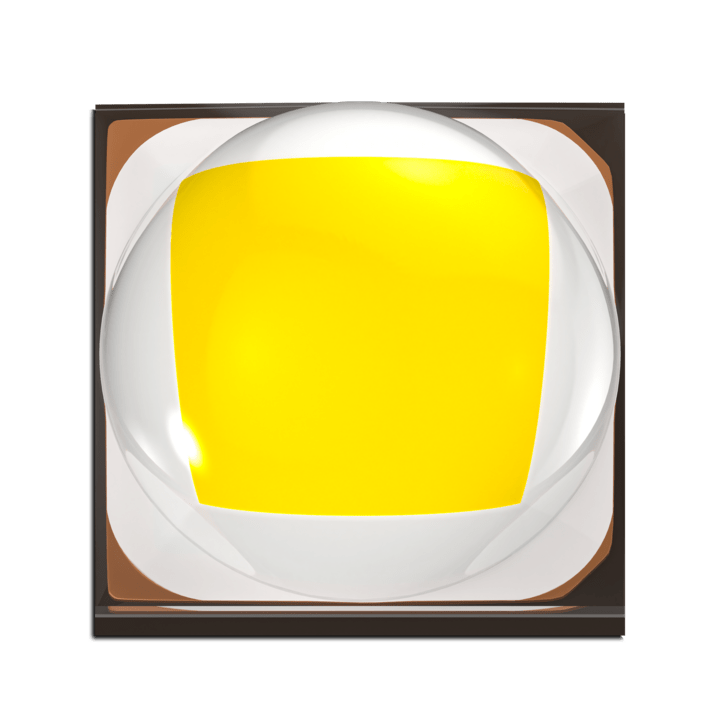

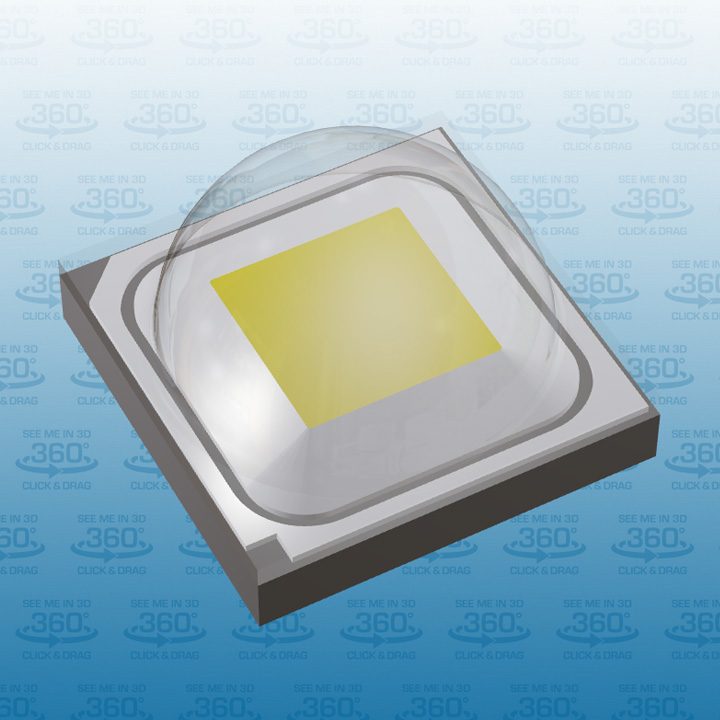

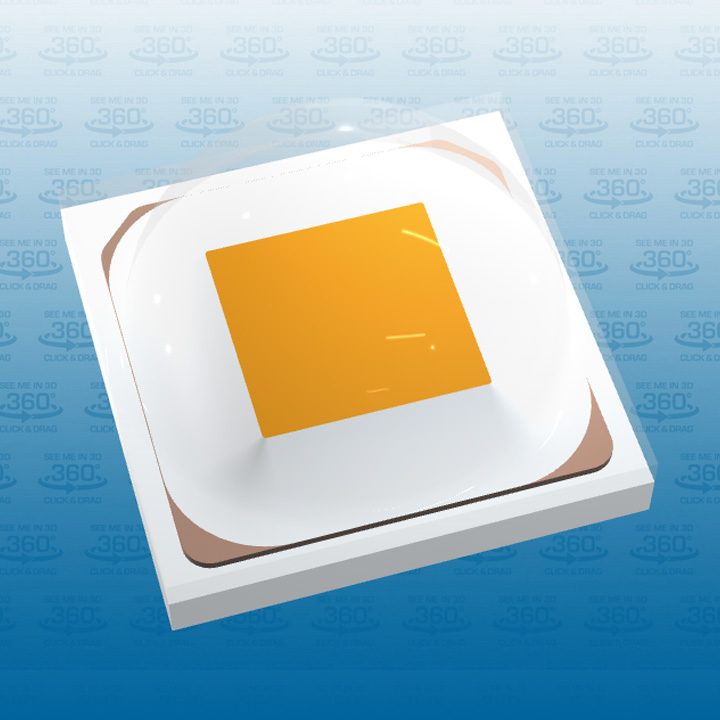

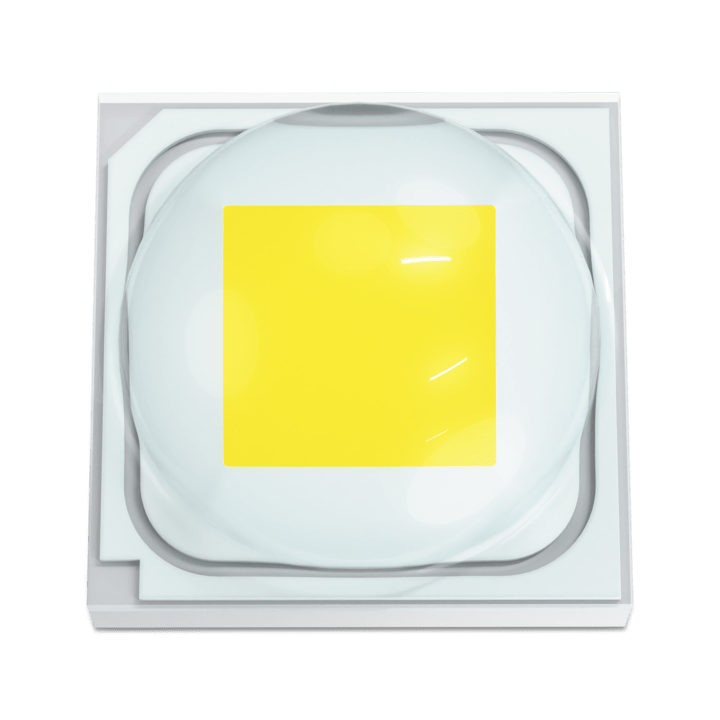

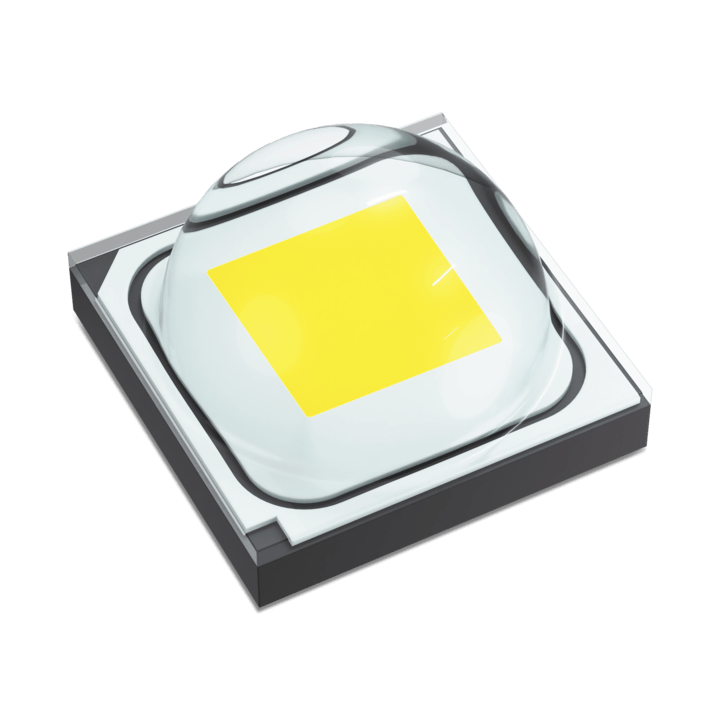

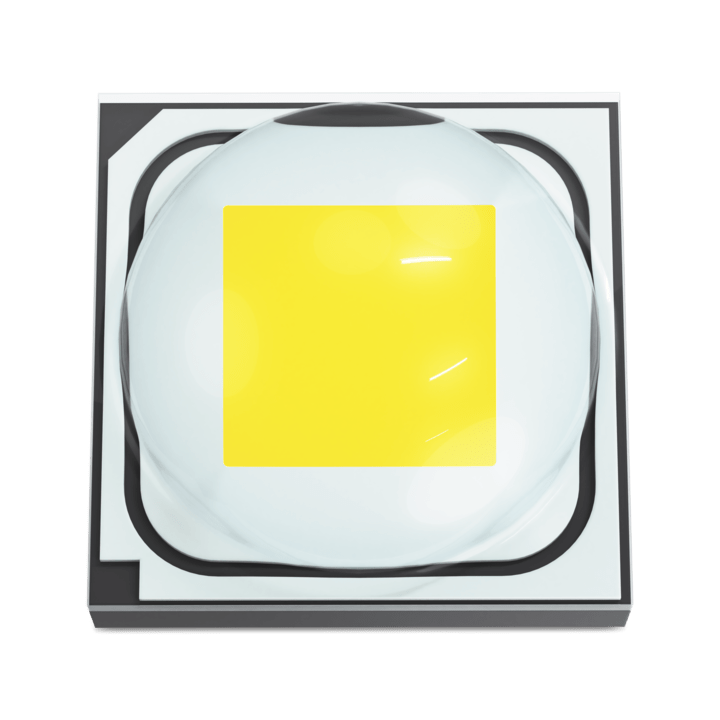

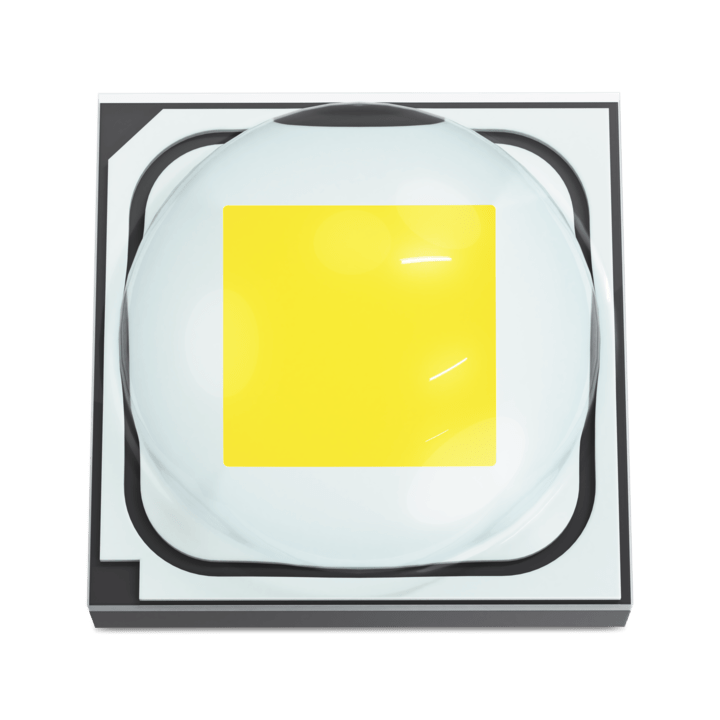

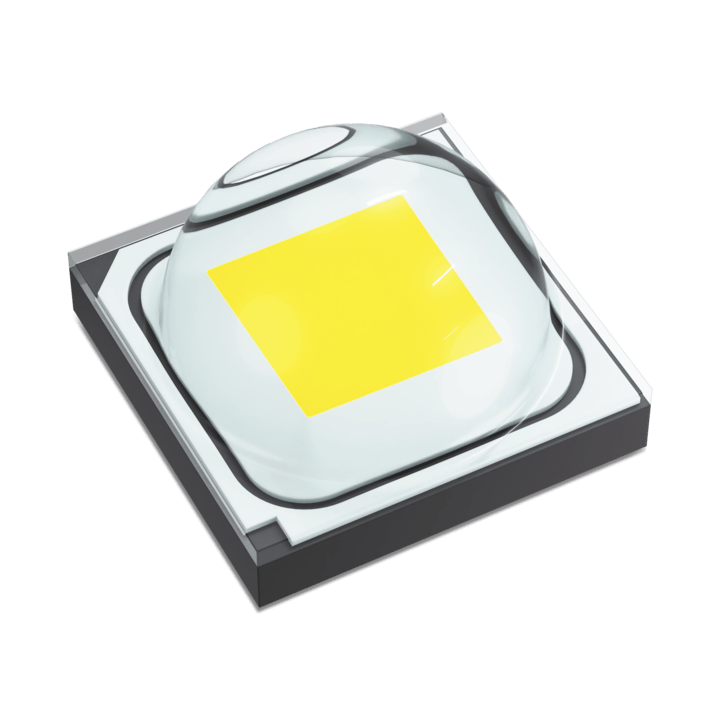

LUXEON HL2X is a high-power domed emitter designed specifically for outdoor and industrial applications like streetlights and high bay luminaires. The high power package is designed to deliver superior output, efficacy, color stability and longevity regardless of application or environment.

LUXEON HL2X utilizes an industry standard 3535 package with 3-stripe footprint. This compatibility allows for efficient and simpler conversion to the better performing LUXEON HL2X from any other similar platform.

Features & Benefits

  • Most usable light in application with a design emphasis on Beam Angle, Field Angle, Color Over Angle, and Optical Efficiency performance
  • CSP die technology enables high efficacy and high driving current capability in unique applications
  • Industry standard 3535 package with 3-stripe footprint and radiation pattern matched to LUXEON TX for ease of design
  • DLC R9 enabled to offer best-in-class color quality for luminaires
  • Offered in two different Luminous Flux Performance categories for customer flexibility in design and application
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON HL2X at 700mA, Tj=85°C.

Nominal
CCT
Minimum
R9
Minimum
CRI
Luminous Flux (lm) Typical
Luminous
Efficacy (lm/W)
Part Number
Minimum Typical
700mA
2200K -40 70 270 290 148 L1HX-22702E0000000
2700K -40 70 300 322 164 L1HX-27702E0000000
3000K -40 70 320 336 171 L1HX-30702E0000000
3500K -40 70 320 342 174 L1HX-35702E0000000
4000K -40 70 340 355 181 L1HX-40702E0000000
5000K -40 70 335 355 181 L1HX-50702E0000000
5700K -40 70 335 355 181 L1HX-57702E0000000
6500K -40 70 335 355 181 L1HX-65702E0000000
2700K -40 70 290 311 159 L1HX-27702D0000000
3000K -40 70 310 325 166 L1HX-30702D0000000
3500K -40 70 310 330 168 L1HX-35702D0000000
4000K -40 70 320 343 175 L1HX-40702D0000000
5000K -40 70 310 337 172 L1HX-50702D0000000
5700K -40 70 320 343 175 L1HX-57702D0000000
6500K -40 70 310 343 175 L1HX-65702D0000000
3000K -40 70 320 n/a L1HX-30702D0000320
4000K -40 70 340 n/a L1HX-40702D0000340
5700K -40 70 340 n/a L1HX-57702D0000340
6500K -40 70 340 n/a L1HX-65702D0000340
3000K -40 70 300 318 162 L1HX-30702P0000000
4000K -40 70 320 338 173 L1HX-40702P0000000
5700K -40 70 310 338 168 L1HX-57702P0000000
6500K -40 70 310 330 168 L1HX-65702P0000000
2700K -40 70 280 300 153 L1HX-2770200000000
3000K -40 70 300 313 160 L1HX-3070200000000
3500K -40 70 310 322 164 L1HX-3570200000000
4000K -40 70 310 330 168 L1HX-4070200000000
5000K -40 70 310 330 168 L1HX-5070200000000
5700K -40 70 310 330 168 L1HX-5770200000000
6500K -40 70 310 330 168 L1HX-6570200000000
1800K 0 80 180 197 101 L1HX-18802E0000000
3000K 0 80 280 300 153 L1HX-30802E0000000
4000K 0 80 300 322 164 L1HX-40802E0000000
5000K 0 80 300 323 165 L1HX-50802E0000000
5700K 0 80 310 332 169 L1HX-57802E0000000
1800K 0 80 180 190 97 L1HX-18802D0000000
3000K 0 80 270 290 148 L1HX-30802D0000000
4000K 0 80 290 311 159 L1HX-40802D0000000
5000K 0 80 290 320 163 L1HX-50802D0000000
5700K 0 80 300 320 163 L1HX-57802D0000000
4000K 0 80 290 310 158 L1HX-40802P0000000
3000K 0 80 260 280 143 L1HX-3080200000000
4000K 0 80 290 305 156 L1HX-4080200000000
5000K 0 80 290 305 156 L1HX-5080200000000
5700K 0 80 290 305 156 L1HX-5780200000000
2700K 50 90 210 233 119 L1HX-27902E0000000
3000K 50 90 230 250 128 L1HX-30902E0000000
3500K 50 90 240 260 133 L1HX-35902E0000000
4000K 50 90 250 265 135 L1HX-40902E0000000
5700K 50  90 270 282 144 L1HX-57902E0000000
3000K 50 90 220 242 123 L1HX-30902D0000000
4000K 50 90 240 256 131 L1HX-40902D0000000
5700K 50 90 250 272 139 L1HX-57902D0000000
3000K 50 90 210 233 115 L1HX-3090200000000
4000K 50 90 240 255 130 L1HX-4090200000000
5700K 50 90 240 260 133 L1HX-5790200000000
