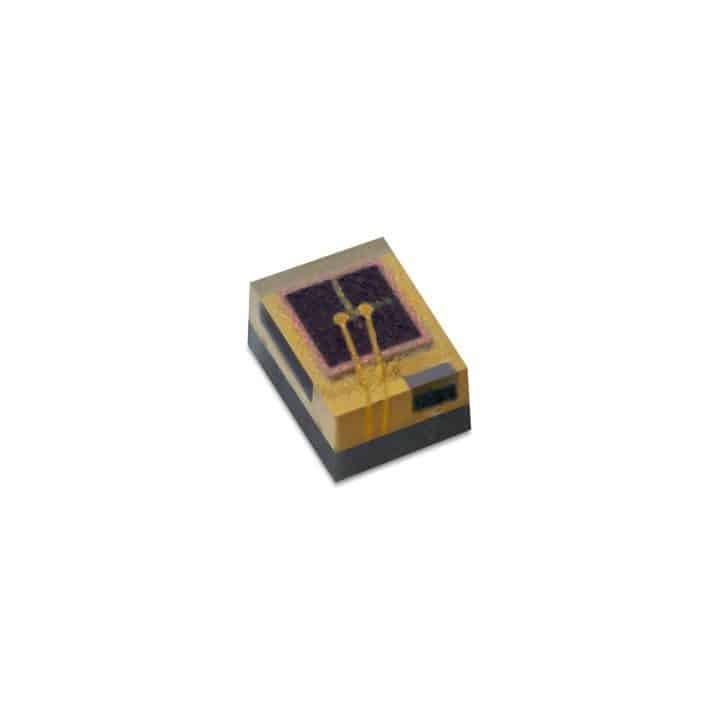

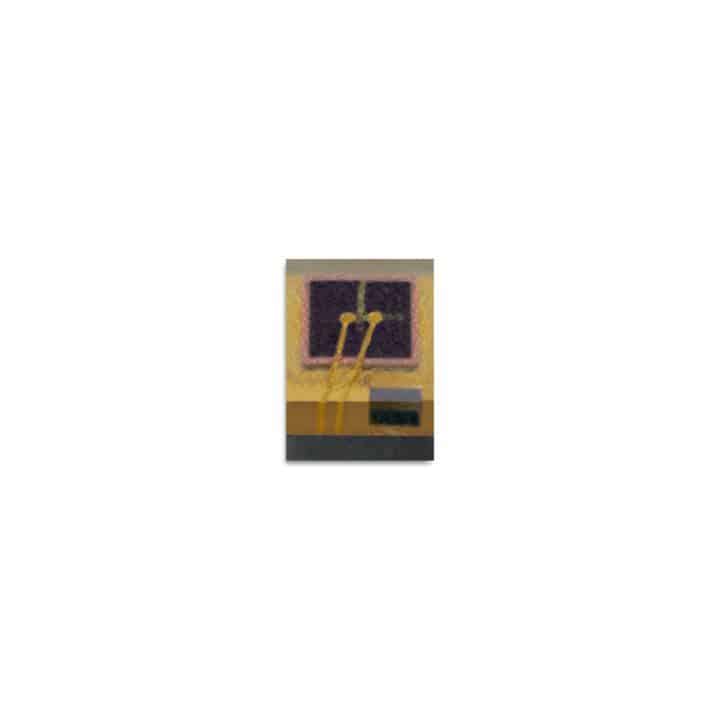

LUXEON IR Compact for Automotive

The LUXEON IR Compact for Automotive Line are high power infrared LED emitters tailored to application needs by offering a variety of products at multiple infrared wavelengths. LUXEON IR Compact emitters are designed with innovative LUXEON technology to provide industry-leading performance. Through best-in-class thermal conductivity, LUXEON IR Compact for Automotive Line has excellent performance at actual operating conditions. All LUXEON IR Compact for Automotive Line LEDs are AEC-Q102 qualified.

Product performance of LUXEON IR Compact Line at 1000mA, Tj=25°C.

Peak Wavelength (nm) Typical FWHM Beam Angle (°) Radiometric Power
(mW)
Typical Radiant Intensity (mW/sr) Part Number
Minimum Typical
850 150 900 1050 250 L1IZ-A850000000000
940 150 1000 1150 300 L1IZ-A940000000000

Features & Benefits

  • Available in 850nm and 940nm wavelengths to provide optimized performance for each type of application
  • Radiant power: 1050mW (850nm) and 1150mW (940nm) for greater system performance
  • Compact package of 1.9mm x 1.37mm with a 2-pad configuration provides the highest power density in the industry for a new level of miniaturization
  • Ultra-low Rth of 3.5°C/W, the industry’s best thermal conductivity, solves thermal challenges and supports space saving designs
Expand Media

Applications

  • Biometric Identification
  • Drive Monitoring Systems
  • Lane Departure Systems
  • Night Vision Systems
Expand Applications
