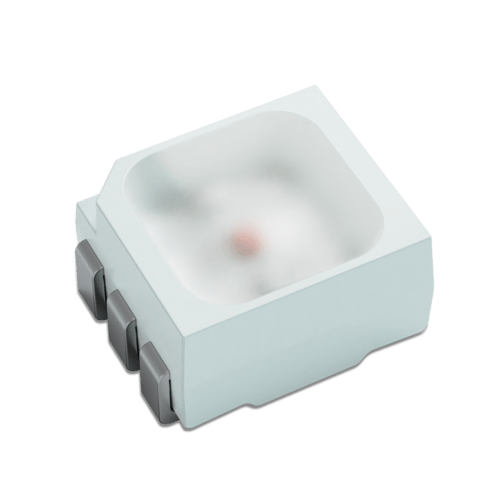

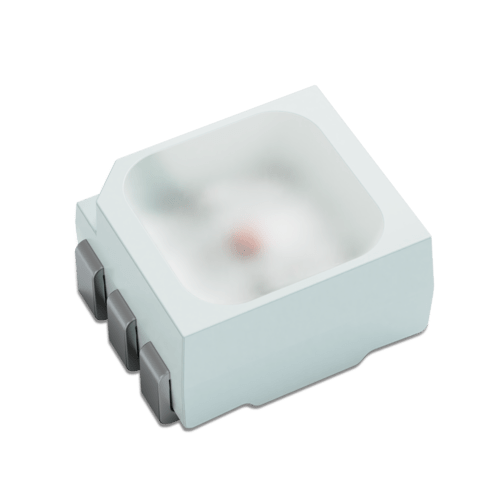

LUXEON 3528 RGB

LUXEON 3258 is the perfect RGB package for indoor, architectural, and decorative applications. Its very compact, low profile package – only 1.75mm – can manage up to 0.5W of power and has an IPX8 water resistant rating. Each of the three color channels can be individually addressed and controlled. It pairs perfectly with LUXEON 2835 Architectural white LEDs for additional color changing options.

Features & Benefits

  • RGB 3-in-1 module
  • Compact size – just 3.5mm x 2.8mm x 1.75mm is perfect for linear, flexible, and shaped applications
  • Individually control each channel
  • IPX8 water resistant rating
Expand Media

Applications

  • Wall Grazer
  • Linear
  • Wall Wash
  • Landscape Lighting
  • Decorative
Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

LUXEON 3528 RGB product performance at 20mA,Tj=25°C.

Color Dominant
Wavelength (nm)
Luminous Flux (lm) Part Number
Minimum Maximum Minimum Typical
RedRed 619 625 2.7 3.4 L1MC-RGB0028000MP0
GreenGreen 520 535 7.0 9.0
BlueBlue 465 475 1.5 1.9
