What is LUXEON Altilon TopContact?

Small form factor multi-die LED with high drive current capability and contrast for advanced headlighting.

Benefits of LUXEON Altilon TopContact:

  • High luminance enables higher beam intensity, the miniaturization of secondary optics, and greater design flexibility
  • Low thermal resistance and high operating case temperature allow for smaller heatsinks, efficient heat dissipation, and simplified thermal management
  • High luminance with wide flux range provides best-in-class headlight beam performance, and allows for advanced lighting systems

Key Features:

  • High luminance device
  • Low thermal resistance with dedicated thermal pad
  • Flexible packaging
  • Binned at 85°C, consistent with automotive operational environments

Important Notes:

  • Available in 1×2 and 1×3 configurations
  • Same footprint as LUXEON Altilon SMD

Products

COLOR
[DOMINANT WAVELENGTH]
PRODUCT TEST CURRENT (mA) MAX DC CURRENT (mA) TYPICAL FLUX (lm) PART NUMBER

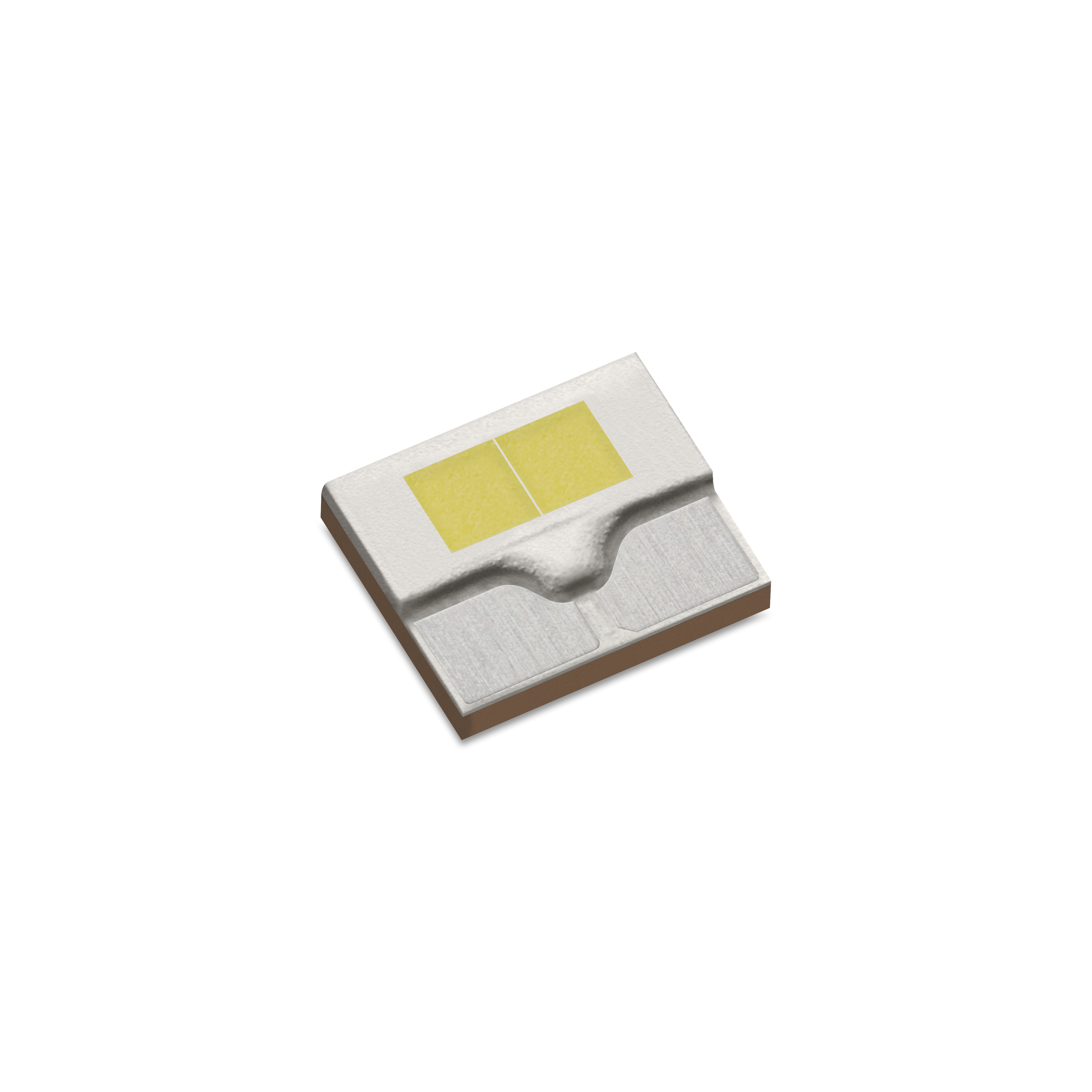

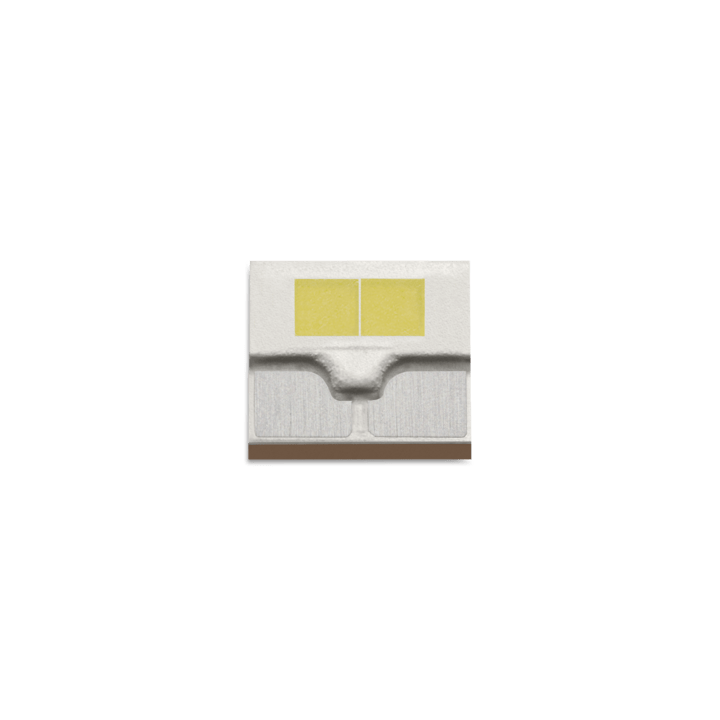

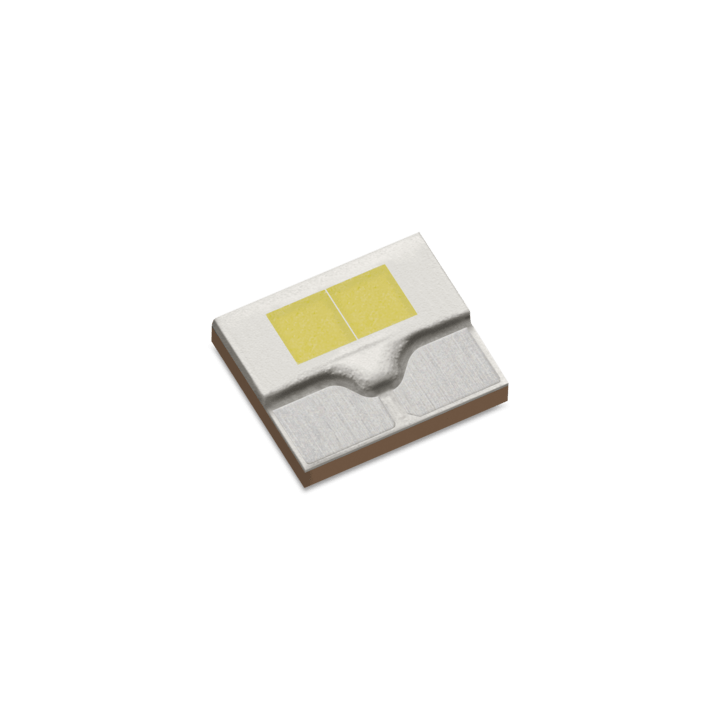

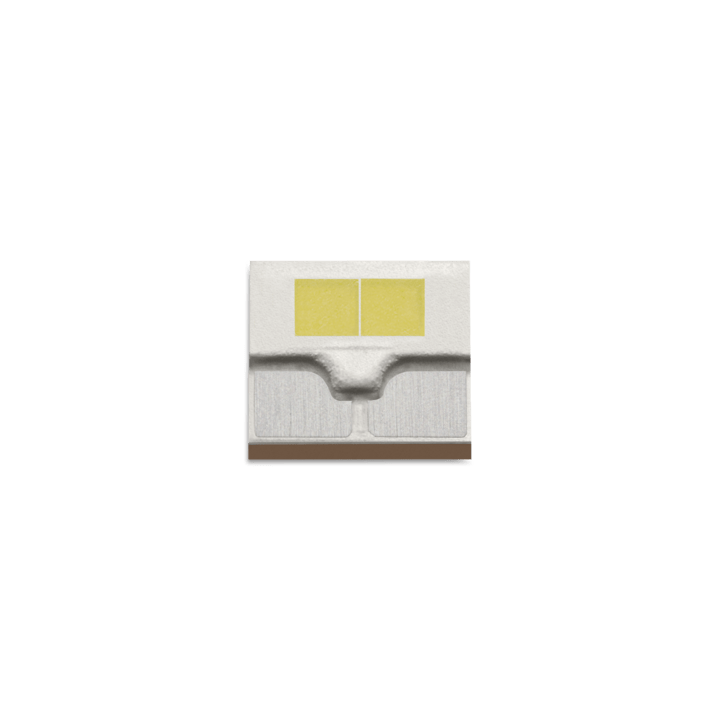

Cool White Cool White LUXEON Altilon TopContact 1×2 1000 1500 714 A1ST-58502DH5xxxx0

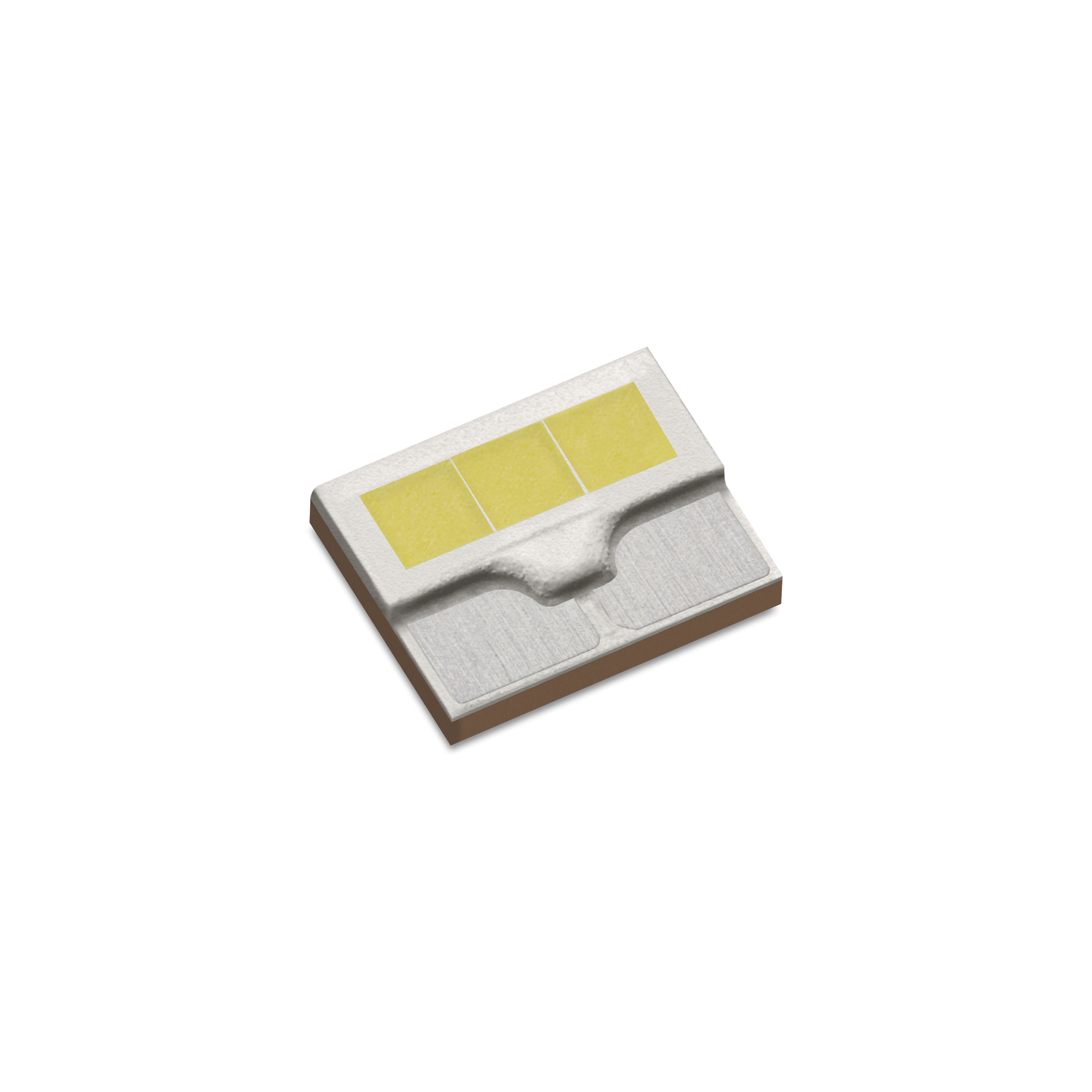

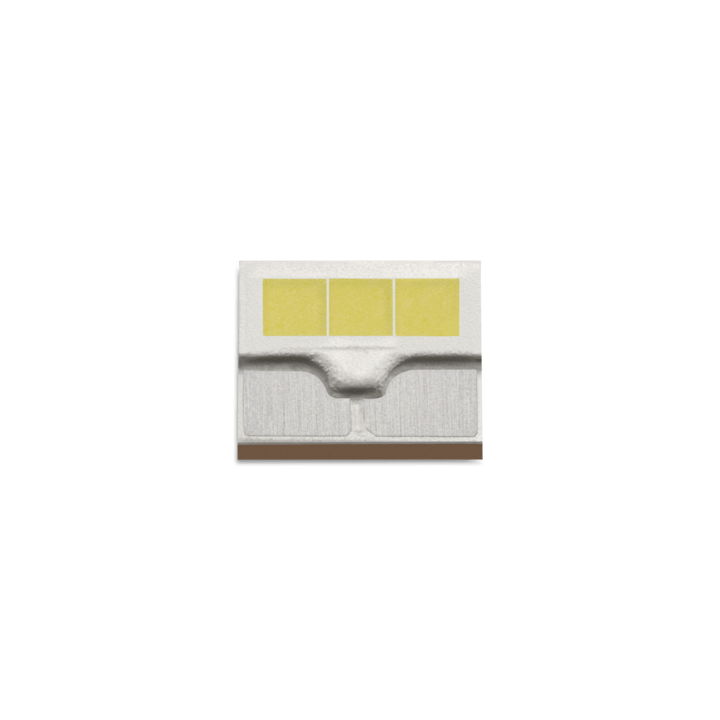

Cool White Cool White LUXEON Altilon TopContact 1×3 1000 1500 1071 A1ST-58503DH5xxxx0

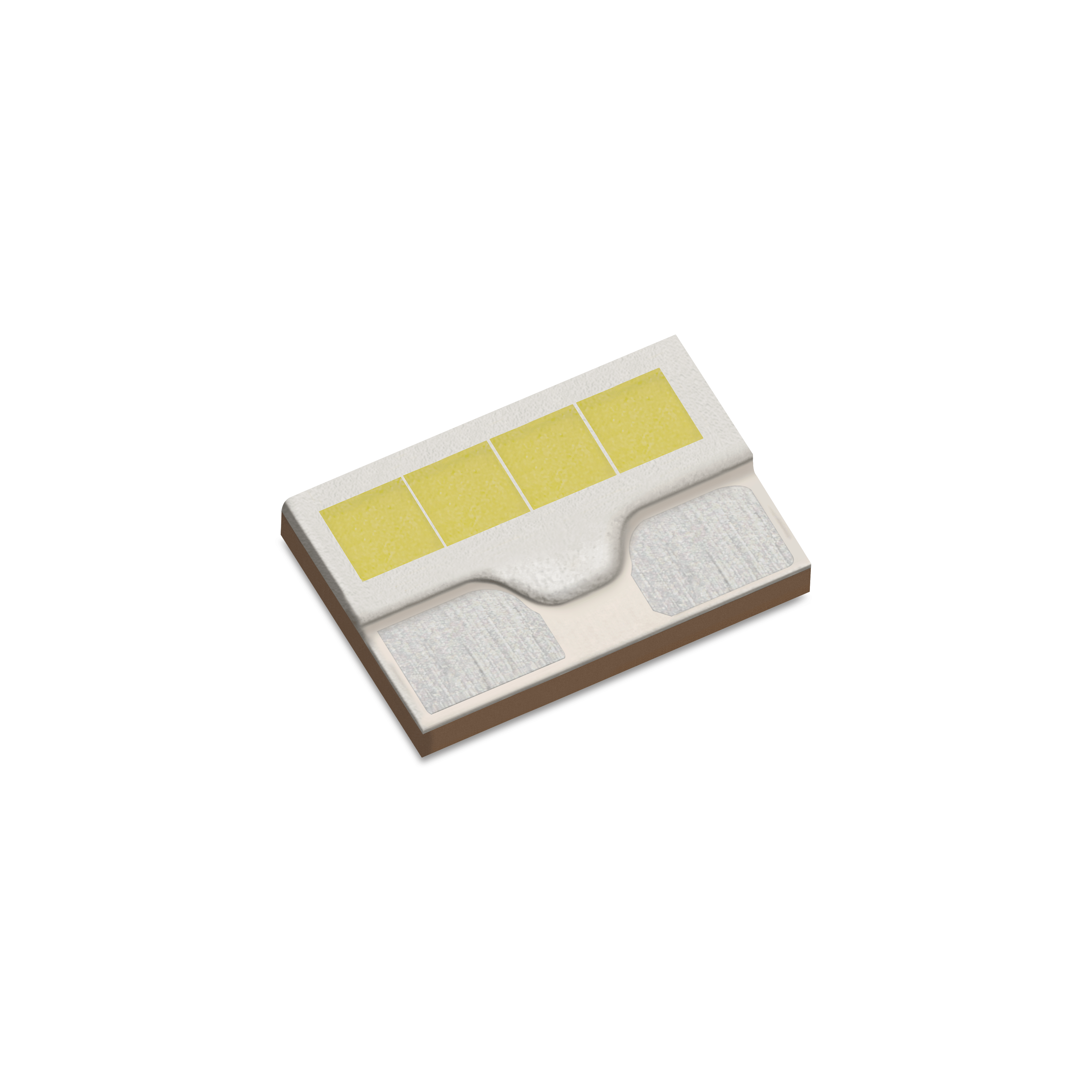

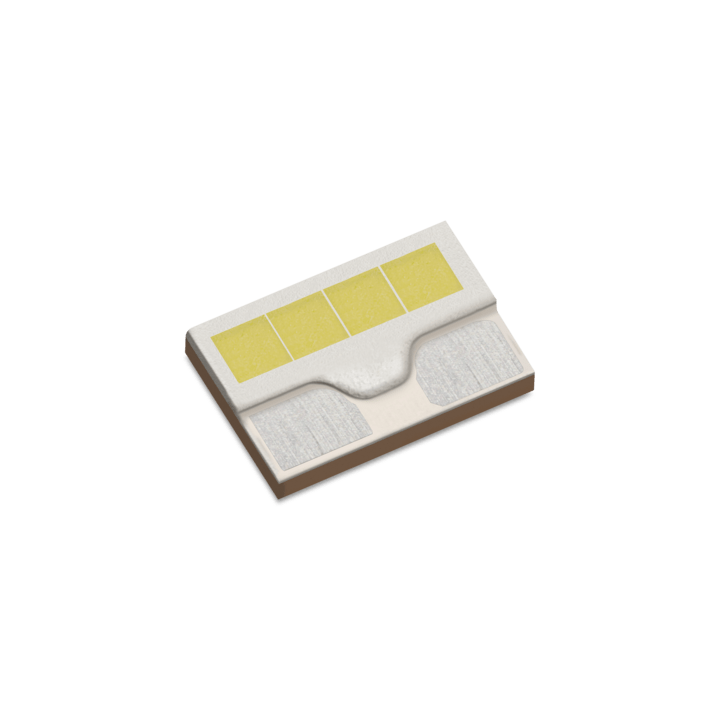

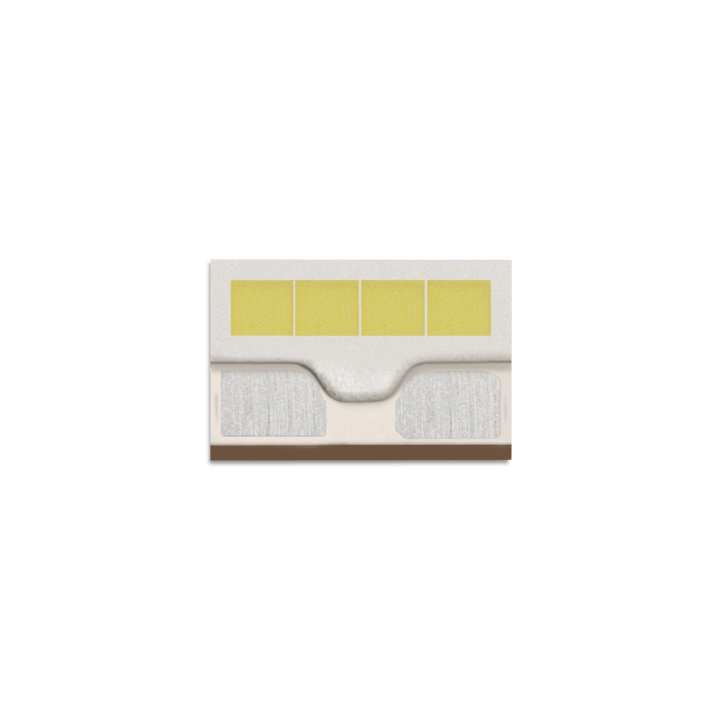

Cool White Cool White LUXEON Altilon TopContact 1×4 1000 1500 1428 A1ST-58504DH5xxxx0

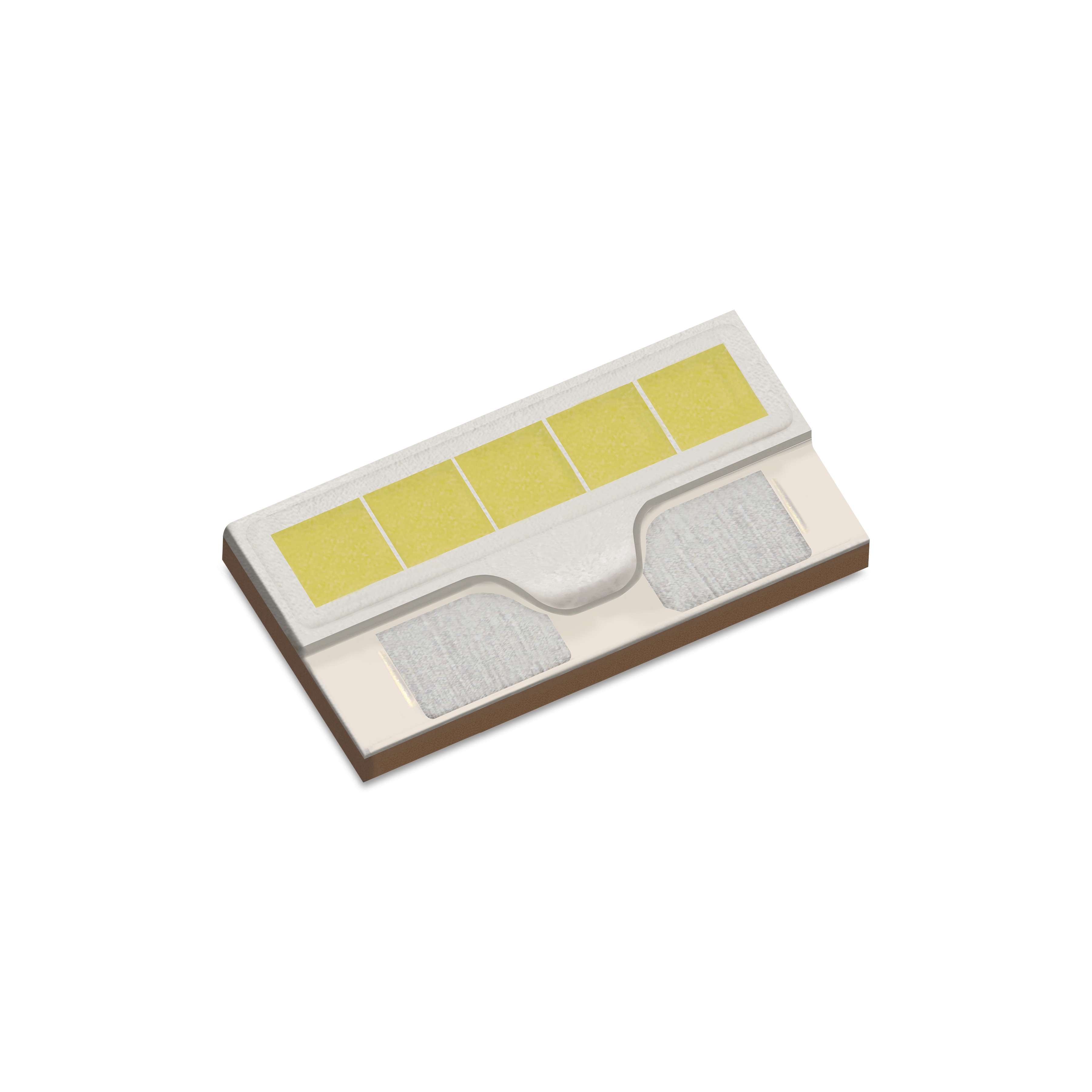

Cool White Cool White LUXEON Altilon TopContact 1×5 1000 1500 1785 A1ST-58505DH5xxxx0

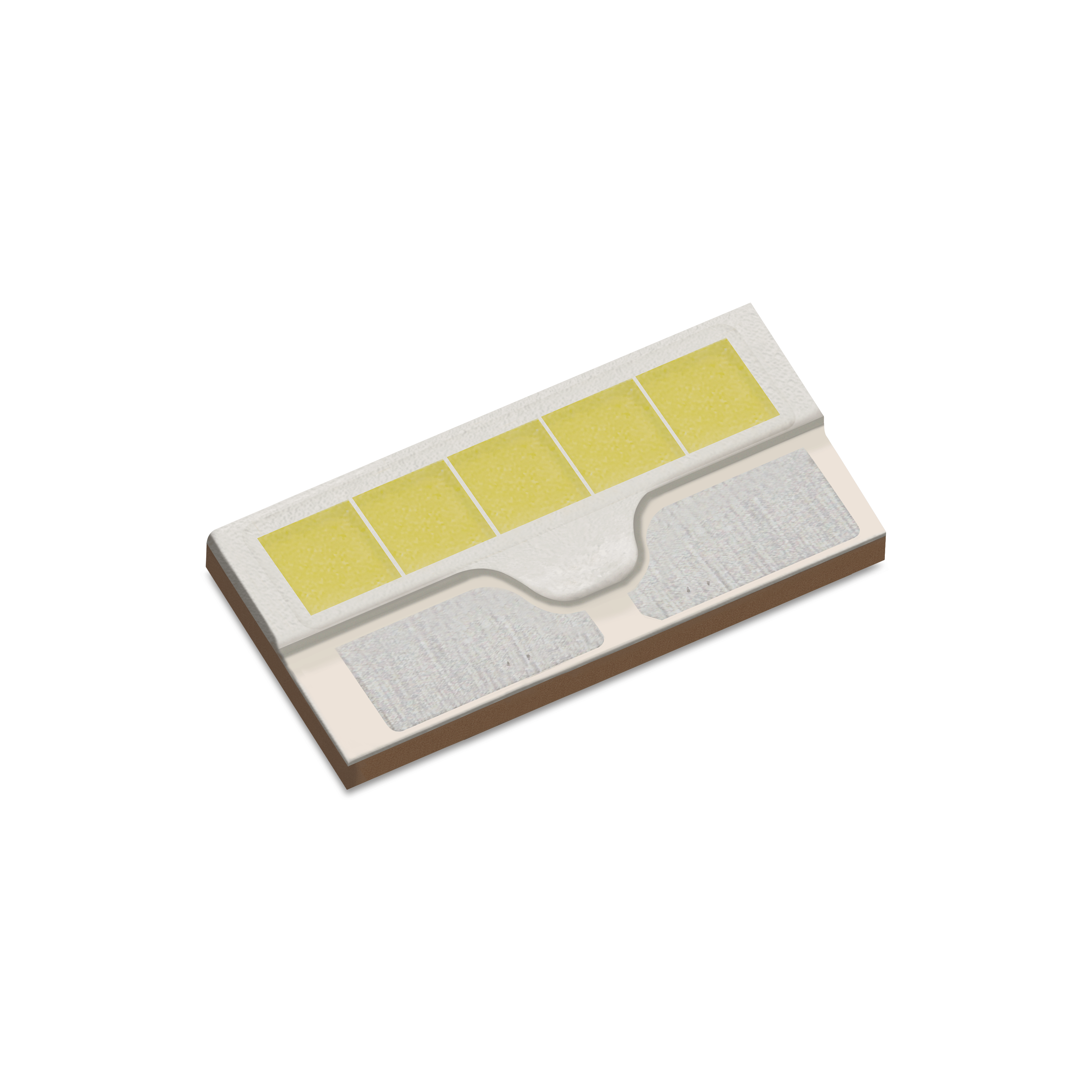

Cool White Cool White LUXEON Altilon TopContact 1×5L 1000 1600 1895 A1SU-58505DH5xxxx0

Expand Media

Applications

  • Adaptive Lighting
  • High Beam
  • Low Beam
  • Daytime Running Lights
  • Static bending Lights
  • Fog Lights
Expand Applications
