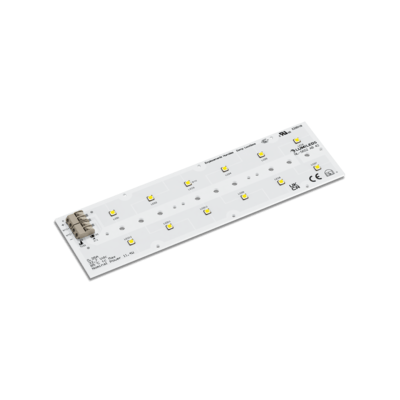

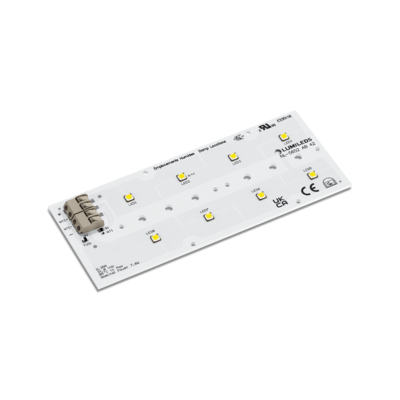

LUXEON XR-HL2X is a standard integrated module compatible with off-the-shelf drivers, optics, and heat sinks. These versatile building blocks feature 8, 12, or 16 LUXEON HL2X LEDs on a MCPCB substrate for thermal efficiency and mechanical robustness. This approach simplifies system integration and accelerates time-to-market.



LUXEON XR-HL2X and EU Ecodesign: Please consult the product datasheet for details including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019/2015. LUXEON XR-HL2X part numbers are in energy efficiency class D.

Product performance of LUXEON XR-HL2X at 350mA, Tc=80°C.

Nominal CCT Minimum CRI Luminous Flux (lm) Typical Luminous
Efficacy (lm/W)
Part Number
Minimum Typical
3000K 70 1315 1326 174 L2H2-3070008MLU010
4000K 70 1364 1407 184 L2H2-4070008MLU010
3000K 70 1972 1988 174 L2H2-3070012MLU010
4000K 70 2046 2110 184 L2H2-3070012MLU010
3000K 70 2630 2651 174 L2H2-3070016MLU010
4000K 70 2728 2814 184 L2H2-4070016MLU010

Documentation

Design Resources

How to Buy

Features & Benefits

  • Efficacy and luminous flux of up to 184lm/W typical and 2800lm of output
  • CCT/CRI Options:3000K, 4000K (70 CRI)
  • Board level color control of ≤ 5SDCM
  • MCPCB for efficient heat dissipation and mechanical robustness
  • UL 8750, ENEC, CE, UKCA compliance
  • 5-year limited guarantee

Applications

  • High Bay
  • Low Bay
  • Sport Lights
  • Outdoor Area Lights
  • Roadway Lights
